Samson Stage v166 Manuel utilisateur

Stage v166:

Handheld Wireless System

OWNER'S MANUAL

Samson Technologies Corp.

45 Gilpin Avenue

Hauppauge, New York 11788-8816

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 631-784-2201

www.samsontech.com

Owner's Manual 3Stage v166: Handheld Wireless System

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Important Safety Information

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of non-insulated“dangerous volt-

age”within the product’s enclosure that may be of sucient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance instructions

in the literature accompanying the appliance.

If you want to dispose this product, do not mix it with general household waste. There is a

separate collection system for used electronic products in accordance with legislation that

requires proper treatment, recovery and recycling.

Private household in the 25 member states of the EU, in Switzerland and Norway may return their used

electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar

new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and

recycling and thus prevent potential negative effects on the environment and human health.

ATTENTION

RISQUE D’ÉLECTROCUTION !

NE PAS OUVRIR !

WARNING

TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RE-

CEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE

EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND

FULLY INSERT.

4Stage v166: Handheld Wireless System

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation open-

ings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers,

stoves, or other apparatus (including

ampliers) that produce heat.

9. Do not defeat the safety purpose

of the polarized or grounding type

plug. A polarized plug has two

blades with one wider than the

other. A grounding type plug has

two blades and a third grounding

prong. The wide blade or the third

prong are provided for your safety.

If the provided plug does not t into

your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at

the plugs, convenience receptacles,

and at the point where they exit from

the apparatus.

11. Only use attachments/accessories

specied by the manufacturer.

12. Use only with the cart, stand, tripod,

bracket, or table specied by the

manufacturer, or sold with the ap-

paratus. When a cart

is used, use caution

when moving the cart/

apparatus combina-

tion to avoid injury

from tip-over.

13. Unplug the apparatus during light-

ening, sort or when unused for long

periods of time. Refer all servicing

to qualied personnel. Service is re-

quired when the apparatus has been

damaged in any way, such as power

supply cord or plug is damaged, liq-

uid has been spilled or objects have

fallen into the apparatus has been

exposed to rain or moisture, does

not operate normally, or has been

dropped.

14. This appliance shall not be exposed

to dripping or splashing water and

that no object lled with liquid such

as vases shall be placed on the ap-

paratus.

15. Caution-to prevent electrical shock,

match wide blade plug wide slot

fully insert.

16. Please keep a good ventilation envi-

ronment around the entire unit.

17. The direct plug-in adapter is used as

disconnect device, the disconnect

device shall remain readily operable.

18. Batteries(battery pack or batteries

installed) shall not be exposed to

excessive heat such as sunshine, re

or the like.

Owner's Manual 5Stage v166: Handheld Wireless System

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Table of Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Receiver Controls and Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Transmitter Controls and Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6Stage v166: Handheld Wireless System

Congratulations on purchasing the Samson Stage v166 Wireless Microphone System! The Stage

v166 system is the perfect solution for any application requiring high quality, wireless micro-

phones in an easy to use, compact package. The system features the SR166 receiver and HT6

handheld microphone transmitter.

With the Stage v166 system, you’ll have great sound quality with clear reception, and the ability

to walk freely around your venue. For any live sound application (karaoke, schools, conferences,

houses of worship, etc.) the Stage v166 is the ideal tool for your wireless microphone needs. The

Stage v166 always provides outstanding performance and reliability.

Although this product is designed for intuitive operation, we suggest you take some time to

go through these pages to learn how we’ve implemented a number of unique features, and to

get step-by-step instructions for setting up your system. If your Stage v166 was purchased in

the United States, you’ll also nd a warranty card enclosed—please don’t forget to ll it out and

mail it in so that you can receive online technical support, and so that we can send you updated

information about this and other Samson products. Also, be sure to check out our website

(www.samsontech.com) for complete information about our full product line.

We recommend that you record your serial number in the space provided below, for future refer-

ence.

Serial number:_______________________________

Date of purchase:____________________________

Should your unit ever require servicing, a Return Authorization (RA) number must be obtained

before shipping your unit to Samson. Without this number, the unit will not be accepted. Please

call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number prior to shipping your unit.

Please retain the original packing materials and, if possible, return the unit in the original carton.

If you purchased your Samson product outside the United States, please contact your local dis-

tributor for warranty information and service.

Features

• Professional, handheld wireless system.

• Easy setup and operation.

• Crystal-controlled, Superheterodyne circuitry for clear and reliable reception.

• ¼”output

• Up to 250’of line-of-sight operating range.

• HT6 handheld microphone transmitter with mute switches

• Transmitter provides nine hours of battery life, using standard 9-volt batteries.

Introduction

Owner's Manual 7Stage v166: Handheld Wireless System

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

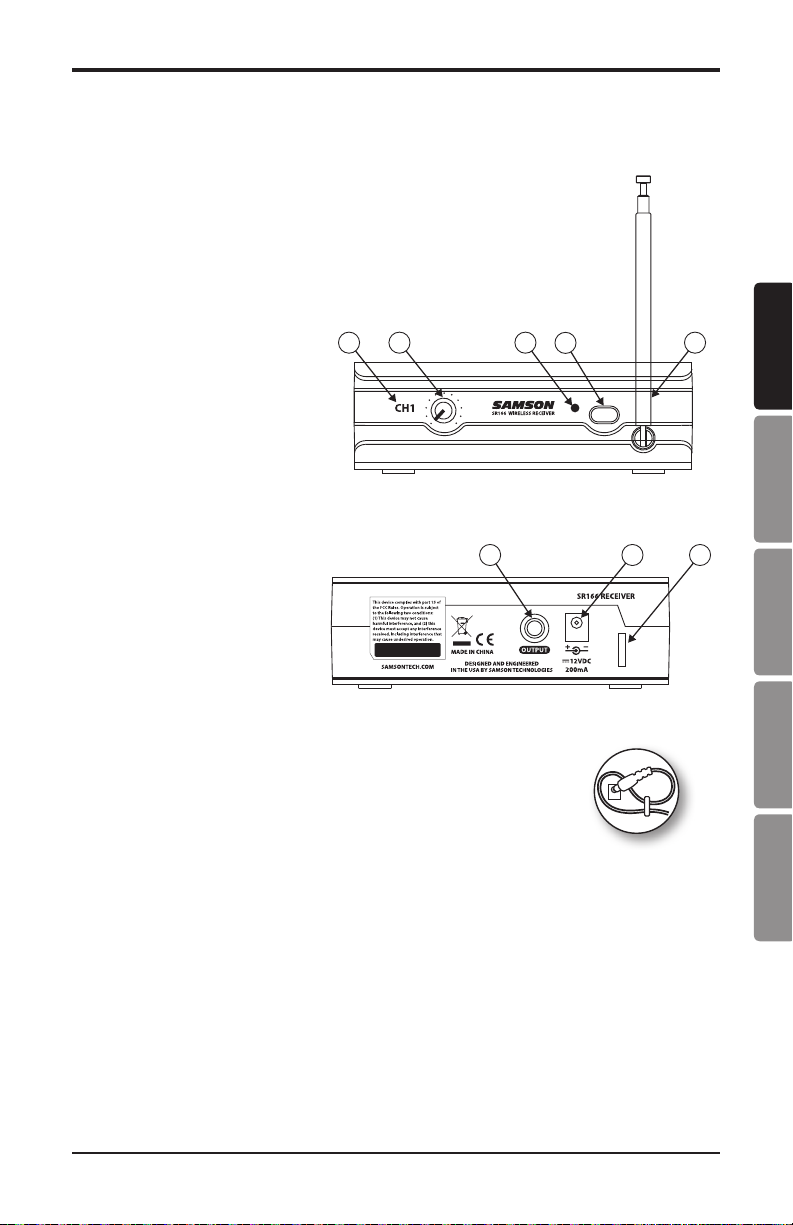

1. Power Switch - Press to turn the receiver on or o.

2. Power Indicator - Lights red when

the receiver is powered on.

3. Volume Control - Rotate to adjust

the level of the audio signal out-

put from receiver.

4. RF Indicator - Lights green when

the HT6 transmitter is powered on,

and there is an RF signal present

and detected by the receiver.

5. Antenna - The antenna mountings

allow full rotation for optimum

placement. In normal operation,

both antennas should be placed

in a vertical position. The anten-

nas can be folded inward for

convenience when transporting

the SR166.

6. DC Input - Connect the sup-

plied 12-volt, 200 mA power

adapter here.

WARNING: The substitution

of any other kind of power

adapter can cause severe dam-

age to the SR166 and will void

your warranty.

7. Output - Use this unbalanced, ¼”jack to connect the SR166 receiver to the line level input of

a mixer, amplifier, or other audio equipment.

8. Adaptor Strain Relief - Loop the included adaptor’s cord through the

strain relief to prevent the plug from accidentally detaching from the

receiver.

6 87

234 15

SR166 Receiver Controls and Features

6 87

234 15

8Stage v166: Handheld Wireless System

1. Audio ON/OFF Switch - When set to the ON position, audio signal

is transmitted. When set to the OFF position, the audio signal is

muted. Note that moving this switch to the OFF position does not

turn o the transmitter power—it is simply a way to temporarily

mute the transmission of audio signal. When not in use for extended

periods, the transmitter power should be turned o by using the

power ON/OFF switch.

2. Power ON/OFF Switch - Use this switch to turn the HT6 on or o (to

conserve battery power, be sure to leave it o when not in use).

Be sure to mute the audio signal at your external mixer or amplifier

before turning transmitter power on or off, or an audible pop may

result.

3. Power Indicator - LED lights green when the transmitter is powered

on.

4. Battery Compartment - Insert a standard 9-volt alkaline battery

here. Be sure to observe the plus and minus polarity markings when

installing the battery. We recommend the Duracell MN 1604 type

battery for use with this device. Although rechargeable Ni-Cad

batteries can be used, they do not supply adequate current for more

than four hours.

WARNING: Do not insert the battery backwards; doing so can cause

severe damage to the HT6 and will void your warranty.

5. Channel Marking - Printed number corresponding to the appro-

priate channel on the SR166 receiver.

HT6 Transmitter Controls and Features

Owner's Manual 9Stage v166: Handheld Wireless System

ENGLISH

FRANÇAISDEUTSCHEESPAÑOLITALIANO

Quick Start Guide

Follow these basic procedures for setting up and using your Stage v166 Series Wireless System.

1. Connect the SR166 receiver power

adaptor to the rear panel DC input, and

then to an electrical outlet.

2. Connect the receiver’s appropriate ¼” output to the input of a mixer, stereo, karaoke machine,

or any other line level input (see below).

Use the included ¼” to ¼” cable to connect

the SR166 receiver to a mixer.

Use the included ¼” to ¼” cable to connect

the SR166 receiver to karaoke machine.

1. Plugging the receiver into the wall.

2. Plugging the receiver into a mixer using 1/4" - 1/4" cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

1. Plugging the receiver into the wall.

2. Plugging the receiver into a mixer using 1/4" - 1/4" cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

1. Plugging the receiver into the wall.

2. Plugging the receiver into a mixer using 1/4" - 1/4" cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

10 Stage v166: Handheld Wireless System

3. While holding the upper section of the

HT6 transmitter, rotate the bottom section

and slide down to expose the battery

compartment.

Insert a standard 9-volt alkaline battery, being

sure to follow the plus and minus polarity

markings.

4. Turn on the HT6 transmitter by sliding the POWER switch

to the right, and replace the bottom section.

5. Place the SR166 receiver where it will be used (the general rule of thumb is to maintain“line

of sight” between the receiver and transmitters so that the person(s) using the transmitter can

see the receiver). Turn on the power of the SR166 receiver.

6. Turn on the connected amplifier and/

or mixer, but keep its volume all the

way down. Next, make sure that your

transmitter is un-muted by setting

its Audio switch to ON. Then, set the

Volume Control knob on the SR166

fully clockwise; this is unity gain.

Speak or sing into the mic at a normal

performance level while slowly raising

the volume of your amplifier/mixer until

the desired level is reached.

Quick Start Guide

1. Plugging the receiver into the wall.

2. Plugging the receiver into a mixer using 1/4" - 1/4" cable.

4. Plugging the receiver into a Karaoke machine using 1/4" - 1/4" cable.

Table des matières

Langues :

Autres manuels Samson Système de microphone

Samson

Samson Airline 77 Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson AirLine 77 AH1N Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson Airline 77 Manuel utilisateur

Samson

Samson Concert UHF Manuel utilisateur

Samson

Samson AirLine 77 AH7 Manuel utilisateur

Samson

Samson CONCERT 88X Manuel utilisateur

Samson

Samson Concert 77 Manuel utilisateur

Samson

Samson UHF Series One Manuel utilisateur

Samson

Samson CONCERT SERIES IV Manuel utilisateur

Samson

Samson UHF Series One Manuel utilisateur

Samson

Samson CONCERT 88X Manuel utilisateur

Samson

Samson UHF Synth 32 Manuel utilisateur

Samson

Samson Stage XPD1 Manuel utilisateur

Samson

Samson WSM Wireless System Manager for Windows 95 Manuel utilisateur

Samson

Samson UHF 801 Manuel utilisateur

Samson

Samson CONCERT 288M Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson DK705 Manuel utilisateur

Samson

Samson XPDm Manuel utilisateur

Samson

Samson Concert 288x Manuel utilisateur

Samson

Samson AirLine Manuel utilisateur

Samson

Samson Go Mic Manuel utilisateur

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
