INSTRUCTIONS AND WARRANTY

MODEL NO. RHFP62

DESCRIPTION: RUSSELL HOBBS FOOD PROCESSOR AND

BLENDER

Congratulations on purchasing our Russell Hobbs Food Processor. Each unit is

manufactured to ensure safety and reliability. Before using this appliance for the first

time, please read the instruction manual carefully and keep it for future reference.

FEATURES OF THE RUSSELL HOBBS FOOD PROCESSOR AND

BLENDER

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the food processor and cause

injury to the user.

4. The food processor is intended for household use only. Commercial use invalids

the warranty and the supplier can not be held responsible for injury or damage

caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This food processor is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the food

processor.

8. Check the power cord and plug regularly for any damage. If the cord or the plug

is damaged, it must be replaced by the manufacturer or a qualified person in

order to avoid an electrical hazard.

9. Do not use the food processor if it has been dropped or damaged in any way. In

case of damage, take the unit in for examination and/or repair by an authorised

service agent.

10. To reduce the risk of electric shock, do not immerse or expose the motor

assembly, plug or the power cord to water or any other liquid.

11. Never immerse the unit in water or any other liquid for cleaning purposes.

12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in

use, before cleaning or when adding or removing parts.

13. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

14. Care must be taken when dismantling and assembling the blender as the blades

are very sharp.

15. Never reach with your fingers in the feed tube.

16. Never place hard objects into the processor, the blades could become blunt.

17. The cover should only be removed when the tools are stationary.

18. Do not fill the processing bowl with hot liquids (only cold or warm).

19. For normal work (e.g.: stirring light dough) the appliance can be used for up to 2

minutes without stopping. It should cool down each time following prolonged,

continuous operation (for at least 1 minute after using for 2 minutes).

20. When processing heavy items (e.g.: 1kg dough, the appliance should not be

switched on for longer than 1 minute without stopping.

21. Always remove the tools and spindles before removing the contents of the bowl.

22. Do not exceed the maximum filling volume.

23. Please be careful with the metal blade, it is extremely sharp, store it with the

blade protector fitted.

24. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

25. Do not let the cord hang over the edge of a table or counter. Ensure that the cord

is not in a position where it can be pulled on inadvertently.

26. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas

or electric burner or in a heated oven.

27. Do not use the food processor on a gas or electric cooking top or over or near an

open flame.

28. Use of an extension cord with this appliance is not recommended. However, if it

is necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord,

appliance or plug point. Do not place the extension cord in a position where it can

be pulled on by children or animals or tripped over.

29. This food processor is not suitable for outdoor use. Do not use this appliance for

anything other than its intended use.

30. DO NOT carry the food processor by the power cord.

31. Do not leave this food processor unattended during use. Always unplug the unit

when not in use or before cleaning.

32. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

33. Ensure that the switch is in the “Off” position after each use.

34. The manufacturer does not accept responsibility for any damage or injury caused

by improper or incorrect use, or for repairs carried out by unauthorised

personnel.

35. In case of technical problems, switch off the machine and do not attempt to repair

it yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the

safe operation of this machine.

Safety System

The processor will only operate once the processing cover is correctly fitted.

PARTS DIAGRAM

A-Motor casing

B-Processing Bowl

C-Processing cover

D-Feed Tube (with pusher)

E-Spindle

F-Holding Disc

G-Whisking Disc

H-Plastic Blade

I-Metal Blade

J-Shredding Blade

K-Slicing Blade

L-Chipping Blade

M-Spatula

N-Speed control

P=pulse

0=off

1=Lowest speed

2=Highest speed

O-Ingredient cup

P-Blender cover

Q-Blender jug

OPERATING INSTRUCTIONS

Blender

The blender is used to prepare a wide range of mixed drinks, to crush ice and blend fruit

and vegetables.

Preparing the Blender

Place the blender cover (P) on the blender jug (Q) and turn it until the nose of the

cover is directly above the handle.

The blender will only switch on when the blender jug and cover is fitted correctly.

Operating

Open the blender cover and add all the required ingredients.

Caution: Do not exceed maximum filling volume of 1.5 litres!

To start appliance: turn speed selector (N) to position 1 and 2 or "P".

It is recommended to switch the appliance off before adding any further

ingredients through the filling inlet.

The Ingredient cup (O) can also be used as a filling beaker. Close the filling inlet

before operating the appliance to avoid splashing.

To switch the appliance off. Turn speed selector to the 0(off) position.

After mixing, turn blender jug clockwise and remove the cover.

Tips when using the Blender

The blender is very well suited for chopping small amounts of food such as nuts,

breadcrumbs or herbs.

Cut or break up foods to be processed into cubes of about 2 to 3 cm before

operating.

Always remove the seeds of fruit and bones from meat, since these can damage

the blade unit.

Crushing ice: always add a little water to the jug before crushing ice.

When processing dry mixtures it may be necessary to switch off the appliance

occasionally, to open the blender cover and scrape the mixture from the wall of

the jug with the spatula.

When mixing liquid and solid ingredients, first mix the liquid items and then add

the dry ingredients.

Allow hot liquids to cool before processing in the jug.

If hot ingredients must be processed, the blender jug must be aerated by

removing the blender cover.

Food Processor

The processing bowl is used to prepare a wide range of whisking cream, egg whites,

cutting, chopping, blending, shredding fruit, vegetables and meat.

Preparing the Food Processor

Always place the processing bowl (B) on the motor casing. Place processing

bowl on the motor casing and turn anti-clockwise to the stop (from arrow to

arrow ).

After inserting the processing bowl on motor casing, place the spindle (E) inside

the processing bowl.

Place the cover (C) on the processing bowl (arrow to arrow ) and turn anti-

clockwise to the stop.

Insert the pusher (D) in the feeding tube.

The Food Processor can only be switched on once the processing bowl and cover are

fitted correctly.

Operating

Open the cover (C) and place all ingredients required in the processing bowl.

Caution: Do not exceed maximum filling volume: 2 litres

It is recommended to switch the appliance off before adding any further

ingredients through the feeding tube.

The filling beaker in the pusher (D) can also be used for this purpose. Close the

feeding tube immediately before operating to avoid splashes.

Use the pusher exclusively to compress the cutting items.

Only remove the cover once the tool (whisking disc, holding disc, etc) has come

to a complete stop.

Remove the tool (whisking disc, holding disc, etc) and spindle.

Turn the processing bowl clockwise and remove the cover.

To start appliance, turn the speed selector (N) to position 1 and 2 or "P".

To switch the appliance off, turn the speed selector to the 0 (off) position.

Turn the processing bowl clockwise and remove.

Do not operate the appliance for longer than 2 minutes at a time. Wait for at least 1

minute before using the appliance again.

Multifunction section

Tools and their application possibilities

The following tools can be used in the multifunction section:

Whisking disc (G)

Whisking cream and egg whites, prepare cream and light dough.

Metal blade (I)

For chopping red meats, chocolate, nuts, etc.

The max. volume of red meat is 500g.

Plastic blade (fig.1/H)

Used for kneading and blending of heavy dough.

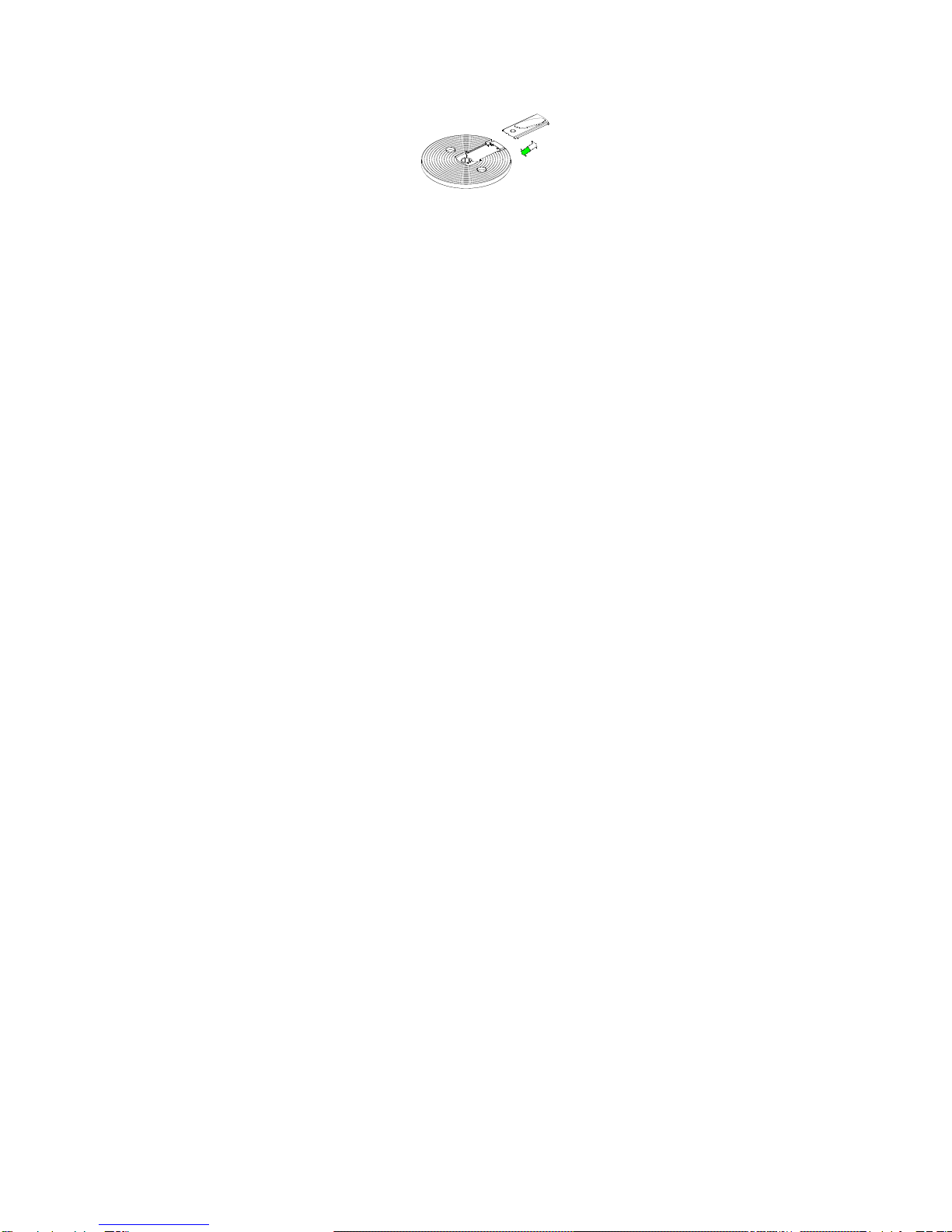

Holding disc (F) and blades

Place the desired blade inside the holder as shown.

1. Shredding blade (J) for chocolate, ginger, garlic, fruits and vegetables.

2. Slicing blade (K) for shredding fruit, vegetables, red meat etc.

3. Chopping blade (L) for cutting potatoes for French fries.

Please note:

The inserted blade must be fitted with the appropriate purpose of the application

-The holding disc rests on the hexagonal spindle.

-The whisking disc, metal blade and plastic blade fit in the teeth underneath the spindle.

Caution: The blades are very sharp.

Chopping

For the best, most uniform result, the food should be cut or broken up into pieces of

equal size before processing.

More uniform processing results are achieved if the container is not overloaded.

Minced meat

To make minced meat, first cut the meat into cubes of approx.2 cm squares

before processing.

Vegetables

Peel and quarter vegetables such as onions before processing.

Mixing

The amount for processing varies according to the viscosity of the foods

processed.

Adding ingredients

First add the dry ingredients such as flour in the bowl before processing.

The ingredients do not have to be mixed before processing.

Liquid ingredients can be added through the feeding tube while processing.

Note: When processing sauces or semi-liquid ingredients it may be necessary to switch

off the appliance occasionally, to open the cover of the processing bowl and scrape the

mixture from the wall of the bowl with the spatula.

Pulse function

With the pulse operation, the appliance runs at the highest speed.

Feeding tube

Correct supply of the foods through the feeding tube is very important.

Cut the prepared foods a little smaller if necessary, so that they pass easily

through the filling inlet.

Add the items for filling as vertically as possible simultaneously in the filling inlet.

Compress the items evenly with the stopper. The degree of pressure influences

the concentration of the cut food.

Only use the pusher for further additions. Never reach in the feed tube with ones fingers.

Note: There is always a little unprocessed food remaining between the pusher and the

holding disc.

CLEANING AND MAINTENANCE

This appliance is for household use only and is not user-serviceable.

Do not open or change any parts by yourself. Please refer to a qualified electrical

service department or return to the supplier if servicing is necessary.

Always remember to unplug the unit from the electrical outlet when not in use

and before cleaning. Ensure that the speed control is set to “0”.

It is much easier to clean the accessories directly after they have been used.

Wash them in warm, soapy water, rinse and dry well.

The body of the appliance and the stand should be cleaned with a damp cloth.

Do not let water enter the appliance or the stand.

Do not use bleach or other abrasive substance or solvents to clean your

appliance as it can be damaging to the finish.

To remove stubborn spots/marks, wipe the surfaces with a cloth slightly

dampened in soapy water or mild non-abrasive cleaner. Rinse and dry a clean,

dry, soft cloth.

Table des matières

Autres manuels Russell Hobbs Mixer

Russell Hobbs

Russell Hobbs 21350 Manuel utilisateur

Russell Hobbs

Russell Hobbs 22241 Manuel utilisateur

Russell Hobbs

Russell Hobbs Explore Mix & Go Cool 21350-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 20230-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24732-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 20240-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 22980-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Blender Manuel utilisateur

Russell Hobbs

Russell Hobbs DESIRE RHBL5BLK Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs simply smoothie Manuel utilisateur

Russell Hobbs

Russell Hobbs 18990 Guide d'installation

Russell Hobbs

Russell Hobbs 21510-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHB315 Guide d'installation

Russell Hobbs

Russell Hobbs Mix & Go 23470-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24610 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHB315 Guide d'installation

Russell Hobbs

Russell Hobbs 14333 Manuel utilisateur

Russell Hobbs

Russell Hobbs 21350-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHB630 Guide d'installation

Russell Hobbs

Russell Hobbs RHSM3500 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs 26051 Manuel utilisateur

Russell Hobbs

Russell Hobbs 25960 Manuel utilisateur

Russell Hobbs

Russell Hobbs 22990 Manuel utilisateur

Russell Hobbs

Russell Hobbs Blender Manuel utilisateur

Manuels Mixer populaires d'autres marques

ROTOR

ROTOR 1125.201 Manuel utilisateur

Braun

Braun Multiquick 5 Vario series Manuel utilisateur

ARENDO

ARENDO MIRA 305424 Manuel utilisateur

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuel utilisateur

Viconte

Viconte VC-4406 Manuel utilisateur

Oster

Oster BLSTAB-CB0 Manuel utilisateur

HOFFEN

HOFFEN MC-3005 Manuel utilisateur

Black & Decker

Black & Decker BLC18750DM Manuel utilisateur

Sunbeam

Sunbeam 4182 Manuel utilisateur

Bialetti

Bialetti FMX35 Manuel utilisateur

Black & Decker

Black & Decker BL8000 Manuel utilisateur

Duronic

Duronic BL530 Manuel utilisateur

Exquisit

Exquisit MS 3002 wes Manuel utilisateur

Lumme

Lumme LU-KP1891A Manuel utilisateur

Binatone

Binatone HB-735 Manuel utilisateur

Moulinex

Moulinex LM936E10 Manuel utilisateur

Oster

Oster VERSA Manuel d'installation et d'exploitation

Ninja

Ninja NN210Q Manuel utilisateur
