INSTRUCTIONS AND WARRANTY

RHB315

RUSSELL HOBBS

SATIN JUG BLENDER

Thank you for purchasing the Russell Hobbs Satin Jug Blender. Each unit has been

manufactured to ensure safety, reliability and ease of use. Before use, please read

these instructions carefully and keep them for further reference.

FEATURES OF THE RUSSELL HOBBS SATIN JUG BLENDER

Powerful 1000W motor

1.75L glass jug

5 speeds with pulse function

Pulse function for increased control when processing

Stainless steel blades

Detachable blade assembly for easy cleaning

Safety lock mechanism

Stainless steel switch with indicator light

Ideal for crushing ice, smoothies, cocktails, sauces and much more

Removable filter cap/ measuring cup for easy filling

Dishwasher safe parts

Non-sleep feet for added stability

For domestic use only

1 year warranty

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Read all instructions and save the instructions provided with this appliance.

2. Do not put the motor unit in water or any other liquid; do not use it in a bathroom or

near any source of water.

3. Do not use outdoors.

4. The blender must be used only by a responsible adult.

5. Switch OFF and unplug the blender from the main power supply outlet before

dismantling or cleaning.

6. The blender is fitted with a safety switch to prevent the motor operating unless the jug

is in place. Do not use this to switch the blender on and off.

7. Turn the switch to standby “0” / “OFF” before fitting/ removing the jug to/ from the

motor/ base unit.

8. Turn the switch to standby “0” / “OFF” and wait until the blades come to a complete

stop before removing the lid from the jug, and before removing the jug from the motor/

base unit.

9. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

10. Children should be supervised to ensure that they do not play with the appliance.

11. Do not use the blender without first locking the lid in place.

12. Do not fill the jug with boiling liquids. Allow liquids to cool to a lukewarm temperature

before you put them in the jug. This type of temperature would be comfortable to the

touch.

13. Do not put your hand into the jug, even when it has been removed for

cleaning –the blades are very sharp.

14. Do not come into contact with moving parts.

15. Do not put any other object (spoon, spatula, etc.) Into the jug while the blender

is plugged in.

16. Do not leave the blender unattended when plugged in.

17. Misuse of this appliance can result in injury.

18. Position the motor unit on a dry, firm, level surface, close to a power socket

and out of reach of children.

19. Route the mains lead so that it cannot be caught accidentally or tripped over.

20. Keep the blender and the mains lead away from hotplates, hobs and burners.

21. Store the blender away from direct sunlight and fluorescent light where

possible.

22. Do not let the jug overflow. If liquid gets under the motor unit, it may be

sucked into the motor, damaging it.

23. Do not fill the jug above the MAX. mark. If you do, the contents may force the

lid off when you start the motor.

24. The blender is equipped with a powerful motor and therefore processes very

quickly. Due to its efficiency there is no need to run the motor for more than 2

minutes at a time.

25. Do not run the motor for more than 2 minutes, either continuously, or using

the pulse setting, otherwise it may overheat. After 2 minutes use, switch it off

for at least 2 minutes allowing it to cool to room temperature and allowing it

recover.

26. Do not use the blender for any purpose other than those described in these

instructions.

27. Do not run the blender empty, as it may overheat.

28. Do not operate the blender after it malfunctions. If the mains lead or plug is

damaged, return the blender to the manufacturer in order to avoid any

hazard.

29. Children should be supervised to ensure that they do not play with the appliance.

30. Always turn the power off at the power outlet before you remove the plug.

Remove by grasping the plug. Do not pull on the electrical cord.

31. This appliance is designed for processing household quantities; it is not

suitable for commercial purposes. Use the appliance only for the purpose it

was designed for.

32. Do not use this appliance if it or parts of it show visible damage or if the

appliance has been dropped.

33. Do not attempt to make any modifications to this appliance.

34. To avoid any risk and to remain within warranty, repairs to this appliance

must be carried out by an authorised service agent only.

35. To reduce the risk of injury, never place the blade assembly on the base

without the jar properly attached.

36. If the supply cord is damaged, it must be replaced by the manufacturer, its

authorised service agent or similarly qualified persons in order to avoid any

hazard.

37. Switch off the appliance and disconnect from the power supply before

changing accessories or approaching parts that move when in use.

38. Use only accessories provided by the manufacturer for this appliance.

39. Do not run this appliance with an external timer or remote control system.

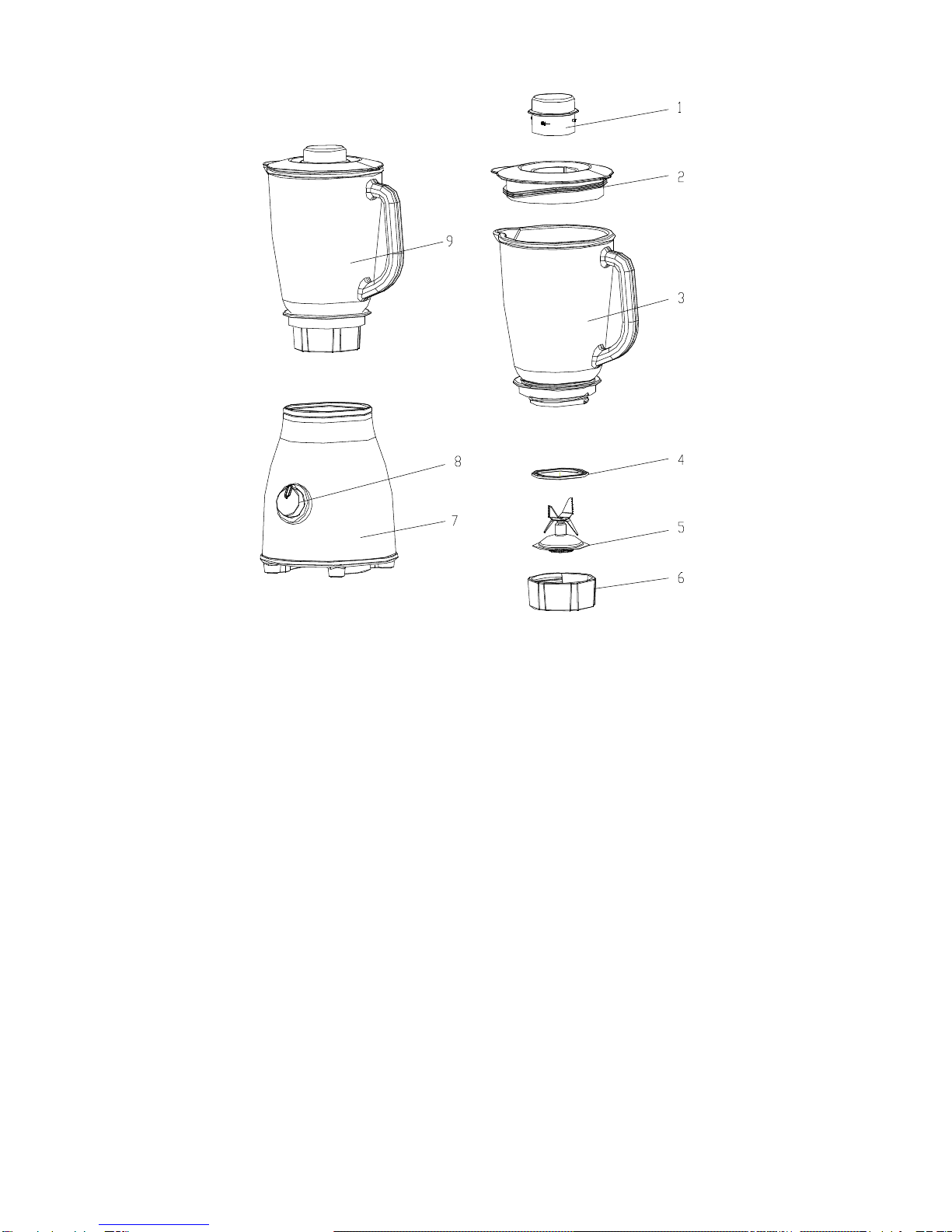

PARTS DIAGRAM

1. Measuring Cup

2. Jug Lid

3. Glass Jug

4. Blade Assembly Sealing Ring

5. Blade Assembly Unit

6. Blade Assembly Base

7. Motor Unit

8. Control Knob

9. Assembled Glass Jug

BEFORE FIRST USE

Before using your appliance for the first time take it out of the box and take off any protective

wrappings. REMEMBER: DO NOT LEAVE PROTECTIVE PACKAGING LYING AROUND, AS IT

COULD BE DANGEROUS AROUND INFANTS. Wash the jug, lid and cap in warm soapy

water, rinse well and dry. NOTE: The blades are sharp, handle with care.

OPERATING INSTRUCTIONS

Assembly of the Glass Jug

1. Put the sealing ring (4) on the inner edge of the blade unit (5).

2. Put the blade unit (5) with sealing ring into the blade assembly base (6).

3. Mount the glass jug (3) onto the blade assembly base. Turn the blade assembly base

in a clockwise direction until it is correctly tightened in place. Be careful not to turn it

too much as it may strip the thread inside the jug base unit.

4. Mount the fully assembly glass jug onto the motor/ base unit.

5. After putting the ingredients in the jug, put the lid (2) onto the jug by pressing down.

6. Insert the measuring cup (1) into the opening of the lid, and turn it in a clockwise

direction until it is locked in place.

Inserting the Glass Jug

1. Position the motor unit on a dry, firm, level surface, close to a power socket and out of

reach of children.

2. Make sure that the blender is switched off (Switched to the ‘0’ setting).

3. Place the fully assembled glass jug (9) onto the motor (7).

Use

1. Place the ingredients that you wish to process into the glass jug.

2. Put the lid on the glass jug and close securely. Place the measuring cup into the hole in

the lid and turn clockwise to lock. It is not a good idea to run the blender without the

measuring cup in place, especially if only solid ingredients are used. They may be

ejected through the hole once they hit the blades.

3. Switch on the motor:

Speed setting Use

Low (1-3) for light usage with liquids

High (4-5) for more solid consistency –for mixing liquids and solid foodstuffs

P for ice crushing & short, powerful bursts

Caution: Don’t remove the lid from the jug while the blender is ON.

4. After using the blender, always move the switch into the ‘0’ setting and remove the

mains plug from the power outlet.

5. To remove the glass jug just turn it in an anti-clockwise direction and then lift it up.

Pulse Function

The pulse function will give you a short burst at maximum speed, regardless of the

current speed of the blades. The button is spring-loaded. When you stop pressing,

it will return to the speed the switch is pointing at.

Crushing Ice

Before using the blender to crush ice, make sure it is clean and rinse it out thoroughly.

Any remaining trace of detergent may affect the taste of the crushed ice and will flatten

any drink to which it has been added.

Ice cubes come in many shapes and sizes. You will have to experiment with the ice

from your ice cube tray. Insert a maximum of 8 ice cubes and add 15ml (1 tablespoon)

of fresh cold water. Put the lid on the blender and turn the control knob to “P”. While the

unit is blending, hold for 2 seconds and release for 2 seconds. Note that too much

blending will reduce the ice to liquid, too little will merely chip the edges/corners off the

ice. Do not try to crush ice without adding water to the jug.

Do not be tempted simply to increase the amount of ice and blend for longer –this

will not work. Too much ice will never give you satisfactory results.

Adding Ingredients

If you need to add ingredients while the blender is working, lift the cap off, pour

the new ingredients through the hole then replace the measuring cup. Make

sure that the added ingredients do not push the volume in the jug past the

MAX. mark.

Tips for Using Your Blender

Do not blend dry, thick or heavy mixtures for more than 60 seconds continuously. Let

the appliance cool down before continue operating the appliance again.

Do not place the lid into boiling water as it may deform.

To achieve the best results when pureeing solid ingredients, place small portions

into the glass jug one by one instead of placing a large quantity all at once.

If you are processing solid ingredients, cut them into small pieces (2-3cm) first.

When mixing solid ingredients start off first with a small amount of liquid. Gradually

add more and more liquid through the opening in the lid.

For stirring solid or very thick liquid ingredients we recommend that you use the

blender in pulse mode to prevent the blades from becoming stuck.

Always place your hand on top of the blender when you are operating the device.

Be careful when processing lukewarm liquids.

SMOOTHIE RECIPES

Banana Smoothie

Ingredients:

1 Banana Peeled & Sliced

¼ Cup Oats

1Tbsp Honey

1 Tbsp Peanut Butter

100g flax seeds

150ml Yogurt

1 Cup Ice

Method:

1. Add all ingredients into the blender.

2. Pulse it at first to break the ice.

3. Blend for about 2 minutes until smooth.

Tip

This smoothie is great for sustained energy throughout the day. The banana has

high levels of potassium, helping you to quickly replenish electrolytes. (The riper a

banana, the higher the sugar content). The peanut butter is high in protein and the

raw oats is a Low GI filler. Flax seed is a great source of fibre and Omega 3 fatty

acids, and yoghurt contains protein, calcium, riboflavin, vitamin B6 and vitamin

Berry Smoothie

Ingredients:

1 Cup Strawberry, blueberry & Raspberry

150ml low fat ice cream/ frozen yogurt

1 Banana

1 Cup Ice

Method:

1. Add all ingredients into the blender.

2. Pulse it at first to break the ice.

3. Blend for about 2 minutes until smooth.

Tip.

- Strawberry –high in vitamin C and antioxidants.

- Blueberry - high level of antioxidants and may be considered the most

nutritional berry.

- Raspberry - sweet taste along with vitamin C, vitamin E, and a good weight loss

supplement.

- Banana - high in dietary fibre.

Coconut Smoothie

Ingredients:

1 Tin coconut milk

1 tablespoon sesame oil

1 tablespoon flax seeds

1 teaspoon vanilla extract

1 Tbsp Honey

1 Cup ice

Method:

1. Add all ingredients into the blender.

2. Pulse it at first to break the ice.

3. Blend for about 2 minutes until smooth.

Tip

- Sesame oil is a source of vitamin E which is an anti-oxidant and has been

correlated with lowering cholesterol levels.

- Flax seed is a great source of fibre and Omega 3 fatty acids.

Fruit & Muesli Smoothie

Ingredients:

1½ cups low-fat milk

2 tablespoons low-fat natural or vanilla yoghurt

Autres manuels pour RHB315

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Russell Hobbs Mixer

Russell Hobbs

Russell Hobbs RHSC055 Guide d'installation

Russell Hobbs

Russell Hobbs 20230AU Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs RHBL3000 Series Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs RHBL2000 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs Desire 24700-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14500 Manuel utilisateur

Russell Hobbs

Russell Hobbs 23180-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24702-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14333 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24720-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 25710-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 25720-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs BL3100RDR Manuel utilisateur

Russell Hobbs

Russell Hobbs 22990 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24601-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 24772 Manuel utilisateur

Russell Hobbs

Russell Hobbs 25161-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Aura 18995-56 Mise à jour du firmware

Russell Hobbs

Russell Hobbs RHJ3000 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs 24690-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHBL1300 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs RHB630 Guide d'installation

Russell Hobbs

Russell Hobbs Food 14449-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Desire 18990-56 Manuel utilisateur

Manuels Mixer populaires d'autres marques

ROTOR

ROTOR 1125.201 Manuel utilisateur

Braun

Braun Multiquick 5 Vario series Manuel utilisateur

ARENDO

ARENDO MIRA 305424 Manuel utilisateur

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuel utilisateur

Viconte

Viconte VC-4406 Manuel utilisateur

Oster

Oster BLSTAB-CB0 Manuel utilisateur

HOFFEN

HOFFEN MC-3005 Manuel utilisateur

Black & Decker

Black & Decker BLC18750DM Manuel utilisateur

Sunbeam

Sunbeam 4182 Manuel utilisateur

Bialetti

Bialetti FMX35 Manuel utilisateur

Black & Decker

Black & Decker BL8000 Manuel utilisateur

Duronic

Duronic BL530 Manuel utilisateur

Exquisit

Exquisit MS 3002 wes Manuel utilisateur

Lumme

Lumme LU-KP1891A Manuel utilisateur

Binatone

Binatone HB-735 Manuel utilisateur

Moulinex

Moulinex LM936E10 Manuel utilisateur

Oster

Oster VERSA Manuel d'installation et d'exploitation

Ninja

Ninja NN210Q Manuel utilisateur
