HART®

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009 Rosemount 3051

Rosemount 3051 Pressure Transmitter

Includes Transmitter Option TR

Start

End

Step 1: Mount the Transmitter

Step 2: Consider Housing Rotation

Step 3: Set Switches

Step 4: Connect the Wiring and Power Up

Step 5: Verify Configuration

Step 6: Trim the Transmitter

Safety Instrumented Systems Requirements

Product Certifications

4051 RevBA.fm Page 1 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009

Rosemount 3051

Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.

Emerson Process Management Rosemount

Division

8200 Market Boulevard

Chanhassen, MN USA 55317

T (US) (800) 999-9307

T (Intnl) (952) 906-8888

F (952) 949-7001

Emerson Process Management

GmbH & Co. OHG

Argelsrieder Feld 3

82234 Wessling

Germany

T 49 (8153) 9390, F49 (8153) 939172

Emerson Process Management

Asia Pacific Private Limited

1 Pandan Crescent

Singapore 128461

T (65) 6777 8211

F (65) 6777 0947/65 6777 0743

Beijing Rosemount Far East Instrument Co., Limited

No. 6 North Street, Hepingli, Dong Cheng District

Beijing 100013, China

T (86) (10) 6428 2233

F (86) (10) 6422 8586

IMPORTANT NOTICE

This installation guide provides basic guidelines for Rosemount 3051C/T transmitters

(reference manual document number 00809-0100-4051). It does not provide

instructions for diagnostics, maintenance, service, or troubleshooting. This document

is also available electronically on www.emersonprocess.com/rosemount.

WARNING

Explosions could result in death or serious injury:

Installation of this transmitter in an explosive environment must be in accordance with

the appropriate local, national, and international standards, codes, and practices.

Please review the approvals section of the 3051C/T reference manual for any

restrictions associated with a safe installation.

• Before connecting a HART communicator in an explosive atmosphere, ensure the

instruments in the loop are installed in accordance with intrinsically safe or

non-incendive field wiring practices.

• In an Explosion-Proof/Flame-Proof installation, do not remove the transmitter

covers when power is applied to the unit.

Process leaks may cause harm or result in death.

• Install and tighten process connectors before applying pressure.

Electrical shock can result in death or serious injury.

• Avoid contact with the leads and terminals. High voltage that may be present on

leads can cause electrical shock.

4051 RevBA.fm Page 2 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009 Rosemount 3051

STEP 1: MOUNT THE TRANSMITTER

Liquid Flow Applications

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Mount the transmitter so that the drain/vent

valves are oriented upward.

Gas Flow Applications

1. Place taps in the top or side of the line.

2. Mount beside or above the taps.

Steam Flow Applications

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Fill impulse lines with water.

low

4051 RevBA.fm Page 3 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009

Rosemount 3051

STEP 1 CONTINUED...

Panel Mount Pipe Mount

Coplanar™Flange

Traditional Flange

In-line

4051 RevBA.fm Page 4 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009 Rosemount 3051

STEP 1 CONTINUED...

Bolting Considerations

If the transmitter installation requires assembly of the process flanges, manifolds, or flange

adapters, follow these assembly guidelines to ensure a tight seal for optimal performance

characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by

Emerson as spare parts. Figure 1 illustrates common transmitter assemblies with the bolt

length required for proper transmitter assembly.

Figure 1. Common Transmitter Assemblies

Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the

markings on the head of the bolt and referencing Figure 2. If bolt material is not shown in

Figure 2, contact the local Emerson Process Management representative for more

information.

Use the following bolt installation procedure:

1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with

a lubricant to ease installation. However, no additional lubricant should be applied when

installing either type of bolt.

2. Finger-tighten the bolts.

3. Torque the bolts to the initial torque value using a crossing pattern. See Figure 2 for

initial torque value.

4. Torque the bolts to the final torque value using the same crossing pattern. See Figure 2

for final torque value.

5. Verify that the flange bolts are protruding through the isolator plate before applying

pressure.

4 x 1.75-in. (44 mm)

4 x 2.88-in. (73 mm)

A. Transmitter with

Coplanar Flange

B. Transmitter with Coplanar

Flange and Optional

Flange Adapters

C. Transmitter with Traditional

Flange and Optional Flange

Adapters

D. Transmitter with

Coplanar Flange and

Optional Manifold and

Flange Adapters

4 x 1.75-in. (44 mm) 4 x 1.50-in. (38 mm)

4 x 1.75-in. (44 mm)

4 x 2.25-in. (57 mm)

4051 RevBA.fm Page 5 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009

Rosemount 3051

STEP 1 CONTINUED...

Figure 2. Torque values for the flange and flange adapter bolts

O-rings with Flange Adapters

WARNING

Whenever the flanges or adapters are removed, visually inspect the o-rings. Replace them

if there are any signs of damage, such as nicks or cuts. If you replace the o-rings, re-torque

the flange bolts and alignment screws after installation to compensate for seating of the

PTFE o-ring.

Bolt Material Head Markings Initial Torque Final Torque

Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs.

Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs.

Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or

serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring

that is designed for its specific flange adapter, as shown below.

B7M

316

STM

316

B8M

Rosemount 3051S / 3051 / 2051 / 3001 / 3095

Rosemount 1151

Flange Adapter

O-ring

Flange Adapter

O-ring

PTFE Based

Elastomer

PTFE

Elastomer

4051 RevBA.fm Page 6 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009 Rosemount 3051

STEP 1 CONTINUED...

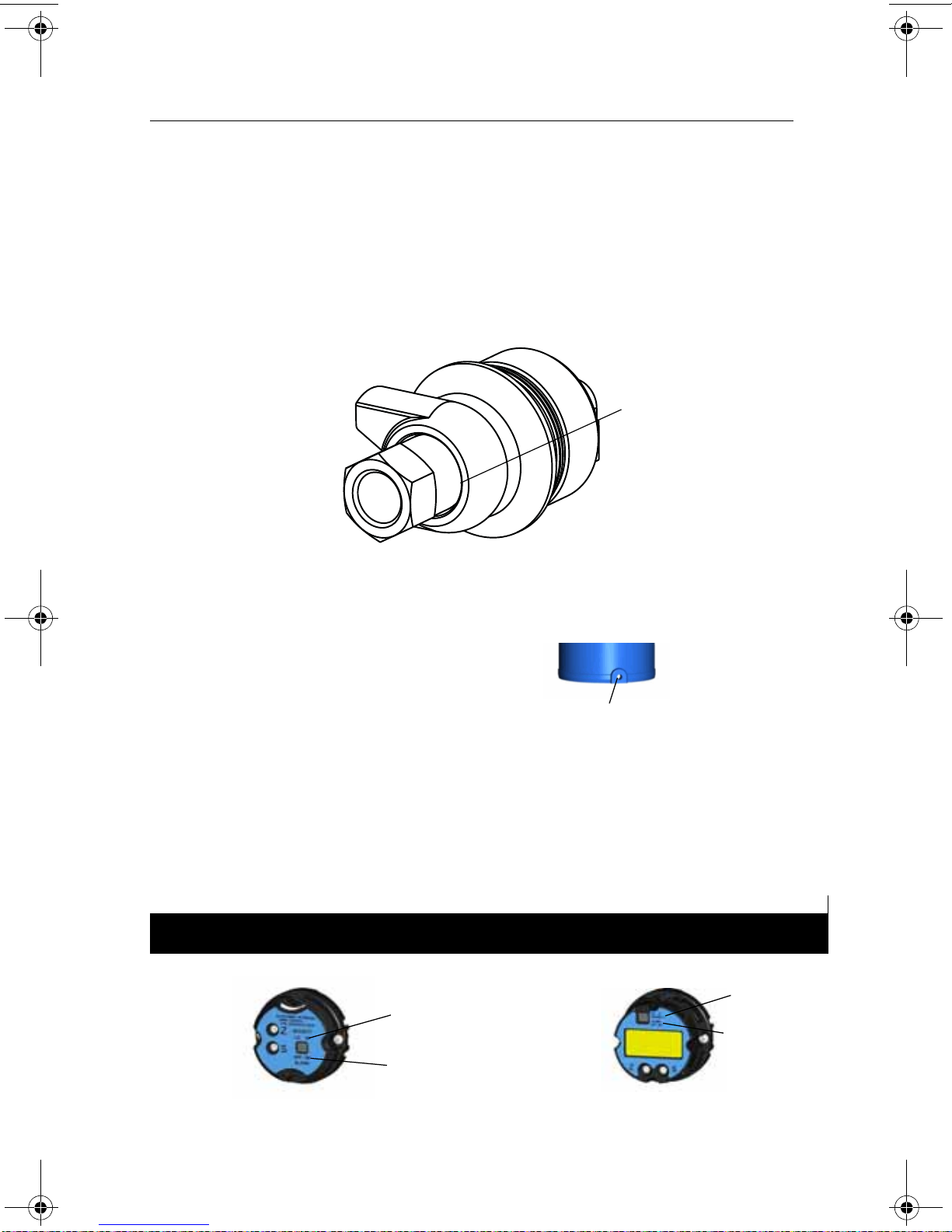

Inline Gage Transmitter Orientation

The low side pressure port (atmospheric reference) on the inline gage transmitter is located

in the neck of the transmitter, behind the housing. The vent path is 360° around the

transmitter between the housing and sensor. (See Figure 3.)

Keep the vent path free of any obstruction, including but not limited to paint, dust, and

lubrication by mounting the transmitter so that the process can drain away.

Figure 3. Inline Gage Transmitter

STEP 2: CONSIDER HOUSING ROTATION

STEP 3: SET SWITCHES (OPTION D1)

(

If alarm and security adjustment option is not installed, the transmitter will operate normally

with the default alarm condition alarm high and the security off.

To improve field access to wiring or to better

view the optional LCD display:

1. Loosen the housing rotation set screw.

2. First, using a 5/64-in. hex wrench, rotate the

housing clockwise to the desired location. If

the desired location cannot be achieved due

to thread limit, rotate the housing counter

clockwise to the desired location (up to 180°

from thread limit).

3. Retighten the housing rotation set screw.

Figure 4.

Figure 5. Transmitter Switch Configuration

Without LCD Display With LCD Display

Slide the security and alarm switches into the preferred position by using a small screwdriver.

Low side pressure port

(atmospheric reference)

Housing Rotation Set Screw

Security

Alarm

Security

4051 RevBA.fm Page 7 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009

Rosemount 3051

STEP 4: CONNECT WIRING AND POWER UP

Connect Wiring and Power Up

Use the following steps to wire the transmitter:

1. Remove the housing cover labeled “Field Terminals.”

2. Connect the positive lead to the “+” terminal, and the negative lead to the “–” terminal.

NOTE

Do not connect the power across the test terminals. Power could damage the test diode in

the test connection. Twisted pairs yield best results; shielded signal wiring is not necessary.

Use 24 AWG or larger wire and do not exceed 5,000 feet (1500 meters).

3. Plug and seal unused conduit connections.

4. If applicable, install wiring with a drip loop. Arrange the drip loop so the bottom is lower

than the conduit connections and the transmitter housing.

5. Replace the housing cover.

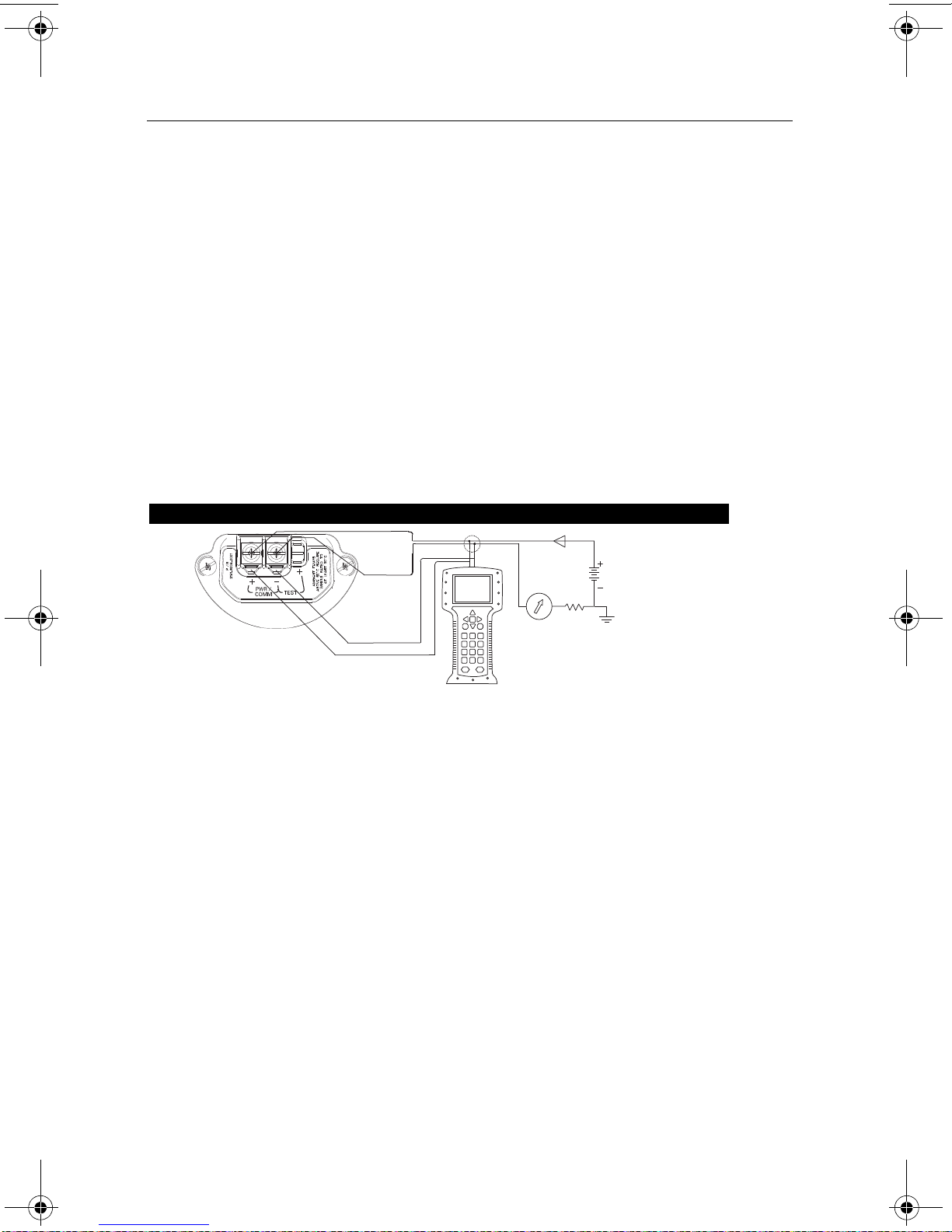

The figures below show the wiring connections necessary to power a 3051C/T and enable

communications with a hand-held HART communicator.

Transmitter Wiring (4-20 mA / HART)

Installation of the transient protection terminal block does not provide transient protection

unless the 3051 case is properly grounded.

RL250

Power

Supply

4051 RevBA.fm Page 8 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009 Rosemount 3051

STEP 4 CONTINUED...

Signal Wiring Grounding

Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical

equipment. Grounding terminations are provided on the outside of the sensor module and

inside the Terminal Compartment. These grounds are used when transient protect terminal

blocks are installed or to fulfill local regulations. See Step 2 below for more information on

how the cable shield should be grounded.

1. Remove the Field Terminals housing cover.

2. Connect the wiring pair and ground as indicated in Figure 6. The cable shield should:

a. Be trimmed close and insulated from touching the transmitter housing.

b. Continuously connect to the termination point.

c. Be connected to a good earth ground at the power supply end.

Figure 6. Wiring

3. Replace the housing cover. It is recommended that the cover be tightened until there is

no gap between the cover and the housing.

4. Plug and seal unused conduit connections.

PWR/

COMM TEST

P/N

3151-9004-0001

AMBIENT TEMPS

AVOVE 60 REQUIRE

WIRING RATED TO

AT LEAST 90 C

Trim shield and

insulate

Insulate

Shield

Connect Shield Back to the

Power Supply Ground

Ground for

Transient

Protection

Minimize

Distance

Minimize

Distance

4051 RevBA.fm Page 9 Monday, June 22, 2009 3:15 PM

Quick Installation Guide

00825-0100-4051, Rev BA

June 2009

Rosemount 3051

STEP 4 CONTINUED...

Power Supply

The dc power supply should provide power with less than two percent ripple. The total

resistance load is the sum of the resistance of the signal leads and the load resistance of

the controller, indicator, and related pieces. Note that the resistance of intrinsic safety

barriers, if used, must be included.

Figure 7. Load Limitation

Maximum Loop Resistance =

43.5 * (Power Supply Voltage – 10.5)

The HART communicator requires a minimum loop

resistance of 250for communication.

Voltage (V dc)

Load (Ohms)

Operating

Region

1387

1000

500

010.5 20 30 42.4

4051 RevBA.fm Page 10 Monday, June 22, 2009 3:15 PM

Autres manuels pour 3051

Table des matières

Autres manuels Rosemount Émetteur

Rosemount

Rosemount FISHER-ROSEMOUNT 244EH Manuel utilisateur

Rosemount

Rosemount 3144P Manuel utilisateur

Rosemount

Rosemount 248 Manuel utilisateur

Rosemount

Rosemount 3051SMV Manuel utilisateur

Rosemount

Rosemount 148 Manuel utilisateur

Rosemount

Rosemount 3107 Mode d’emploi

Rosemount

Rosemount 2240S Manuel utilisateur

Rosemount

Rosemount 3144P Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Rosemount

Rosemount 2051 Manuel utilisateur

Rosemount

Rosemount 8732E Manuel utilisateur

Rosemount

Rosemount 3108 Manuel utilisateur

Rosemount

Rosemount 248 Manuel utilisateur

Rosemount

Rosemount 3152 Manuel utilisateur

Rosemount

Rosemount 8732 Series Manuel utilisateur

Rosemount

Rosemount 848T Manuel utilisateur

Rosemount

Rosemount 3244MV Manuel utilisateur

Rosemount

Rosemount 8712C Manuel utilisateur

Rosemount

Rosemount 2088 Manuel utilisateur

Rosemount

Rosemount 8732E Manuel utilisateur

Rosemount

Rosemount 4088A MultiVariable Manuel utilisateur

Rosemount

Rosemount 3144 Manuel utilisateur

Rosemount

Rosemount 2051CF Series Manuel utilisateur

Rosemount

Rosemount OCX 8800 Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur

Excalibur

Excalibur SoundMaster FM Transmitter 144 Manuel utilisateur
