Quick Installation Guide

This manual provides instructions for quick installation and basic configuration of your IP device.

www.rivatech.de

Step1. Connect cables to IP device

Connect required cables to the device including the power cable and LAN cable. To see the

correct positions of all connectors, refer to the following image below.

Make sure the polarity is correct. Incorrect connection

may cause malfunction or damage to the IP device.

Caution

Power Adaptor Connector

(DC 12V)

* Model design and appearance are subject to change without any prior notice

Reset Button

Output Configuration

buttons with

PAL/NTSC button*

This button is located

under PCB.

*Pressing the button

cycles through PAL, NTSC,

and no video output mode:

No video output -> PAL-

>NTSC

. Video out is used

only for installation and

works for 3 minutes when

PAL/NTSC button is

pushed.

LAN Connector

Power Connector

* Clamping core is used to prevent

electromagnetic interference

Clamping Core

www.rivatech.de

Step2. Install IP device

To prevent products from damaging, place the camera on stable and non-

vibrating surfaces If the stability is in doubt, consult with safety personnel for

reinforcements, and then proceed with the installation.

Caution

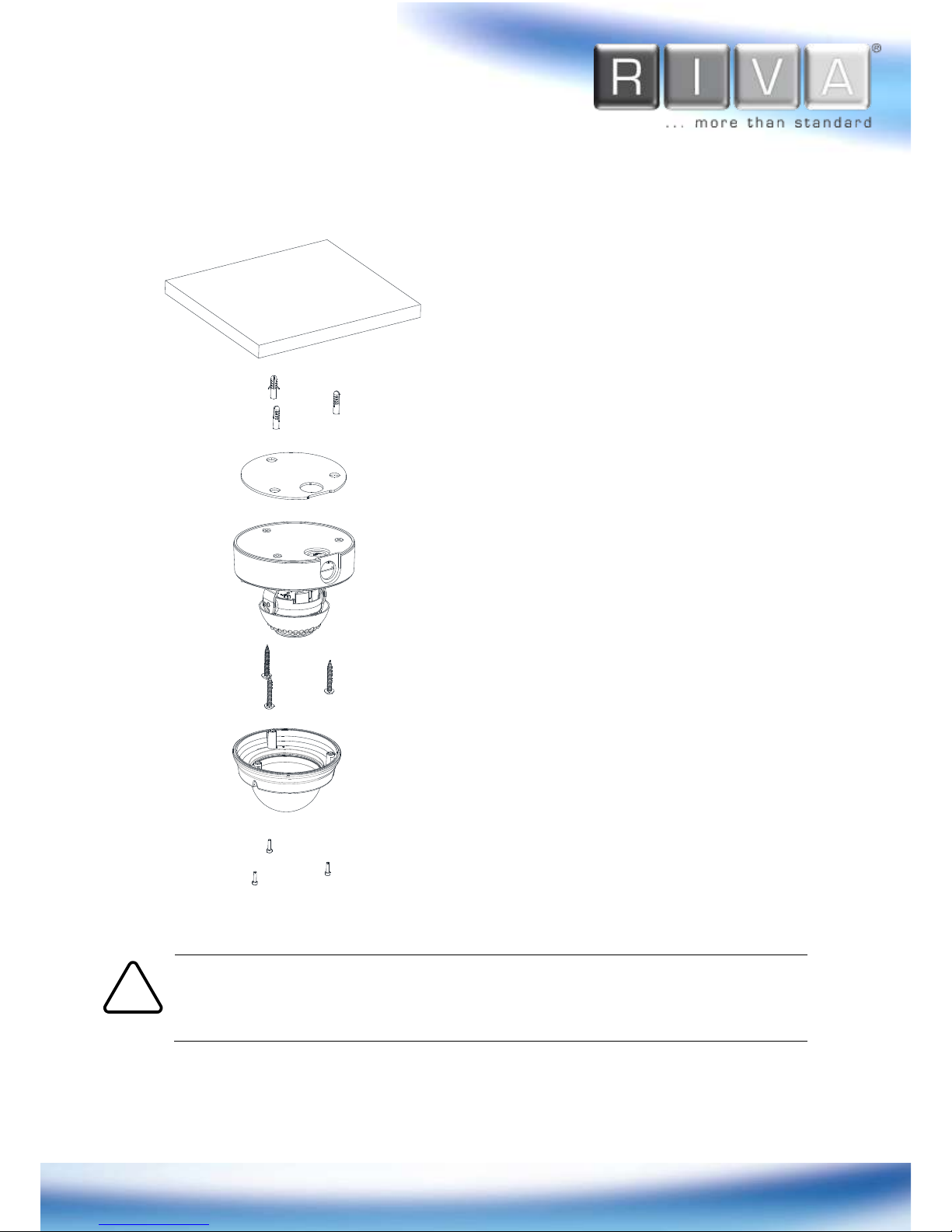

1) Place the installation template (paper)

that is included in the package on the

desired installation surface.

2) Drill three holes in correct positions

based on the template paper, and insert

anchor blocks into the holes.

3) Place the waterproof silicon band on

the bottom plate of the device and make

it align with screw holes.

4) Place the camera body to the

installation surface and match three

alignment holes with three anchor

blocks. Then tighten the surface anchor

studs.

5) Connect all the required cables to the

camera.

6) Adjust the lens position.

7) Place the dome cover on the main

body of the camera. Dome cover has

three alignment holes that match

camera body’s alignment holes.

8) Once properly placed, insert screws

into the three holes of the body and

tighten them up.

www.rivatech.de

Step3. Set the lens position

1) Remove the dome cover.

2) Set the lens position by rotating the camera gimbal; to pan, rotate the reinforced lower

body of the gimbal; to tilt, vertically adjust the camera gimbal.

Refrain from continuously rotating the camera gimbal with excessive force to a

single direction as it is attached with the IR-LED cable inside the dome.

3) The figure and table below explains the lens push buttons settings.

Caution

SW1

SW2

SW3

PAL/NTSC

TELE

WIDE

SW4

SW5

SW6

FAR

NEAR

Auto-

Focus

B. To pan, rotate the lower

body of the camera gimbal

C. Tilt the lens by vertically

adjusting the camera gimbal

A. To adjust lens position,

rotate the camera gimbal

www.rivatech.de

Step4. Set up network environment

The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of

the device from converting the MAC address’s hexadecimal numbers, which is attached to the

device. Be sure that the device and PC are on a same area network before running the

installation.

Generic IP Environment

In case of generic private network environment where IP address 192.168.XXX.XXX are

used, users may view the live streaming images on a web page using the device’s default IP

address:

1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal

Conversion Chart at the end of the manual.

(The MAC address of the device is attached on the side or bottom of the device.)

2. Start the Microsoft® Internet Explorer web browser and enter the IP address of the device.

3. Web streaming and device configurations are supported through ActiveX program. When

the ActiveX installation pop-up window appears, authorize and install the ActiveX setup.exe,

MAC address = 00-13-23-01-14-B1 →IP address = 192.168.20.177

Convert the last two set of hexadecimal numbers to decimal numbers.

www.rivatech.de

Custom IP Environment

IPAdminTool and the manual are provided on USB stick or can download from www.rivatech.de

homepage.

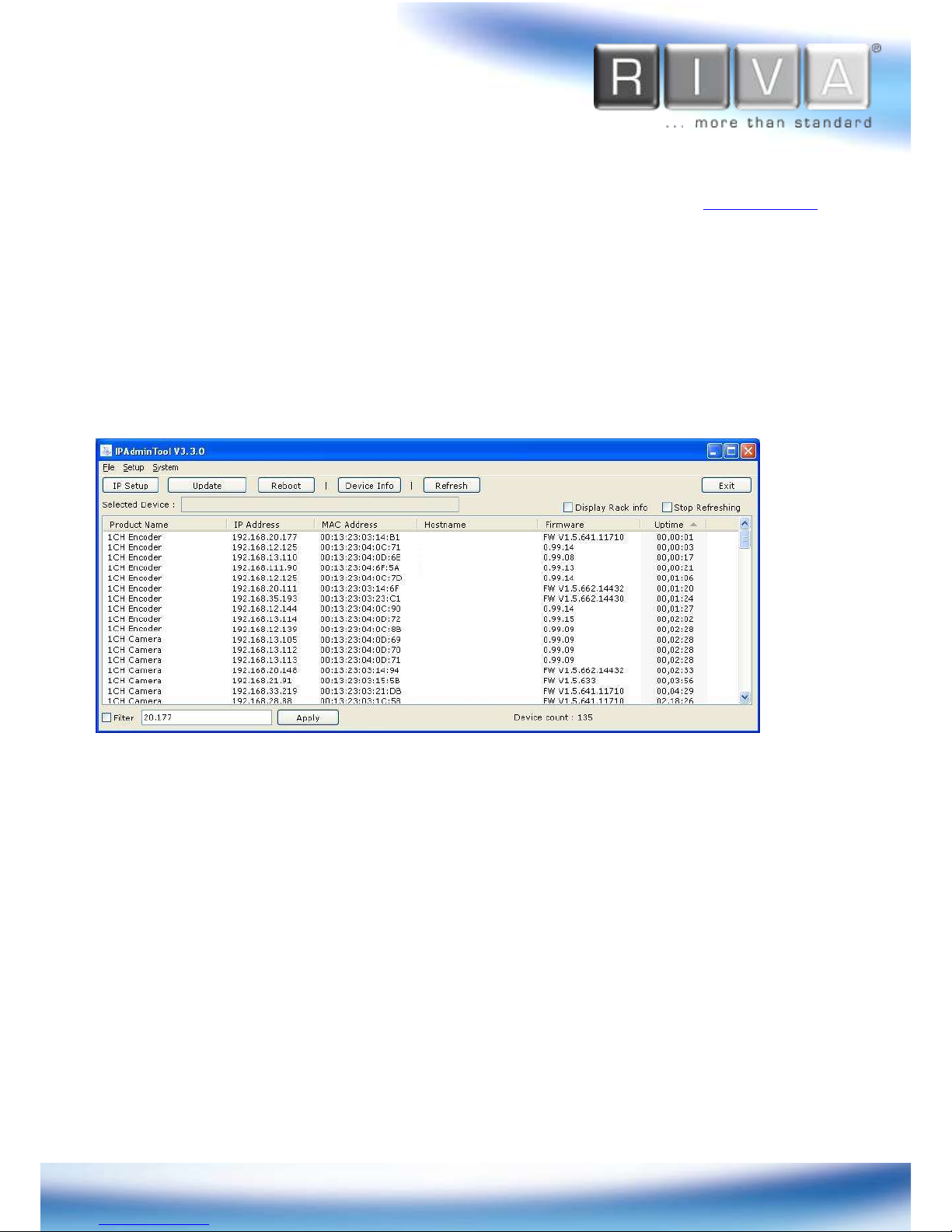

IPAdminTool is a management tool, which automatically scans all of the network products for

users to perform administrative tasks, which includes network configurations, firmware update,

device reboot, and device organizations.

To modify the device’s default IP address for customized network area;

1. Find the device from the IPAdminTool’s list and highlight the device’s name.

2. Right-click the mouse and select “IP Address”; IP Setup window appears.

www.rivatech.de

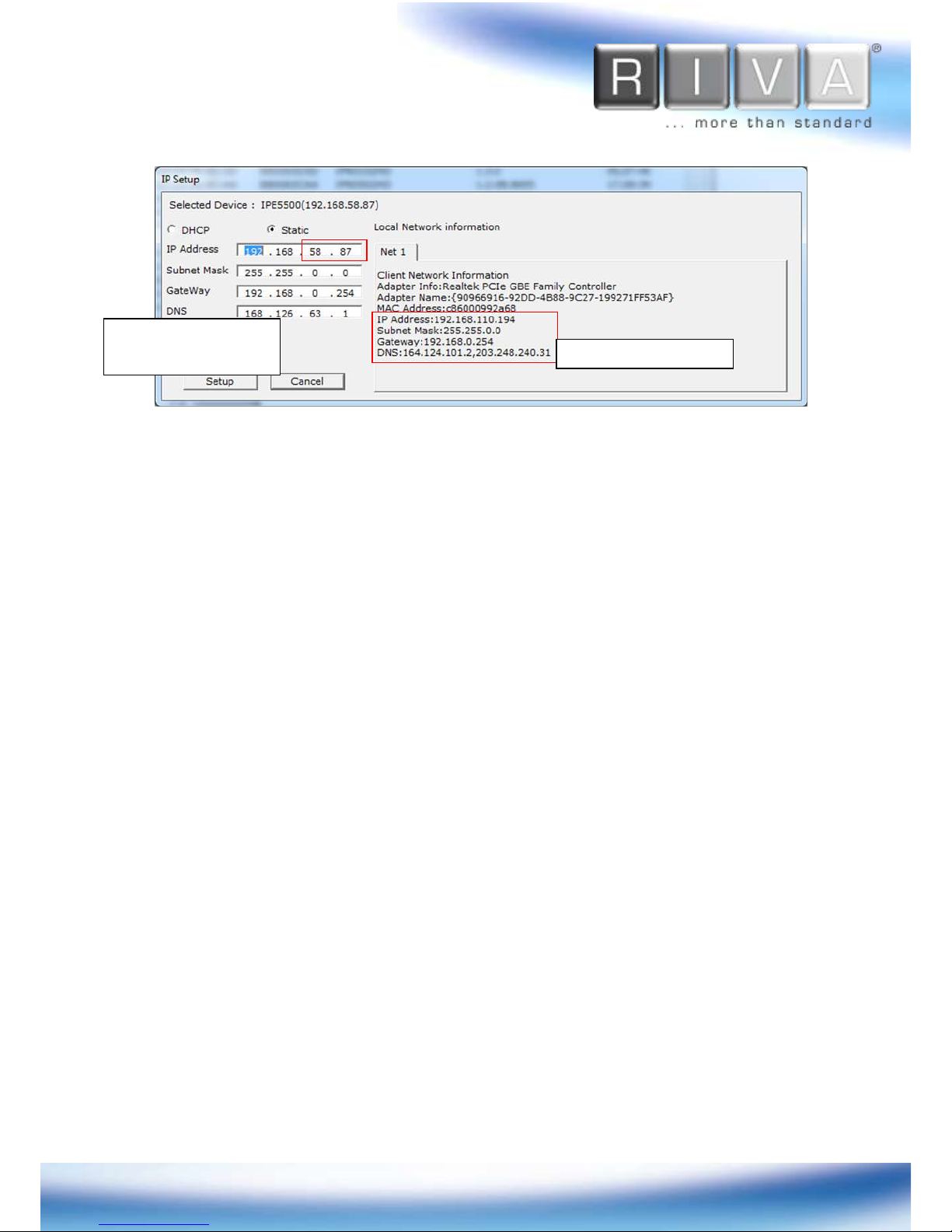

3. In the IP Setup’s window, information under ‘Local Network information’ displays the

user/PC’s network area information. Those information need to be incorporated to the

IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP

Address, which are to be the unique numbers for the device. Refer to the image above

for the setting

4. Click ‘Setup’ to complete the modification. When the dialog box appears to request user

name and password, enter the default value for the administrator account (case-

sensitive) as below:

ID:

root

Password:

pass

PC environment Info

Give new unique IP address in

last two sets and mirror other

information in other boxes

www.rivatech.de

Step5. View video on web page

Once the device has the proper IP address, users can view the live streaming images

through a web browser.

The default username and password is

root / pass

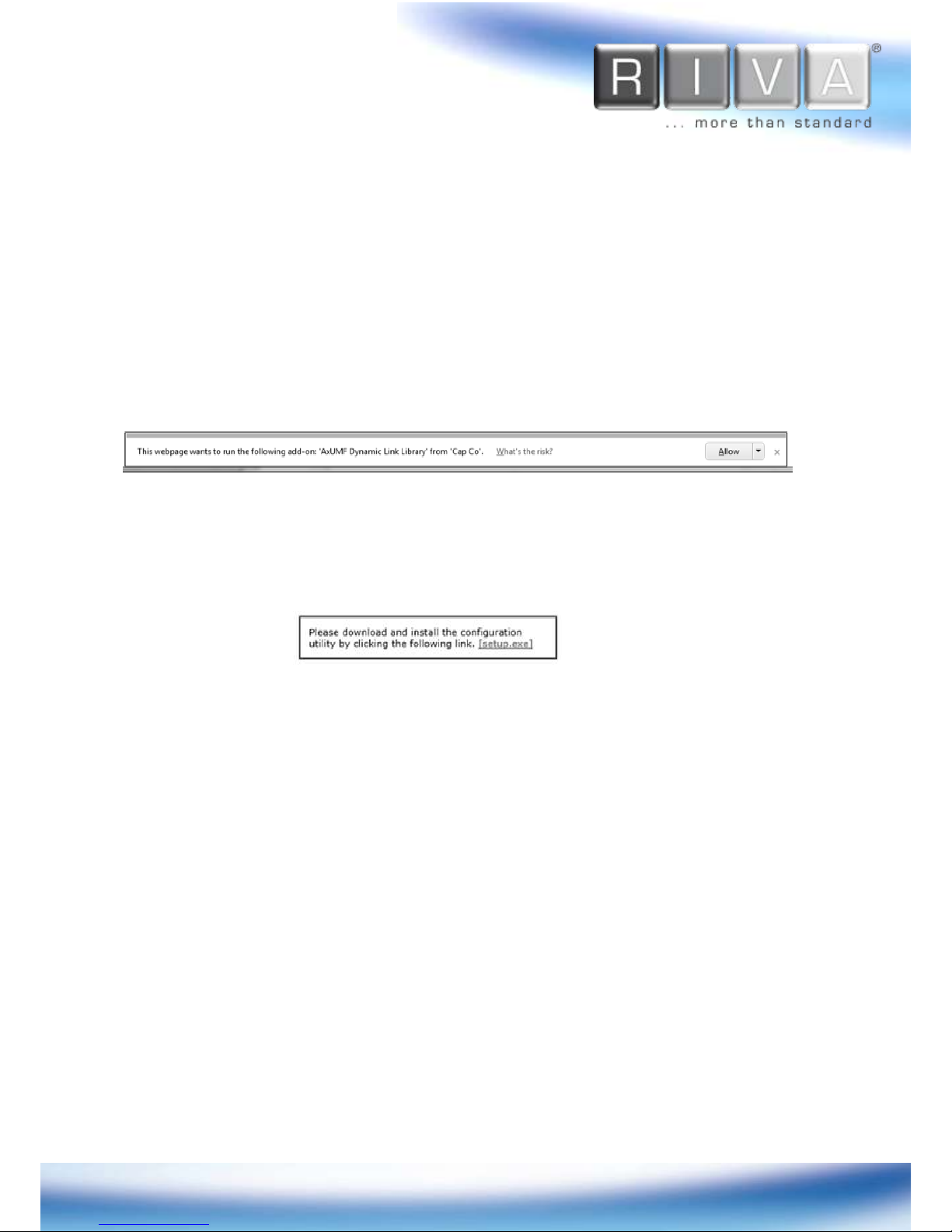

1. When the device’s web address is accessed, the browser asks to install the ActiveX.

Click Allow.

2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet

Explorer version. Proceed with rest of setup installation.

www.rivatech.de

Caution

3. Follow the instructions of the dialog boxes and complete the installation. Once the

installation is complete, start the web browser again and check if video stream is

displayed in the main view frame.

If “

This software requires the Microsoft XML Parser V6 or higher.

Please download MSXML6 from the Microsoft website to continue.

Error code: Cannot create XMLDOMDocument.

” message appears,

download and install the Microsoft Core XML Services (MSXML)

6.0.

www.rivatech.de

Rebooting

Perform the following procedures to reset your device:

1. While the device is on, press the reset button for 1~2 seconds.

2. Wait for the system to reboot.

Resetting to the Factory Default Settings

When reset the device to the factory default setting, all parameters including the IP address

will be initialized.

To proceed back to the Factory Default reset:

1. While the device is on, press reset button and hold.

2. Release the Reset button after about 5 seconds when green LED blinks at rate of 200ms.

3. Wait for the system to reboot.

More Information

To learn more about using other features of your devices, refer to the manuals as “Web

Interface Manual” or “VCAsys_Online_Help”, which is available on USB stick or on

www.rivatech.de homepage.
