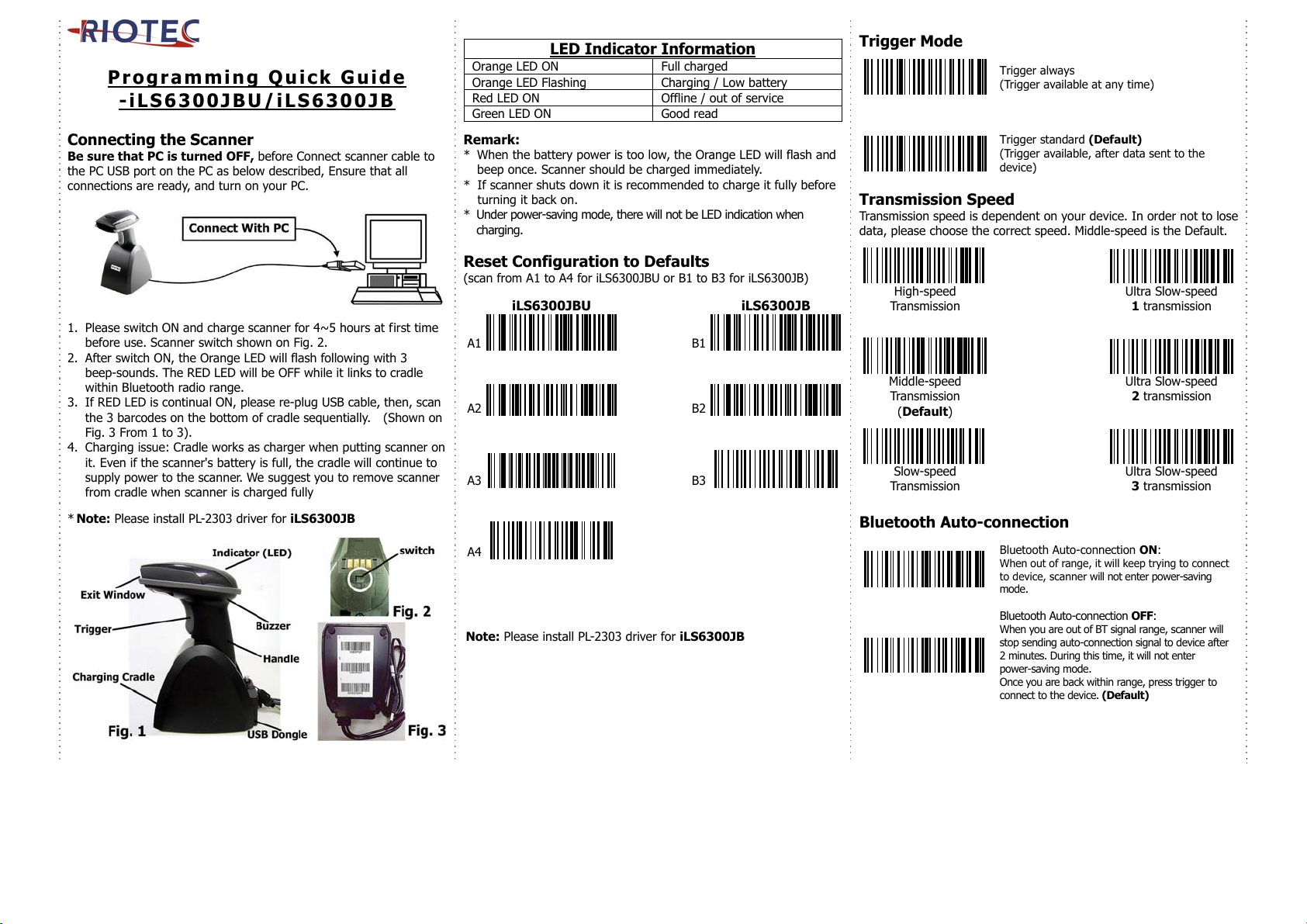

Programming Quick Guide

-iLS6300JBU/iLS6300JB

Connecting the Scanner

Be sure that PC is turned OFF, before Connect scanner cable to

the PC USB port on the PC as below described, Ensure that all

connections are ready, and turn on your PC.

1. Please switch ON and charge scanner for 4~5 hours at first time

before use. Scanner switch shown on Fig. 2.

2. After switch ON, the Orange LED will flash following with 3

beep-sounds. The RED LED will be OFF while it links to cradle

within Bluetooth radio range.

3. If RED LED is continual ON, please re-plug USB cable, then, scan

the 3 barcodes on the bottom of cradle sequentially. (Shown on

Fig. 3 From 1 to 3).

4. Charging issue: Cradle works as charger when putting scanner on

it. Even if the scanner's battery is full, the cradle will continue to

supply power to the scanner. We suggest you to remove scanner

from cradle when scanner is charged fully

* Note: Please install PL-2303 driver for iLS6300JB

LED Indicator Information

Orange LED ON Full charged

Orange LED Flashing Charging / Low battery

Red LED ON Offline / out of service

Green LED ON Good read

Remark:

* When the battery power is too low, the Orange LED will flash and

beep once. Scanner should be charged immediately.

* If scanner shuts down it is recommended to charge it fully before

turning it back on.

* Under power-saving mode, there will not be LED indication when

charging.

Reset Configuration to Defaults

(scan from A1 to A4 for iLS6300JBU or B1 to B3 for iLS6300JB)

iLS6300JBU iLS6300JB



Note: Please install PL-2303 driver for iLS6300JB

Trigger Mode

Trigger always

(Trigger available at any time)

Trigger standard (Default)

(Trigger available, after data sent to the

device)

Transmission Speed

Transmission speed is dependent on your device. In order not to lose

data, please choose the correct speed. Middle-speed is the Default.

High-speed Ultra Slow-speed

Transmission

1 transmission

Middle-speed Ultra Slow-speed

Transmission

(Default)

2 transmission

Slow-speed Ultra Slow-speed

Transmission 3 transmission

Bluetooth Auto-connection

Bluetooth Auto-connection ON:

When out of range, it will keep trying to connect

to device, scanner will not enter power-saving

mode.

Bluetooth Auto-connection OFF:

When you are out of BT signal range, scanner will

stop sending auto-connection signal to device after

2 minutes. During this time, it will not enter

power-saving mode.

Once you are back within range, press trigger to

connect to the device. (Default)

2

Keyboard Country(For USB HID only)

Scan the appropriate country code as below to program the keyboard

layout for your country or language. As a general rule, the following

characters are supported, but need special care for countries other

than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

USA

(Original setting)

Italian

Norway

France

Germany

ietnam

Sweden

Spain

%$0

Denmar

Portu

Switzerland (F)

Hun

ary

Latin America

Icelandic

Brazil

Poland

%$1

Belgium

Turkey F

Bulgarian Latin Turkey Q

Finland

Japan

Netherlands

Korea

Thai

Russia

Switzerland German

*The different keyboard language option starts from June. 2017.

Power-saving Mode

Power-saving mode OFF

Powe

-saving mode ON (Default):

Enter power-saving mode after 3-minute inactivity.

This function converses battery power. When you

press "SCAN/Power ON" button, it will wake up and

begin to scan.

Powe

-saving mode ON:

Enter power-saving mode after 10-minute

inactivity. This function converses battery power.

When you press "SCAN/Power ON" button, it will

wake up and begin to scan.

*When charging, the scanner will not enter power-saving mode

automatically

How to append a “prefix” or a “suffix” to the

barcode data

prefix suffix

1. Scan above configuration code for Prefix or Suffix

2. Enter the required values (right, numeric barcode) for Prefix or

Suffix using the hex values for the desired HEX values from “Prefix

& Suffix TABLE (blew page)”

3. Then, end by scanning Code X (below, right)

* The max. of special characters is 5.

* When you append 1~4 required values for Prefix or Suffix, it must

end with Code X.

* It doesn’t need Code X, if you append 5 values to barcode data.

How to delete Prefix or Suffix

1. Scan above configuration code for Prefix or Suffix

2. Enter the “0” “0” (above, right)

3. Then end by scanning Code X (below, right)

Numeric barcode for settings

3

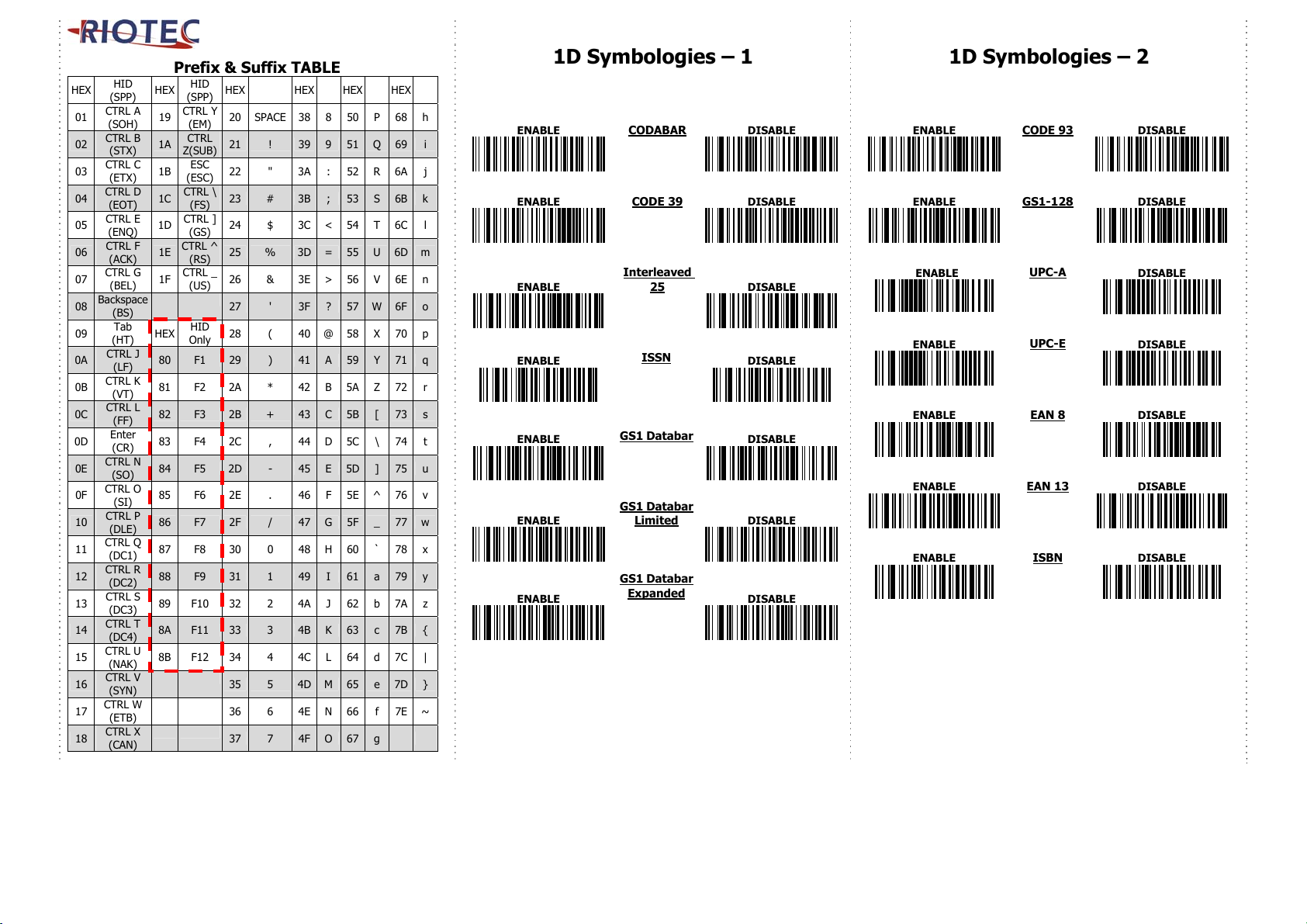

Prefix & Suffix TABLE

HEX HID

(SPP) HEX HID

(SPP) HEX HEX HEX HEX

01 CTRL A

(SOH) 19 CTRL

(EM) 20 SPACE 38 8 50 P 68 h

02 CTRL B

(STX) 1A CTRL

Z(SUB) 21 ! 39 9 51 Q 69 i

03 CTRL C

(ETX) 1B ESC

(ESC) 22 " 3A : 52 R 6A j

04 CTRL D

(EOT) 1C CTRL \

(FS) 23 # 3B ; 53 S 6B k

05 CTRL E

(ENQ) 1D CTRL ]

(GS) 24 $ 3C < 54 T 6C l

06 CTRL F

(ACK) 1E CTRL ^

(RS) 25 % 3D = 55 U 6D m

07 CTRL G

(BEL) 1F CTRL _

(US) 26 & 3E > 56 V 6E n

08 Backspace

(BS)

27 ' 3F ? 57 W6F o

09 Tab

(HT) HEX HID

Only 28 ( 40 @ 58 X 70 p

0A CTRL J

(LF) 80 F1 29 ) 41 A 59 Y 71 q

0B CTRL K

(VT) 81 F2 2A * 42 B 5A Z 72 r

0C CTRL L

(FF) 82 F3 2B + 43 C 5B [ 73 s

0D Ente

(CR) 83 F4 2C , 44 D 5C \ 74 t

0E CTRL N

(SO) 84 F5 2D - 45 E 5D ] 75 u

0F CTRL O

(SI) 85 F6 2E . 46 F 5E ^ 76 v

10 CTRL P

(DLE) 86 F7 2F / 47 G 5F _ 77 w

11 CTRL Q

(DC1) 87 F8 30 0 48 H 60 ` 78 x

12 CTRL R

(DC2) 88 F9 31 1 49 I 61 a 79 y

13 CTRL S

(DC3) 89 F10 32 2 4A J 62 b 7A z

14 CTRL T

(DC4) 8A F11 33 3 4B K 63 c 7B {

15 CTRL U

(NAK) 8B F12 34 4 4C L 64 d 7C |

16 CTRL

(SYN)

35 5 4D M 65 e 7D }

17 CTRL W

(ETB)

36 6 4E N 66 f 7E ~

18 CTRL

(CAN)

37 7 4F O 67 g

1D Symbologies – 1

ENABLE

CODABAR

DISABLE

ENABLE

CODE 39

DISABLE

ENABLE

Interleaved

DISABLE

ENABLE

ISSN DISABLE

ENABLE

GS1 Databar DISABLE

ENABLE

GS1 Databar

Limited DISABLE

ENABLE

GS1 Databar

Expanded DISABLE

1D Symbologies – 2

ENABLE

CODE 93

DISABLE

ENABLE

GS1-128

DISABLE

ENABLE

UPC-A DISABLE

ENABLE

UPC-E DISABLE

ENABLE

EAN 8 DISABLE

ENABLE

EAN 13

DISABLE

ENABLE

ISBN DISABLE

4

2D Symbologies

ENABLE

PDF 417 DISABLE

ENABLE

QR Code DISABLE

ENABLE

Micro QR

Code DISABLE

ENABLE

Data Matrix DISABLE

ENABLE

Aztec Code DISABLE

Quick guide is subject to change without notice. R_200310_01
