RIOTEC DC9273A Manuel utilisateur

1

Quick Guide

-DC9273A

Connect to micro USB port of OTG device

* Before you use scanner, please switch to "C" for battery

charge for 3~4 hours.

* Under “C mode”, you can raise/lower soft-keyboard

easily. (For USB HID only)

DC9273A is with Li-Ion battery inside. When in charging,

please use the original power adaptor of OTG device

(recommend). Through it, it charges both OTG device and

DC9273A internal battery at the same time. When in low

battery (Red LED flashing), please charge it immediately.

LED Indicator Information

Green LED OFF Full charged (Charge mode)

Green LED ON Charging (Charge mode)

Red LED Flashing Low battery (Operation mode)

Attention: Under “Operation mode” please do not charging,

otherwise the OTG device's battery will be charging back to

DC9273A’s battery.



The touch sensor area is around the central area. There are 2

button trigger on the right and left side.

Please check the above drawing for your reference.

Installation

Before using scanner, please make sure that the OTG device is

fully charged.

1. Under USB HID interface

** When plugged into OTG device, it will be recognized and

begin to scan the barcode.

2. Under USB Serial interface

** Please install PL-2303 driver into your OTG device first.

PL-2303 driver can be downloaded from Google Play

** Connect scanner to your OTG device, then, you can

know which serial port scanner connects to.

** The data you scan will be sent to serial port and your

APP can get the data from serial port directly.

Li- Ion Battery

Button Trigger

O=Operation mode

C=Char

e mode

Touch Trigger Area

Button Trigger

Char

e port

Indicator

(

LED

)

Indicator

(

LED

)

Suction Cup Exit Windo

PU Glue

(Can be used

repeatedly)

Micro USB

cable (OTG)

2

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have

scanned the incorrect codes, please scan from A1 to A2 for

USB HID or B1 for USB Serial. This will reset the scanner to its

factory defaults.

USB HID USB Serial

A1 B1

*Note: Please install PL-2303 driver for USB Serial.

Keyboard Language (For USB HID only)

Scan the appropriate country code as below to program the

keyboard layout for your country or language. As a general

rule, the following characters are supported, but need special

care for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~

USA

(Original setting)

Italian

Norway

France

Germany

Vietnam

Sweden

Spain

Denmark

ortu

Switzerland Hun

ary

1D Symbologies – 1

ENABLE CODABAR

DISABLE

ENABLE Code 39 DISABLE

ENABLE Code 32 DISABLE

ENABLE

Code 39

FULL ASCII DISABLE

ENABLE Interleaved 25 DISABLE

ENABLE Code93 DISABLE

ENABLE Matrix 25 DISABLE

3

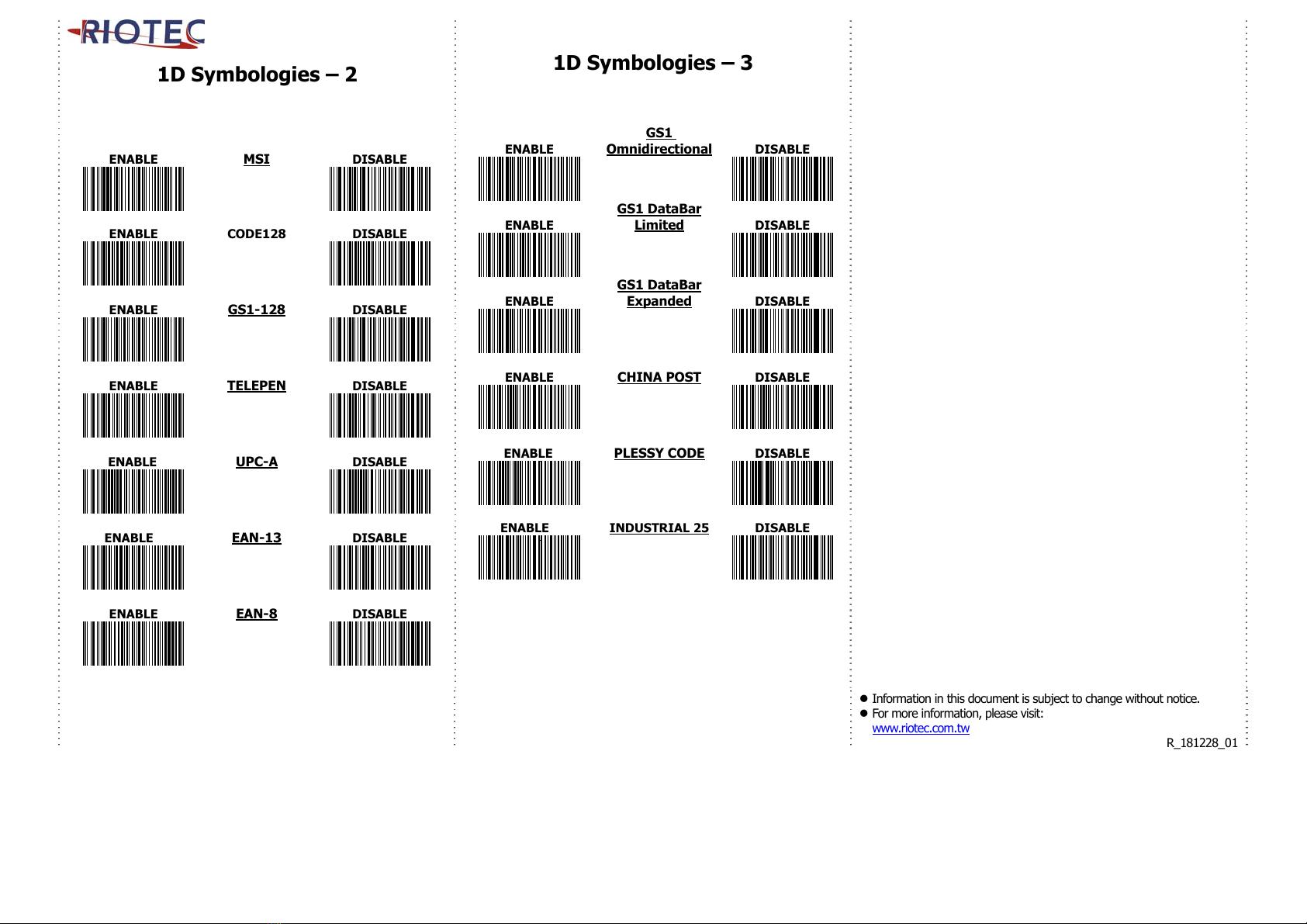

1D Symbologies – 2

ENABLE MSI

DISABLE

ENABLE

CODE128 DISABLE

ENABLE GS1-128 DISABLE

ENABLE TELEPEN DISABLE

ENABLE UPC-A DISABLE

ENABLE EAN-13 DISABLE

ENABLE EAN-8 DISABLE

1D Symbologies – 3

ENABLE

GS1

Omnidirectional

DISABLE

ENABLE

GS1 DataBar

Limited DISABLE

ENABLE

GS1 DataBar

Expanded DISABLE

ENABLE CHINA POST DISABLE

ENABLE PLESSY CODE DISABLE

ENABLE

INDUSTRIAL 25 DISABLE

 Information in this document is subject to change without notice.

 For more information, please visit:

www.riotec.com.tw

R_181228_01
