Rigol RP1002C Manuel utilisateur

RIGOL

User’s Guide

RP1002C Current Probe

Feb. 2014

RIGOL Technologies, Inc

RIGOL

RP1002C User’s Guide I

Guaranty and Declaration

Trademark Information

RIGOL is a registered trademark of RIGOL Technologies, Inc.

Publication Number

UGE17103-1110

Notices

RIGOL products are protected by patent law in and outside of

P.R.C.

RIGOL reserves the right to modify or change parts of or all the

specifications and pricing policies at company’s sole decision.

Information in this publication replaces all previously

corresponding material.

RIGOL shall not be liable for losses caused by either incidental

or consequential in connection with the furnishing, use or

performance of this manual as well as any information contained.

Any part of this document is forbidden to be copied or

photocopied or rearranged without prior written approval of

RIGOL.

Product Certification

RIGOL guarantees this product conforms to the national and

industrial standards in China as well as the ISO9001:2008 standard

and the ISO14001:2004 standard. Other international standard

conformance certification is in progress.

If you have any problem or requirement when using our products or

this manual, please contact RIGOL.

E-mail: service@rigol.com

Websites: www.rigol.com

RIGOL

II RP1002C User’s Guide

General Safety Summary

Please review the following safety precautions carefully before

putting the instrument into operation so as to avoid any personal

injuries or damages to the instrument and any product connected

to it. To prevent potential hazards, please use the instrument only

specified by this manual.

Ground The Instrument.

The instrument is grounded through the Protective Earth lead of

the power cord. To avoid electric shock, it is essential to connect

the earth terminal of power cord to the Protective Earth terminal

before any inputs or outputs.

Observe All Terminal Ratings.

To avoid fire or shock hazard, observe all ratings and markers on

the instrument and check your manual for more information about

ratings before connecting.

Replace Fuse Properly

Make sure that no overvoltage (such as voltage caused by

thunderbolt) this product. Otherwise, the operator might be

exposed to electric shock.

Do Not Operate Without Covers.

Do not operate the instrument with covers or panels removed.

Avoid Circuit or Wire Exposure.

Do not touch exposed junctions and components when the unit is

powered.

RIGOL

RP1002C User’s Guide III

Do Not Operate With Suspected Failures.

If you suspect damage occurs to the instrument, have it inspected

by qualified service personnel before further operations. Any

maintenance, adjustment or replacement especially to circuits or

accessories must be performed by RIGOL authorized personnel.

Keep Well Ventilation.

Inadequate ventilation may cause increasing of temperature or

damages to the device. So please keep well ventilated and inspect

the intake and fan regularly.

Do Not Operate in Wet Conditions.

In order to avoid short circuiting to the interior of the device or

electric shock, please do not operate in a humid environment.

Do Not Operate in an Explosive Atmosphere.

In order to avoid damages to the device or personal injuries, it is

important to operate the device away from an explosive

atmosphere.

Keep Product Surfaces Clean and Dry.

To avoid the influence of dust and/or moisture in air, please keep

the surface of device clean and dry.

Electrostatic Prevention.

Operate in an electrostatic discharge protective area environment

to avoid damages induced by static discharges. Always ground

both the internal and external conductors of the cable to release

static before connecting.

RIGOL

IV RP1002C User’s Guide

Safety Terms and Symbols

Terms in this Manual. These terms may appear in this manual:

WARNING

Warning statements indicate the conditions or practices

that could result in injury or loss of life.

CAUTION

Caution statements indicate the conditions or practices

that could result in damage to this product or other

property.

Terms on the Product. These terms may appear on the

Product:

DANGER

indicates an injury or hazard may immediately

happen.

WARNING indicates an injury or hazard may be accessible

potentially.

CAUTION indicates a potential damage to the instrument or

other property might occur.

Symbols on the Product. These symbols may appear on the

product:

Double

Insulation

Safety

Warning

Protective

Earth

Terminal

Chassis

Ground

Test

Ground

RIGOL

RP1002C User’s Guide V

Contents

Guaranty and Declaration.................................................. I

General Safety Summary..................................................II

Safety Terms and Symbols .............................................. IV

RP1002C Overview............................................................1

Basic Operation.................................................................1

Connection between the Current Probe and Oscilloscope ......1

Connection between the Current Probe and Digital Meter......4

Maintenance......................................................................5

Battery.............................................................................5

To Install the Battery.........................................................6

AC Power Adapter.............................................................6

Cleaning...........................................................................7

Preparation for shipment ...................................................7

Specifications....................................................................8

Electrical Characteristics.....................................................8

Voltage and Current Ratings...............................................9

Physical Characteristics......................................................9

Environmental Characteristics.............................................9

Certifications and Compliances.........................................10

Accessories......................................................................11

Appendix.........................................................................12

Appendix 1 Gain versus Frequency at 1 A Peak (Typical) .....12

Appendix 2 Maximum Current versus Frequency ................12

Appendix 3 DC Signal Linearity in 50mV/A Range (Typical).. 13

Appendix 4 Phase versus Frequency at 1 A Peak (Typical)... 13

RIGOL

RP1002C User’s Guide 1

RP1002C Overview

The RP1002C current probe enables a general purpose

oscilloscope to display AC and DC current signals up to 100 A Peak

(70 A RMS). The RP1002C current probe can also make AC and

DC measurements with a multimeter by using the BNC-to-banana

plug adapter.

Figure 1 RP1002C Current Probe

BNC Interface

Test Clamp Button

Test Clamp

AC Adapter Input

Range Switch

Zero Adjustment Knob

Overload Indicator

Power Supply Indicator

Maximum Conductor Size: 11mm

RIGOL

2 RP1002C User’s Guide

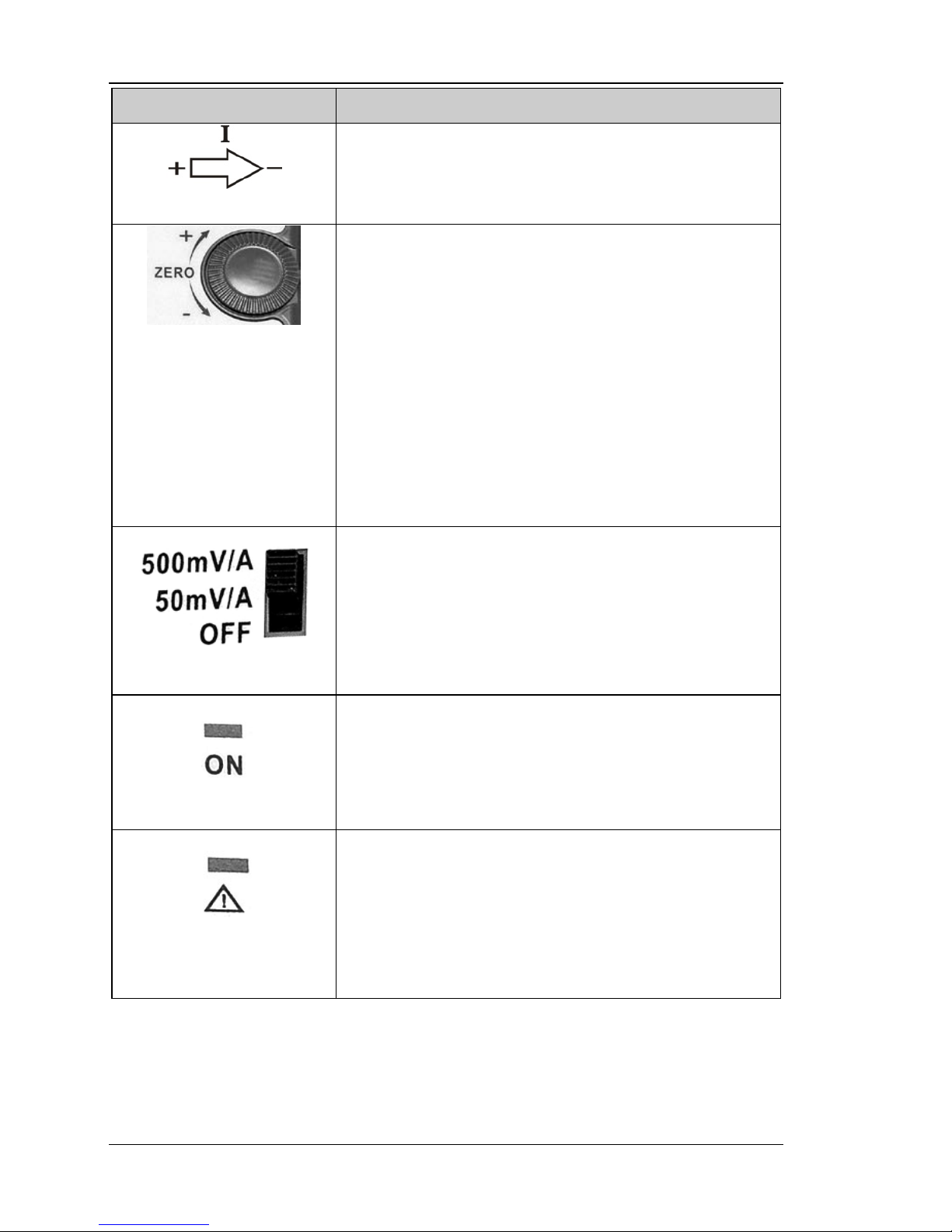

Control/Indicator Description

Current flow symbol: The arrow shows

the positive direction of current flow

Zero adjustment:After connecting to

power and fixing the current probe to a

fixed position, rotate the knob to adjust

the probe output tothe proper DC offset. It

may also be used to offset a DC signal

component. Zeroing is not needed for AC

measurements unless your instrument

cannot isolate a DC component (if

present).

Range switch: Slide the switch from OFF

to either the 50 mV/A or 500mV/A range.

When 50 mV/A or 500mV/A is selected,

the probe is turned on, and the green

battery indicator (ON) lights.

Power Supply indicator: The green

power supply indicator lights when the

probe is turned on. For more information,

please refer to To Install the Battery.

Overload indicator: The red overload

indicator lights and flicks continuously if

the measured signal is greater than the

maximum range of the selected range

capacity.

RIGOL

RP1002C User’s Guide 1

Basic Operation

Before using the current probe, the battery or specified AC power

adapter must be installed. For the battery installation instructions,

refer to To Install the Battery.

CAUTION

Do not clamp the probe onto circuits with voltages

greater than 600 VAC. Otherwise, personal injury or

damage to the probe may result.

CAUTION

Always connect the RP1002C current probe output to the

instrument before clamping onto the circuit under test.

Connection between the Current Probe and

Oscilloscope

1Set the coupling mode of the oscilloscope to DC and connect

the BNC interface of the RP1002C current probe to the

oscilloscope input via dual-BNC coaxial cable.

2Move the Range switch to the 50 mV/A or 500 mV/A position

to turn on the RP1002C current probe. At this point, the green

battery indicator lights.

3Use the zero adjustment knob to adjust the probe to the

proper DC offset.
