Rigol MSO1000Z series Manuel utilisateur

Installation Guide RIGOL

Rack Mount Kit

MSO1000Z/DS1000Z/DG4000

This rack mount kit is designed to mount RIGOL MSO1000Z/DS1000Z series digital

oscilloscope or DG4000 series function/arbitrary waveform generator into a 19-inch

machine cabinet that conforms to the Electronic Industries Association (EIA) standard. This

manual takes DG4000 as an example to introduce the installation method.

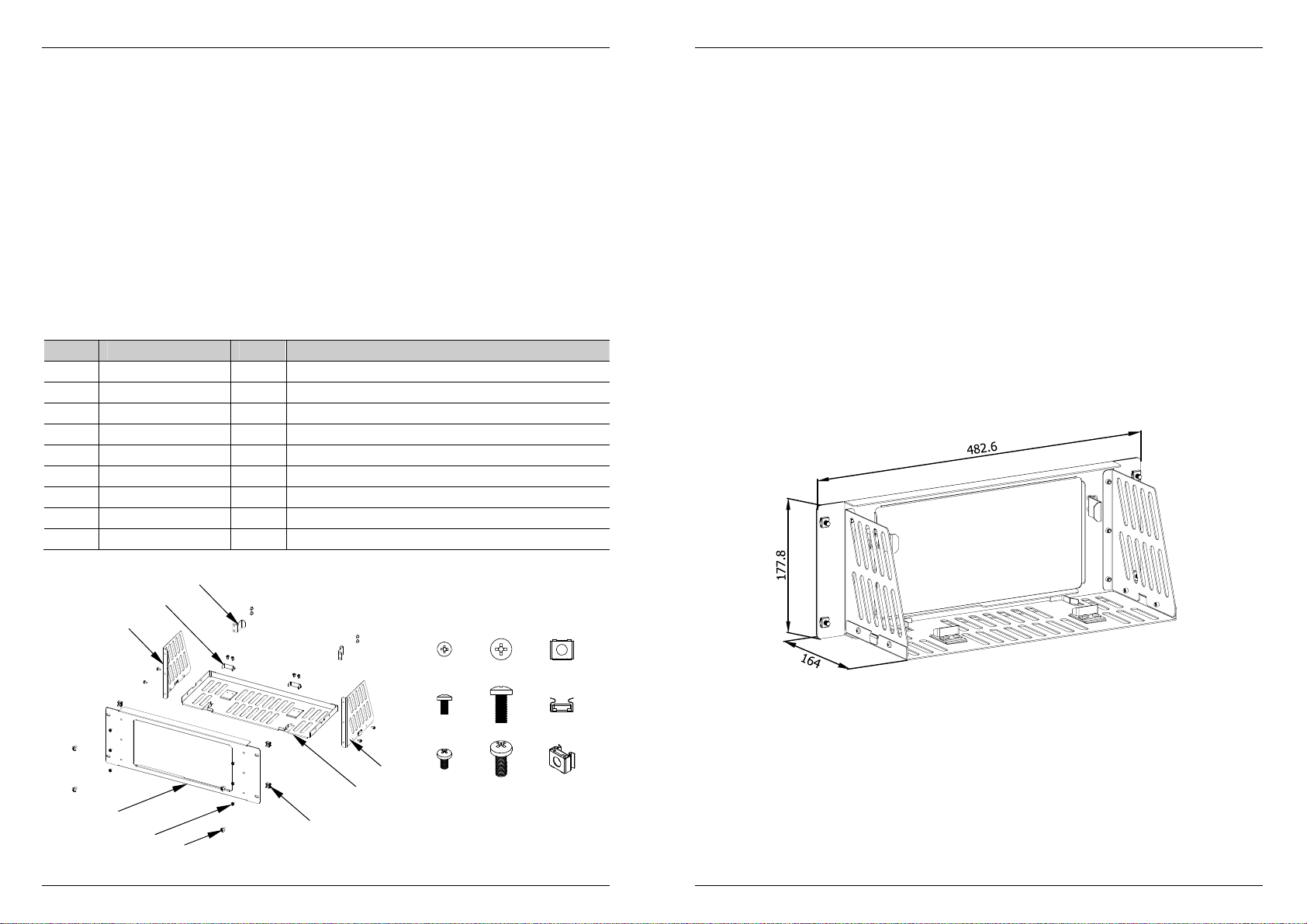

Kit Part Checklist

No. Name Qty. Description

1 Front Plate 1 --

2 Bottom Plate 1 --

3 Left Plate 1 --

4 Right Plate 1 --

5 Retaining Bracket 2 --

6 Fastener 2 --

7 M4 Screw 18 M4×8 Phillips Pan Head Screw

8 M6 Screw 4 M6×16 Phillips Pan Head Screw

9 M6 Nut 4 M6 Square Lock Cage Nut

RIGOL

7 8 9

Installation Guide RIGOL

Installation Tool

The PH2 Phillips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following

requirements are met.

The cabinet must be a standard 19-inch one.

The available height of the cabinet should be at least 4U (177.8 mm).

The depth of the cabinet should be at least 400 mm.

The dimensions of the rack-mounted instrument are as shown below.

Unit: mm

Installation Guide RIGOL

Installation Procedures

CAUTION

Only authorized operators are allowed to perform the installation. Improper

installation might cause damage to the instrument or an installation failure.

1. Mount the left and right

plates

Align the detents of the left and

right plates with the openings on

both sides of the bottom plate

respectively and insert them into

the bottom plate, then fasten

them using four M4 screws.

2. Mount the front plate

Attach the front plate to the

assembled shelf, then secure the

front plate with six M4 screws.

3. Fasten the lower part of the

instrument

Place the instrument onto the

bottom plate and secure the rear

feet of the instrument with two

retaining brackets, then use four

M4 screws to fasten brackets.

Installation Guide RIGOL

4. Fasten the upper part of the

instrument

Fasten the upper part of the

instrument with two fasteners,

then secure them with four M4

screws.

5. Get encased in the cabinet

Mount the assembled instrument

and rack into a standard 19-inch

cabinet using four M6 screws

and four M6 square nuts.

-End-
