Reolink 5408940 Manuel utilisateur

Reolink WiFi IP Camera

Quick Start Guide

August 2020

QSG1_A_EN

@ReolinkTech https://reolink.com

Contents

2English

1 English

What’s in the Box

Camera Introduction

Connection Diagram

Set up the Camera

Installation Guides

Troubleshooting

Speciﬁcations

Notiﬁcation of Compliance

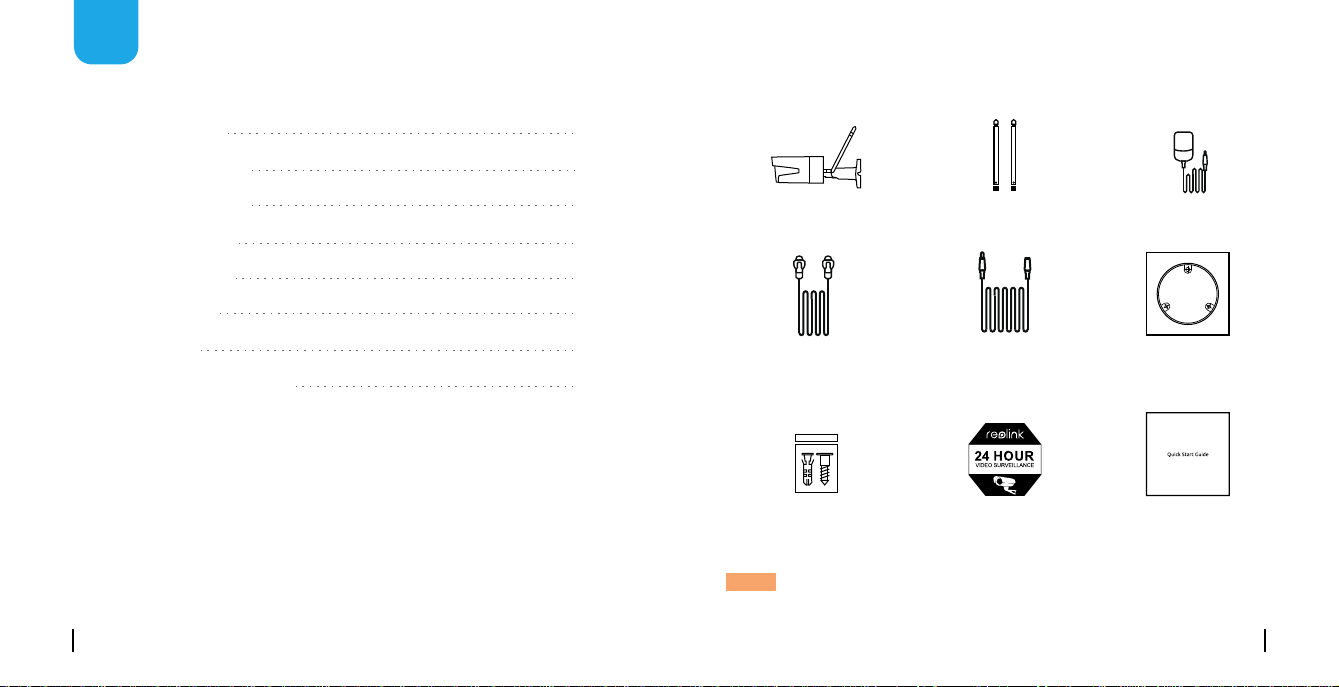

What’s in the Box

Camera Antenna

Network Cable

Power Adapter

4.5m Power

Extension Cable

Quick Start Guide

Surveillance Card

Mounting

Hole Template

Pack

of Screws

NOTE: Camera and accessories vary with dierent camera models that

you purchase.

4English

3 English

Camera Introduction

Network Cable

Infrared Lights

High Deﬁnition Lens

Mount

Metal Aluminum Case

Antenna Antenna

Mount

Metal Aluminum Case

High Deﬁnition Lens

Infrared Lights

Daylight Sensor

Reset Button

Power Cable

*Press for about 10 seconds to restore factory settings.

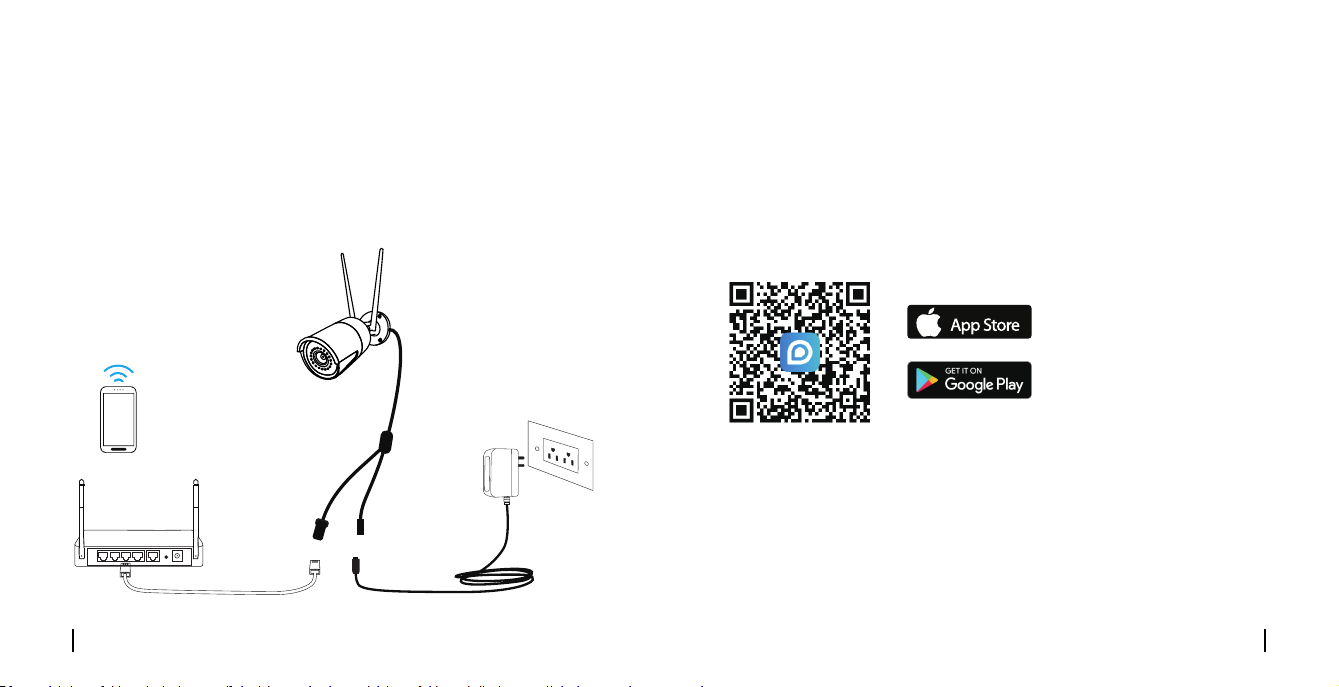

Connection Diagram

Before initial setup, follow the steps below to connect your camera.

1. Connect the camera to a LAN port on your router with an Ethernet cable.

2. Power on the camera with a power adapter.

Power Adapter

Router

Your Smart Device

WiFi IP Camera

Power CableNetwork Cable

6English

5 English

• On Smartphone

Download and Launch the Reolink App or Client software, and follow the

onscreen instructions to ﬁnish initial setup.

Scan to download the Reolink App.

Set up the Camera

• On PC

Download path of the Reolink Client: Go to https://reolink.com >

Support > App & Client.

Available on the

Install the Camera

Installation Tips

• Do not face the camera towards any light sources.

• Do not point the camera towards a glass window. Or, it may result in

poor image performance because of the window glare by infrared LEDs,

ambient lights or status lights.

• Do not place the camera in a shaded area and point it towards a well-lit

area. Or, it may result in poor image performance. For better image

quality, please make sure that the lighting condition for both the camera

and the capture object is the same.

• For better image quality, it’s recommended to clean the lens with a soft

cloth from time to time.

• Make sure the power ports are not exposed to water or moisture or

blocked by dirt or other elements.

• The camera comes with waterproof design so it can work properly-

under conditions like rain and snow. However, it doesn't mean the

camera can work underwater.

• Do not install the camera at places where rain and snow may hit the

lens directly.

• The camera may work in extreme cold conditions as low as -25°C.

Because when it is powered on, the camera will produce heat. You may

power on the camera indoors for a few minutes before installing it

outdoors.

8English

7 English

Drill holes in accordance with the

mounting hole template.

NOTE: Use the drywall anchors

included in the package if needed.

NOTE: Run the cable through the

cable notch on the mount base.

Install the mount base with the

mounting screws included in

the package.

Mount the Camera

Twist the screws with the wrench to unlock the camera

and adjust its direction.

After adjustment, twist the

screws back to lock the

camera.

360°

90°

10English

9 English

IP Camera Is Not Powering on

If you ﬁnd your camera is not powering on, try the following solutions:

• Please check whether the outlet is working properly or not. Try to plug

the camera into a dierent outlet and see if it works.

• Please check whether the DC adapter is working or not. If you have

another 12V DC power adapter which is working, please use another

power adapter and see if it works.

If these won't work, please contact Reolink Support

https://support.reolink.com/.

Troubleshooting

IR LEDs Stop Working

If you ﬁnd the IR LEDs of your camera stop working, try the following

solutions:

• Go to Device Settings and check whether you have enabled Infrared

LEDs. If the LEDs are disabled, please enable them.

• Please go to Live View and check the Day/Night mode. Set

the mode to Auto to activate the IR lights.

• Upgrade your camera's ﬁrmware to the latest version.

• Restore the camera to the factory settings and check the IR light

settings again.

12English

11 English

If these won't work, please contact Reolink Support

https://support.reolink.com/.

Speciﬁcations

Failed to Upgrade the Firmware

If you cannot upgrade the ﬁrmware for the camera, try the following

solutions:

• Conﬁrm the current ﬁrmware version to see if it is the latest one.

• Make sure that you download the correct ﬁrmware from download

center.

• Make sure the network of your computer is stable.

If these won't work, please contact Reolink Support

https://support.reolink.com/.

Operating Temperature: -10°C to 55°C (14°F to 131° F)

Operating Humidity: 10%-90%

IR Distance: 30 meters (100ft)

Day/Night Mode: Auto switchover

Hardware Features

General

Notiﬁcation of Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation. Changes or

modiﬁcations not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

FCC Compliance Statement

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits aredesigned to provide reasonable protection against

harmful interference in aresidential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and on,

the user is encouraged to try to correct the interference by one or more

of the following measures:

• Reorient or relocate the receiving antenna.

Weather Resistance: IP66 waterproof

14English13 English

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Reolink declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive 2014/53/EU.

Simpliﬁed EU Declaration of Conformity

This marking indicates that this product should not be disposed with other

household wastes throughout the EU. To prevent possible harm

to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the return and collection

systems or contact the retailer where the product was purchased. They

can take this product for environmentally safe recycling.

Correct Disposal of This Product

This product comes with a 2-year limited warranty that is valid only if

purchased from Reolink ocial stores or Reolink authorized resellers.

Learn more: https://reolink.com/warranty-and-return/.

Limited Warranty

NOTE: We hope that you enjoy the new purchase. But if you are not

satisﬁed with the product and plan to return, we strongly suggest that

you reset the camera to factory default settings and take out the

inserted SD card before returning.

This equipment complies with RSS-102 radiation exposure limits set forth

for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20cm between the radiator & your body.

Use of the product is subject to your agreement to the Terms of Service

and Privacy Policy at reolink.com. Keep out of the reach of children.

By using the Product Software that is embedded on the Reolink product,

you agree to the terms of this End User License Agreement (“EULA”)

between you and Reolink. Learn more: https://reolink.com/eula/.

Terms and Privacy

End User License Agreement

ISED Radiation Exposure Statement

• Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit dierent from that to

15 English

OPERATING FREQUENCY

(the maximum transmitted power)

2412MHz—2472MHz(15dBm)

5180 MHz -5240 MHz(17dBm)

5745 MHz -5825 MHz (16dBm)

Technical Support

If you need any technical help, please visit our ocial support site and

contact our support team before returning the products,

https://support.reolink.com.

FCCCaution

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatetheequipment.

Note: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass

Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.

Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference

toradiocommunications.However,thereisnoguaranteethatinterferencewillnot

occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto

radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff

andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

-Reorientorrelocatethereceivingantenna.

-Increasetheseparationbetweentheequipmentandreceiver.

-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan

uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith

minimumdistance20cmbetweentheradiator&yourbody.

Table des matières

Autres manuels Reolink Caméra de sécurité

Reolink

Reolink RLC-511WA Manuel utilisateur

Reolink

Reolink RLC-523WA Guide de démarrage rapide

Reolink

Reolink Argus PT Manuel utilisateur

Reolink

Reolink RLC-842A Guide de démarrage rapide

Reolink

Reolink RLC-423 Guide de démarrage rapide

Reolink

Reolink Lumus Manuel utilisateur

Reolink

Reolink RLC-510WA Manuel utilisateur

Reolink

Reolink Argus PT Guide de démarrage rapide

Reolink

Reolink TrackMix WiFi Guide de démarrage rapide

Reolink

Reolink TrackMix WiFi Manuel utilisateur

Reolink

Reolink 2205C Manuel utilisateur

Reolink

Reolink B800W Manuel utilisateur

Reolink

Reolink Argus Eco Guide de démarrage rapide

Reolink

Reolink Argus Manuel utilisateur

Reolink

Reolink Argus 3 Guide de démarrage rapide

Reolink

Reolink RLC-842A Guide de démarrage rapide

Reolink

Reolink RLC-81PA Manuel utilisateur

Reolink

Reolink Argus 2 Manuel utilisateur

Reolink

Reolink Duo 2 LTE Guide de démarrage rapide

Reolink

Reolink Duo Manuel utilisateur

Reolink

Reolink RLC-820A Manuel utilisateur

Reolink

Reolink TrackMix PoE Manuel utilisateur

Reolink

Reolink RLC-812A Guide de démarrage rapide

Reolink

Reolink Duo 2 WiFi Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
