Reolink Argus Manuel utilisateur



Content



Chapter 1 Introduction of the Camera 4

Chapter 2 Install Reolink App 5

2.1 System Requirement 5

2.2 Install the App 5

Chapter 3 Device Management 7

3.1 Add New Device 7

3.2 Modify Camera Login Password 10

3.3 Edit the Device Information 11

3.4 Delete Device 12

3.5 Reset Camera 13

Chapter 4 Install the Camera 14

4.1 Reolink Argus Placement 14

4.2 Camera Placement Dos & Don’ts 15

Chapter 5 Quick Configuration 16

5.1 Disable/Enable Push Notification 16

5.2 Disable/Enable PIR/Audio Alarm/E-mail 16

5.3 Wi-Fi Settings 17

5.4 Device Settings 18

Chapter 6 Live View 19

6.1 Start Live View 20

6.2 Two-way Audio 22

6.3  Video/Image Quality 23

6.4 Adjust Display Settings 25

Chapter 7 Playback 27

Chapter 8 Alarm Settings 31

8.1 Setup PIR Motion Schedule 31

8.2 Disable Audio Alarm/E-mail/Record 32

8.3 Adjust the PIR Sensitivity 33

8.4 E-mail Settings 33

Chapter 9 SD Card 36



2



9.1 Requirement of the SD Card 36

9.2 Install the SD Card 37

9.3 Format the SD Card 37

Chapter 10 Battery 38

10.1 Requirement of the Battery 38

10.2 Battery Status 38

10.3 Important Safeguards on Battery Use 39

Chapter 11  Warranty & Technical Support 40



3



Chapter 1

Introduction of the Camera



➢Physical Appearance



➢Working Mode



Reolink Argus has two working modes:

●Standby Status: The camera is in the power-saving mode; there is no live

view or motion recording.

●Working Status: The camera is running at full capacity. It enters the

working status when someone is accessing the camera via Reolink App

or the PIR motion sensor detects a movement.



➢LED Status



Color

Meaning

Status

Red

WiFi Connection failed

Blinking: Standby

On: Working

Blue

WiFi Connection is successful

Blinking: Standby

On: Working



Note: LED will flash every 20 seconds when the camera is in Standby status.



4



Chapter 2

Install Reolink App



2.1 System Requirement

Reolink App will run on both the Android and iOS system.



System

Requirement

iOS

iOS 8.0 or higher version, compatible with iPhone, iPad

and iPod touch.

Android

Android 3.0 or higher version.



2.2 Install the App

There are two ways to get the Reolink App:

1. Search “Reolink” in App Store or Google Play, download and install the

app.

2. Scan the QR code below to download and install the app.

After successfully installed it, tap the   icon to launch the Reolink App.



5



: More Option, tap this icon to show more configuration icons.

: Help, tap to read the tips regarding camera usage and installation.

: Share the QR code, tap this icon to get the QR code/UID of the camera.

: Edit Device, tap this icon to edit the login parameters of the camera.

: Delete, tap this icon to delete the camera from the device list.

: Battery Status, tap this icon to enter the battery usage page.

/ : Push Notification, tap this icon to enable or disable Push

Notification.

/ : PIR Motion Sensor, tap the button to enable or disable the PIR.

: Wi-Fi Settings, tap this icon to enter the WiFi settings page.

: Device Settings, tap this icon to enter the setup menu of the camera.

: Play, tap this icon to enter the live view page to view the video stream.

: Settings, tap this icon to enter the settings page of the App.



6



Chapter 3

Device Management



This chapter will introduce how to add new device, modify the device

information and modify device login password etc.



3.1 Add New Device

You can add the camera by scanning QR code (on camera’s back) or

manually entering camera UID (below QR code).



➢Scan the QR Code

 

Steps:

1. Tap   to start.

2. Scan the QR code on the back of camera to continue.





Note: In the dark environment, please turn on the flashlight on your phone by

tapping .

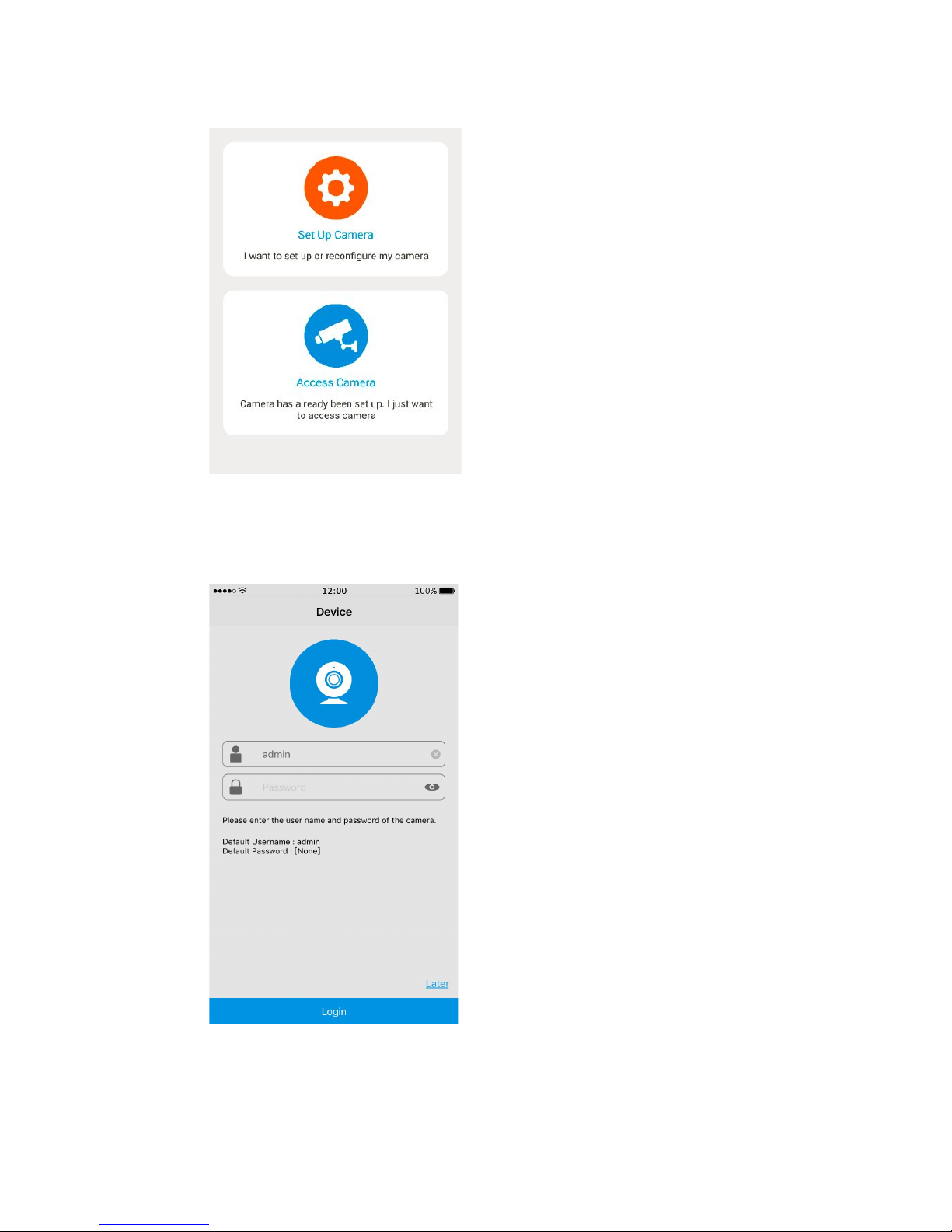

3. To configure the camera, tap   to “Set Up Camera” and follow the

instruction to continue.

If the camera has already been configured, tap   to “Access

Camera”.



7



4. Enter the login password of the camera, if there is no password yet,

leave it blank, then tap the “Login” button on the bottom to login the

camera.



5. The camera has no password by default, system will require you to

create a  new password for security reason. Please name the camera



8



in the field, and create a password in the   field, tap  “Create

Password” to finish.

 

           



6. To read the tips, slide the page to go through, or tap the “Skip” button

on top right to skip these tips.



➢Manually Enter the UID



 Steps:

1. Tap  to start.

2. Tap   down on the bottom to type in information.

3. Enter the UID of the camera in the UID field, tap “Done” on top right to

save the settings.



9



3.2 Modify Camera Login Password

To change the login password,  follow the steps below:



Steps:

1. Go to “Device Settings” > “Password” > “Account Security” >

“Password”.

2. Enter the old password, then type in the new password and confirm,

tap “Modify Password” to save changes.



10
