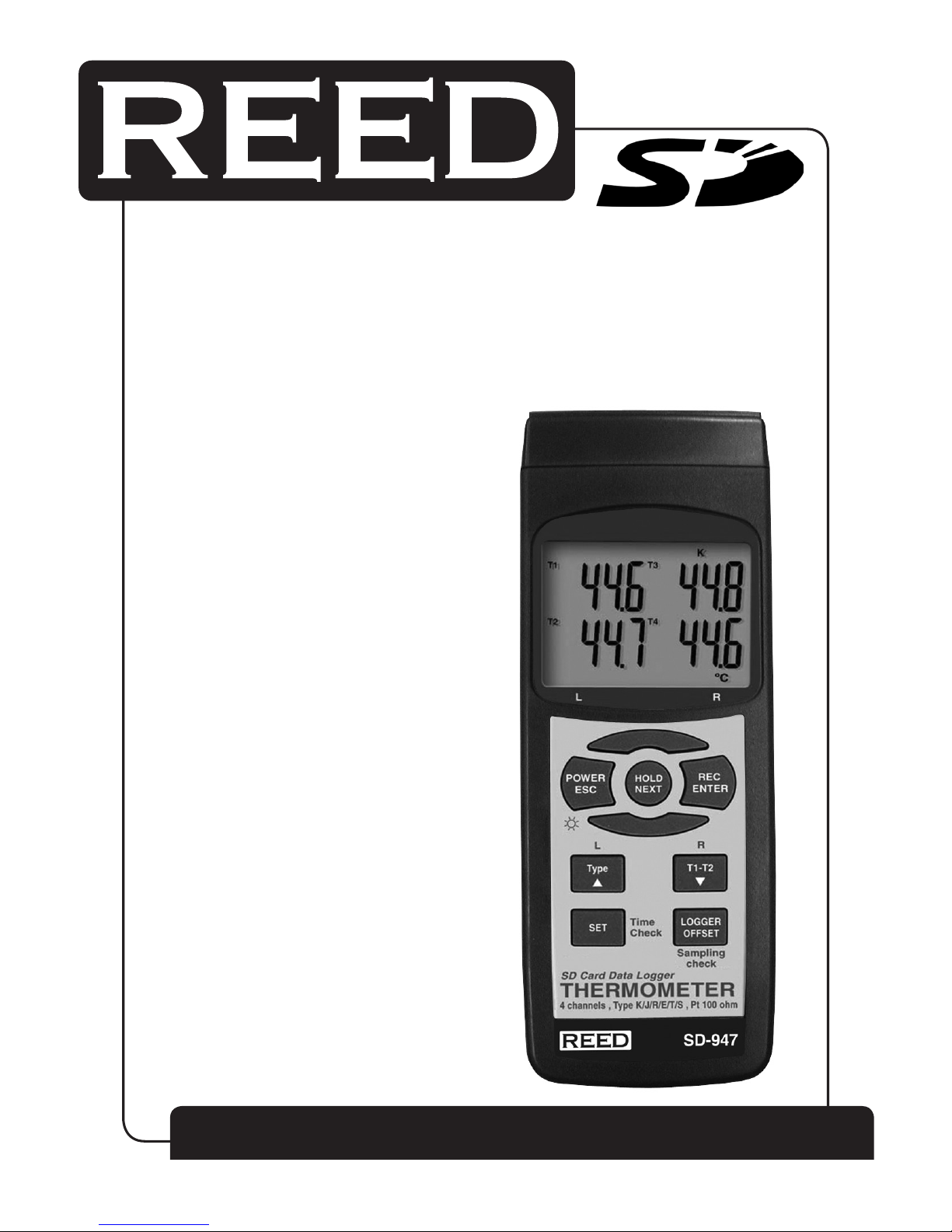

Model

4-Channel Thermocouple

Thermometer/

Data Logger

SD-947

reedinstruments

www com

Instruction

Manual

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Table of Contents

Features............................................................................................ 3

Specications................................................................................3-5

Instrument Description ..................................................................... 6

Operating Instructions.................................................................7-12

Type K Measurement..................................................................... 7

Type J/T/E/R/S Measurement........................................................ 7

Pt 100 ohm Measurement ............................................................. 7

T1-T2 Measurement ...................................................................... 7

Data Hold ...................................................................................... 8

Data Record (Max., Min. reading)................................................... 8

Backlight ON/OFF.......................................................................... 8

Type K/J/T/E/R/S Offset Adjustment ...........................................8-9

Pt 100 ohm offset adjustment........................................................9

Datalogger................................................................................9-10

Auto Datalogger........................................................................... 10

Manual Datalogger..................................................................10-11

Checking the Time.......................................................................11

Check Sampling Time Information................................................ 11

SD Card Data Structure...............................................................11

Data Transfer from SD card à Computer .................................11-12

Advanced Settings ....................................................................12-14

Set Clock Time ............................................................................ 12

Setting the Decimal point on the SD Card....................................13

Auto power OFF management..................................................... 13

Set Beeper Sound ON/OFF ......................................................... 13

Select the Temperature unit à °C or °F......................................... 13

Set sampling time ........................................................................ 14

SD memory card Format ............................................................. 14

PC Serial Interface.......................................................................... 15

System Reset ................................................................................. 16

Battery Replacement...................................................................... 16

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Features

• Accepts Type K/J/T/E/R/S Thermometers

• Shows 4 channels on the Display

• Measures in °C & °F

• Offset adjustment for both Type K/J/T/E/R/S & Pt 100 measurements

• Real time SD memory card datalogger with a built-in clock and

calendar

• Sampling time set from 1 second à 3600 seconds

• Meter can switch à a Manual Datalogging

• No extra software needed, just plug the SD card into the computer

and it downloads directly à EXCEL

• SD card capacity: 1 GB à 16 GB

• Easy à read LCD with backlight

• Auto power off or manual power off

• Data hold, record max. and min. reading

• High accuracy microcomputer circuit

• Power by UM3/AA (1.5 V) x 6 batteries

• USB/RS232 Computer interface

• Separated probe for easy measurements of multiple environments

• Automatic temperature compensation

Specifications

Circuit: Custom microprocessor LSI circuit

Display: 52mm x 38mm LCD with backlight

Channels: T1, T2, T3, T4, T1-T2

Accepted Probes: Type K, J, T, E, R, S Thermocouple Probe

& PT 100 ohm Probe

Temperature units: (°C, °F)

continued...

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800,

3600 seconds

Memory Card: SD memory card, 1 GB à 16 GB

Sampling Time: Approx. 1 second

Data Output: USB/RS232 PC computer interface

Temperature Range: 0 à 50°C (32 à 122°F)

Resolution: 0.1°C/0.1°F

Accuracy: ± 0.8°C/1.5°F

Pt 100 ohm Range: -199.99 - 850.0°C (-327.9 - 1562.0°F)

Pt 100 ohm Accuracy: ±(0.4% + 1°C), ±(0.4% + 1.8°F)

Operating Temperature: 0 à 50°C (32 à 122°F)

Operating Humidity: Less than 85% R.H.

Power Supply: UM3/AA (1.5 V) x 6 batteries

Weight: 515g/1.13lb

Dimensions: 177 x 68 x 45mm (7.0 x 2.7 x 1.9”)

Optional accessories: 2G SD Card (SD-2GB)

Type K thermocouple probe (TP-01)

USB cable (USB-01)

RS232 cable (UPCB-01)

Power adapter (AP-9VA-110V)

Data Acquisition Software (SW-U801-WIN)

Tripod (BS-6)

Soft carrying case (CA-05A)

Visit us at www.reedinstruments.com for more information on our optional

accessories, or e-mail us at info@reedinstruments.com

continued...

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Above specication tests under the environment RF Field Strength less

than 3 V/M & frequency less than 30 MHz only

Sensor Type Resolution Range Accuracy

Type K

0.1°C -50.0 à 999.9°C ± (0.4% + 0.5°C)

-50.1 à -100.0°C ± (0.4% + 1°C)

1°C 1000 à 1300.0°C

0.1°F -58.0 à 2372.0°F ± (0.4% + 1°F)

-58.1 à -148.0°F ± (0.4% + 1.8°F)

1°F 1000 à 2372°F ± (0.4% + 2°F)

Type J

0.1°C -50.0 à 999.9.0°C ± (0.4% + 0.5°C)

-50.1 à -100.0°C ± (0.4% + 1°C)

1°C 1000 à 1150.0°C

0.1°F -58.0 à 999.9°F ± (0.4% + 1°F)

-58.1 à -148.0°F ± (0.4 % + 1.8°F)

1°F 1000 à 2102°F ± (0.4 % + 2°F)

Type T

0.1°C -50.1 à -100.0°C ± (0.4% + 1°C)

-50.0 à 400.0°C ± (0.4% + 0.5°C)

0.1°F -58.1 à -148.0°F ± (0.4% + 1.8°F)

-58.0 à 752.0°F ± (0.4 % + 1°F)

Type E

0.1°C -50.1 à -100.0°C ± (0.4% + 1°C)

-50.0 à 900.0°C ± (0.4% + 0.5°C)

0.1°F -58.0 à -148.0°F ± (0.4% + 1.8°F)

-58.0 à 999.9°F ± (0.4 % + 1°F)

1°F 1000 à 1652°F ± (0.4 % + 2°F)

Type R

1°C 0 à 600°C ± (0.5% + 1°C)

601 à 1700.0°C ± (0.5% + 1°C)

1°F 32 à 1112°F ± (0.5% + 2°F)

1113 à 3092°F ± (0.5 % + 2°F)

Type S

1°C 0 à 600°C ± (0.5% + 1°C)

601 à 1500°C ± (0.5% + 1°C)

1°F 32 à 1112°F ± (0.5% + 2°F)

1113 à 2732°F ± (0.5% + 2°F)

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

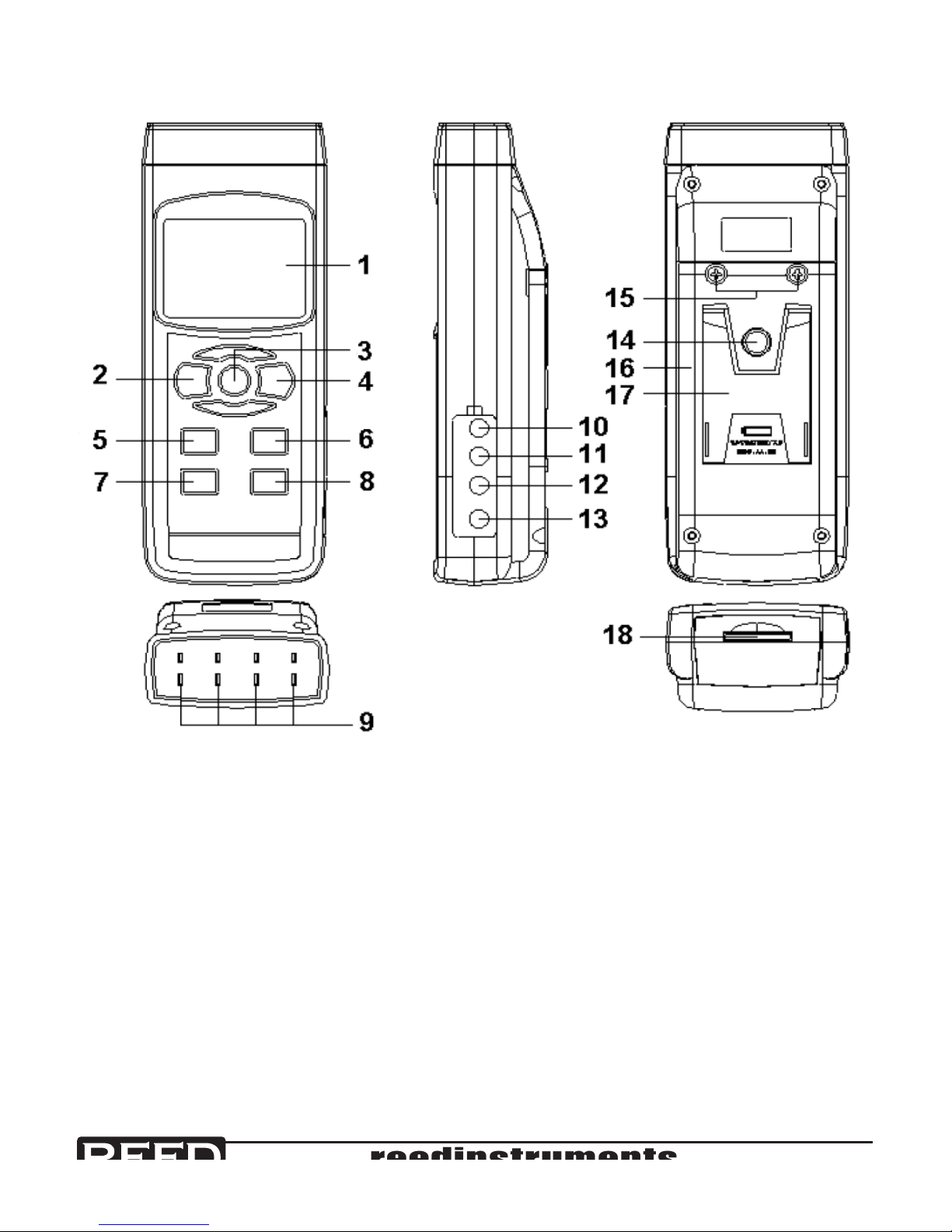

Instrument Description

1. Display

2. Power, ESC, & Backlight Button

3. Hold & Next Button

4. REC & Enter Button

5. Type, Up, & L Button

6. T1-T2, Down, & R Button

7. SET & Time Check Button

8. Logger, OFFSET, & Sampling

Time Check Button

9. T1, T2, T3, T4 input sockets

10. PT1 input socket

11. PT2 input socket

12. USB/RS232 Output

13. AC/DC 9V Power Adapter Input

Socket

14. Tripod Fix Nut

15. Battery Cover Screws

16. Battery Compartment/Cover

17. Stand

18. SD card slot

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Operating Instructions

Type K Measurement

1. Turn on the meter by pressing the Power Button. à turn the meter

off, hold the Power Button for over 2 seconds.

2. The Meter’s default Temperature sensor is Type K, which will show

on the Display as “K”. Insert the optional Type K probes into the

T1, T2, T3, T4 input sockets. The screen will show the 4 channels

(T1, T2, T3, T4) and their temperature values. If an input socket is

empty, the screen will display “- - - - -”.

Type J/T/E/R/S Measurement

1. To change the Temperature Sensor, press the Type Button so the

screen displays “J/T/E/R/S”.

2. Insert the optional Probes into the T1, T2, T3, T4 input sockets.

The screen will show the 4 channels (T1, T2, T3, T4) and their tem-

perature values. If an input socket is empty, the screen will display

“- - - - -”.

Pt 100 ohm Measurement

1. To change the Temperature Sensor, press the Type Button so the

screen displays “Pt”.

2. Insert the optional Pt 100 ohm Probes into the PT1 and PT2 input

sockets. The screen will show the temperature values. If an input

socket is empty, the screen will display “- - - - -”.

T1-T2 Measurement

1. Insert two probes into the meter, either a Thermocouple Probe in

the T1 & T2 sockets, or a Pt 100ohm Probe in the PT1 & PT2

sockets.

2. Press the T1-T2 button and the display will show the difference

value between T1, T2 (or PT1, PT2) on the bottom right of the

screen.

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

Data Hold

While taking a measurement, press the Hold Button once and the mea-

sured value will hold on the screen, and a HOLD symbol will appear.

Press the Hold Button once again will release the data hold function.

Data Record (Max., Min. reading)

The data record function records the maximum and minimum readings.

Press the REC Button once à start the Data Record function and a “REC”

symbol will appear on the display. With the “REC” symbol on the display:

1. Press the REC Button once, and a ”REC. MAX.” symbol along

with the maximum value will appear on the display. à delete the

maximum value, press the Hold Button once and the display will

show a “REC.” symbol only and execute the memory function

continuously.

2. Press the REC Button again, and a “REC. MIN.” symbol along

with the minimum value will appear on the display. à delete the

minimum value, press the Hold Button once, and the display will

show a “REC.” symbol only and execute the memory function

continuously.

3. To exit the memory record function, press the REC button for 2

seconds. The display will revert à the current reading.

Backlight ON/OFF

After powering the meter ON, the LCD Backlight will turn on automati-

cally. While taking measurements, press the Backlight Button and the LCD

Backlight will turn off. Press the Backlight Button once again à turn the

LCD Backlight back ON.

Type K/J/T/E/R/S Offset Adjustment

1. Set the function à Type K (or J/E/R/T/S).

2. Insert the optional thermocouple probe into the T1 input socket.

continued...

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

3. Press and hold the Offset Button for about two seconds then

release and the display will show: “SEt” with the Measuring Value

under it, and “oFS” with the Adjustment Value under it. Use the

Up and Down Buttons à change the Adjustment Value. Press

the Enter Button à save the Adjustment Value and return à the

measuring. This can be done for the T1, T2, T3, T4 inputs at the

same time.

Pt 100 ohm offset adjustment

1. Set the function à Pt 100 ohm.

2. Insert the optional Pt 100 ohm Probe into the PT1 (or PT2) input

socket.

3. Press and hold the Offset Button for about two seconds then

release. The screen will show: “SEt” with “Pt1” under it, and “oFS”

with “Pt2”under it.

4. To make the Offset Adjustment for Pt 1, place the probe in the PT1

input socket and press the L button. à make the Offset Adjust-

ment for Pt 2, place the probe in the PT2 input socket and press

the R button once. The display will show: “SEt” with the Measur-

ing Value under it (for eiter Pt1 or Pt2), and “oFS” with the Adjust-

ment Value under it. Use the Up and Down Buttons à change the

Adjustment Value. Press the Enter Button à save the Adjustment

Value and return à the measuring. The Pt 100 ohm Offset Adjust-

ment can only be done one at a time.

Datalogger

Preparation Before Executing the Datalogger Function:

1. Insert the optional SD card into the SD card socket.

2. Before you use an SD card with this meter for the rst time, it is

recommend à format the SD card. See Advanced Settings

section of this manual for instructions.

3. If this is the rst time the meter is used you need à adjust the

clock. See Advanced Settings section of this manual for

instructions.

continued...

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

4. Now you need à set the decimal format. The numerical data

structure downloaded à the SD card is defaulted used the “.

” as the decimal, for example “20.6” “1000.53”. But in certain

countries the “ , ” is used as the decimal point, for example “20,6”

“1000,53”. See Advanced Settings section of this manual for

instructions on how à change the Decimal Character.

Auto Datalogger (Set sampling time ≥1 second)

1. Start Datalogging; press the REC Button, and the “REC” symbol

will appear on the LCD screen, then press the Logger Button, the

“REC” symbol will ash while the measuring data and time infor-

mation is being saved in memory. à set the sampling time, and à

toggle the beeper sound on or off, refer à the Advanced Settings

section of this manual.

2. Pause the Datalogging; while Datalogging, if press the Logger

Button once. While paused, the “REC” symbol will stop ashing.

Press the Logger Button again à resume Datalogging, and the

“REC” symbol will begin à ash again.

3. Stop Datalogging; while the Datalogger function is paused, press

the REC Button for 2 seconds. The “REC” symbol will disappear

indicating the Datalogging function has stopped.

Manual Datalogger (Set sampling time = 0 seconds)

1. Set sampling time is à 0 second; Press the REC Button, and the

“REC” symbol will appear on the LCD screen. Press the Logger

Button, and the “REC” symbol will ash once and one Beep will

sound, at the same time the measuring data along the time infor-

mation will be saved in memory. The lower Display will show the

Position (record) number, which is saved as well.

2. To Change the Position Number; press the Down Button and the

lower position number will ash on the display. Press the Up or

Down Buttons à set the Position Number (1 à 99) à help identify

the measurement location. The lower Display will show P x (x = 1

à 99). After the position number is selected, press the Enter But-

ton à conrm. continued...

Shop for REED products online at: www.DataLoggerStore.com 1.877.766.5412

Autres manuels pour SD-947

Table des matières

Autres manuels REED Instrument de mesure

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
