Introduction

Thank you for purchasing your REED R6010 Pinless Moisture Meter.

Please read the following instructions carefully before using your

instrument. By following the steps outlined in this manual your meter will

provide years of reliable service.

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Product Quality

This product has been manufactured in an ISO9001 facility and has been

calibrated during the manufacturing process to meet stated product

specications.

Safety

Never attempt to repair or modify your instrument. Dismantling your

product, other than for the purpose of replacing batteries, may cause

damage that will not be covered under the manufacturer's warranty.

Servicing should only be provided by an authorized service center.

Features

• Non-invasivemeasurements,runsensoroversurfacebeingtested

without scratching or penetrating the surface

• Classiesmoisturestatusas:dry,atriskorwet

• Detectsmoisturecontentinvariousbuildingmaterials

• Measurementdepthfrom0.8"(20mm)to1.6"(40mm)

• DataHoldandMin/Maxfunctions

• Useradjustablealarmswithaudibleandvisualindicators

• LargebacklitLCDdisplay

• Lowbatteryindicatorandautoshut-off

Specifications

MeasuringRange: 0to100.0%MoistureContent

DepthDetection: 0.8to1.6"(20to40mm)

Resolution: 0.1%

SensorType: Pinless

Display LCDDisplay

BacklitDisplay: Yes

DataHold: Yes

Min: Yes

continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Max: Yes

AutoShut-off: Yes(30secs)

LowBatteryIndicator: Yes

PowerSupply: 3xAAAbatteries

ProductCertications: CE

OperatingTemperature: 32to104°F(0to40°C)

StorageTemperature: 14to140°F(-10to60°C)

OperatingHumidityRange: 0to85%

Dimensions: 9.5x2.5x1.2"(242x63x30mm)

Weight: 8oz(226g)

Instrument Description

1. Moisture Sensor

2. UP/BacklightButton

3. LCDDisplay

4. Alarm SET Button

5. DOWN Button

6. Measure/DataHoldButton

7. Power Button

8. Battery Cover

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

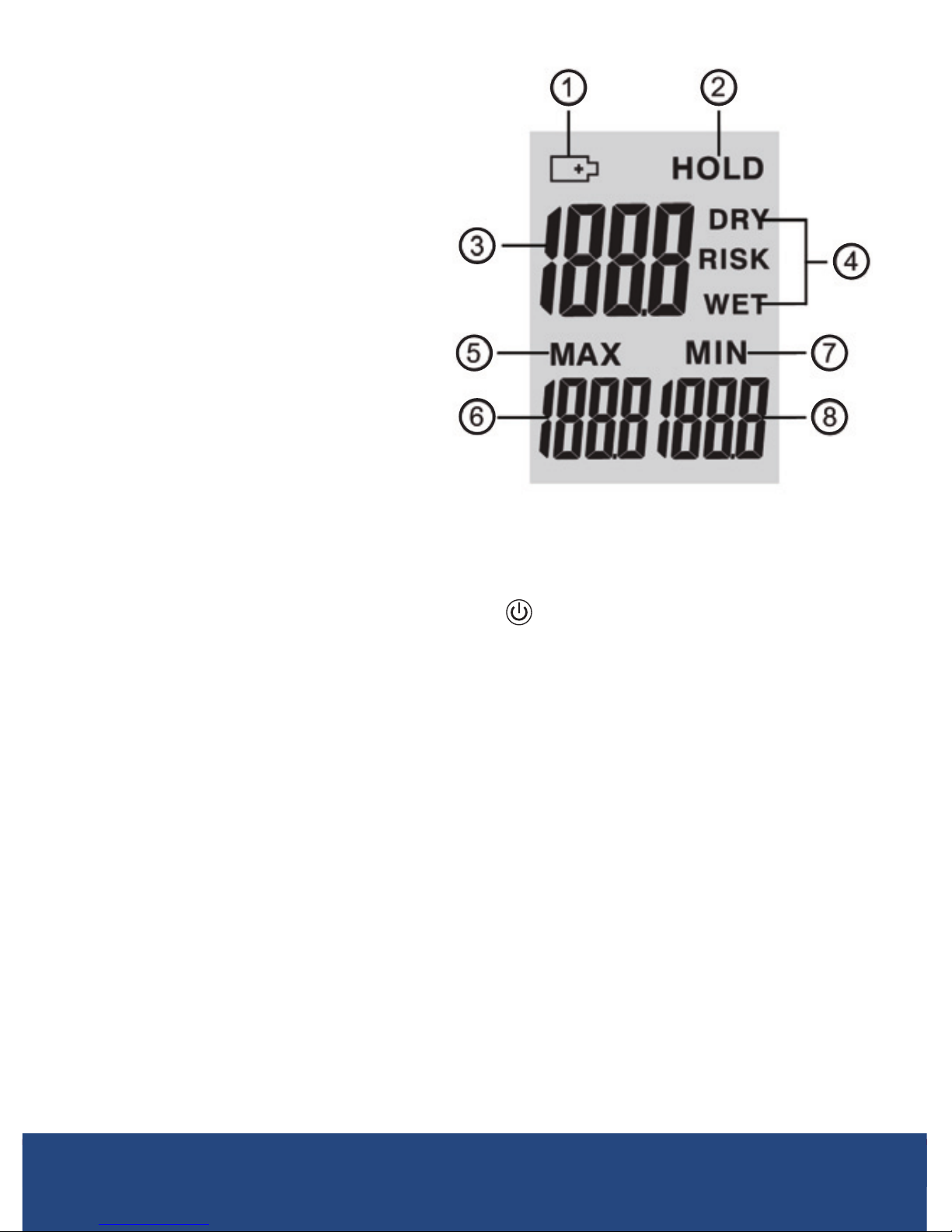

Display Description

1. LowBatteryIndicator

2. DataHoldIndicator

3. Current Moisture Value

4. Status Indicators

5. MAX Indicator

6. MAX Moisture Value

7. MIN Indicator

8. MIN Moisture Value

Operating Instructions

1. Turn the meter ON by pressing the button.

2. Please be advised that you must calibrate the meter before rst use.

3. To calibrate the meter, press the MEAS button while holding the

meter in an upright position so the ball sensor is in the air and at

least3to4"(8to10cm)awayfromanyobject.

4. "CAL"willdisplayontheLCDscreenwhiletheunitself-calibrates.

5. When calibration is complete, the beeping and ashing will stop, and

a measurement will be displayed. The measurement must be below

0.5%inordertotakeaccuratemeasurements.Ifnot,youmustturn

the meter off, move to a dry area and recalibrate by repeating steps 1

to 4.

NOTE: When you move from the location of your initial calibration you

must recalibrate the meter.

6. After the meter is calibrated it will automatically start to take readings.

continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

7. To take a measurement, position the sensor so that it is directly

touching the surface being tested. The moisture sensor ball head

must be kept perpendicular to the material being measured, pressed

rmly on the surface and not slanted.

8. TheLCDdisplaysarelativemoisturereadingfrom0.0%to100.0%

withprogrammablealarmindicators(DRY,RISKandWET)–See

"AlarmSetupMode"toprogramalarms.

9. The MAX and MIN indicators display the highest and lowest readings

recorded during the measuring period.

10. To hold the current measurement press the MEAS button and the

dataholdsymbolwillappearontheLCDscreen.Inordertoresume

normal operation, press the MEAS button again.

11. After60secondsofinactivity(inDataHoldMode),themeterwill

automatically power off.

Alarm Settings

1. ThedefaultRISKalarmvalueissetat30%.TheRISKalarmvalue

canbesetbetween0%and50%.–See"AlarmSetupMode"to

program alarms.

2. ThedefaultWETalarmvalueissetat60%.TheWETalarmvalue

canbesetbetween50%and100%.–See"AlarmSetupMode"to

program alarms.

Alarm Setup Mode

1. ToadjustRISKandWETalarmvalues,themetermustbeturnedon

andcalibrated(seesteps1to4inOperatingInstructions).

2. Press the MEAS button to put the meter in data hold mode and

press the SET button.

3. TheRISKsymbolwillappearontheLCDscreenaswellasthevalue

inwhichtheRISKalarmissetto.

4. To change the alarm value, press the UP or DOWN buttons.

5. Press the SET button to save your setting and to move onto the WET

alarm value.

6. TheWETsymbolwillappearontheLCDscreenaswellasthevalue

in which the WET alarm is set to. continued...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

7. To change the WET alarm value, press the UP or DOWN buttons.

8. Press the SET button to save the WET alarm value and to return to

data hold mode.

9. IfthemoisturemeasurementexceedsthesetRISKalarmsetting,the

meterwillbeepeverysecond.Ifthemoisturemeasurementexceeds

the set WET alarm setting, the meter will beep every half second.

10. Press the MEASbuttontoexitdataholdmodeandresume

normal operation.

Backlighting

Press the UP/button to turn backlighting on and off.

Moisture Comparison Table

Construction Material Display (Unit) Moisture Status

Gypsum

<30 DRY

30-60 RISK

>60 WET

Cement

<25 DRY

25-50 RISK

>50 WET

Wood

<50 DRY

50-80 RISK

>80 WET

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Battery Replacement

If appearsontheLCDscreen,thebatteriesshouldbereplaced

immediately. In order to replace the batteries, proceed with the

following steps.

1. Turn off the meter

Remove the Phillips-head screw located on the battery compartment

3. Remove the battery cover

4. Replacethethree(3)"AAA"1.5Vbatteries

5. Reinstall the battery cover

Accessories and Replacement Parts

CA-05A Soft Carrying Case

Don't see your part listed here? For a complete list of all accessories and

replacement parts visit your product page on www.reedinstruments.com.

Product Care

Tokeepyourinstrumentingoodworkingorderwerecommendthefollowing:

• Storeyourproductinaclean,dryplace.

• Changethebatteryasneeded.

• Ifyourinstrumentisn'tbeingusedforaperiodofonemonthorlonger

please remove the battery.

• Cleanyourproductandaccessorieswithbiodegradablecleaner.Donot

spraythecleanerdirectlyontheinstrument.Useonexternalpartsonly.

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Product Warranty

REED Instruments guarantees this instrument to be free of defects in

materialorworkmanshipforaperiodofone(1)yearfromdateofshipment.

During the warranty period, REED Instruments will repair or replace, at no

charge, products or parts of a product that proves to be defective because

of improper material or workmanship, under normal use and maintenance.

REED Instruments total liability is limited to repair or replacement of the

product. REED Instruments shall not be liable for damages to goods,

property, or persons due to improper use or through attempts to utilize the

instrumentunderconditionswhichexceedthedesignedcapabilities.In

order to begin the warranty service process, please contact us by phone at

1-877-849-2127 or by email at info@reedinstruments.com to discuss the

claim and determine the appropriate steps to process the warranty.

Product Disposal and Recycling

Please follow local laws and regulations when disposing or recycling your

instrument.Yourproductcontainselectroniccomponentsandmustbe

disposed of separately from standard waste products.

Product Support

If you have any questions on your product, please contact your authorized

REED distributor or REED Instruments Customer Service by phone at

1-877-849-2127 or by email at info@reedinstruments.com.

Please visit www.REEDINSTRUMENTS.com for the most

up-to-date manuals, datasheets, product guides and software.

Product specifications subject to change without notice.

this manual is strictly prohibited without prior written permission

from REED Instruments.
