INSTRUMENTS

Model R5800

Voltage/Current

Simulator

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Table of Contents

Safety ......................................................................................................... 3

Features...................................................................................................... 4

Specications..........................................................................................4-5

Instrument Description............................................................................6-7

Operating Instructions...........................................................................8-11

Power ON/OFF........................................................................................ 8

Automatic Power-Off ............................................................................... 8

Output Function ...................................................................................... 8

Output Operation Procedure ................................................................... 9

DC Voltage Output .................................................................................. 9

DC Current Output ............................................................................. 9-10

25% Step Current Output...................................................................... 10

Current Output Set for Zero Point & Full Scale ..................................10-11

Simulating Transmitter Output (XMT)...................................................... 11

Calibration ................................................................................................ 11

Battery Replacement................................................................................ 12

For service (repairs or calibration) on this or any other REED product

or information on other REED products, contact REED Instruments at

info@reedinstruments.com.

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Safety

To prevent the user and the instrument from electric shock and other

hazards, it is necessary to follow the following regulations:

Warning

• Donotoperatetheinstrumentinthepresenceofammableor

explosive gas or vapor. This is extremely dangerous.

• Neverapplymorethan30Vbetweenanytwoterminals,orbetween

terminal and ground.

Caution

• Thesplitcase(topandbottom)isnottoberemoved,unlessby

qualied technicians.

• Tocleantheinstrument,periodicallywipethecasewithadamp 

cloth and mild detergent, do not use any corrosive solvents.

Note

• Foroptimalaccuracy,allowtheinstrumenttowarmupfor5minutes

before operating.

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Features

• Sources voltage and current

• Large 5-digit LCD display

• Automatic calibration

• Low battery indicator and auto shut off

• Protective boot for added durability and kickstand

Specifications

Output Functions

Applicable range from 18 to 28°C, within one year of calibration.

Output Range Output Range Resolution Accuracy Note

DCV 10V 0.000to

11.000V 1mV 0.05%ofset

value±2mV

Max output

current:

2 mA

DCA 20mA 0.000to

22.000mA 0.001mA 0.05%ofset

value ±4μA

Max load:

1kΩat20mA

note 1

Analog

transmitter -20mA 0.000to

-22.000mA 0.001mA 0.05%ofset

value ±4μA

Max load:

1kΩat20mA

Loop

power 24V - - ±10%

Max output

current up to

25mA

Note 1: Whenthebatteryvoltageexceeds6.8V,themax.loadis1KΩat

 20mA.Whenitsvoltageliesbetween5.8Vand6.8V,themax

 loadis700Ωat20mA.

Note 2: Temperaturecoefcient:±0.005%oftherangeper°Cforthe

 temperatureranges5°Cto18°Cand28°Cto40°C.

continued ...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

General Specifications

Auto Shut-off: Yes (after 15mins/off)

Power Supply: 2 AA batteries

Battery Life: Approx. 12 hours

Maxpermittedvoltage: 30V(betweenanytwoterminalsorbetween

any terminal and earth ground)

Operatingtemperature: 0to122°F(0to50°C)

Operatingrelativehumidity: ≤80%RH

Operatinghumidityrange: 10-85%

Storagetemperature: 14to140°F(-10to60°C)

Storagehumidity: ≤90%RH

Safety: CertiedascomplianttoIEC1010provisions

& CE

Dimensions: 7.09x3.54x1.85in(180x90x47mm)

Weight: 18.2oz (515g)

Includes: Test leads, alligator clips, protective holster,

soft carrying case, and batteries

OptionalAccessories:CA-05ASoftCarryingCase

TL-88-1 Test Leads

FC-A15 Safety Alligator Clips

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Instrument Description

1. LCD screen

2. Power button

3. ON/OFF

4. Zero/FS points select button

5. 25%singlestepsetting/autorampbutton

6. UnitVmA/%selectbutton

7. UnitmA/%selectbutton

8. output digit selection button

9. output value setting button

10. Output terminals

continued ...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

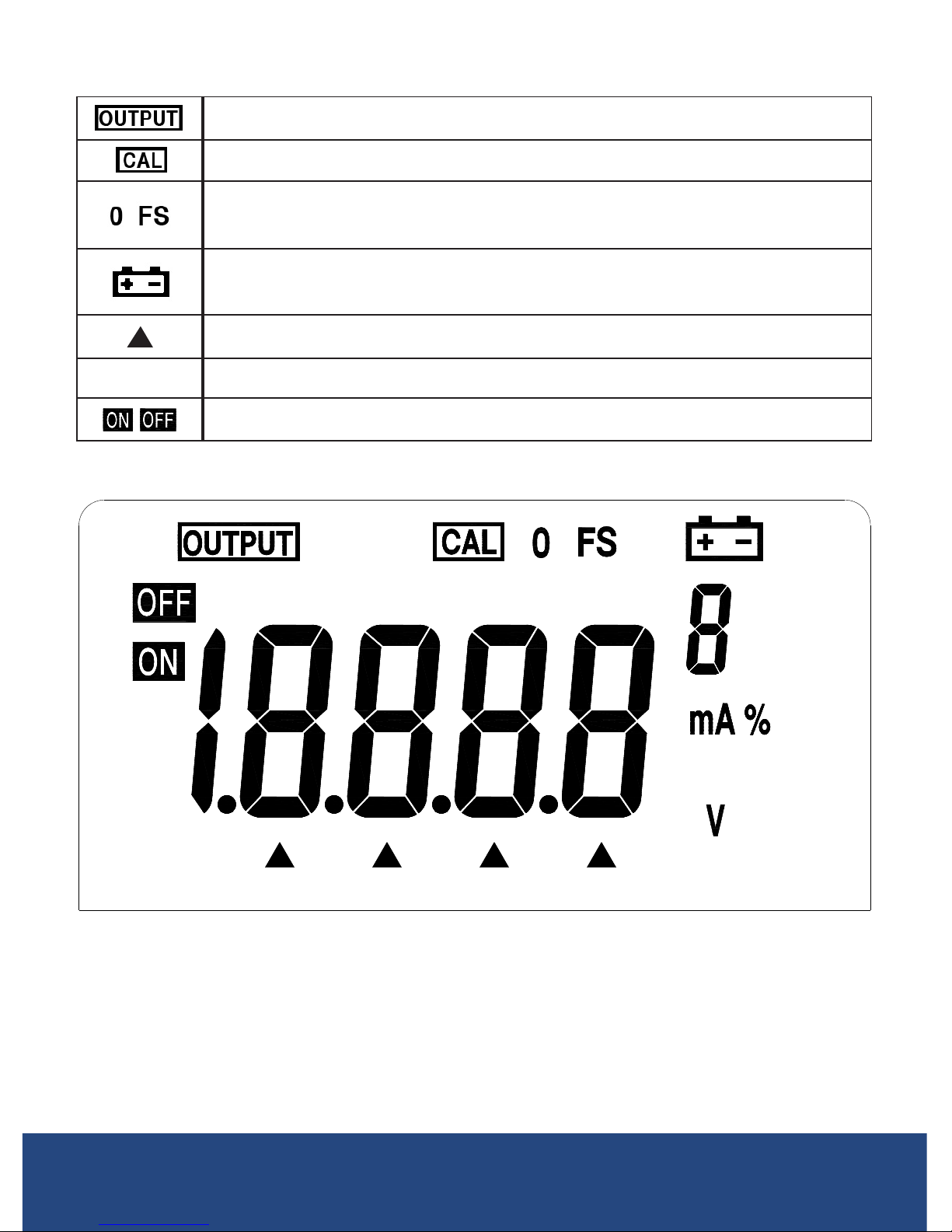

Display Description

Indicates that the instrument is in an output state

Indicates that the instrument is in a calibration state

Indicates that the instrument is in a calibration state, denoting

that the zero point or the full scale point is now in calibration

Indicates that the battery power is low and needs to be

replaced

Indicates that the output digits need to be set

V.mA.% Indicates the current output value (unit of measure)

Indicates that the output signal is on or off

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Operating Instructions

Power ON/OFF

Press the Power button to turn the instrument on. Press this button again,

holding for one second to turn the instrument off. When the instrument is

on, it will begin an internal self-diagnosis at which time the full screen will

be displayed. Once complete, the instrument is ready to be used.

Automatic Power-Off

As a default the instrument will be set to automatically turn itself off

after 15 minutes without any action. Follow the steps below to turn the

Auto-Power Off function off.

1. Be sure the meter is powered off.

2. PressboththePOWERandmA%/Vbuttonssimultaneously.

The display will indicate the symbol ‘AP-XX’.

3. Press the button to activate or deactivate the Auto-Power Off

function. ‘AP-OF’ indicates that there is no automatic power-off

functionset,and‘AP-ON’indicatestheautomaticpower-off

function is activated.

4. Turn the meter off to save the setting.

Output Function

The output terminal of the instrument can produce DC voltages set by the

user or simulating resistance.

Do not apply any voltage to the output terminal during the operation.

If any improper voltage is applied to the output terminal, it will cause

damage to the internal circuits.

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

Output Operation Procedure

Function

Operation Range

Operation Display Set Range

DCA10mA 20mA% 0.000V 0.000to11.000V

-00.000to22.000mA

DC Voltage Output

1. Insert one end of the test leads into

theVoutputjackandconnectthe

other end to the input of the meter, as

shown in the diagram.

2. The symbol will appear on

the display indicating that the

calibrator is in an output state.

3. PresstheV/mAbuttontoselecttheV

functionanddisplaytheVunit.

4. Press the buttons to select the output digits.

5. Press the button to change the numerical value of the set

digits.Holdthebuttonandthevaluewillkeepvarying.

6. PresstheON/OFFbuttonturntheonandofftheoutputfollowed

bydisplayingtheONorOFFsymbol.

DC Current Output

1. Insert one end of the test leads into

the+mAoutputjackandconnectthe

other end to the input of the meter, as

shown in the diagram.

2. PresstheV/mAbuttontoselectthe

mA function and display the mA unit.

3. PressthemA/%buttontoselectthemAor%functionanddis-

playthemAor%unit,inwhich0%is4mAand100%is20mA.

4. Press the buttons to select the output digits. continued ...

XMT

30V

MAX

30V 30V

MAX

+mA-

XMT V

30V

MAX

30V 30V

MAX

+mA-

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

reedinstruments

www com

Pantone 534 Blue

Pantone 123 Yellow

Pantone 485 Red

Pantone 123 Yellow

Pantone 534 Blue

Black Rich Black -

20/20/20/100

Blue - 100/80/30/5

Yellow - 0/27/100/0

Red - 10/100/100/5

Yellow - 0/27/100/0

Blue - 100/80/30/5

Only if you REALLY need them:

Pantone 534 Blue - 100/80/30/5

Pantone 485 Red - 10/100/100/5

Pantone 123 Yellow - 0/27/100/

INSTRUMENTS

5. Press the button to change the numerical value of the set

digits.Holdthebuttonandthevaluewillkeepvarying.

6. PresstheON/OFFbuttonturntheonandofftheoutputfollowed

bydisplayingtheONorOFFsymbol.

25% Step Current Output

1. Connect the test leads to the meter as stated in the Current

Output procedures.

2. PresstheV/mAbuttontoselectthemAfunctionanddisplaythe

mAormA%unit.

3. PressthemaA25%buttonand will appear on the LCD.

4. PressthemA/%buttontoselectthesetoutputtomAor%and

displaythemAormA%unit.

5. Press the buttontochangetheoutputinavalueof25%,

inwhich0%indicates4mAand100%indicates20mA.

6. PresstheON/OFFbuttonturntheonandofftheoutputfollowed

bydisplayingtheONorOFFsymbol.

Current Output Set for Zero Point & Full Scale

1. Connect the test leads to the meter as stated in the Current

Output procedures.

2. PresstheV/mAbuttontoselectthemAfunctionanddisplaythe

mAormA%unit.

3. PressthemaA25%buttonand will appear on the LCD.

4. PressthemA/%buttontoselectthesetoutputtomAor%and

displaythemAormA%unit.

5. PresstheV/mAbuttontoselectthemAfunctionanddisplaythe

mAormA%unit.

6. PressthemA25%buttonand will appear on the LCD.

7. Press the button tochangetheoutputinavalueof100%,

inwhich0%indicates4mAand100%indicates20mA.Pressthe

mA100%toexitthestepcurrentoutput.

continued ...

REED Instruments

1-877-849-2127 | [email protected] | www.reedinstruments.com

Table des matières

Autres manuels REED Instrument de mesure

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
