Razer RC30-013601 Manuel utilisateur

PACKAGE CONTENTS / SYSTEM REQUIREMENTS

PACKAGE CONTENTS

•Razer Gaming Mouse (Model: RC30-013601)

•Charging Dock(Model: RC30-013602)

•Charging Cable

•Screwdriver

•Important ProductInformation Guide

SYSTEM REQUIREMENTS

•PC or Mac with a free USB 2.0 port

•Windows® 8 / Windows® 7 / Windows Vista® / Windows® XP (32-bit) /

Mac OS X (10.8-10.10)

•Internet connection

•100MB of free hard disk space

DEVICE LAYOUT

[Placeholder image]

A. Left mouse button

B. Right mouse button

C. Scroll wheel

D. Left tilt-click - scroll left

E. Right tilt-click - scroll right

F. Sensitivity button - stage up*

G. Sensitivity button - stage down*

H. Mouse button 5

I. Mouse button 4

J. Side Strips

K. Ultraslick mouse feet

L. Adjustable click force mechanism

M. Wireless on/off switch

N. 16000 DPI4G sensor

[Placeholder image]

O. Charging cable

P. Charging dock

Q. Screwdriver

Note: Once you have installed Razer Synapse, you will have access to more DPI options which

you can configure to the Sensitivity buttons.

SETTING UP YOUR RAZER MAMBA

ADJUSTING THE CLICK FORCE

1. Take the screwdriver provided and insert it firmly into the adjustable

click force mechanism.

[Placeholder image]

2. Rotate the screwdriver clockwise to increase or counterclockwise to

decrease the resistance.

[Placeholder image]

LIGHTING SCHEME WHEN CHARGING THE RAZER MAMBA

LED INDICATOR BATTERY STATUS

(scroll wheel blinking: red)

[Placeholder image] Low power (<25%)

[Placeholder image]

LED breathing) Charging (0%-15%)

[Placeholder image]

LED breathing) Charging (>5%-30%)

[Placeholder image]

LED breathing) Charging (>30%-45%)

[Placeholder image]

LED breathing) Charging (>45%-60%)

[Placeholder image]

LED breathing) Charging (>60%-75%)

[Placeholder image]

LED breathing) Charging (>75%-90%)

[Placeholder image]

LED breathing) Charging (>90%-99%)

(All LEDsspectrum cycling)

[Placeholder image] Fully charged (100%)

Note: Thislighting scheme is only applicable if the Razer Mamba is placed on the charging

dock. The Razer Mamba will resume its own lighting effects once it is removed from the

charging dock.

CHARGING YOUR RAZER MAMBA

For best results, please fully charge your Razer Mamba before using it forthe

first time. A depleted battery will be fully charged in about 5hours. If the Razer

Mamba has not been used for an extended period, you mayneed to recharge it

before use.

The Razer Mamba requires a USB connection that is able to supply sufficient

power to charge the battery. The battery charging process of the Razer Mamba

may be affected if connected to a non-powered USB hub or non-powered USB

ports found on certain keyboards and other peripherals. When in doubt, it is

preferable to connect the Razer Mamba directly to the USB port of your

computer.

WIRELESS MODE

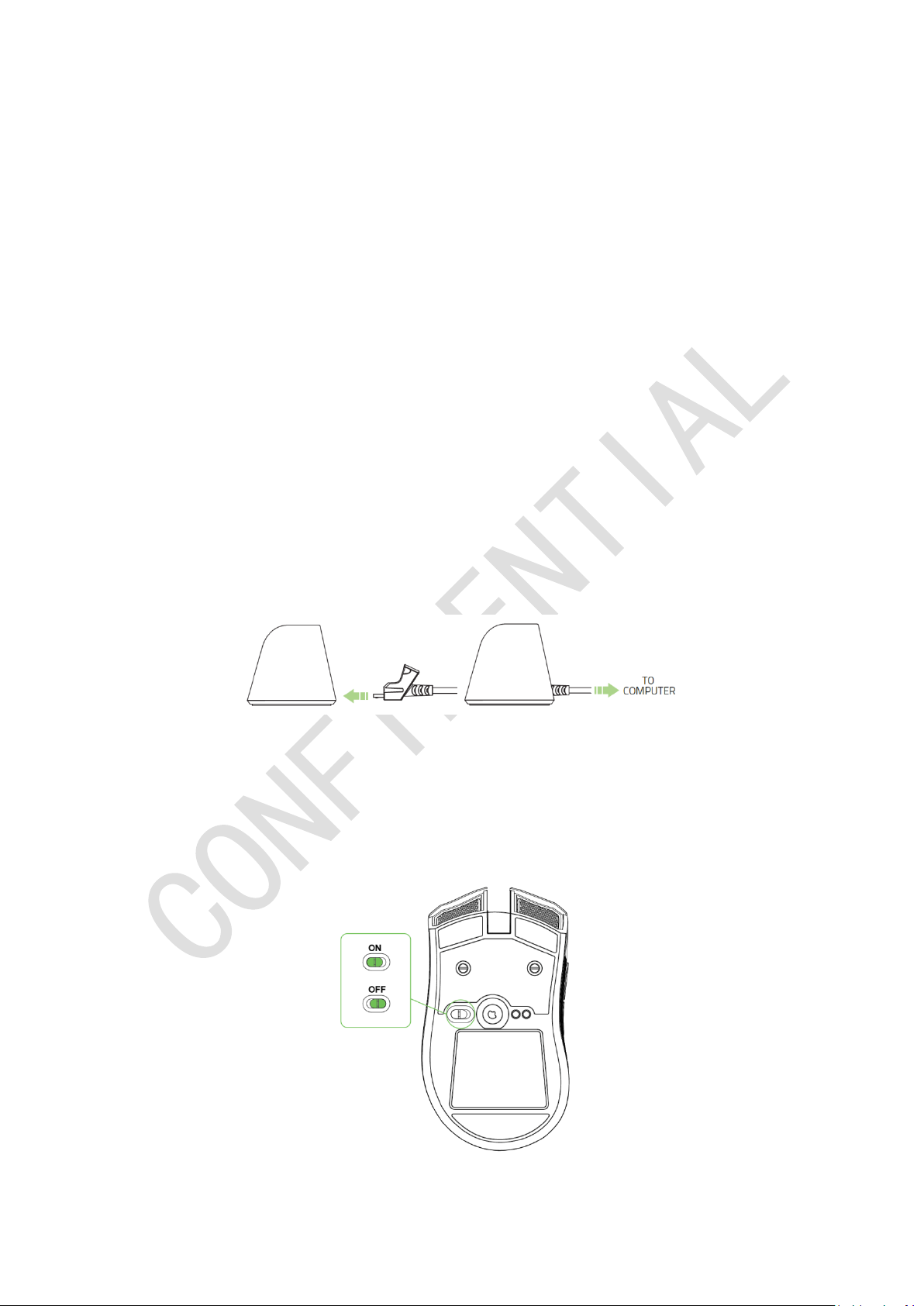

1. Insert the micro USB connector to the charging dock and then insert the

USB connector to your computer.

[Placeholder image]

2. Slide the switch to the Wireless ON position as shown here. To conserve

battery power, always move the switch to the Wireless OFF position

when not using your mouse in wireless mode.

[Placeholder image]

3. To charge the Razer Mamba in wireless mode, ensure that the switch is

set to Wireless OFF position and then place the mouse on the charging

dock.

[Placeholder image]

WIRED MODE

Insert the micro USB connector to the Razer Mamba and then insert the USB

connector to your computer.

[Placeholder image]

The Razer Mamba is now ready for use as a high performance wired mouse. In

addition, its battery will automatically start charging in wired mode.

INSTALLING YOUR RAZER MAMBA

Step 1: Connect your Razer device to the USB port of your computer.

Step 2: Install Razer Synapse when prompted* or download the installer

from www.razerzone.com/synapse.

Step 3: Register for a Razer ID or log in to Synapse with an existing account.

*Applicable for Windows 8 or later.

Note:By default, the Razer Mamba is set to spectrum cycling. To customize the lighting,

please install Razer Synapse.

Please refer to the Online Master Guide at www.razersupport.com for in-depth

instructions on how to configure and use your Razer Mamba.

CONFIGURINGTHE SYNAPSE CHROMA LIGHTING EFFECTS

Each Chromaenabled device has a Lighting Tab on Synapse. This Lighting Tab

allows you to customize the look of your Razer Mamba by being able to choose

from 16.8 million colors for the charging dock, scroll wheel, and side strips.

This tab also allows you to adjust the intensity of the lighting using the

BRIGHTNESS dropdown menu.If you have other Chromaenabled devices, you

can synchronize all lighting scheme by clicking the button. Note that

this synchronization function will only apply on devices that support the

selected scheme.

BASIC LIGHTING EFFECTS

Name Description How to set up

Spectrum

cycling

The LEDs

will cycle

between 16.8 million

colors indefinitely

Default effect. No further

customization is required

Wave

The lighting will scroll in

the direction selected

with a default spectrum

of colors

Select either front-to-

back or back-to-front

wave direction

Static The LEDs will remain lit in

the selected color

Select the desired lighting

color

Breathing

The lighting fades in and

out of the selected

color(s)

Select up to 2 colors for

this setting

Reactive

The LEDs

will light up

when you click any of the

mouse buttons.

Select the desired lighting

color

You can further customize your Razer Mamba by accessing the Advanced

Chroma Configurator on Synapse.For more Razer Chroma lighting profiles by

the Razer community, and to share your own creation, please

visit:https://insider.razerzone.com.

REGISTRATION / TECHNICAL SUPPORT

REGISTRATION

product’s warranty status. To learn more about Razer Synapse and all its

features, visit www.razerzone.com/synapse.

If you are already a Razer Synapse user, register your product by clicking on

your email address at the Razer Synapse application and select Warranty

Status from the dropdown list.

To register your product online, visit www.razerzone.com/registration. Please

note that you will not be able to view your warranty status if you register via

the website.

Your product’s serial number can be found here

[Placeholder image]

FCC DECLARATION OF CONFORMANCE

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a

residentialinstallation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the

receiver is connected.

- Consult the dealer or an experienced radio TV technician for help.

FCC CAUTION STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

Caution:

Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

INDUSTRY CANADA STATEMENT

This device complies with Industry Canada licence-exempt RSSs. Operation is

subject to the following two conditions:

(1) this device may not cause interference, and

2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux

appareils radio exempts de licence. L'exploitation est autorisée aux deux

conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d'en compromettre le fonctionnement
