Quoizel NY8416K Instructions de montage

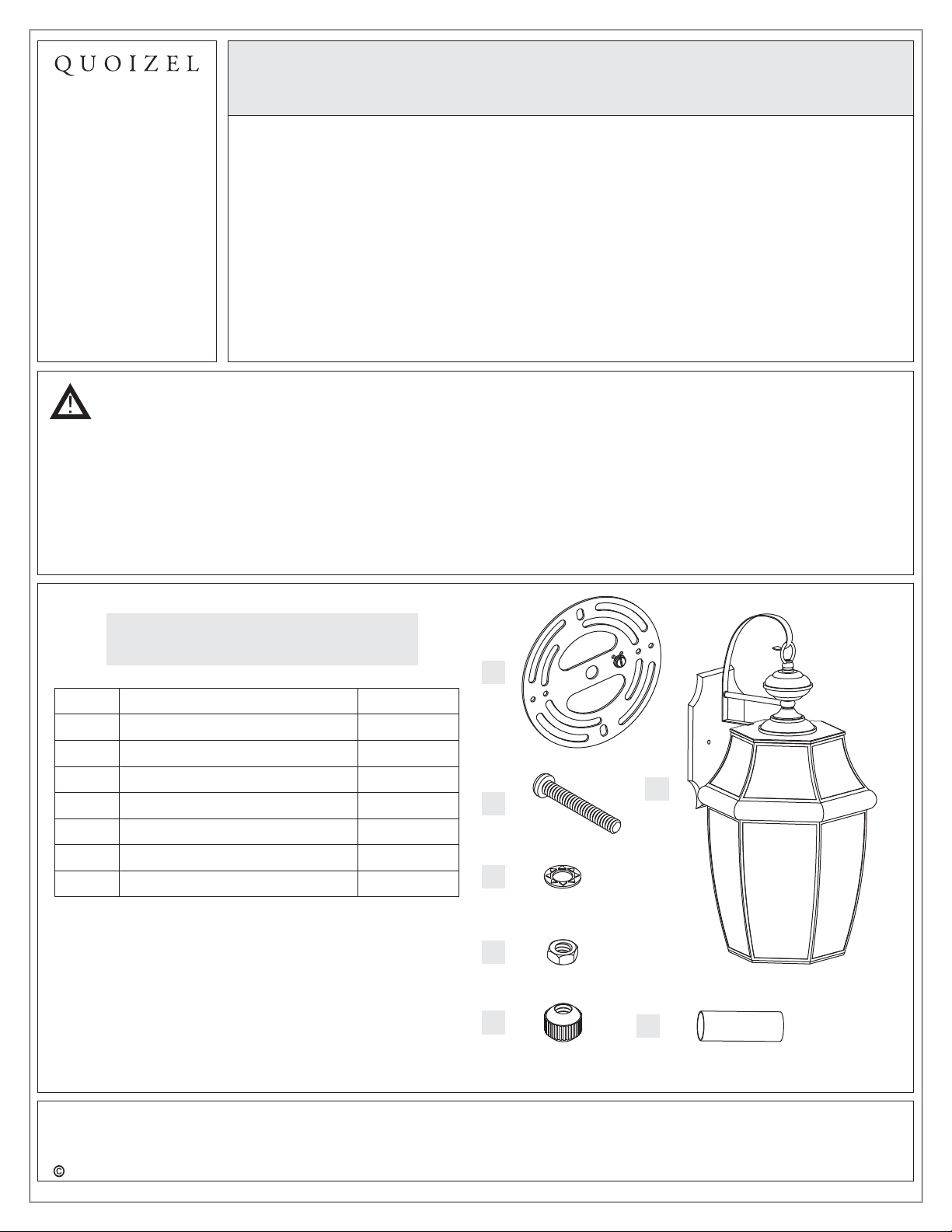

Part Description Quantity

A Crossbar 1pc.

1pc.

2 pcs.

Fixture Body

Hex Nut

Lock Washer

Package Contents

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC

29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

Mounting Ball

Mounting Screw

1of5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8416

For Styles NY8416K, NY8416P and NY8416Z

Pleasegoto forproductcleaningtips.Gotothe

selection.

(4)CandelabraBase60WMaximum

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage

contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissingor

damaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer

serviceforreplacementparts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

Fixturecanonlybemountedinthedirectionindicatedonpage2.

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire

strippers,electricaltape,safetyglasses.

2015 QuoizelInc. June2015

4 pcs.

GCandle Cover

PART NUMBER

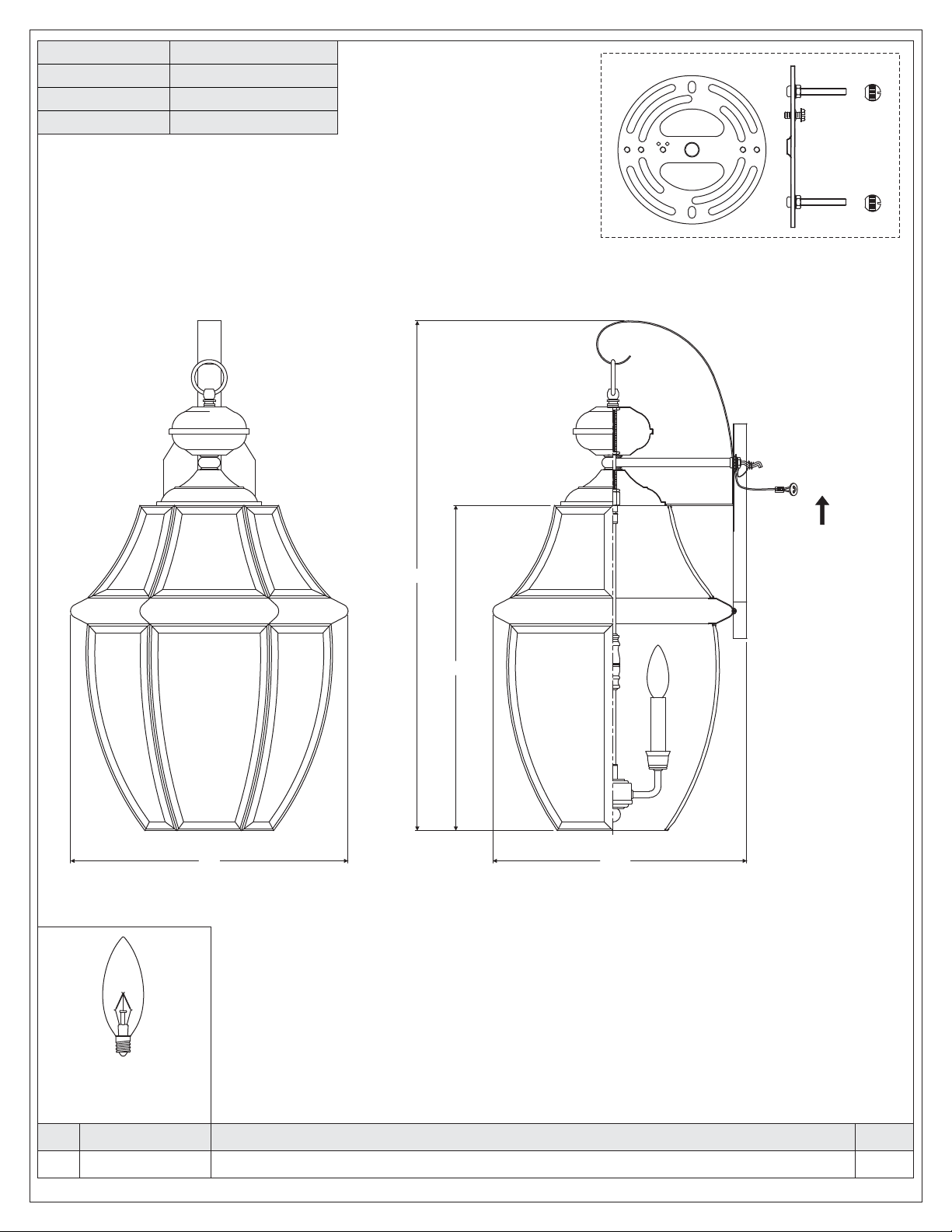

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

REPLACEMENT PART DESCRIPTION REQ.

NO.

2of5

(4) 60W Candelabra

base bulbs

(not Supplied)

GND

2.4mm

13Ga

QUOIZEL R

29.5”

19”

15”16”

STYLE NUMBER

NY8416K

NY8416P

NY8416Z MEDICI BRONZE

PEWTER

MYSTIC BLACK

FINISH

Fixture can only be

mounted in the

direction indicated

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

3of5

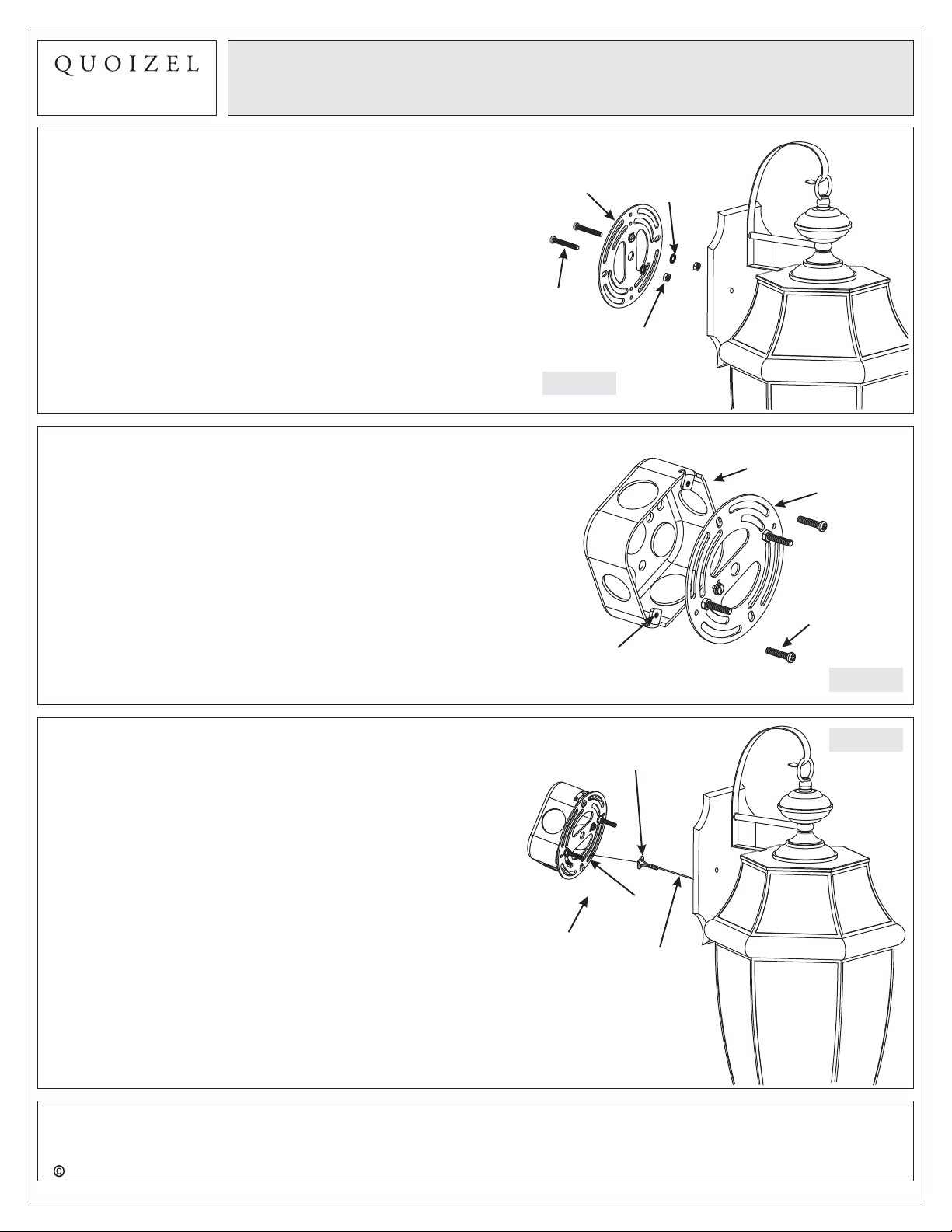

STEP 1 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the backplate of the Fixture Body (K).

B. Thread Mounting Screws (B) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread Hex

Nut (D) onto the Mounting Screws (B). Hand tighten

until snug.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Figure 1

Crossbar

Mounting

Screw

Lock Washer

Hex Nut

STEP 2 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Crossbar

Outlet

Box

Outlet Box

Screw

Mounting

Hole

Figure 2

Figure 3

STEP 3 Attach Lanyard-

A. The purpose of the lanyard is to provide the installer a

means to support the fixture from the junction box while

connecting the electrical wires. This enables the fixture

to hang from the junction box and your hands are free to

make the wire connections.

B. Turn the Button Stop so it may be inserted into the Inner

Backplate slot. Make sure the Button Stop is completely

inside the crossbar. Slowly release the fixture to make

sure it is supported by the Button Stop. Proceed to the

wiring steps. Once you are complete with the wiring

there is nothing to do with Lanyard. The Lanyard will

push into the junction box when the fixture is placed for

final mounting.

Slot

Lanyard

Button Stop

Inner Backplate

2015 QuoizelInc. June2015

Assembly Instruction Sheet #IS-NY8416

For Styles NY8416K, NY8416P and NY8416Z

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

4of5

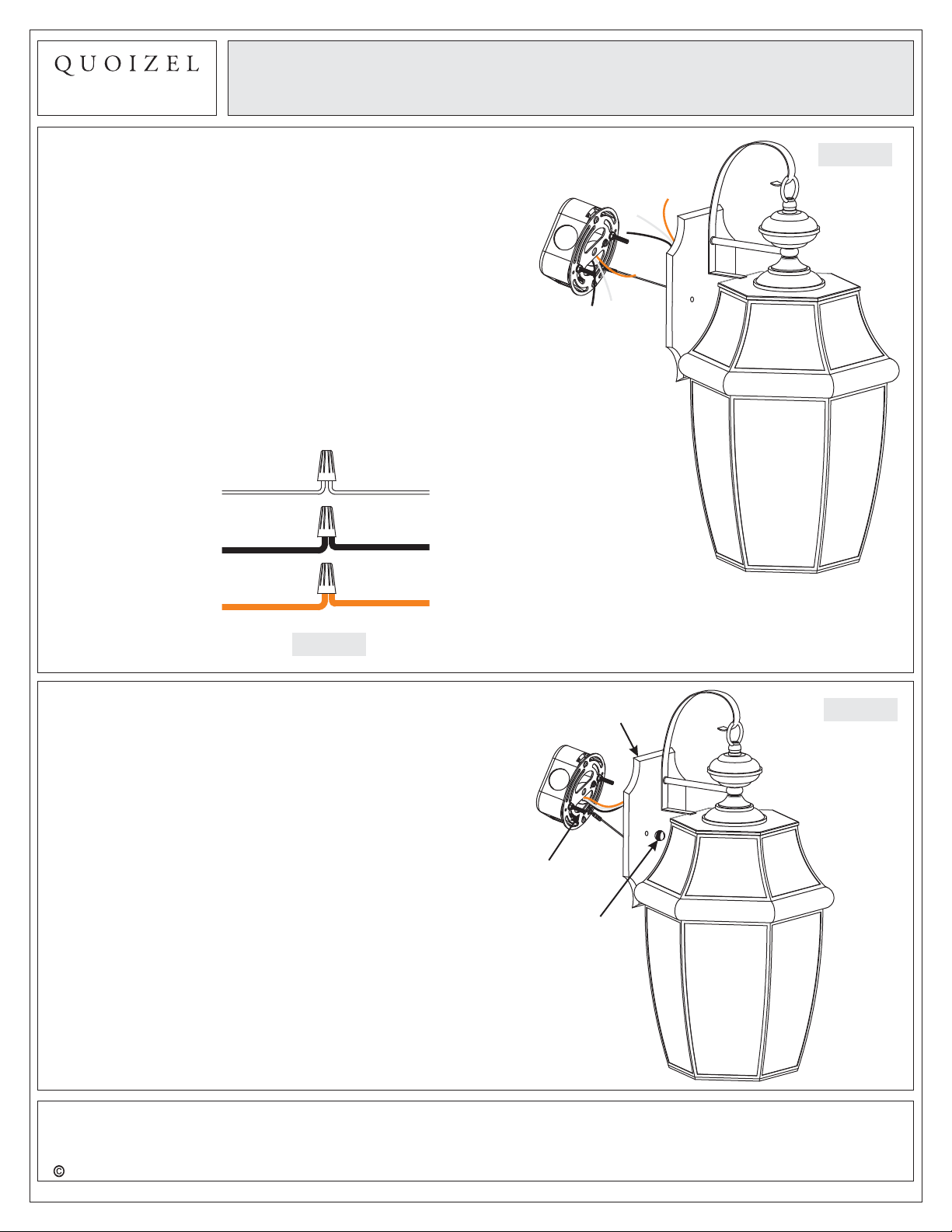

STEP 4 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 4

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

STEP 5 -Attach Fixture Body to Mounting

Screw

A. Place the backplate of the Fixture Body (F) over the

Mounting Screws (B) and secure with Mounting Balls

(E). Hand tighten until snug.

Figure 6

Mounting

Screw

Mounting Ball

Backplate

Figure 5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

2015 QuoizelInc. June2015

Assembly Instruction Sheet #IS-NY8416

For Styles NY8416K, NY8416P and NY8416Z

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

5of5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

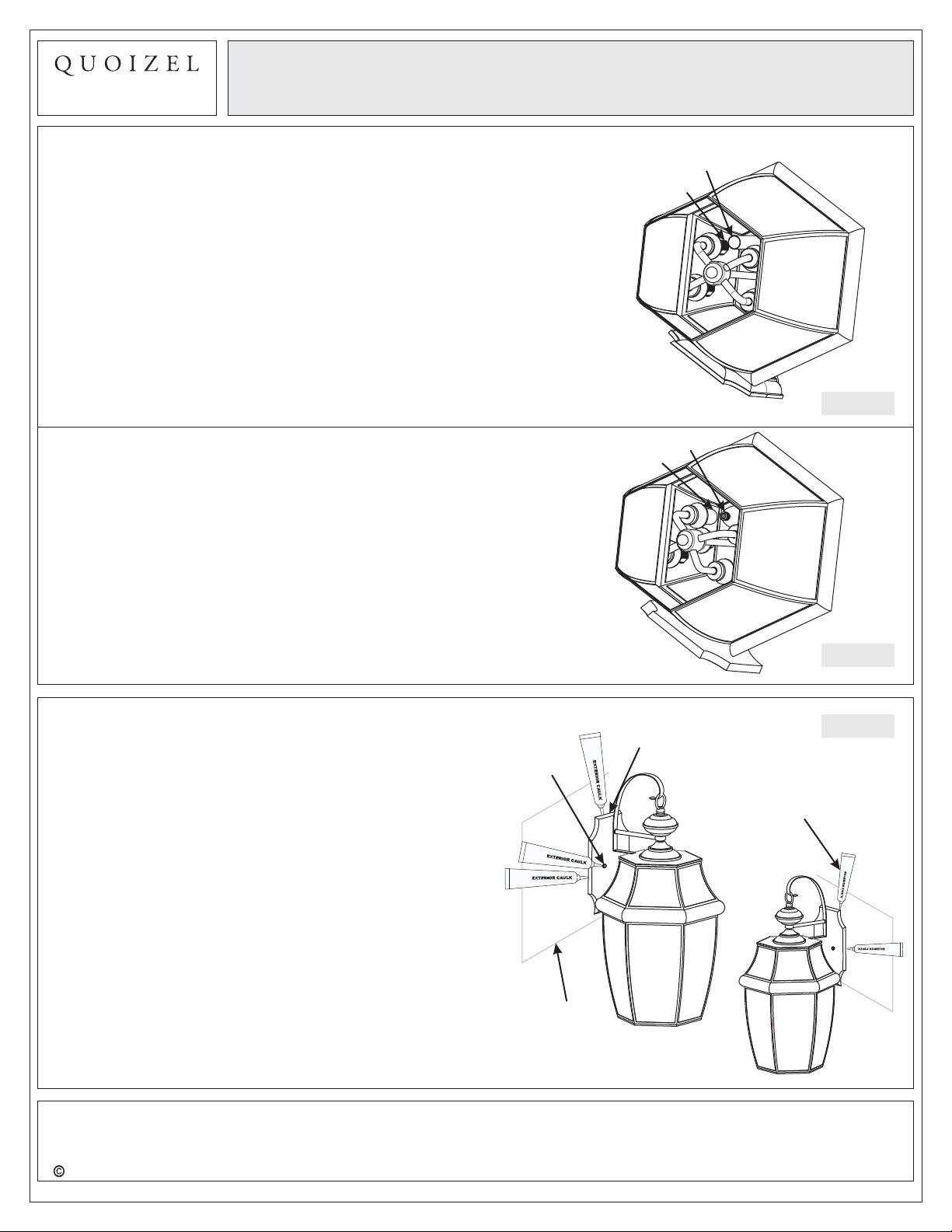

STEP 8 -Apply Silicone Sealer

A. To prevent moisture from entering the wire

compartment, apply a small amount of silicone sealer

(not included) to the threaded side of the mounting

balls (H) and then install them onto the mounting

screws (D/E). Wipe off excess caulk.

B. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your fixture is now assembled and ready to use.

Enjoy!

STEP 7 -Install Bulb

A. This fixture uses standard bulb with a candelabra screw

base. Maximum 60 watts.

B. Place the bulb from the bottom of the glass frame. Insert

bulb and screw snugly into place.

Figure 8

Figure 9

Socket

Bulb

Exterior

Grade Caulk

Outdoor Fixture

Backplate

Exterior

Wall Surface

Mounting

Ball

2015 QuoizelInc. June2015

Assembly Instruction Sheet #IS-NY8416

For Styles NY8416K, NY8416P and NY8416Z

Figure 7

STEP 6 Attach Candle Cover to Socket

Assembly

A. Place the Candle Cover (G) over the Socket properly.

Socket

Candle

Cover
