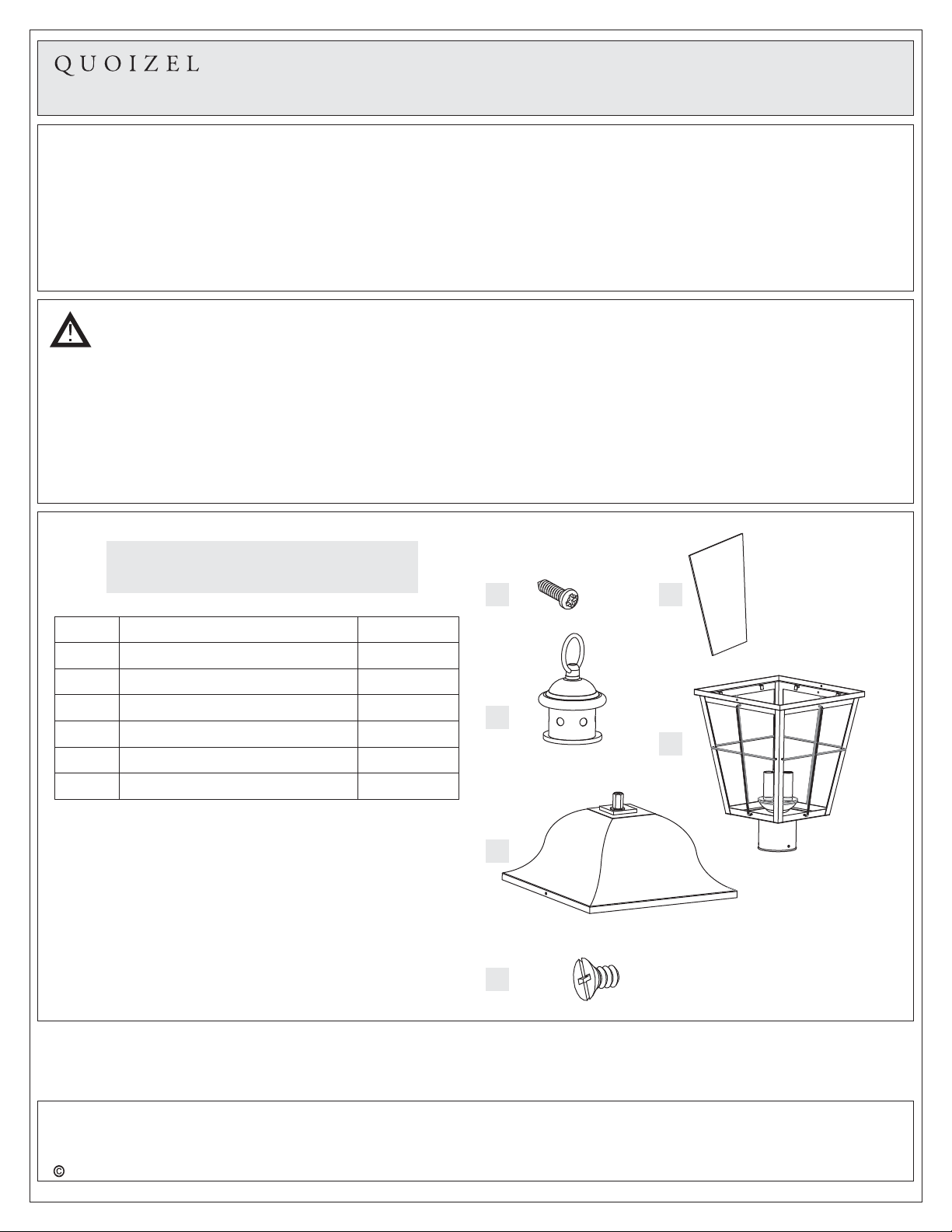

Quoizel MHE9010K Instructions de montage

Part Description Quantity

1pc.

3 pcs.

Package Contents

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

Mounting Screw

Assembly Instruction Sheet #IS-MHE9010

For Styles MHE9010K and MHE9010VN

1of5

Fixture Loop

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

1pc.

2 pcs.

Fixture Hood

Lock Screw

4 pcs.

1pc.

Panel

Fixture Body

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Pleasegoto forproductcleaningtips.Gotothe selection.

(3)CandelabraBase60WMaximum

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagrams

belowtobesureallpartsarepresent.Ifanypartsaremissingordamaged,donotattempttoassemble,install,or

operatethefixture.Contactcustomerserviceforreplacementparts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safety

glasses.

2015 QuoizelInc. June2015

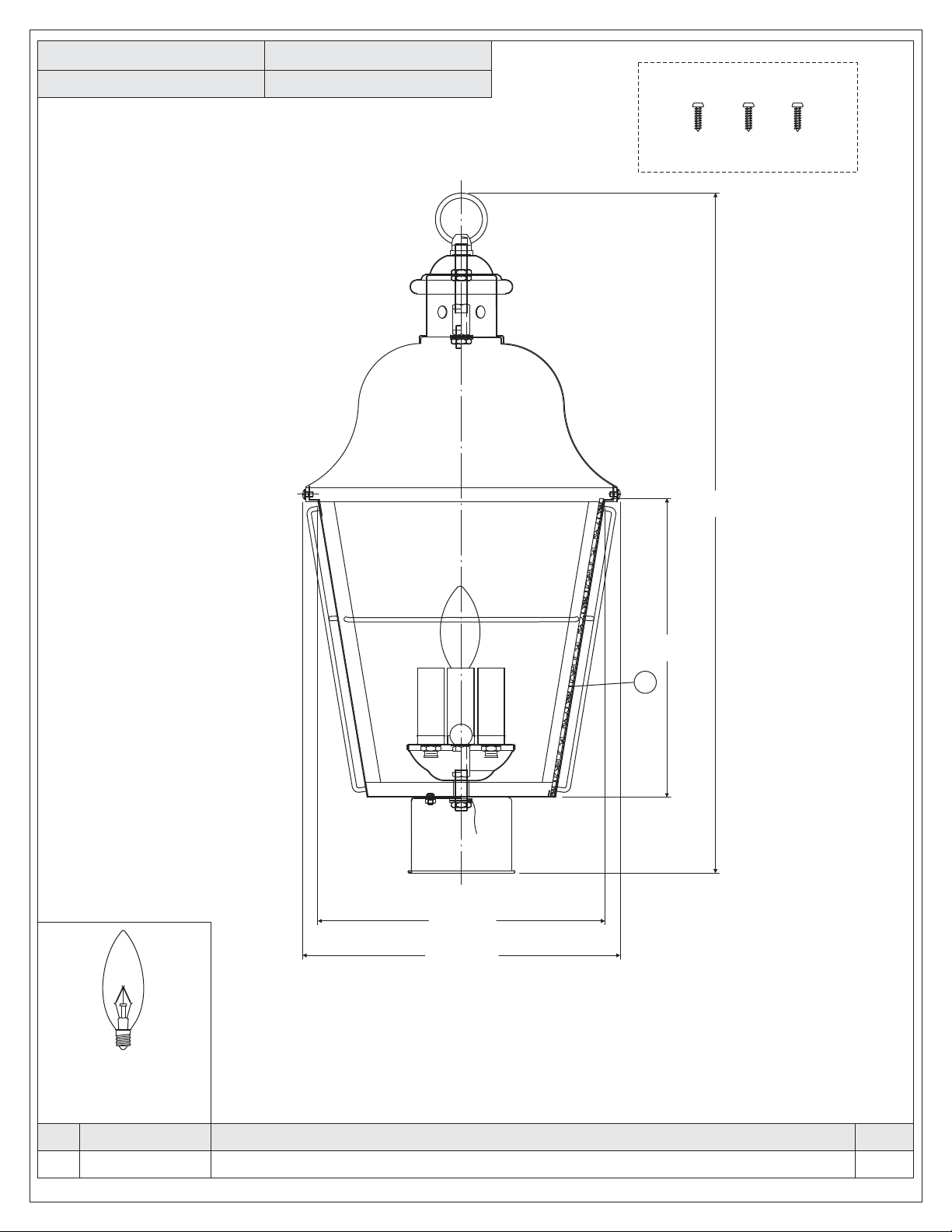

MHE9010K

2of5

FINISH: MYSTIC BLACK

9” Sq.

10” Sq.

21.5”

9.5”

PART NUMBER

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

REPLACEMENT PART DESCRIPTION REQ.

NO.

(3)60W Candelabra

base bulbs

(not Supplied)

G3780PA CLEAR SEEDY GLASS PANEL 4

MHE9010VN

FINISH: VENETO

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

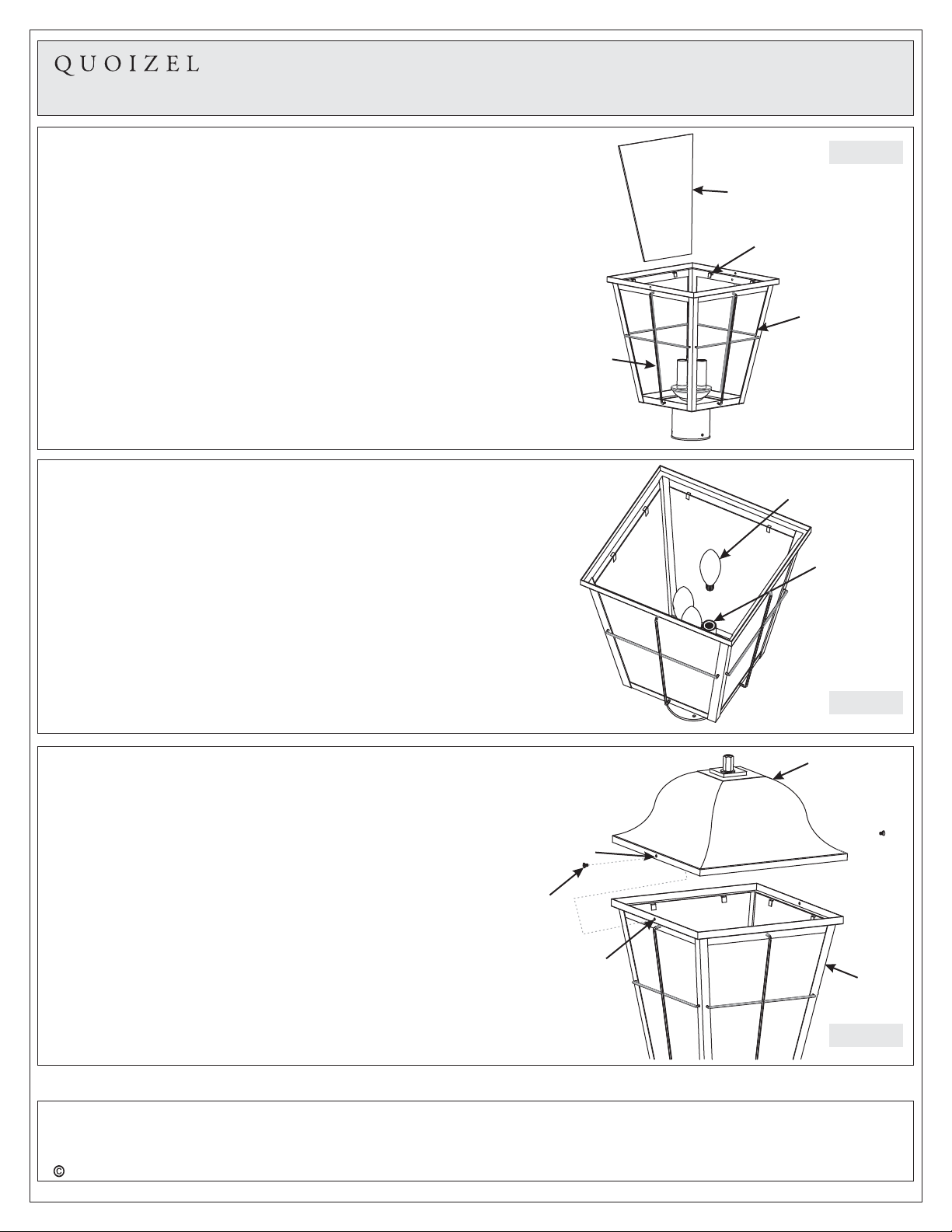

3of5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Figure 1

STEP 1 Attach panel to Cage-

A. Insert Panels (E) into the Slot inside of the Cage then

fold the Tabs in the top of the Cage to secure the Panels

(E).

Cage

Tab

Panel

Slot

Bulb

Figure 2

STEP 2 -Install Bulb

A. standard bulb with a candelabra screw

base 0

This fixture uses

. Maximum 6 watts.

B. Insert bulb and screw snugly into place. Socket

STEP 3 -Attach Cage with Panels to Fixture

Body

A. Align the Hole on the Fixture Hood with the Mounting Hole

on the Cage, secure by thread Lock Screw (D) into the

Mounting Hole. Tighten until sung.

Figure 3

Cage

Lock

Screw

Fixture Hood

Hole

Mounting

Hole

Assembly Instruction Sheet #IS-MHE9010

For Styles MHE9010K and MHE9010VN

2015 QuoizelInc. June2015

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

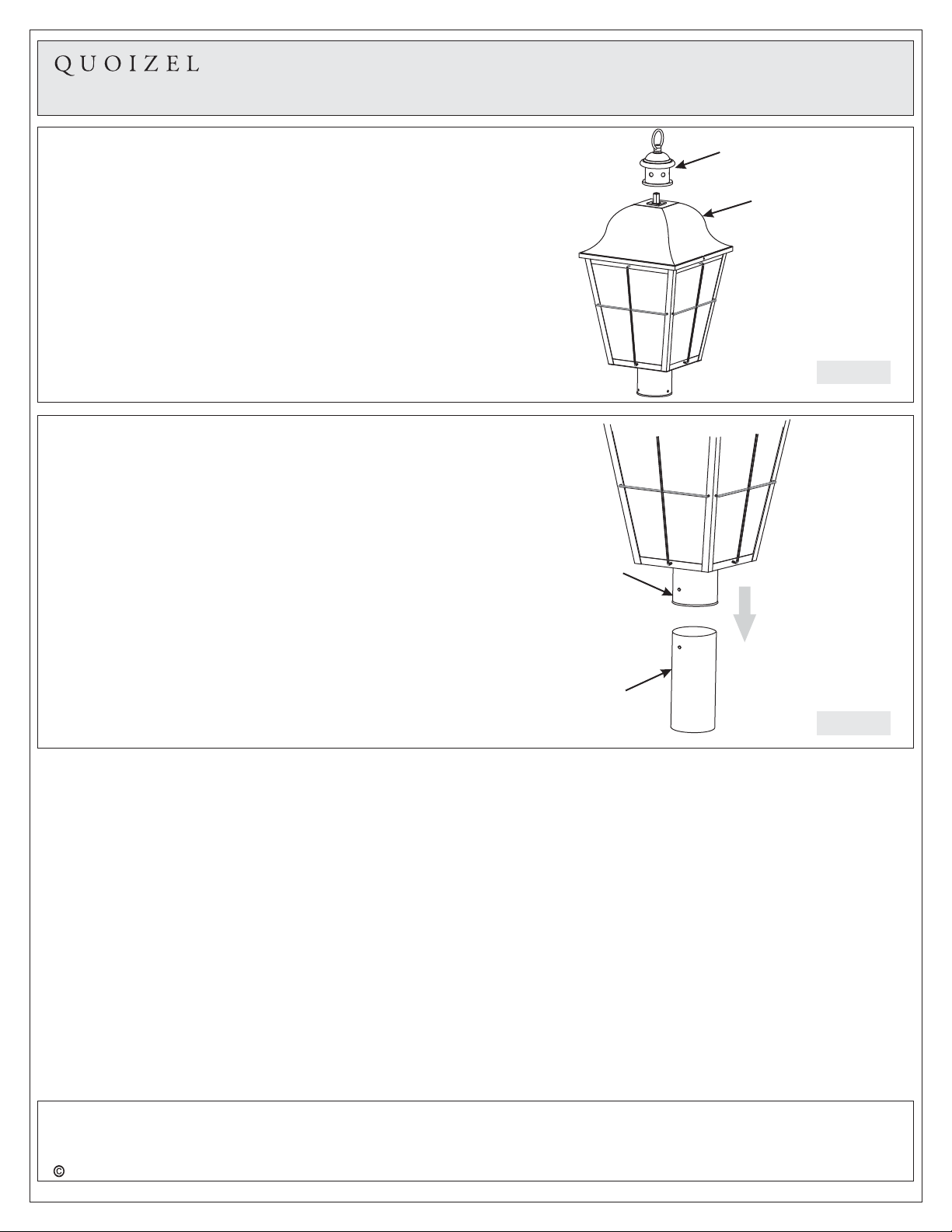

4of5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Fixture Loop

STEP 4 -Install Fixture Loop

A. Thread Fixture Loop (B) onto the Fixture Hood (C), hand

tighten until sung. Fixture Hood

STEP 5 Drill Pilot Holes on Post-

A. Carefully fit the Post Fitter over the end of the Post (not

supplied), making sure the Post Fitter is fully seated.

B. Mark the drill point for the (3) Mounting Screws, using

(3) Mounting Holes as reference. After marking hole

locations, remove fixture from post and drill 1/16” pilot

holes for screws.

Post

Figure 5

Post Fitter

Figure 4

Assembly Instruction Sheet #IS-MHE9010

For Styles MHE9010K and MHE9010VN

2015 QuoizelInc. June2015

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

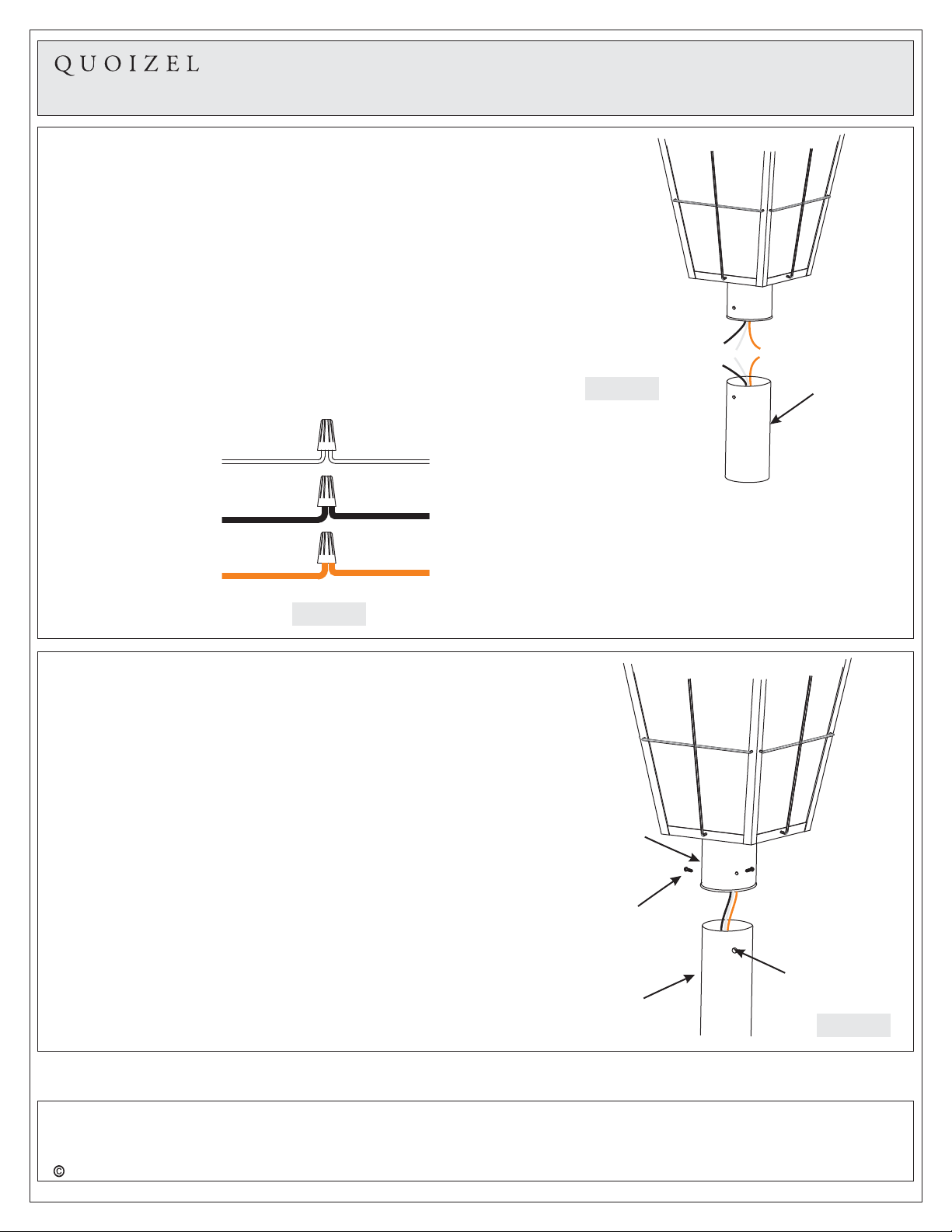

5of5

Figure 7

STEP 6 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Post to White Wire

from fixture.

C. Connect Black (or Red) Supply Wire from the Post to

Black Wire from fixture.

D. Connect Ground Wire from the Post to Ground Wire from

fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Post.

Figure 6

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

Post

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

STEP 7 -Attach Fixture Body to Post

A. Coat the top 1” of the Post with Clear Silicone Caulk

(not supplied) and position the Post Fitter onto the Post.

Be sure to seat it completely, aligning the holes in the

Fitter with the 1/16” Pilot Holes drilled into the Post.

B. Secure the Fixture to Post with (3) Mounting Screws.

Your lamp fixture is now assembled and ready to use.

Enjoy!

Mounting Screw

Post

Figure 8

Post Fitter

Mounting

Hole

Assembly Instruction Sheet #IS-MHE9010

For Styles MHE9010K and MHE9010VN

2015 QuoizelInc. June2015
