Quoizel NY8317K Instructions de montage

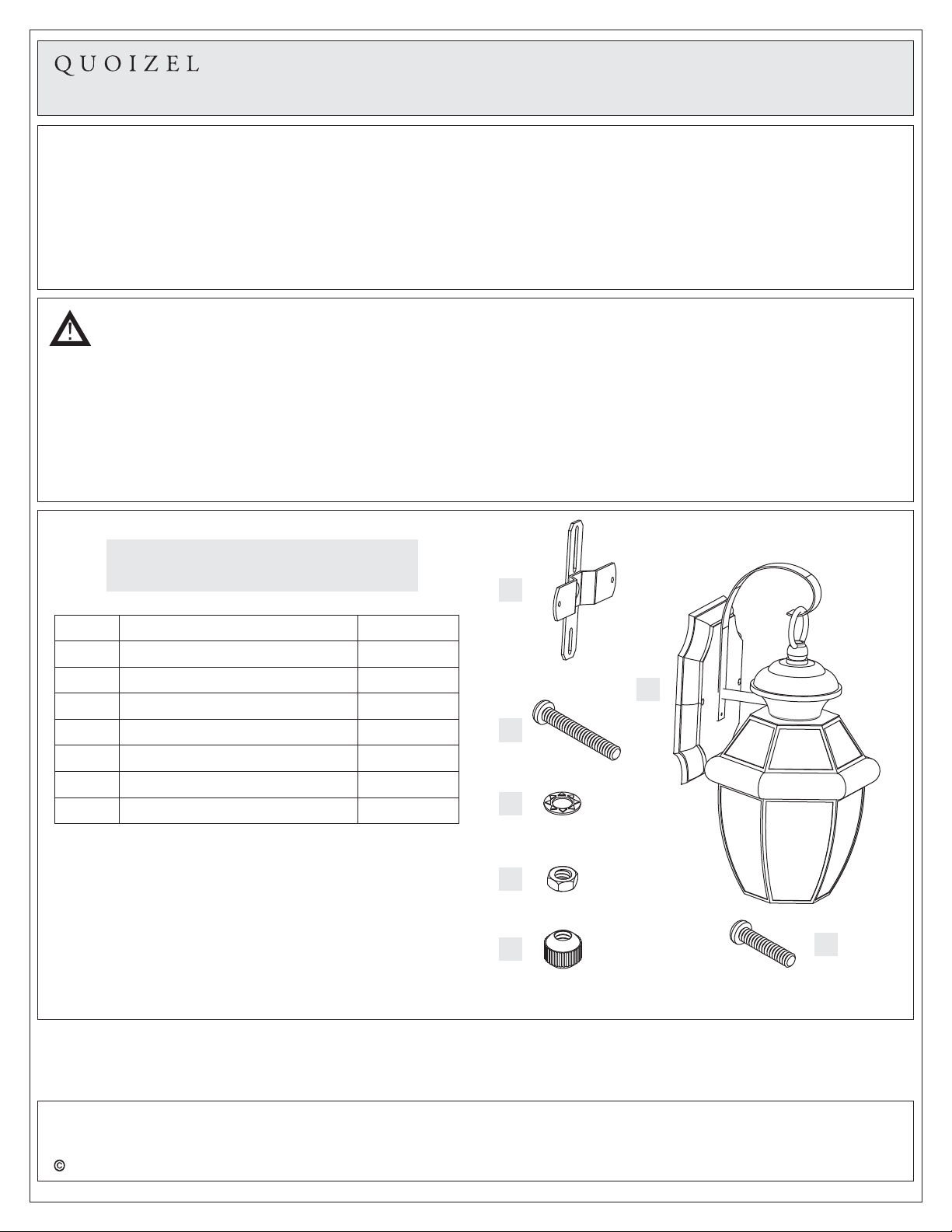

Part Description Quantity

A Crossbar 1pc.

1pc.

2 pcs.

Fixture Body

Hex Nut

Lock Washer

Package Contents

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Mounting Ball

Mounting Screw

Assembly Instruction Sheet #IS-NY8317K_R1

For Style NY8317K

1of5

Pleasegoto forproductcleaningtips.Gotothe selection.

(2)CandelabraBase60WMaximum

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagrams

belowtobesureallpartsarepresent.Ifanypartsaremissingordamaged,donotattempttoassemble,install,or

operatethefixture.Contactcustomerserviceforreplacementparts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safety

glasses.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

2 pcs.

GAlternate Mounting Screw

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2016 QuoizelInc. RevisedDate:2016-07-01

NY8317K

FINISH: MYSTIC BLACK

PART NUMBER

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

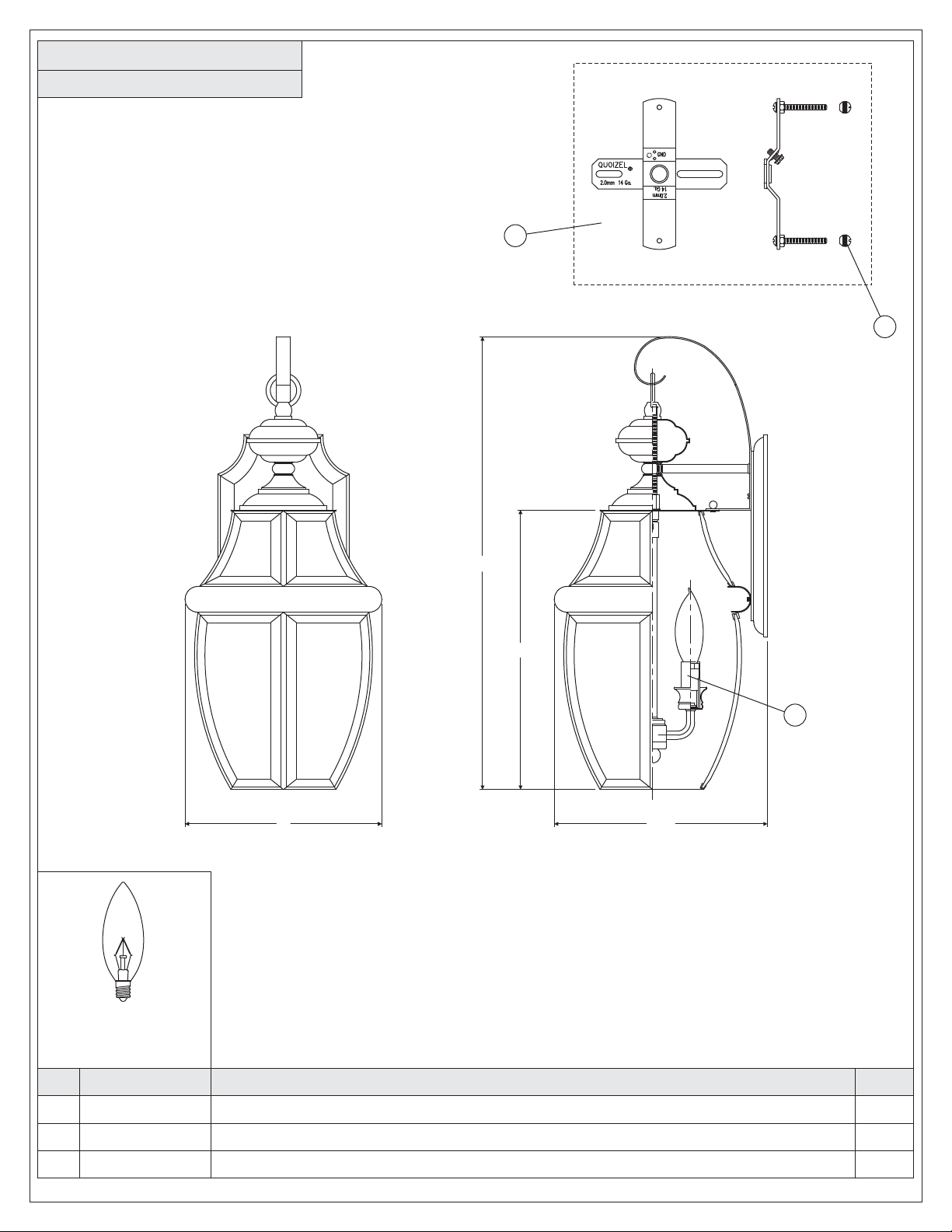

REPLACEMENT PART DESCRIPTION QTY.

NO.

2of5

M207BLK

M12973CCW

MOUNTING BALL

CANDLE COVER

20”

13”

10”

9”

(2) 60W Candelabra

base bulbs

(not Supplied)

9451KIT MOUNTING HARDWARE 1

3of5

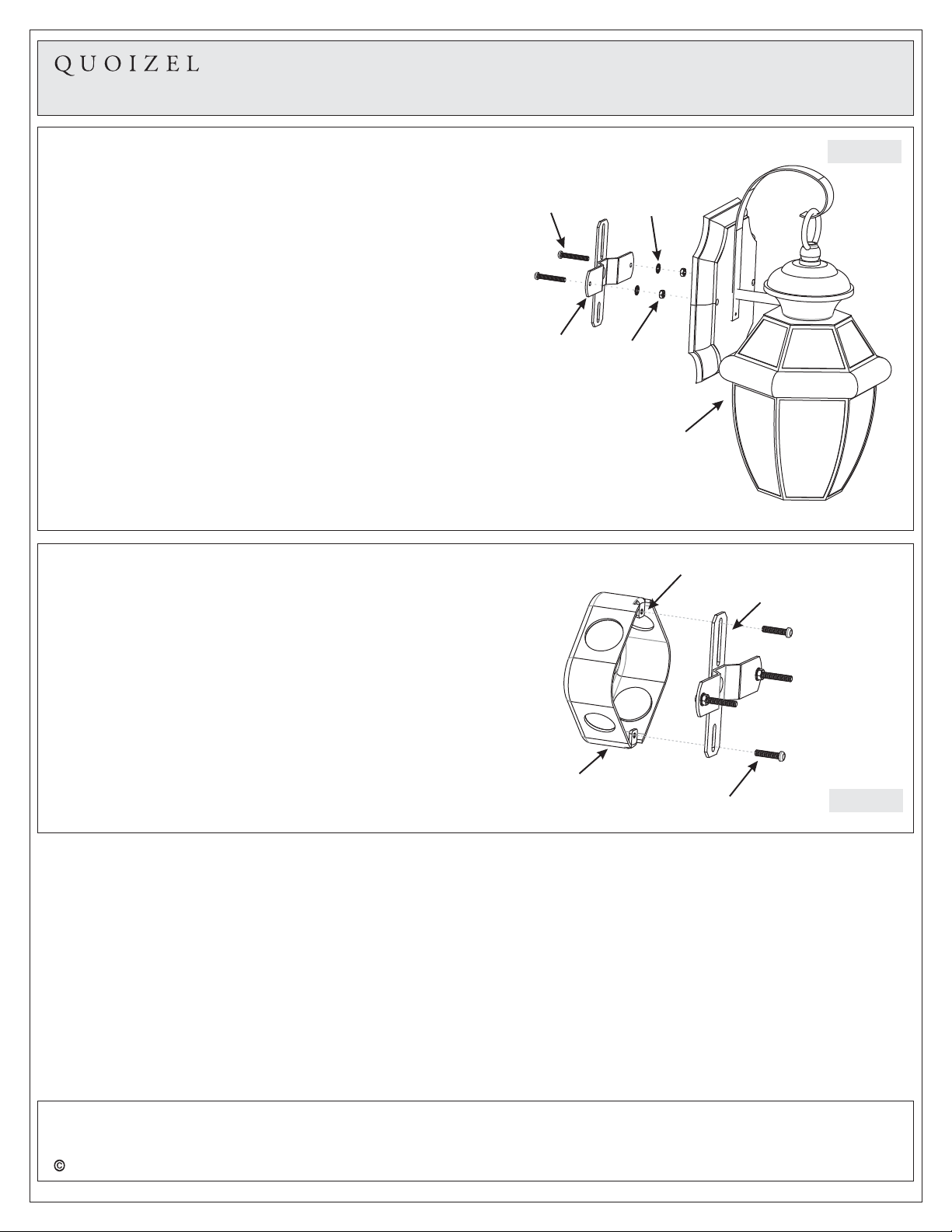

STEP 2 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Figure 2

STEP 1 -Attach Mounting Screws, Lock

Washers and Hex Nuts to

Crossbar

A. Line up a set of holes on the Crossbar (A) and

Holes on the backplate of the Fixture Body (F).

B. Thread Mounting Screws (B) or Alternate Shorter

Mounting Screws (G) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread

Hex Nut (D) onto the Mounting Screws (B) or

Alternate Shorter Mounting Screws (G). Hand

tighten until snug.

Fixture

Body

Crossbar

Lock Washer

Hex Nut

Crossbar

Outlet Box Outlet Box

Screw

Mounting Hole

Figure 1

Mounting Screw

or Alternate Short

Mounting Screw

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8317K_R1

For Style NY8317K

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2016 QuoizelInc. RevisedDate:2016-07-01

4of5

Figure 5

Mounting Ball

Backplate

Figure 3

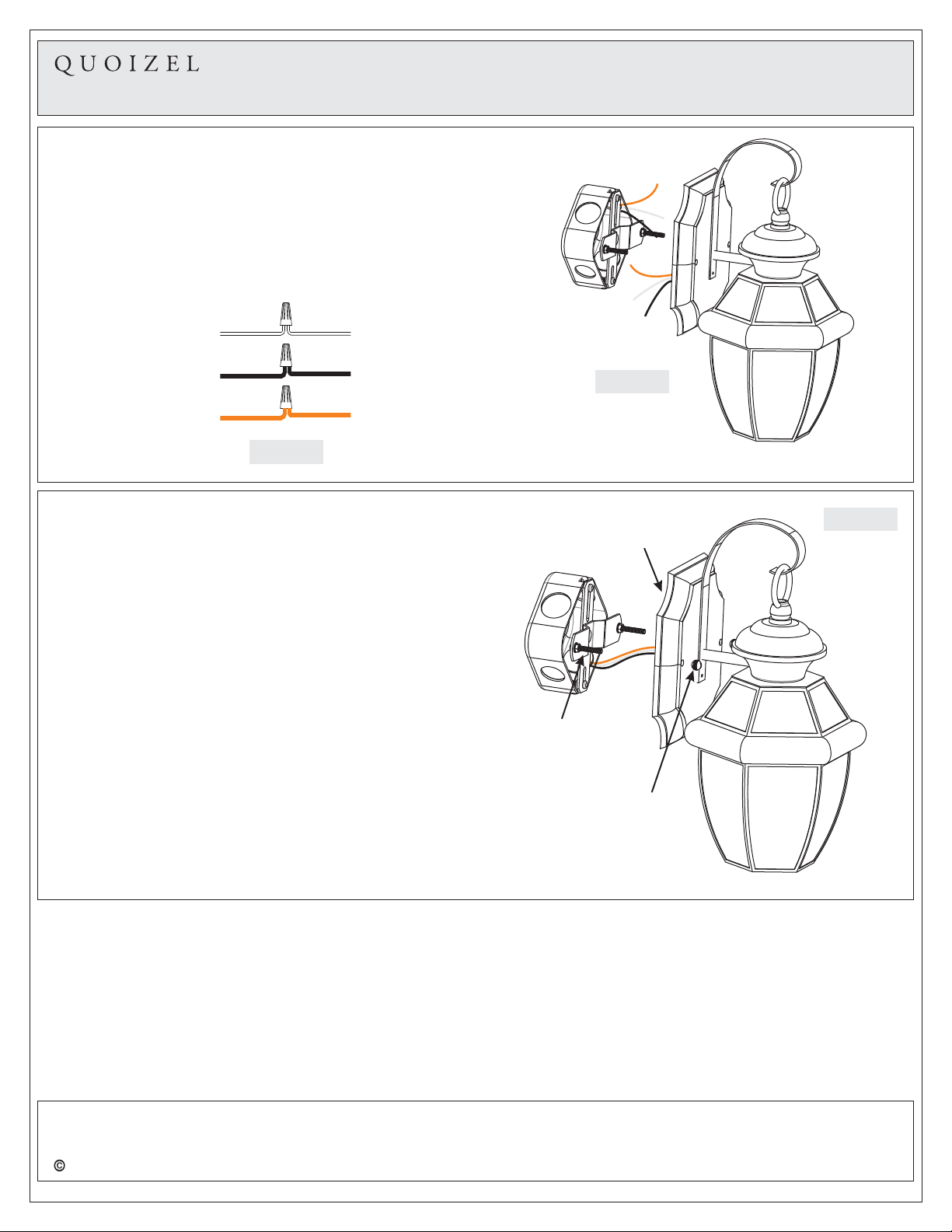

STEP 3 Make Wire Connections-

A. Use standard wire connectors (not included) to make all

wire connections. Twist connectors until wires are tightly

joined together. Wrap each connection with approved

electrical tape and carefully stuff all the connected wires

into the Outlet Box.

Figure 4

White wire

from supply White wire

from fixture

Black wire from

supply (or Red)

Black wire

from fixture

Ground wire

from supply

Ground wire

from fixture

Mounting Screw

or Alternate Short

Mounting Screw

STEP 4 -Attach Fixture Body to Mounting

Screw

A. Place the backplate of the Fixture Body (F) over the

Mounting Screws (B) or Alternate Shorter Mounting

Screws (G) and secure with Mounting Balls (E). Hand

tighten until snug.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Assembly Instruction Sheet #IS-NY8317K_R1

For Style NY8317K

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2016 QuoizelInc. RevisedDate:2016-07-01

5of5

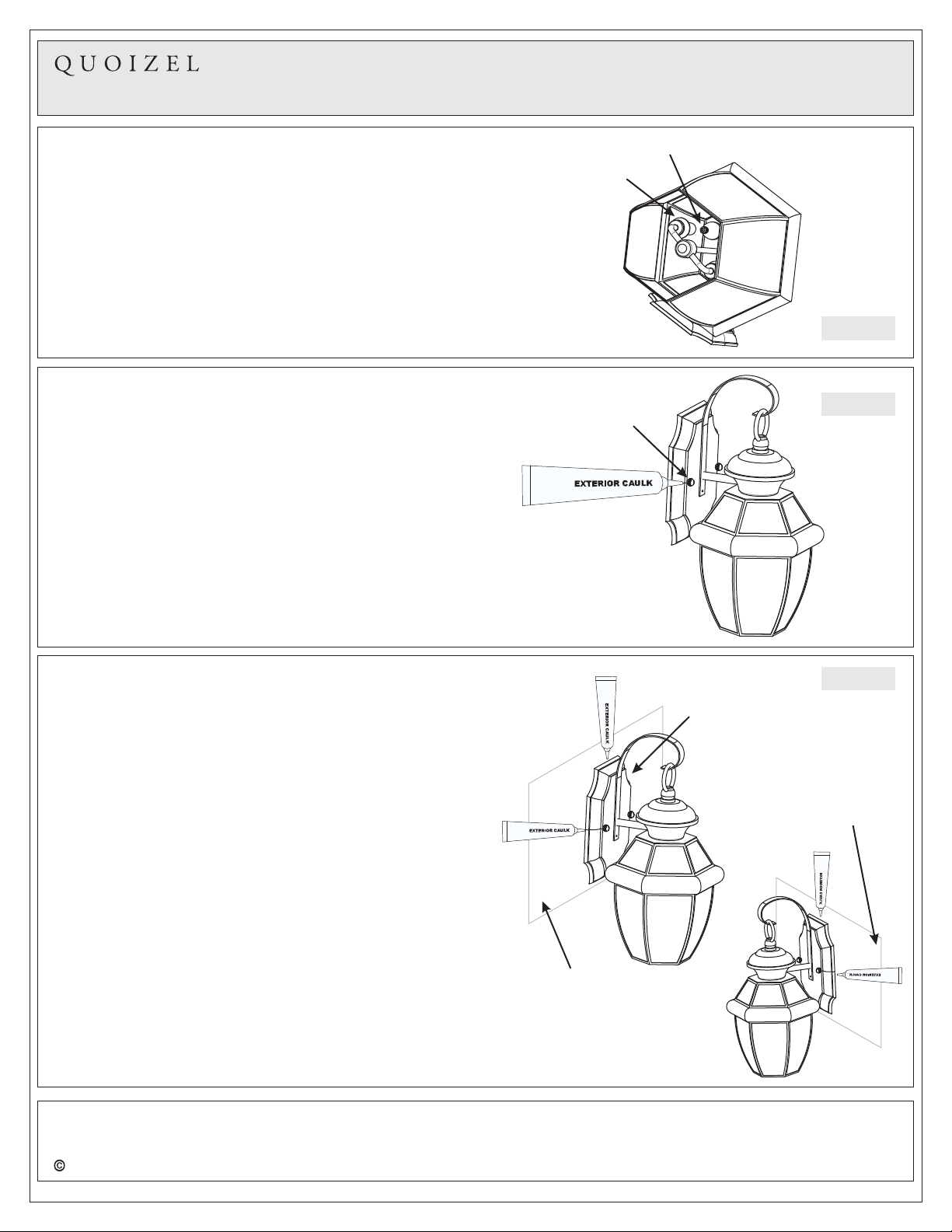

STEP 6 Apply Silicone Sealer to Mounting

Balls

A. To prevent moisture from entering the wire

compartment, apply a small amount of silicone sealer

(not included) to the threaded side of the mounting

balls (E) and then install them onto the mounting

screws (B). Wipe off excess caulk.

STEP 7 Apply Silicone Sealer to Backplate-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your fixture is now assembled and ready to use.

Enjoy!

STEP 5 -Install Bulb

A. This fixture uses standard bulb with a candelabra screw

base. Maximum 60 watts.

B. Place the bulb from the bottom of the glass frame. Insert

bulb and screw snugly into place.

Figure 6

Figure 7

Mounting Ball

Exterior

Grade Caulk

Outdoor Fixture

Backplate

Exterior Wall Surface

Figure 8

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Socket

Bulb

Assembly Instruction Sheet #IS-NY8317K_R1

For Style NY8317K

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

2016 QuoizelInc. RevisedDate:2016-07-01
