Quoizel LDG8406K Instructions de montage

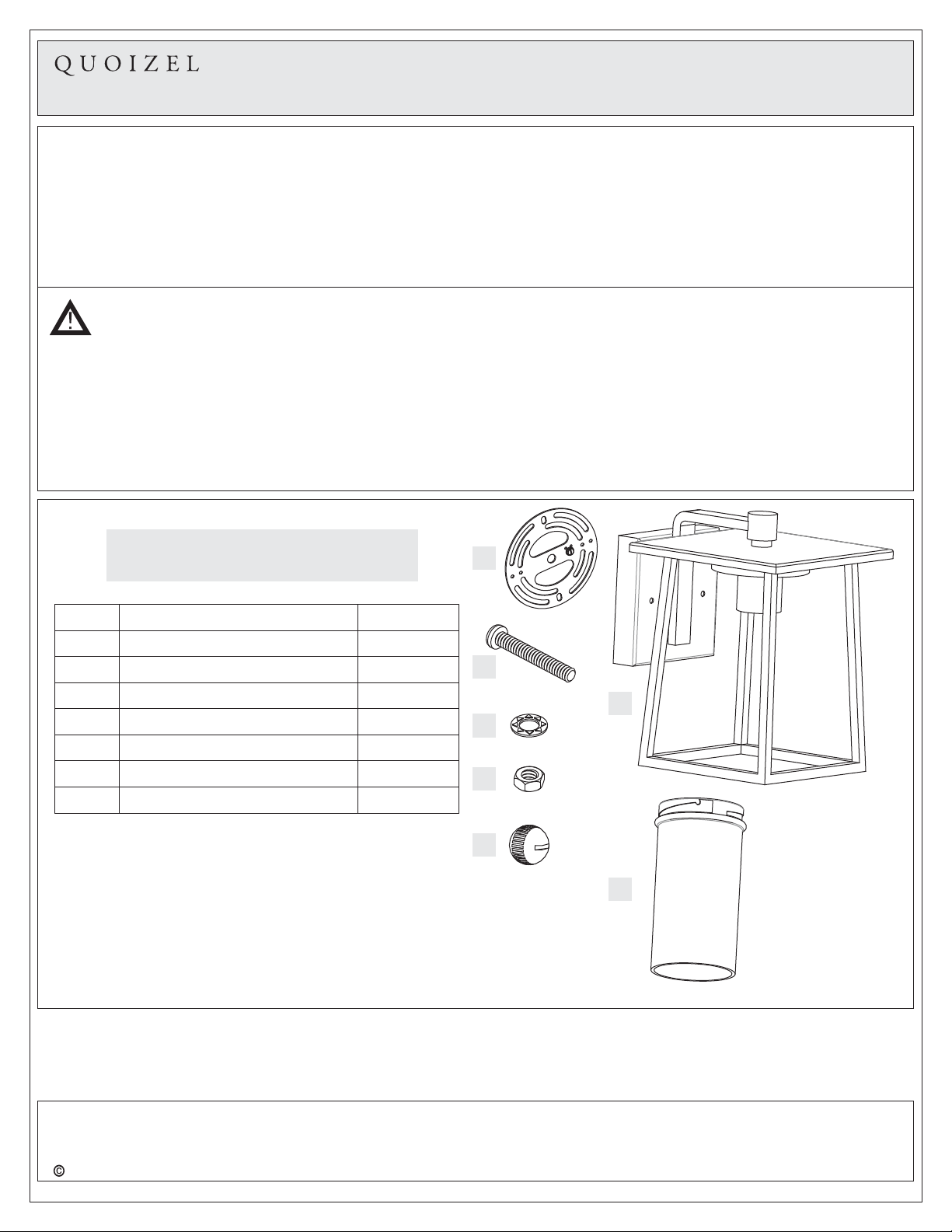

Part Description Quantity

A Crossbar 1pc.

2 pcs.

Hex Nut

Lock Washer

Package Contents

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Mounting Screw

1of5

Pleasegoto forproductcleaningtips.Gotothe selection.

(1)MediumBase100WMaximum

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagrams

belowtobesureallpartsarepresent.Ifanypartsaremissingordamaged,donotattempttoassemble,install,or

operatethefixture.Contactcustomerserviceforreplacementparts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,

safetyglasses.

1pc.

2 pcs.

Lock Ball

Fixture Body

2016 QuoizelInc. RevisedDate:2016-07-13

Shade 1pc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Assembly Instruction Sheet #IS-LDG8406K_R1

For Style LDG8406K

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

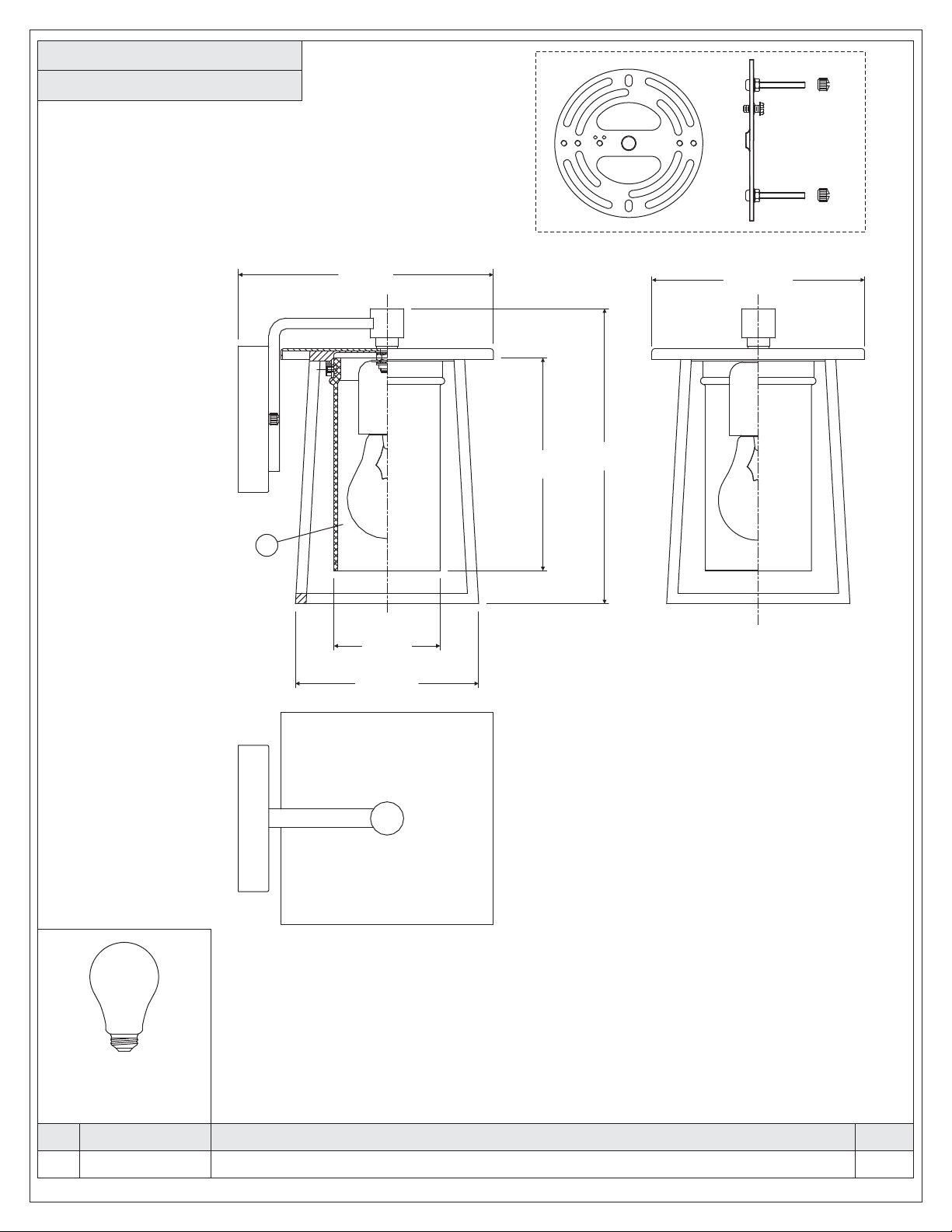

LDG8406K

2of5

FINISH: MYSTIC BLACK

GND

2.4mm

13Ga

QUOIZEL R

7.5” 6.5” SQ.

8.5”

6.5”

5.5” Sq.

3” Dia.

PART NUMBER

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

REPLACEMENT PART DESCRIPTION QTY.

NO.

(1)100W Medium

Base Bulb

(Not Supplied)

G3730SH GLASS CLEAR HAMMERED 1

3of5

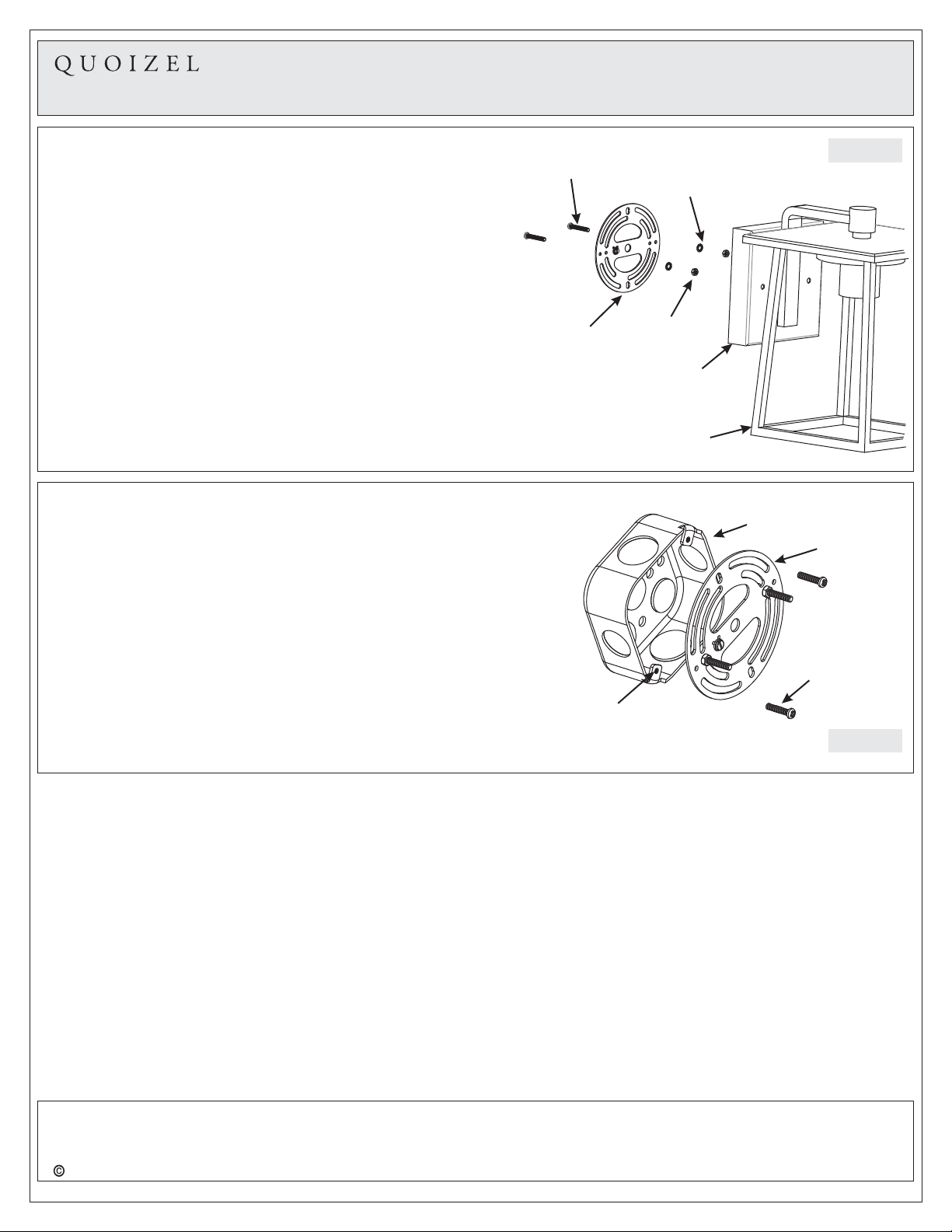

STEP 2 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Crossbar

Outlet

Box

Outlet Box

Screw

Mounting

Hole

Figure 2

Figure 1

Crossbar

Mounting

Screw Lock Washer

Hex Nut

Backplate

STEP 1 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the Backplate of the Fixture Body (F).

B. Thread Mounting Screws (B) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread Hex

Nut (D) onto the Mounting Screws (B). Hand tighten

until snug.

Fixture

Body

2016 QuoizelInc. RevisedDate:2016-07-13

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Assembly Instruction Sheet #IS-LDG8406K_R1

For Style LDG8406K

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

4of5

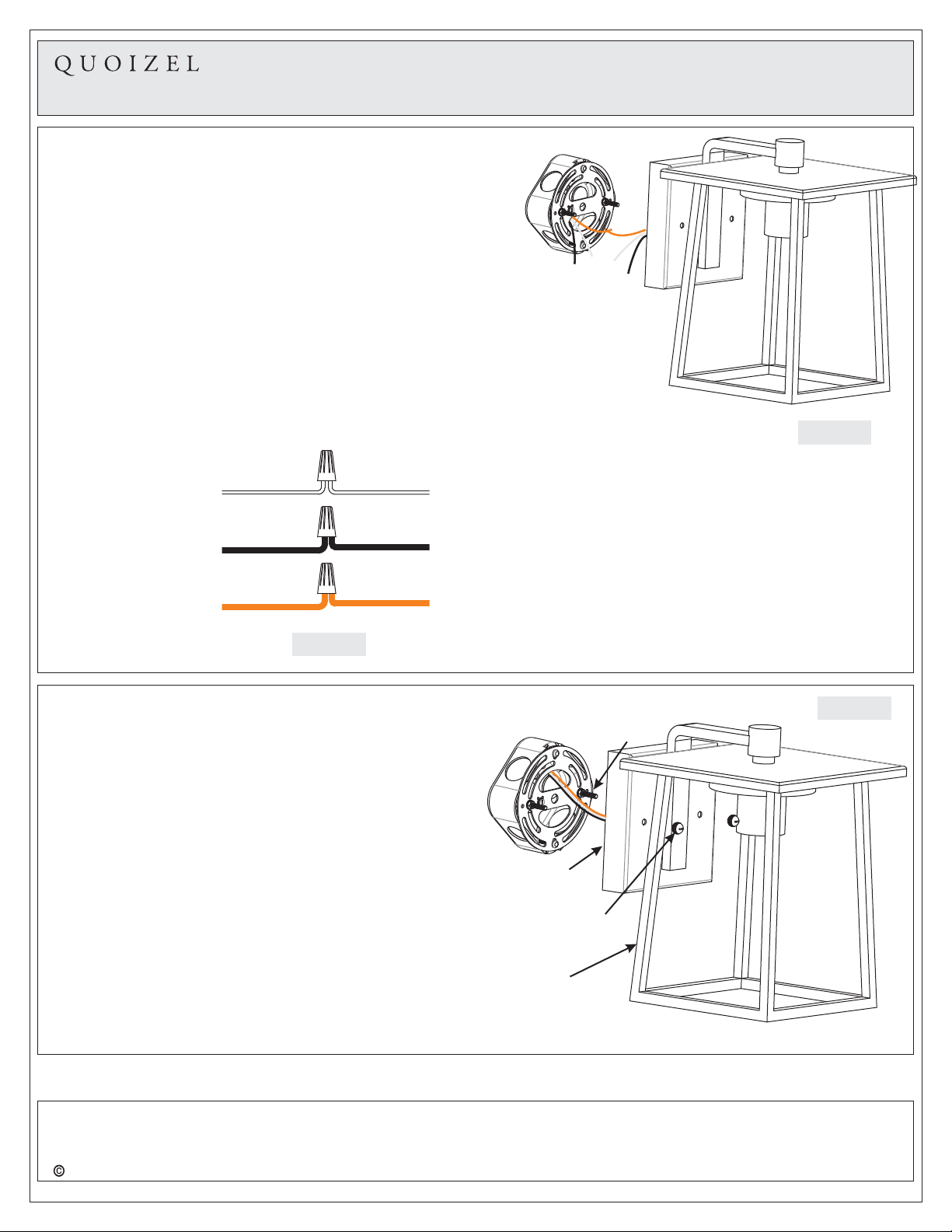

STEP 3 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 4

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

Figure 5

Figure 3

Mounting

Screw

Lock Ball

Backplate

Fixture Body

2016 QuoizelInc. RevisedDate:2016-07-13

STEP 4 -Attach Fixture Body to Mounting

Screw

A. Place the Backplate of the Fixture Body (F) over the

Mounting Screws (B). Place caulk (not supplied) into

threads of Mounting Balls (E) and thread them onto the

Mounting Screws (B). Hand tighten until snug.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

Assembly Instruction Sheet #IS-LDG8406K_R1

For Style LDG8406K

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

5of5

Assembly Instruction Sheet #IS-LDG8406K_R1

For Style LDG8406K

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

2016 QuoizelInc. RevisedDate:2016-07-13

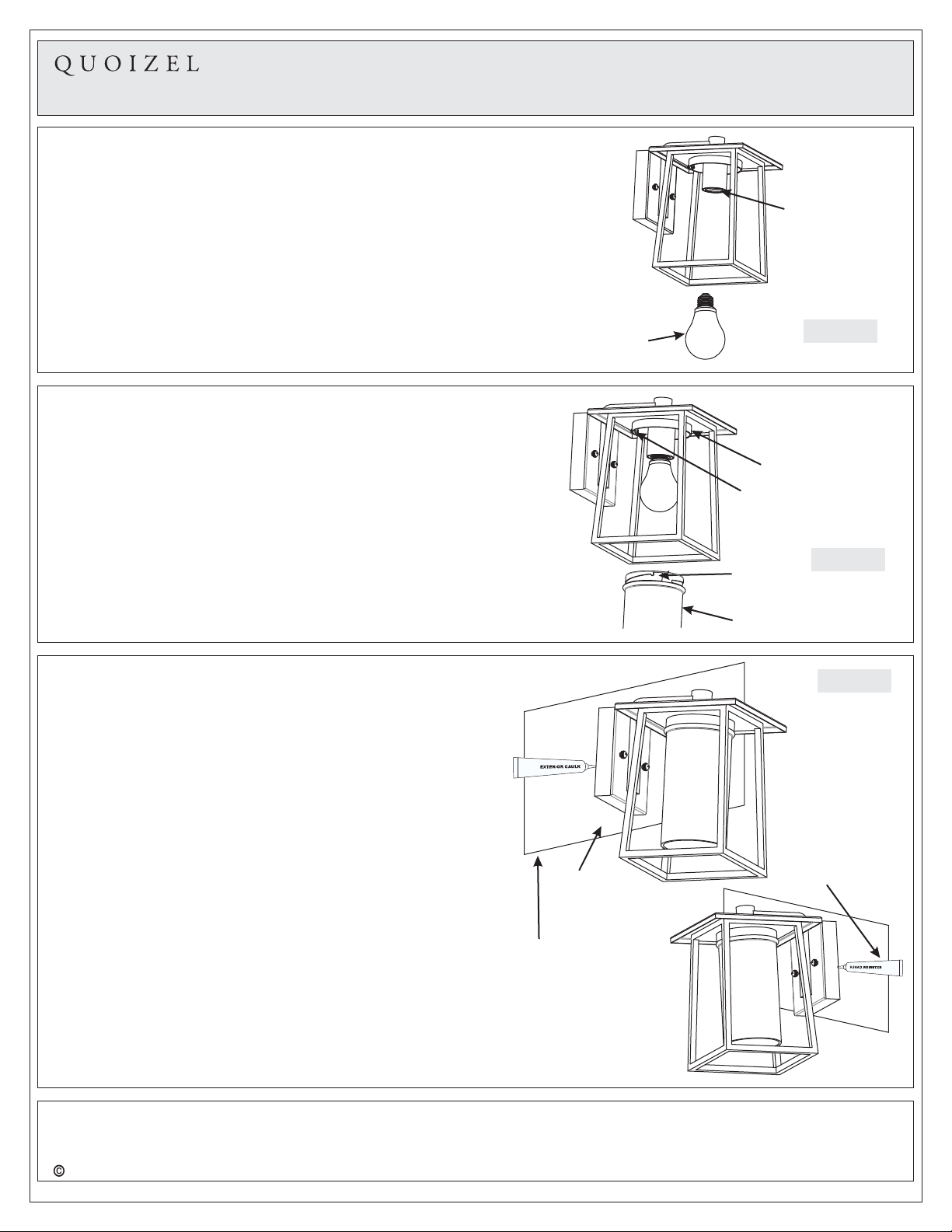

Figure 7

Bulb

Socket

STEP 5 -Install Bulb

A. This fixture uses standard bulb with a medium screw base.

Maximum 100 watts.

B. Insert bulb and screw snugly into place.

STEP 6 -Attach Shade to Socket

A. Place the Slot on the Shade (G) line up the Screw Head

on Shade Holder and then rotate the Shade (G). Do not

free your hands until the Shade is seated onto the

Shade Holder.

Shade

Shade Holder

Figure 6

Slot

Screw Head

STEP 7 Apply Silicone Sealer-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, caulk over top of backplate and down

other side. Do not caulk bottom of fixture backplate to

ensure proper moisture drainage.

Your fixture is now assembled and ready to use.

Enjoy!

Exterior

Grade Caulk

Outdoor

Fixture

Backplate

Exterior Wall Surface

Figure 8

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com
