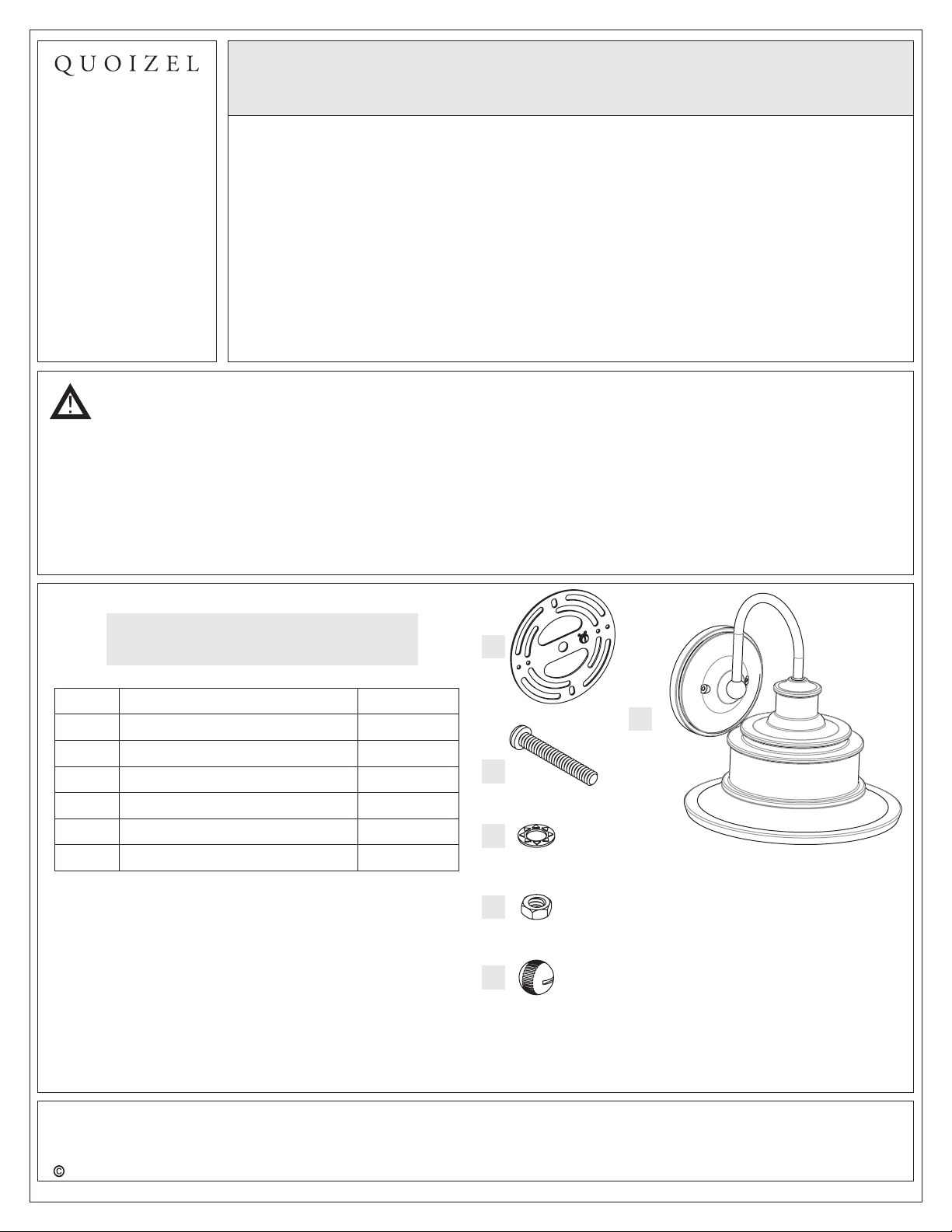

Quoizel SFD8409IB Instructions de montage

Part Description Quantity

A Crossbar 1pc.

2 pcs.

Hex Nut

Lock Washer

Package Contents

Quoizel, Inc.

6 Corporate Parkway

Goose Creek, SC

29445

Customer Service

Phone 631.273.2700

Fax 631.231.7102

www.quoizel.com

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing

the fixture. We strongly recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool

before removal. Do not subject glass parts to any shock while in operation or shattering may result.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2013 QuoizelInc.

Mounting Screw

Assembly Instruction Sheet #IS-SFD8409IB

For Style SFD8409IB

1of5

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wire

strippers,electricaltape,safetyglasses.

EstimatedAssemblyTime:20-30 minutes

Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage

contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing

ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer

serviceforreplacementparts.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

1pc.

2 pcs.

Lock Ball

Fixture Body

BulbRecommended: (1)MediumBase100WMaximum

July2013

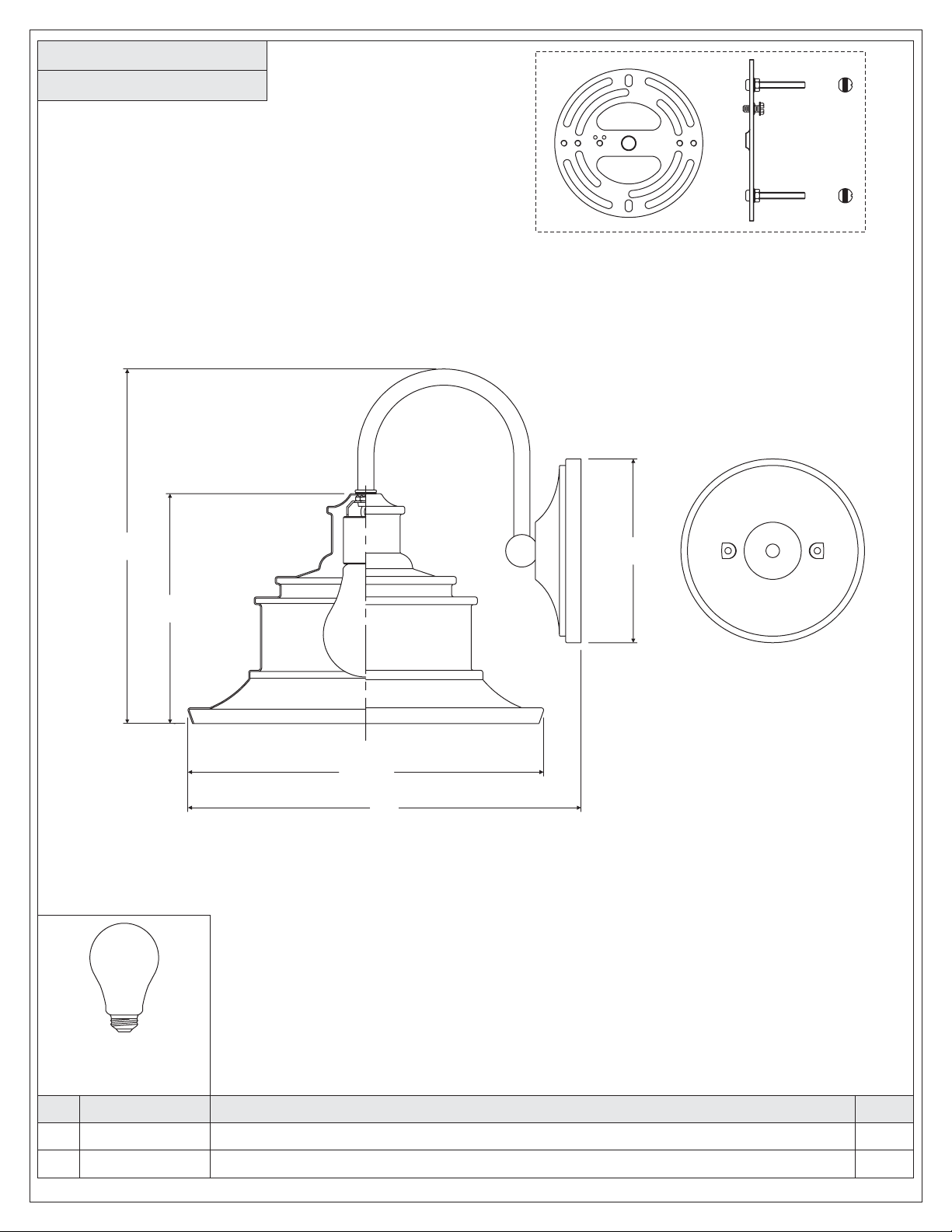

SFD8409IB

PART NUMBER

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

REPLACEMENT PART DESCRIPTION REQ.

NO.

2of5

FINISH: IMPERIAL BRONZE

GND

2.4mm

13Ga

QUOIZEL R

(1)100W

Medium Base Bulb

(Not Supplied)

6”

9”

9”Dia.

10”

5.5”Dia.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2013 QuoizelInc.

3of5

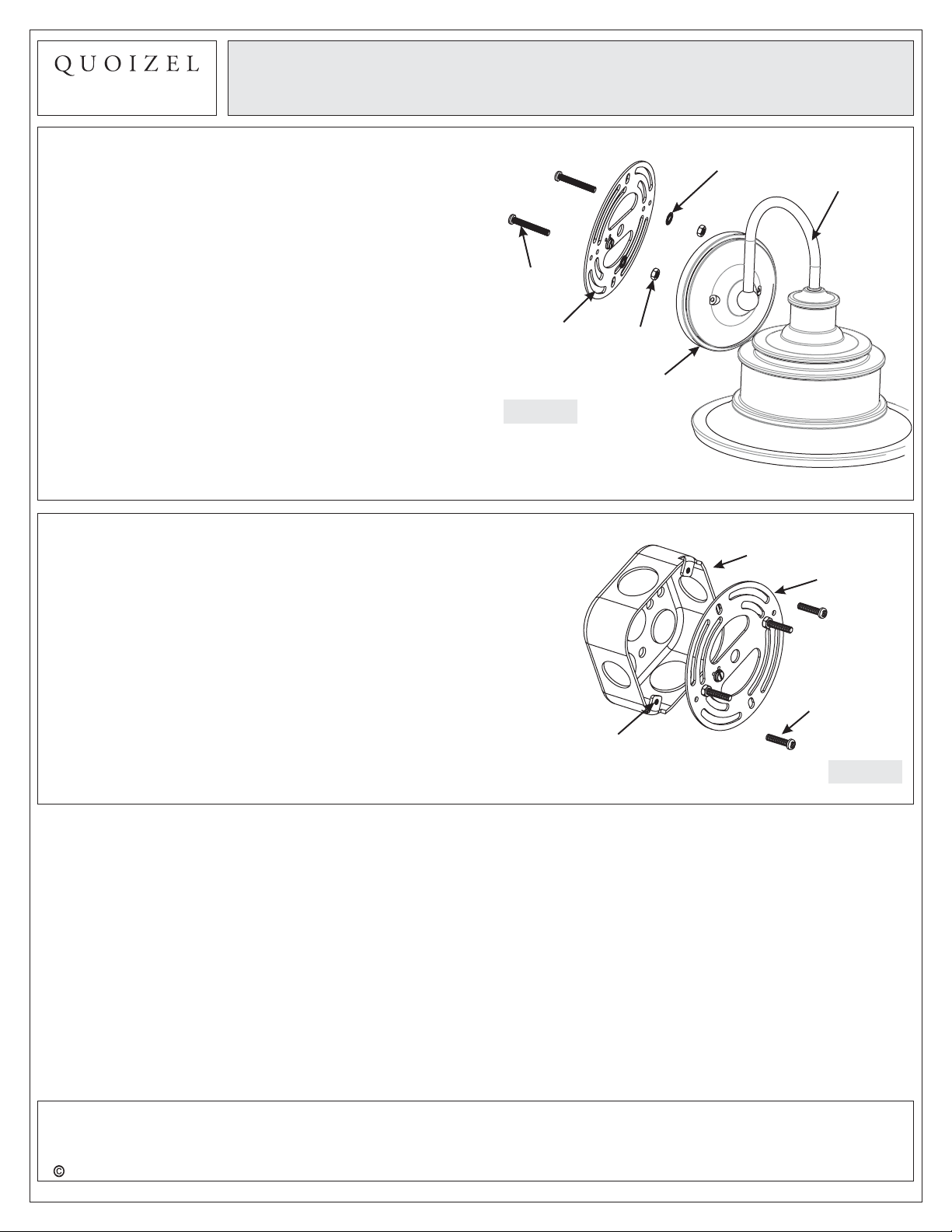

STEP 2 -Attach Crossbar to Outlet Box

A. Attach the Crossbar (A) to Outlet Box and secure by

threading Outlet Box Screws (not supplied) into the

Mounting Holes on the Outlet Box. Tighten until snug.

Crossbar

Outlet

Box

Outlet Box

Screw

Mounting

Hole

Figure 2

Assembly Instruction Sheet #IS-SFD8409IB

For Style SFD8409IB

Figure 1

Crossbar

Mounting

Screw

Lock Washer

Hex Nut

Backplate

STEP 1 -Attach Mounting Screws, Lock

Washers and Hex Nuts to Crossbar

A. Line up a set of holes on the Crossbar (A) and Holes on

the Backplate of the Fixture Body (F).

B. Thread Mounting Screws (B) into the holes on the

Crossbar (A), pass Lock Washers (C) and thread Hex

Nut (D) onto the Mounting Screws (B). Hand tighten

until snug.

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Fixture

Body

July2013

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2013 QuoizelInc.

4of5

Assembly Instruction Sheet #IS-SFD8409IB

For Style SFD8409IB

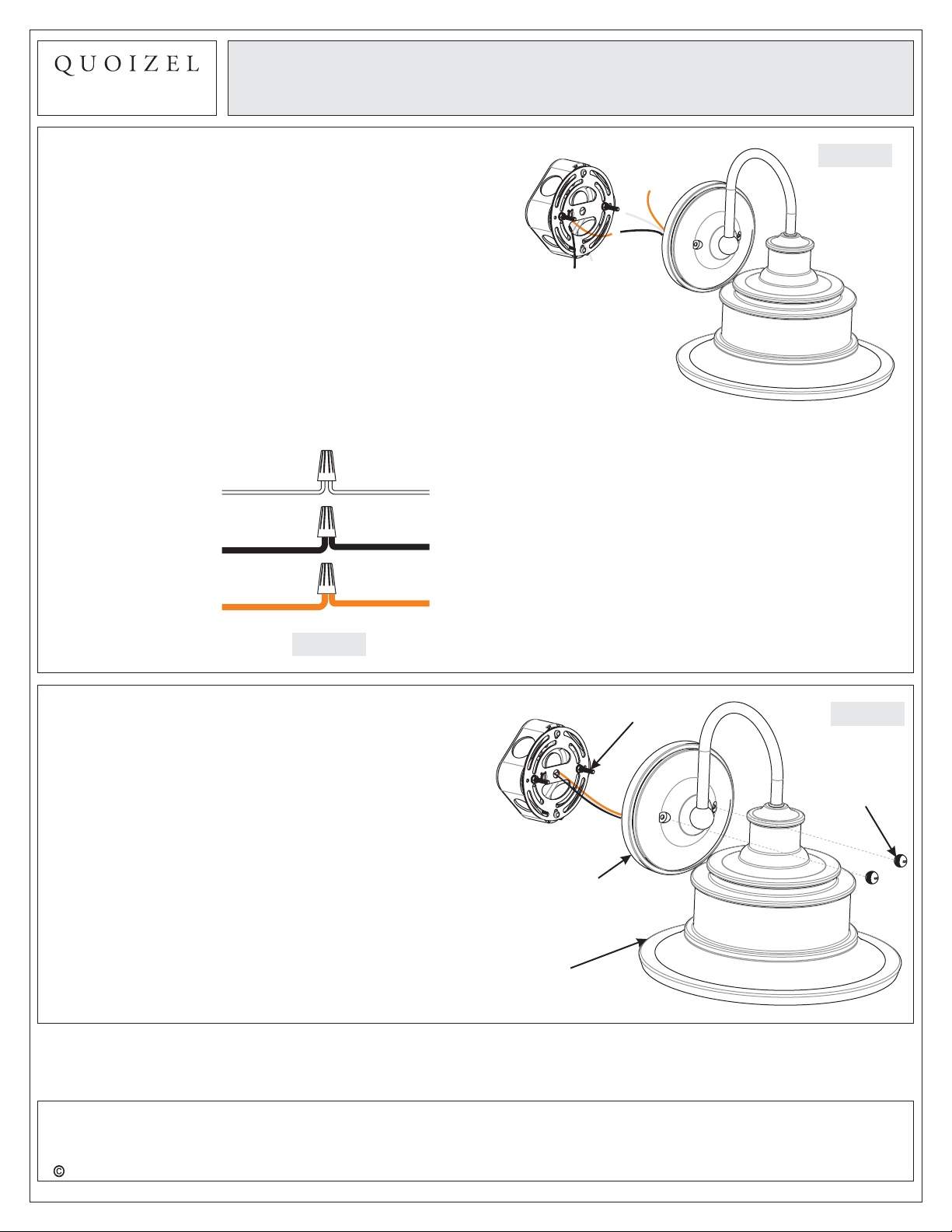

STEP 3 Make Wire Connections-

A. Use standard wire connectors to make all wire

connections. (Connectors are not included with fixture.)

Strip and prepare wire ends according to instructions

supplied with connectors.

B. Connect White Supply Wire from the Outlet Box to White

Wire from fixture.

C. Connect Black (or Red) Supply Wire from the Outlet Box

to Black Wire from fixture.

D. Connect Ground Wire from the Outlet Box to Ground

Wire from fixture.

E. Twist connectors until wires are tightly joined together.

F. Wrap each connection with approved electrical tape and

carefully stuff all the connected wires into the Outlet Box.

Figure 4

White wire from supply White wire from fixture

Black wire from supply

(or Red)

Black wire from fixture

Ground wire from supply Ground wire from fixture

Figure 5

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

Figure 3

STEP 4 Attach Fixture Body to Mounting

Screw

A. Place the backplate of Fixture Body (F) over the

Mounting Screws (B). Place caulk (not included) into

threads of Mounting Balls (E) and thread them onto the

Mounting Screws (B). Hand tighten until snug.

Mounting Screw

Lock Ball

Backplate

Fixture Body

July2013

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700

or visit us on-line at www.quoizel.com

2013 QuoizelInc.

5of5

Assembly Instruction Sheet #IS-SFD8409IB

For Style SFD8409IB

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

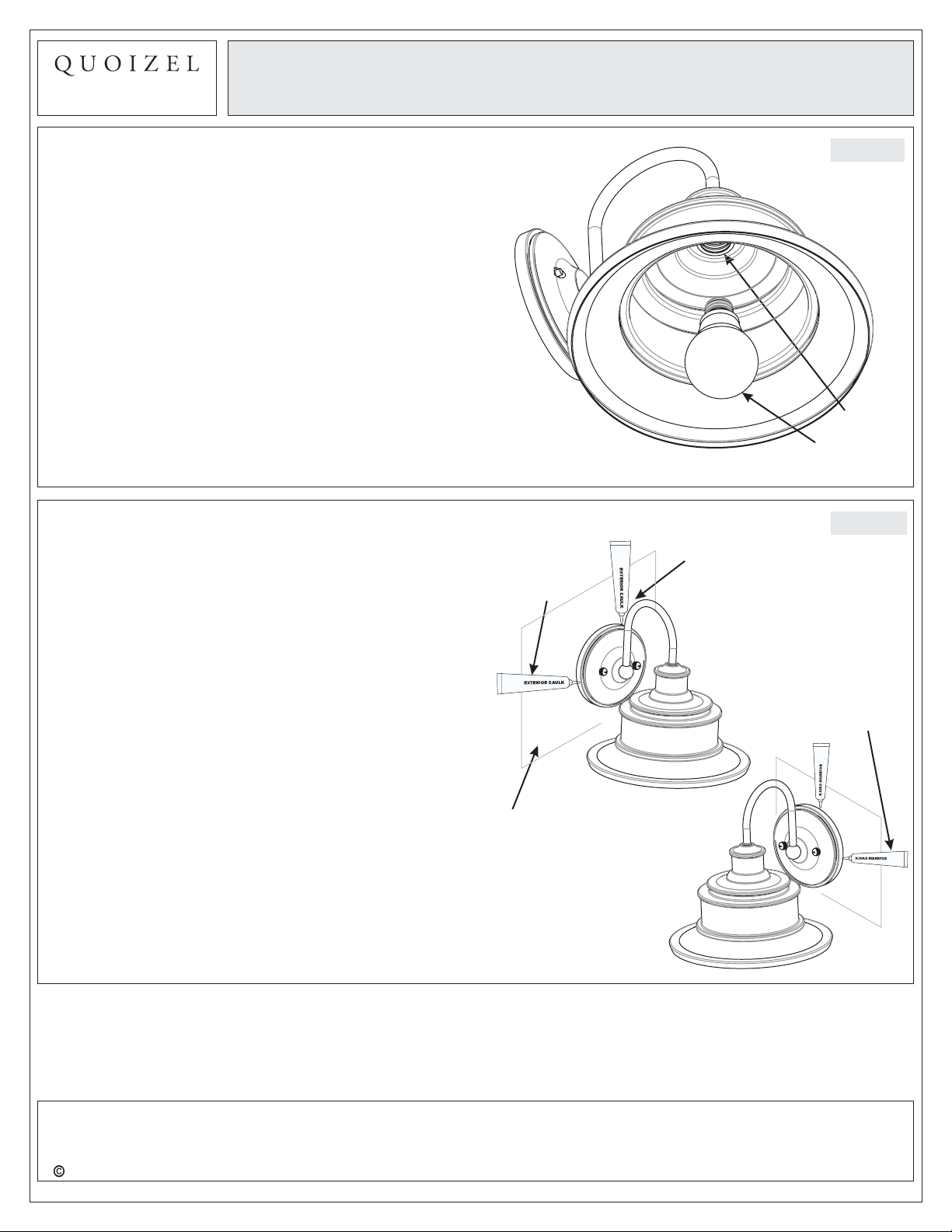

STEP 5 -Install Bulb

A. This fixture uses standard bulb with a standard screw

base. Maximum 100 watts.

B. Insert bulb and screw properly into place.

Figure 6

Bulb

Socket

July2013

STEP 6 Apply Silicone Sealer to Backplate-

A. Make sure exterior wall surface and fixture backplate

are free of dirt before applying caulk. Using exterior

grade caulk, start on one side of fixture backplate and

follow contour, where the fixture backplate meets the

exterior wall surface upward. Proceed to caulk over top

of backplate and down other side. Do not caulk bottom

of fixture backplate to ensure proper moisture

drainage.

Your fixture is now assembled and ready to use.

Enjoy!

Exterior

Grade Caulk

Outdoor Fixture

Backplate

Exterior Wall Surface

Figure 7

Exterior

Grade Caulk
