INSTALLATION GUIDE FOR MAE84 MBK10

CARE AND MAINTENANCE

SAFETY INFORMATION Released Date: 202 -028-29

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean ﬁxture as they may damage

the ﬁnish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am - 5:00pm EST), or visit us on-line at

www.quoizel.com.

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK - Before beginning installation, turn oﬀ electricity at the circuit breaker box or the main fuse box.

• RISK OF FIRE - Use bulbs speciﬁed by the markings and/or labels on the ﬁxture.

CAUTION

• For your safety, read instructions completely before beginning installation.

• If in doubt about electrical installation, consult a licensed electrician.

• Turn oﬀ electricity to ﬁxture before replacing the bulb(s).

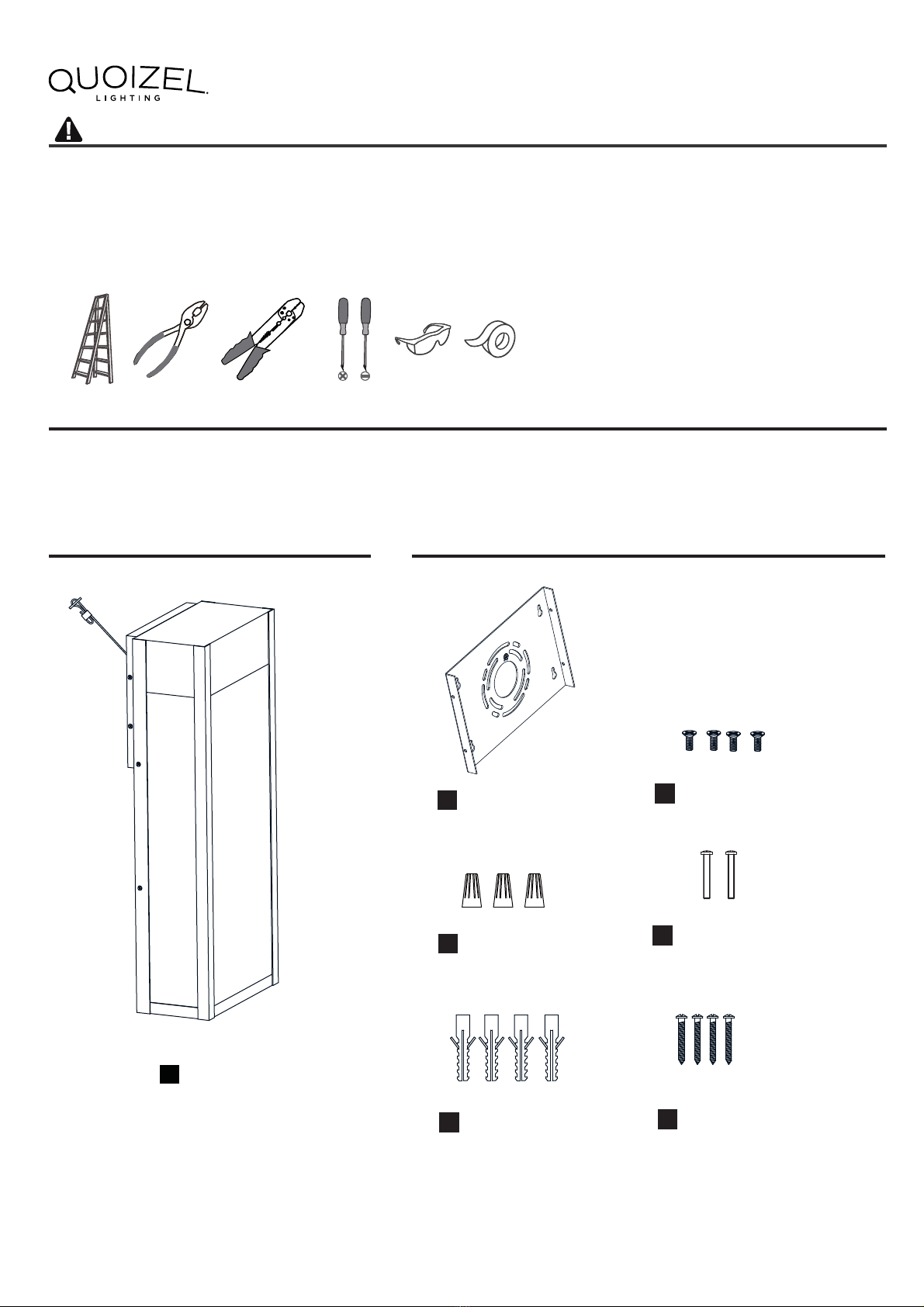

TOOLS REQUIRED

PACKAGE CONTENTS

Inner Backplate

Wire Connector

Outlet Box Screw

AFixture Body

x 1

MOUNTING HARDWARE

Mounting Screw

Screw

Wall Anchor

-of-23

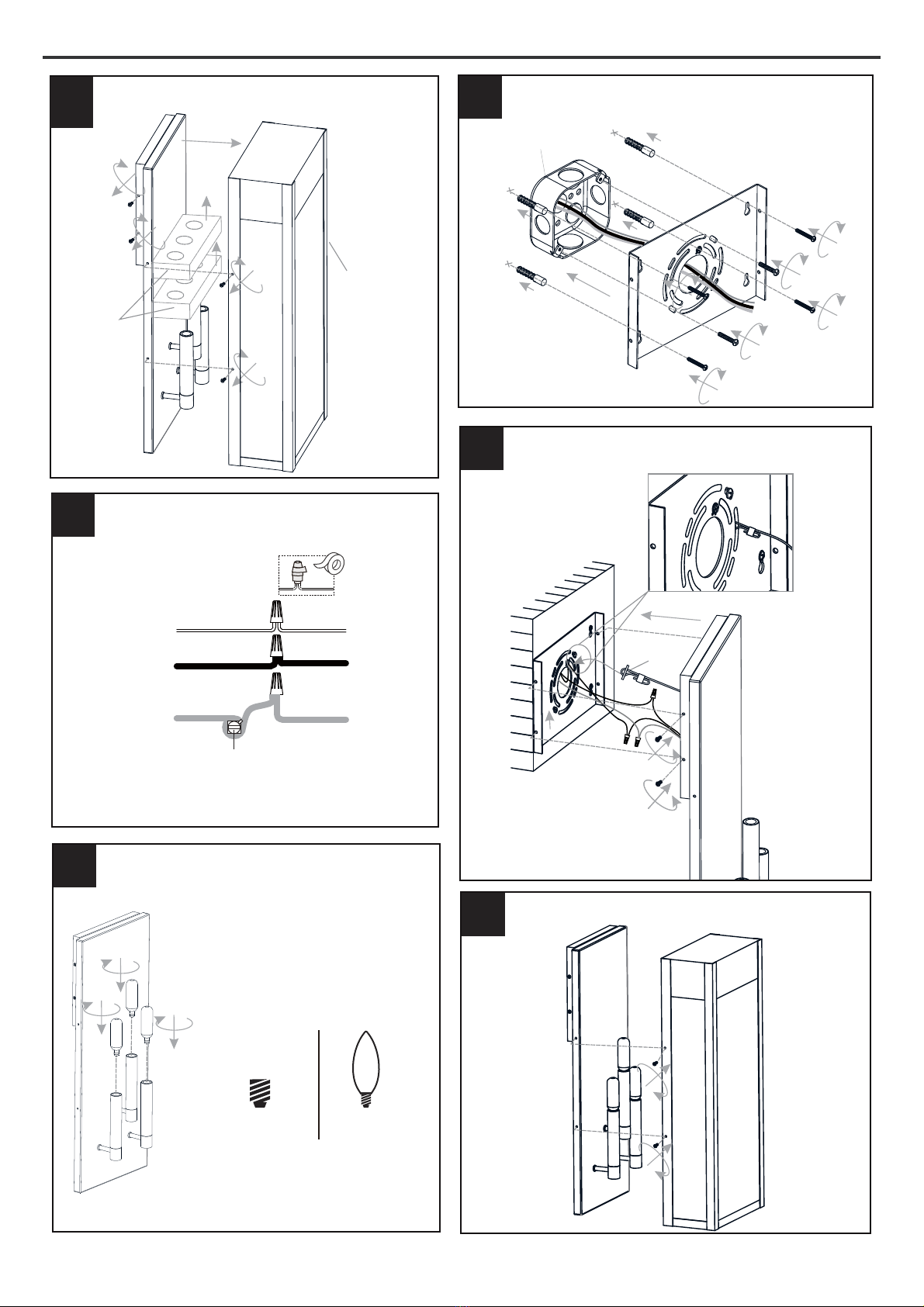

INSTALLATION

Install Inner Backplate

Wiring

White wire from supply White from ﬁxture

Black (or red) wire from supply Black from ﬁxture

Ground wire from supply

Ground wire

from ﬁxture

Green ground screw

Install Lanyard and Fixture Body

Install Cage

Lanyard

Outlet Box

Remove Cage and EPE

Install Bulbs

Install three correct bulbs referring

to ﬁxture markings and/or labels for

maximum wattage.

Recommended Bulb Type (not

included):

BULB BASE TYPE

Candelabra (E12)

BULB SHAPE

TYPE B

60W

Cage

EPE

-of-33

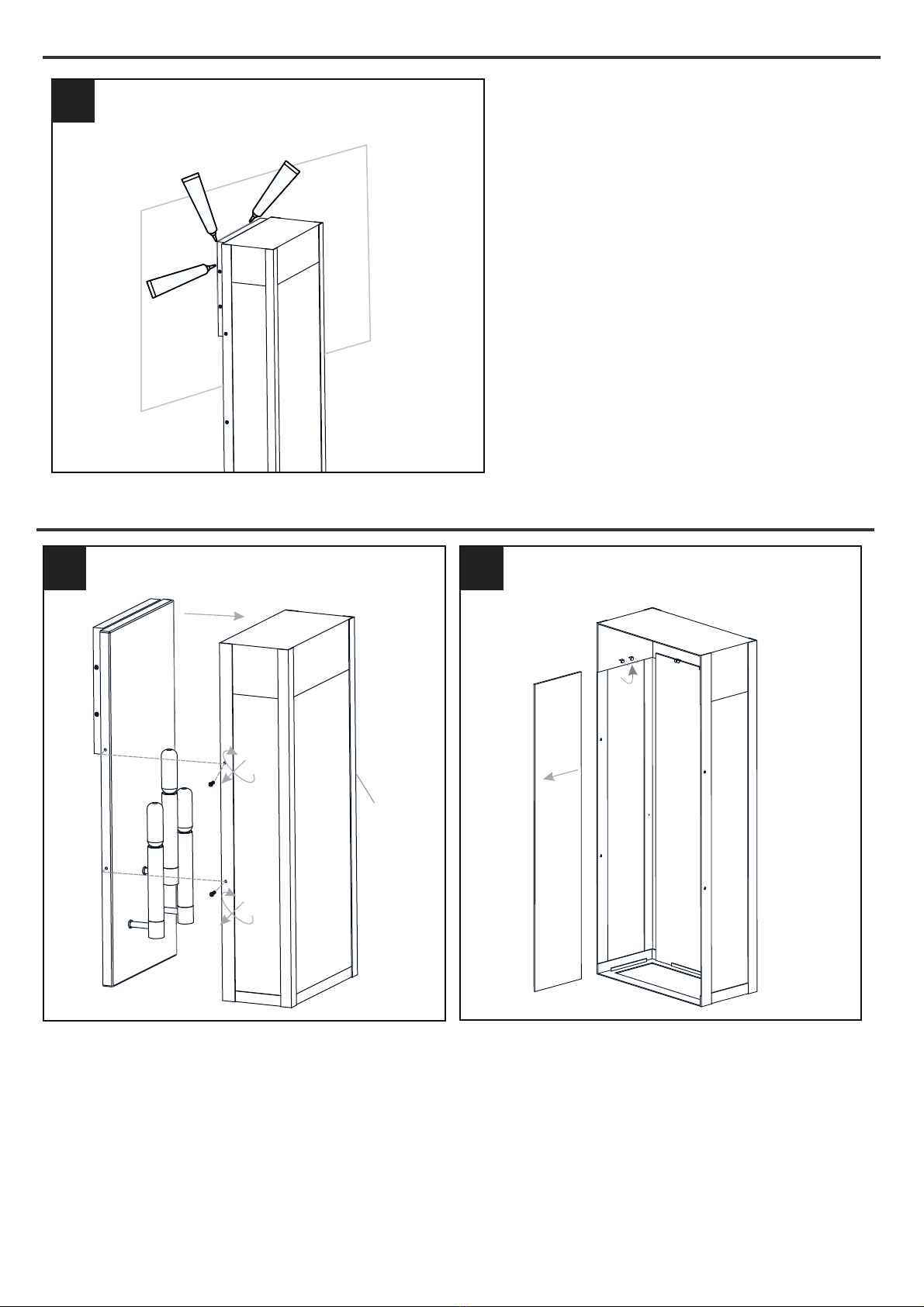

HOW TO REPLACE GLASS SHADE

Remove Cage

Cage

Remove Glass Panel

Reverse above steps to reinstall the replacement Glass onto ﬁxture.panels

INSTALLATION

ECxterior aulk

Apply Caulking

* Note: Do NOT caulk the bottom of the backplate to

allow moisture to escape.

Your installation is now complete!

Restore electricity and save this sheet

for future reference.
