Quoizel CSE8408PN Instructions de montage

Warnings and Cautions

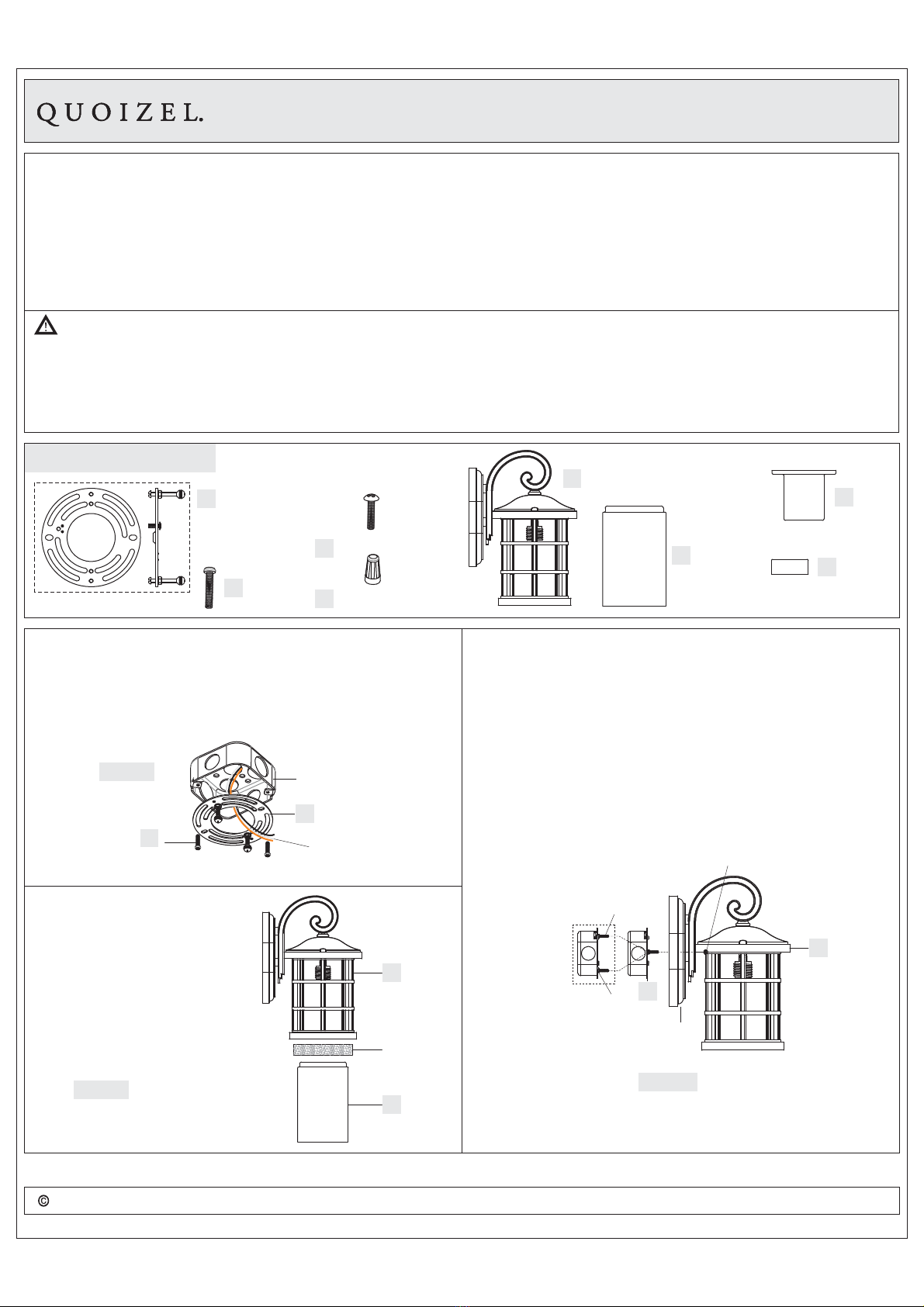

1of2

Assembly Instruction Sheet #IS-CSE8408

For Styles CSE8408PN and CSE8408EK

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

Pleasegoto forproductcleaningtips.Gotothe selection.

(1)MediumBase100WbulbMaximumor

(1)MediumBaseVintageBulbisrecommendedbutnotsupplied.

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

www.quoizel.com Care + Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

Fixturecanonlybemountedinthedirectionindicatedonpage2.

ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

STEP 1 Install Crossbar Assembly-

A. Pass the supply wires through the Crossbar Assembly (A). Attach

the Crossbar Assembly (A) to the Outlet Box with the head of the

Green Ground Screw facing you. Secure it with Outlet Box Screws

(G). Tighten until snug.

Figure 1

STEP 2 -Remove Styrofoam

inside of the Fixture Body

A. Remove the Styrofoam and

Shade (C) inside the Fixture

Body (B).

Figure 2

STEP 3 Test Fitting Backplate to Crossbar Assembly-

A. Remove mounting balls from the Crossbar Assembly (A). Fit the

backplate on Fixture Body (B) to the Crossbar Assembly (A) and

secure with mounting balls. Note: The backplate on Fixture Body (B)

should be snug against the wall and the Mounting balls. If not, adjust

the length of the mounting screws on the Crossbar Assembly (A) by

unscrewing the preassembled hex nut and lock washer and then

screwing the mounting screws in or out of the crossbar until the

correct length is achieved. Once the backplate on Fixture Body (B) is

secure, remove the mounting ball and Fixture Body (B).

Figure 3

Styrofoam

Mounting Ball

Backplate

Hex Nut and

Lock Washer

Mounting Screw

Supply Wires with

Ground Wire

Outlet Box

Package Contents

ACrossbar Assembly

Fixture

Body

Shade

x1 E

Steel

Collar

Socket

Collar

Alternate

Mounting

Screw

Outlet Box Screw

Wire Connector

2018 QuoizelInc. ReleasedDate:2018-11-12

visit us on-line at www.quoizel.com

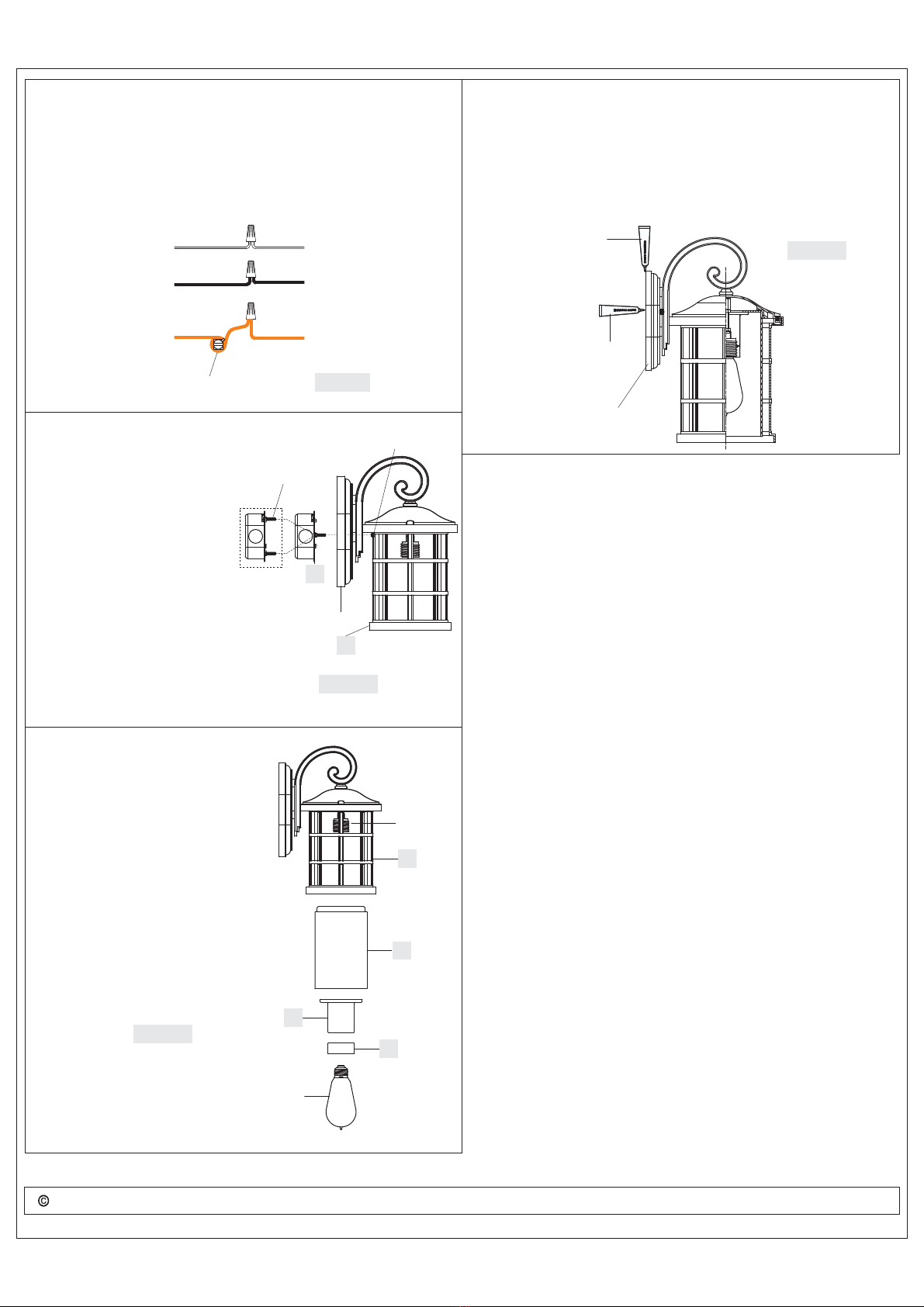

2of2

STEP 4 - Wire Connections

A. Wrap bare or green ground wire around green ground screw on the

crossbar, no less than 2 inches from the end of the wire. Tighten the

green ground screw.

B. Use standard wire connectors (H) to make all wire connections.

Twist connectors until wires are tightly joined together. Wrap each

connection with approved electrical tape and carefully stuff all the

connected wires into the Outlet Box.

Figure 4

Green Ground Screw

on the Crossbar

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from Fixture

STEP 5 Install Fixture Body-

A. Carefully tuck all wires into

the outlet box and position

the backplate of Fixture

Body (B) over the outlet

box. Align the holes in the

backplate with the mounting

screws. Place caulk (not

supplied) into the

previously removed

mounting balls and then

attach Fixture Body (B)

using the mounting balls.

Hand tighten until snug.

Figure 5

STEP 6 Install Shade and Bulb-

A. Place Shade (C) and Steel

Collar (D) over the Socket,

secure by threading Socket

Collar (E) onto Socket. Hand

tighten until sung.

B. Insert bulb onto socket and

screw snugly into place.

Figure 6

Vintage Bulb

(recommended

but not supplied)

STEP 7 -Apply Silicone Sealer

A. Make sure exterior wall surface and fixture backplate are free of dirt

before applying caulk. Using exterior grade caulk, caulk over top of

backplate and down other side. Do not caulk bottom of fixture

backplate to ensure proper moisture drainage.

Your fixture is now assembled and ready to use. Enjoy!

Figure 7

Exterior

Grade Caulk

Backplate

Exterior

Grade

Caulk

Mounting Ball

Backplate

Mounting Screw

Socket

2018 QuoizelInc. ReleasedDate:2018-11-12

visit us on-line at www.quoizel.com
