Quantum PX500 Series Guide de démarrage rapide

81-81351-01 C01, April 2006 1

Quantum PX500 Series

FC1202 Upgrade Instructions

Introduction 3

Fibre Channel Description........................................................................... 3

FC1202 Bridge Operation............................................................................. 3

Preparing for the FC1202 Installation 4

Required Upgrade Kits ................................................................................ 4

Required Equipment (Customer Supplied) .............................................. 4

Required Tools .............................................................................................. 4

FC1202 Upgrade Procedure 4

Preparing the Quantum PX500 Series Library ......................................... 5

Removing Tape Drive SCSI Jumper Cables.............................................. 6

Installing the FC1202 Bridge ....................................................................... 9

Installing the Ethernet Cables ................................................................... 13

Installing SCSI Jumper Cables .................................................................. 17

Configuring the FC1202 Bridge Software................................................ 19

Saving the Configuration File ................................................................... 25

Enabling Serverless Backup (Xcopy)........................................................ 27

Zoning the Ethernet Switch 29

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

Made in the USA.

Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to

the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication from time to

time without notice.

Your right to copy this document is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum

Corporation is prohibited by law and constitutes a punishable violation of the law.

TRADEMARK STATEMENT

Capacity on Demand (CoD), Crosslink Mechanism, DLT, DLTSage, DLTtape, Super DLTtape, Performance on Demand, (PoD), PRISM,

PRISM Storage Architecture logo, SiteCare, StackLink, StorageCare, SuperLoader, and ValueLoader are all trademarks of Quantum

Corporation. Quantum, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.

Other trademarks may be mentioned herein which belong to other companies.

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

Introduction 3

Introduction 0

The Quantum PX500 Series automated tape libraries are controlled by a host

computer via a SCSI LVD bus using the SCSI-3 medium changer command

set.

The Quantum PX500 Series allows for easy conversion from the SCSI host

interface to a Fibre Channel host interface. This document describes

upgrading a standard PX500 library equipped with a SCSI host interface to a

Fibre Channel host interface using a FC1202 Upgrade kit.

Fibre Channel

Description 0Fibre Channel is a serial data transfer architecture for use with computers and

mass storage devices that is rapidly emerging to challenge SCSI as the

interface of choice for host-to-storage applications.

Fibre Channel advantages include:

• Connection distances with the Quantum FC1202 option up to 500 meters

• 1 GB/Sec, 2 GB/Sec, or autosense data transfer rates

• Supports up to 126 devices in a loop mode

• Supports 24-bit addressing for over 16 million devices in point-to-point

mode or fabric, when using a Fibre Channel switch or multiple Fibre

Channel switches.

• Operating system independence

• Interconnect flexibility

FC1202 Bridge

Operation 0Once a FC1202 bridge option is installed and tested, the library operates

exactly as a PX500 Series with a SCSI host interface. Operation of the library

via the operator control panel (OCP) is unchanged.

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

4 Preparing for the FC1202 Installation

Preparing for the FC1202 Installation 0

Before beginning the installation procedure, make sure that you have the

required upgrade kit and tools.

Required Upgrade Kits 0The FC1202 installation requires the following upgrade kit for every two tape

drives in a PX500 Series library (see table 1):

Table 1 FC1202 Upgrade

Kit PN PR-UU9CF-YF

Required Equipment

(Customer Supplied) 0A zonable Ethernet switch is required if multiple FC1202 Fibre Channel

bridges are installed in either a PX506 or PX510 library. If a single FC1202

Fibre Channel bridge is installed, an Ethernet switch is not required.

Required Tools 0The following tools are required to install the FC1202 bridge upgrade:

• #2 PHILLIPS® screwdriver

FC1202 Upgrade Procedure 0

The upgrade procedure is identical regardless of the number of FC1202s

installed except where noted. The upgrade procedure consists of the

following major steps:

•Preparing the Quantum PX500 Series Library

•Removing Tape Drive SCSI Jumper Cables

•Installing the FC1202 Bridge

•Installing the Ethernet Cables

•Installing SCSI Jumper Cables

Note: All part numbers are subject to change without notice.

Qty Description

1 FC1202 PWA

2 SCSI Cables

1Ethernetcable

1Terminator

1Quantum PX500 Series FC1202 Upgrade Instructions

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

FC1202 Upgrade Procedure 5

•Configuring the FC1202 Bridge Software

Preparing the

Quantum PX500

Series Library 0

To prepare the PX500 Series library:

1With the library turned on, press the Ops button on the OCP to access the

Operations screen (see figure 1).

Figure 1 Operations

Screen

2Select Library operations and press Enter.

3From the library operations menu, select Library on/offline and press Enter

to turn the library offline.

4Verify that the OCP display indicates “Offline” from the OCP screen.

5Turn off the power button located on the front of the library (see figure 2).

Figure 2 Turning On the

Library

Caution: Use appropriate ESD procedures when assembling and

installing the FC1202 option.

Enter

Power button

OCP

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

6 FC1202 Upgrade Procedure

Removing Tape Drive

SCSI Jumper Cables 0Each pair of tape drives within the library are connected via a SCSI jumper

cable. These cables must be removed prior to cabling the FC1202.

1Locate the SCSI jumper cables connecting each pair of tape drives in the

library and the host systems (see figure 3 for PX502, figure 4 for PX506,

and figure 5 for PX510). The tape drives are numbered 1 through 10

(depending on library model) starting in the top-left drive bay. Tape drive

1 is in the upper right-hand drive bay, tape drive 2 is in the upper left-

hand drive bay, and so forth. Refer to the following illustrations for exact

tape drive numbering.

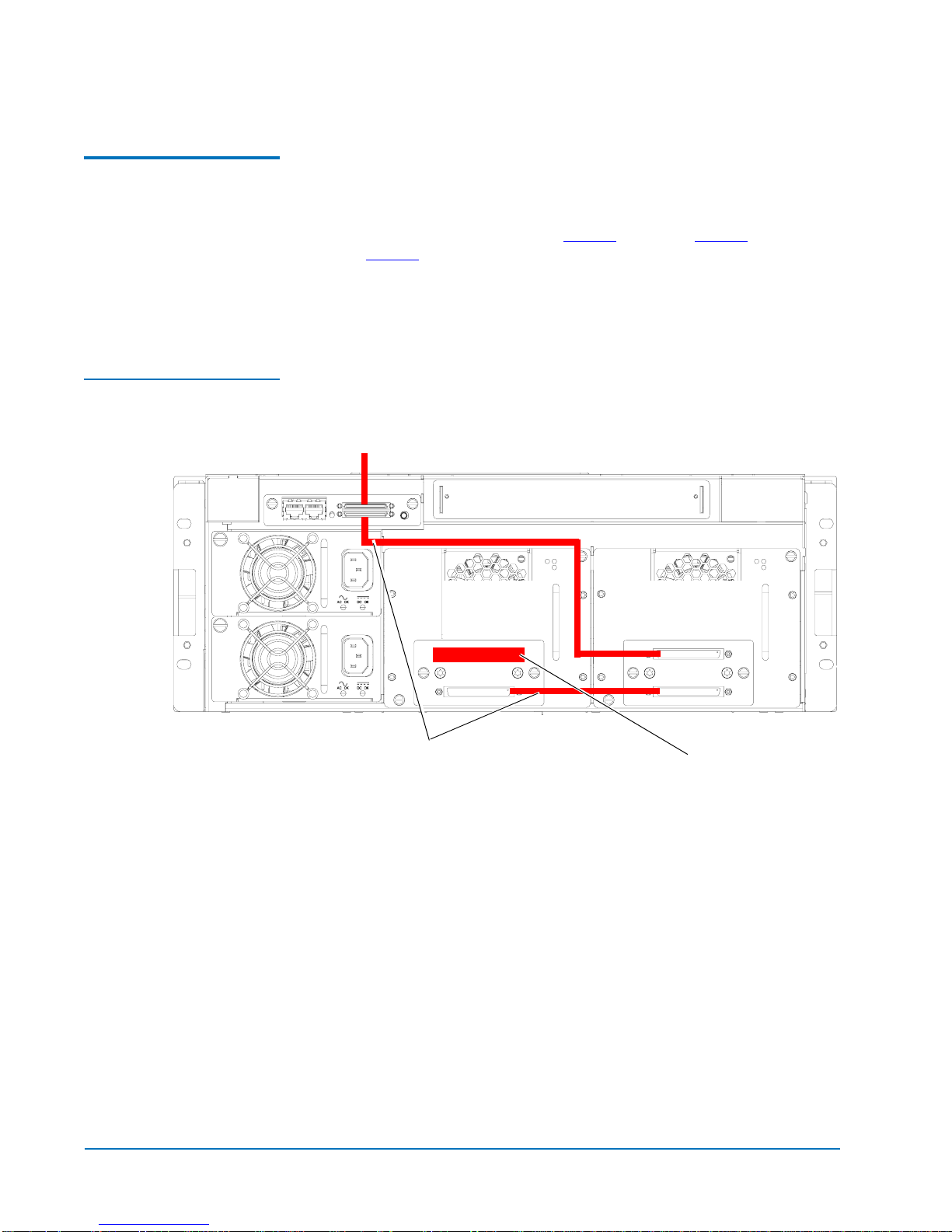

Figure 3 PX502 Cabling

Configuration

Tape drive 2 Tape drive 1

SCSI

terminator

SCSI

jumpers

Host computer

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

FC1202 Upgrade Procedure 7

Figure 4 PX506 Cabling

Configuration

Host computer

SCSI

jumper

SCSI jumper

SCSI

terminators

SCSI jumper

Tape drive 2 Tape drive 1

Tape drive 4

Tape drive 6 Tape drive 5

Tape drive 3

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

8 FC1202 Upgrade Procedure

Figure 5 PX510 Cabling

Configuration

2Remove all SCSI jumper cables connecting each pair of tape drives and

the host systems and also all terminators.

Host computer

SCSI jumper

SCSI

terminators

SCSI

jumper

Host computer

SCSI

terminators

SCSI

jumper

SCSI

jumper

Tape drive 2 Tape drive 1

Tape drive 4

Tape drive 6 Tape drive 5

Tape drive 3

Tape drive 8 Tape drive 7

Tape drive 10 Tape drive 9

SCSI

jumper

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

FC1202 Upgrade Procedure 9

Installing the FC1202

Bridge 0The number of FC1202 bridges required depends on the number of tape

drives installed in the library.

• 1 to 2 tape drives requires 1 FC1202

• 3 to 4 tape drives requires 2 FC1202 bridges (PX506 and PX510 only)

• 5 to 6 tape drives requires 3 FC1202 bridges (PX506 and PX510 only)

• 7 to 8 tape drives requires 4 FC1202 bridges (PX510 only)

• 9 to 10 tape drives requires 5 FC1202 bridges (PX510 only)

To install the FC1202 bridge:

1Loosen the two PHILLIPS screws securing the blank off plate(s) to the

CPCI card cage and expose the number of slots needed for the FC1202

installation (one blank off plate per FC1202).

2With the SCSI ports located to your right as you face the back of the

library, slide the first FC1202 into the slot of the card cage (see figure 6 for

PX502, figure 7 for PX506, and figure 8 for PX510).

Figure 6 Installing a

FC1202 Bridge (PX502)

Note: Start the FC1202 installation in slot 1 of the CPCI card cage

(PX506 and PX510 only).

Blank off plate

Screws

Card cage

FC1202

Quantum PX500 Series FC1202 Upgrade Instructions

81-81351-01 C01

April 2006

10 FC1202 Upgrade Procedure

Figure 7 Installing a

FC1202 Bridge (PX506) Blank off plate

Screws

Card cage

FC1202

Slot 1
