TABLE OF CONTENTS

Safety Information

Safety Information and Maintenance

Disc Protection

What’s in the Box

System Connection

Product Overview

Remote Control Function Keys

Overview of the Equipment

Basic Playback Controls

Advanced Functions

Menu Options

System Setup

CD ripping and Copy

Copying from an MP3 disc to a USB device

Kodak Picture CD Disc Playback

Playing Radio functions

Multimedia

AUX Input

Wireless BT Streaming Connectivity

Troubleshooting

Specications

www.PyleUSA.com 3

Safety Information

Danger! High Voltage! Electric Shock If Opened!

Operation with Caution! Please refer to the related operating instructions.

Label for Class II Products (Dual Insulation)

WARNING: To avoid re and electric shock, never attempt to put the System in the

rain or in a place with high humidity.

Precautions:

Do not modify or use accessories not recommended by the manufacturer.

Use the right power cord and insert it properly to avoid electric shock.

Laser parts are used in this System. If instructions described in this manual are

not followed in operating or adjusting the System, personnel may be exposed to

radiation. Do not open or repair the System. Such work should be done by

qualied technicians.

Hazardous Operation: Do not open the System so as to avoid radiation.

Safety Information and Maintenance

Please read this manual completely before operating this unit and retain for

future reference.

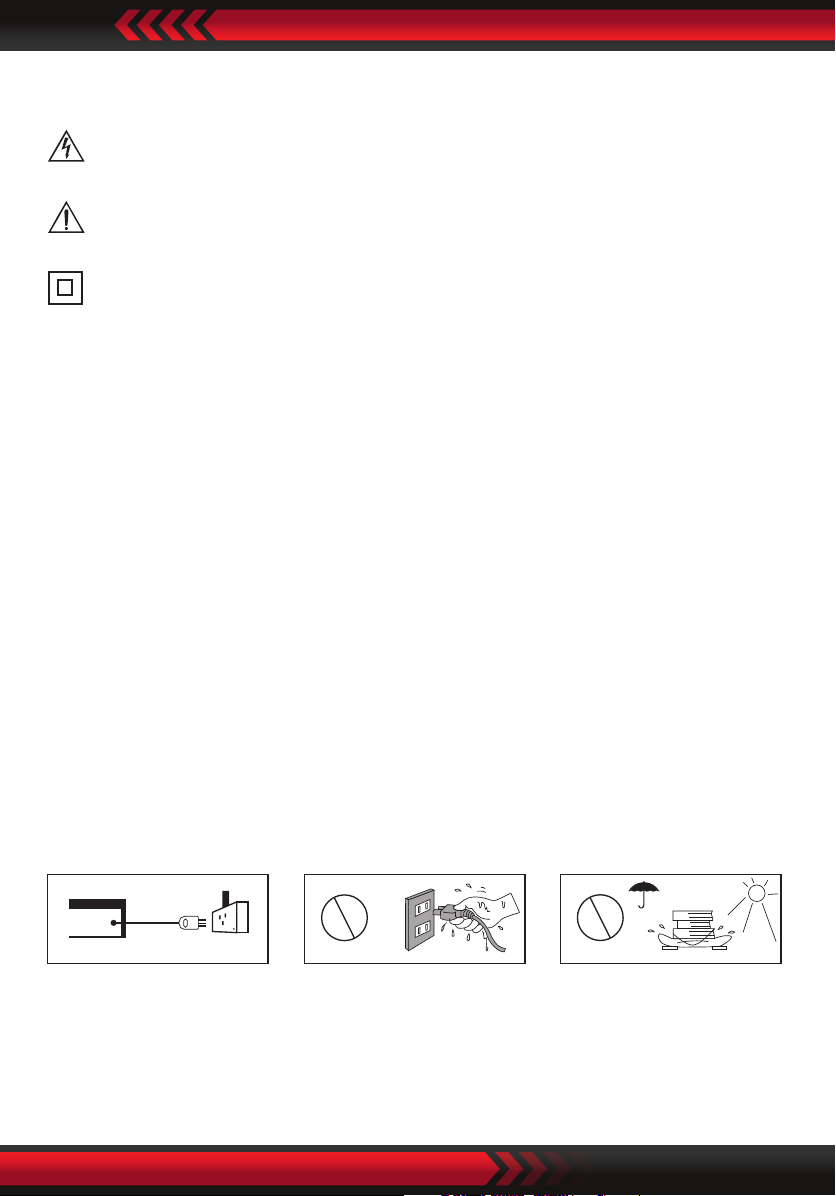

Power supply: Follow the

descriptions on the label

and use the power cord

properly.

Keep all parts away from

moisture.

Avoid direct sunshine and

high temperature.

www.PyleUSA.com4

Important:

• This device is not a toy. Do not allow young children to play with the unit.

• When moving the unit, make sure that the power is turned o and the cord is

removed from the power outlet.

Disc Protection

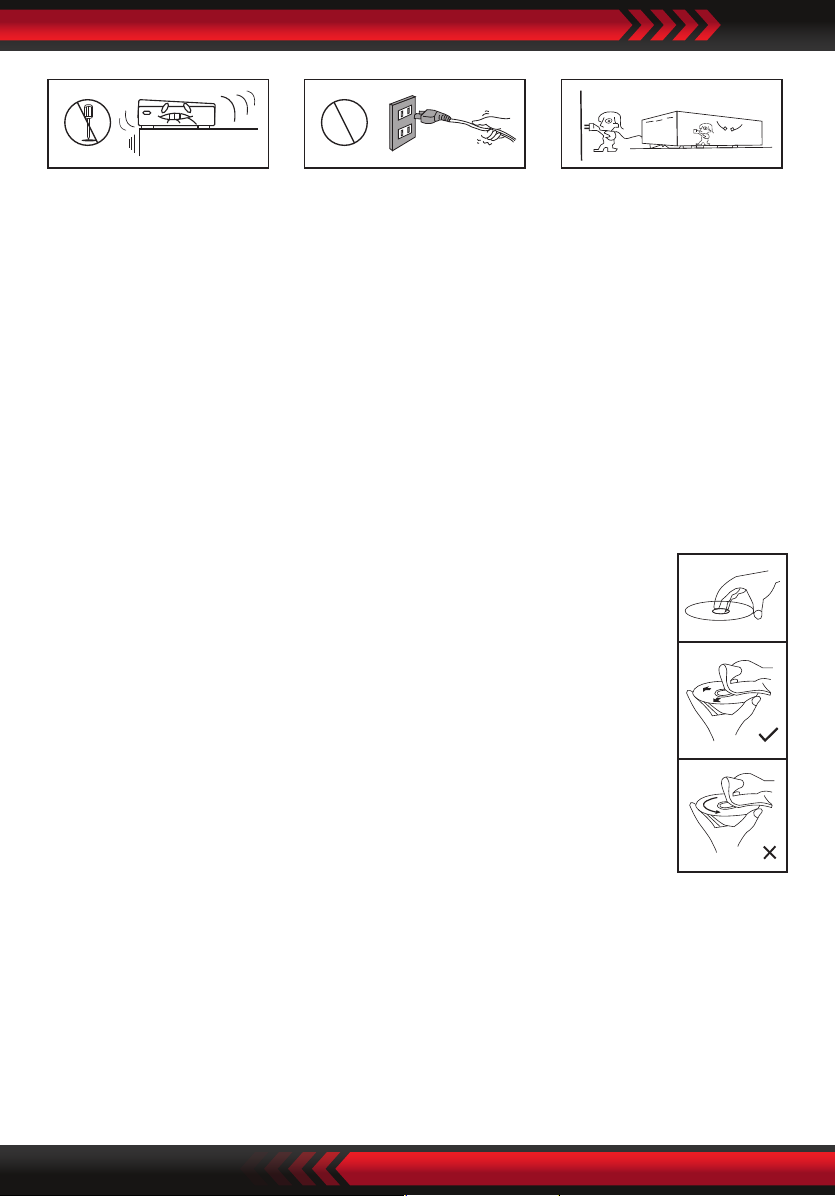

To clean a dirty disc, you should use a clean rag and clean it in a

linear way.

Keep the player, battery and disc away from environment with

moisture, rain, dust or high temperature. Keep the disc tray closed

so as to avoid dust.

When the player is suddenly moved from a cold environment to a

warm one, water can be condensed on the lens of the player, which

may lead to a problem. In this case, put the player in the warm

environment till the condensed water on the lens is totally evaporated.

Disc Protection

When the system works for a long time, the panels at the top and bottom of the

device will be warm. When the device is not in used, take out the disc and unplug

the power cord. If it is not used for a long time, the system may malfunction or its

performance becomes deteriorated. For that reason, the device should be operated

occasionally. Do not place foreign objects onto the disc tray.

Do not open the cover.

No userserviceable parts

inside. Leaving the cover

open may allow foreign

objects to fall into the unit.

Do not stretch, bend, or

pull on the power cord.

Grip the plug and not

the power cord when

unplugging.

Remove the power cord

from outlet if you are not

using the unit for a long

time.

www.PyleUSA.com 5

Operating Environment

Do not put the device in an environment with: Heat source or enclosed space

(like in a car); High temperature (≥40°C) or high humidity (≥90%); Dirt; Direct

sunshine.

Interference

Keep the device away from TV, radio and video recorder so as to avoid distorted

image or sound.

Condensed Water

Condensed water may appear on the device in the cases below:

• When it is moved from cold environment to a warm one;

• When it is used in a space with a running air conditioner system and the cold

air contacts the device;

• When it is in a room with too much steam or high humidity.

• A device with condensed water may not work properly. In this case, you can

plug the power cord and keep the machine running idle for about 2-3 hours.

The water should evaporate after a while.

Disc Protection

• Do not stick tape or paper onto the disk.

• To clean a disk, use a moist rag rst, then a dry rag.

• To avoid damage to the device, do not apply any soluble substances, such as

benzine and anti-static spray with ethylene-based substance to the disk.

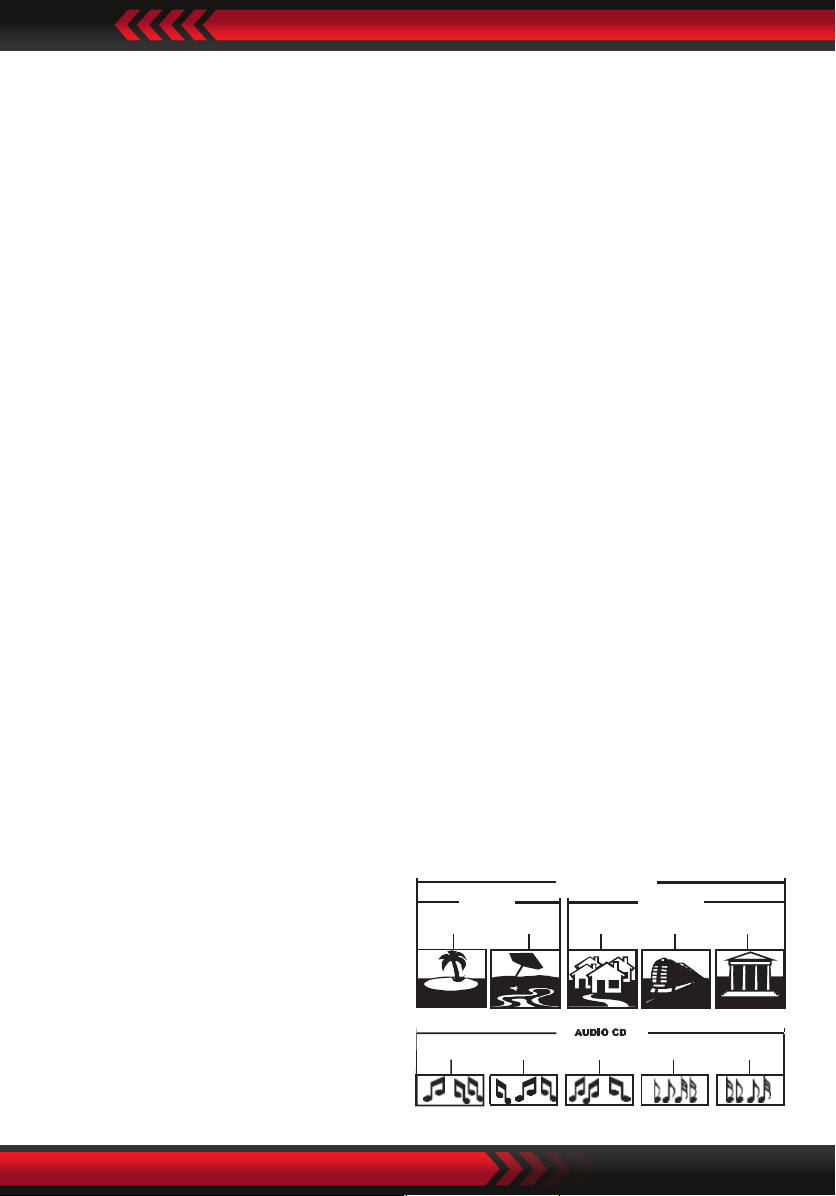

Structure of Disc Contents

Normally, the digitalized video disc comprises of dierent titles that are made

up of chapters. Audio disc is made up of tracks.

Each title, chapter and track has a

number, respectively called title

number, chapter number and track

number. But some discs may not

have such numbers.

DVD DISC

TITLE 1 TITLE 2

CHAPTER 1 CHAPTER 2 CHAPTER 3 CHAPTER 1 CHAPTER 5

TRACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5

www.PyleUSA.com6

What’s in the Box:

• PA Speaker

• Remote control

• AV Connection Cable

• AC/DC Power Cord

• FM Antenna Cable

System Connection

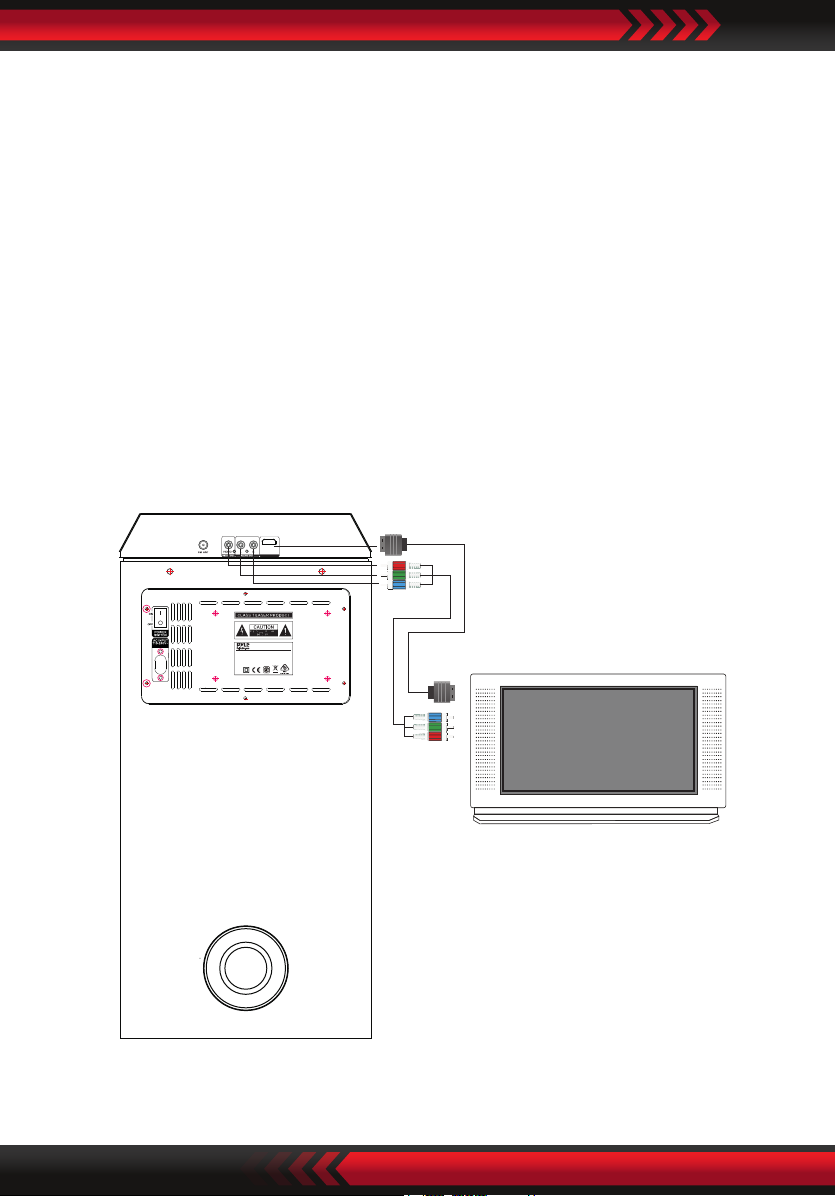

Please refer to the drawing below for system connection to a TV.

Do not plug the power cord before the connection is completed.

Note:

1. Make sure the source cables are properly connected.

2. Make sure the power cord is unplugged before removing or inserting the

connecting cables. Otherwise, the device or other parts may be damaged.

Note: To listen to FM, rst connect the FM antenna provided to the port named

'FM ANT'.

HDMI

VIDEO/AUDIO

INPUT

50/6 0Hz

Choose any ONE of

these connections

HDMI OUTPUT

POWER:AC 110-240V~ 50/60Hz

DVD SPEAKER SYSTEM WITH BLUETOOTH

MAX. POWER CONSUMPTION:60W

PKRK270BT

www.PyleUSA.com 7

Product Overview

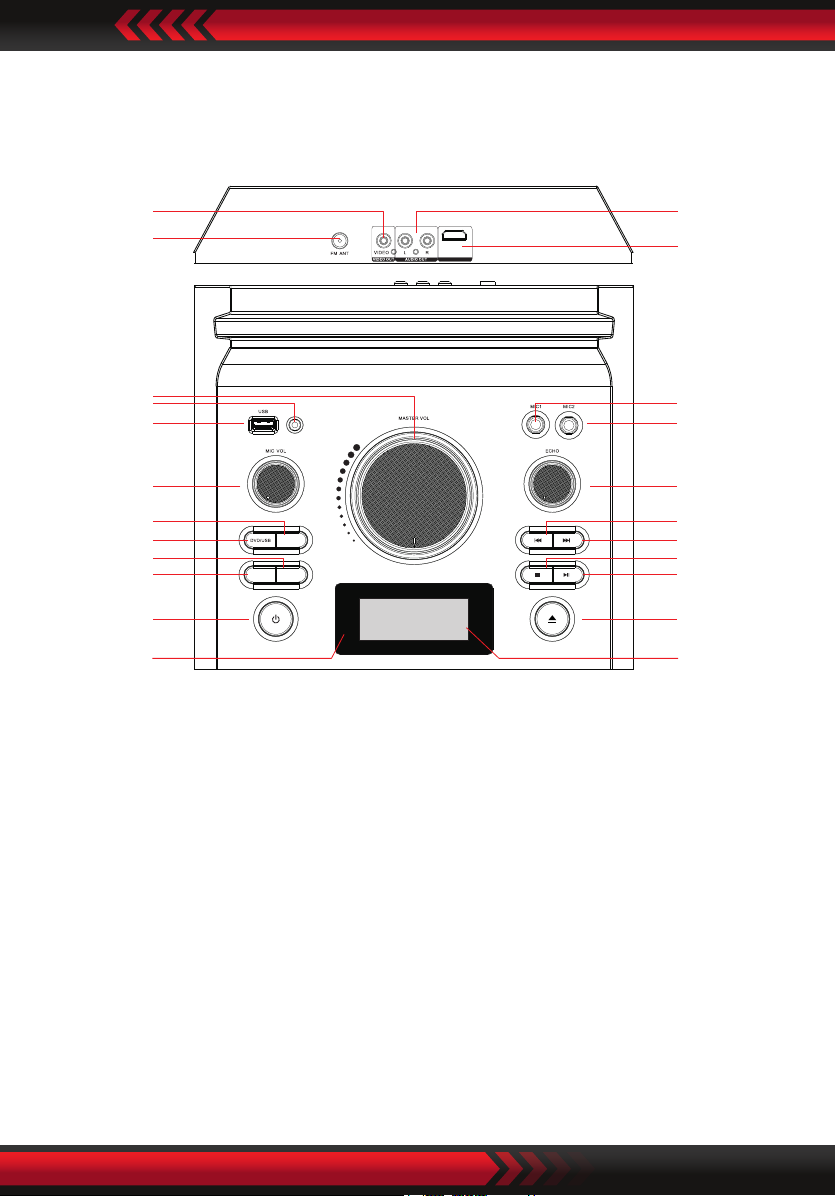

Top Panel

Important: First, set the On/O switch on the rear of the unit to the on position.

13. AUDIO OUT

14. HDMI OUTPUT

15. MIC1 PORT

16. MIC2 PORT

17. ECHO: ECHO adjustment for

microphone

18. PREVIOUS

19. NEXT

20. STOP BUTTON

21. PLAY/PAUSE (press and hold to

auto search on Radio Mode)

22. OPEN/CLOSE the DVD tray

23. LED DISPLAY

MIN MAX MIN MAX

MIN MAX

LINE IN

TONE

SOURCE LED MODE

HDMI OUTPUT

1. VIDEO OUT

2. FM ANT

3. MASTER VOL: Volume adjustment dial

4. LINE IN

5. USB PORT

6. MIC VOL: Microphone volume adjustment

7. TONE: Treble/Bass adjustment button

8. DVD/USB: Switch between DVD and USB

9. LED MODE: Switch between the dierent

lighting modes and light o mode

10. SOURCE: Switch between Line in/BT/

DVD/USB/FM modes

11. POWER BUTTON

12. POWER LED

www.PyleUSA.com8

Front Panel

1. DVD DOOR

2. Remote Control Receiver

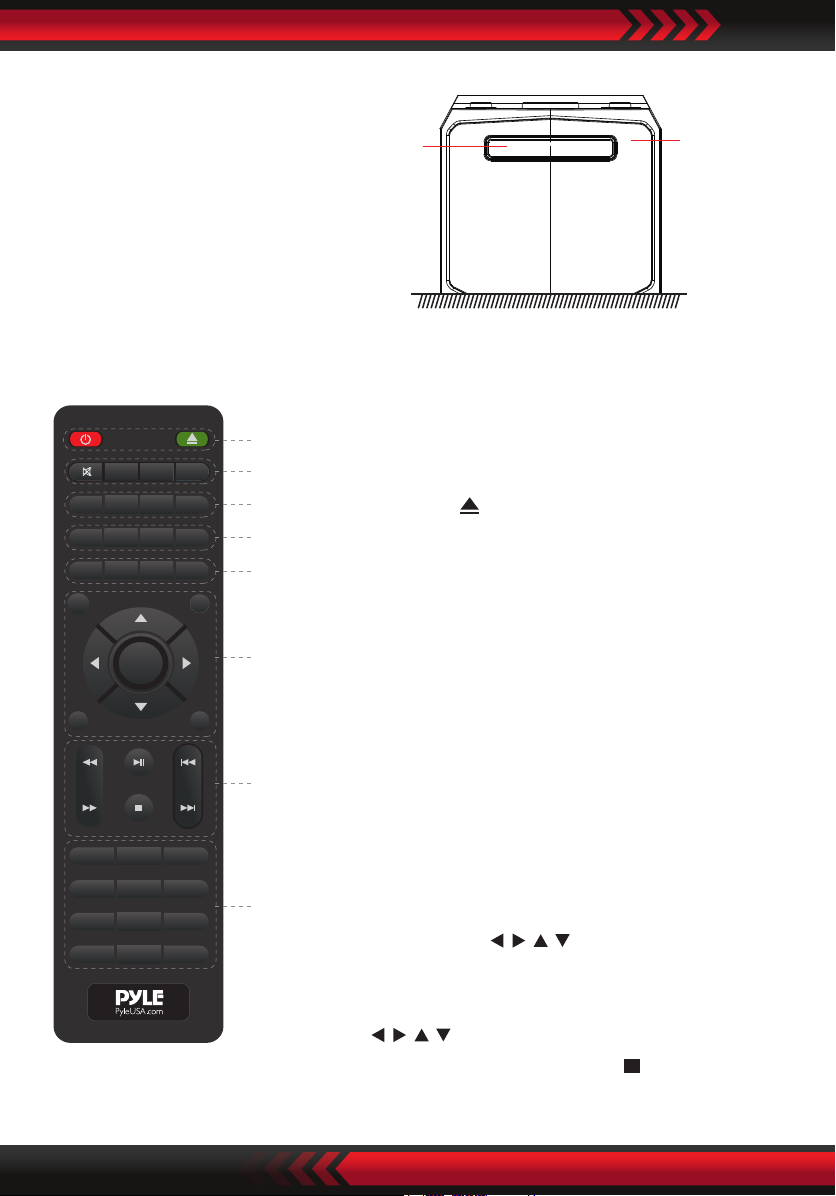

Remote Control Function Keys

Note: Use 2 x 'AAA' batteries (Don't included). Keep away from children.

1 2

OPEN/CLOSESTANDBY

PROGRAM

PBCCLEAR

GO-TO

RETURN OSD

ANGLE MODE

SUB/COPY

ZOOM

A-B REPEAT

VOL+VOL-REPEAT

SETUP DVD/USB

SCAN

FM-

FM+

CH-

CH+

STOP

ENTER

TOP MENU

LANGUAGE

MUTE

L/R

1 2 3

4 5 6

7 8 9

10 10+

1. Standby/Power on/o switch: Press to open/close

the unit power. In this mode, he unit is still consuming

a small amount of power.

OPEN/CLOSE: Open/Close the disc tray.

2. Mute: Press to mute or unmute the sound

Zoom: Magnies/Shrinks the screen image size

Angle: Chose the dierent angles in the same

image (Only support have multi-angle discs)

Mode/Source: Press to choose Line in (AUX)/BT/

DVD/USB/FM modes

3. SUB/COPY: Press subtitle button to displays the

subtitles in dvd mode (Only supports multi-subtitle

discs) Copy music contents from loaded CD disc to

inserted USB drive

Clear: When using PROGRAM feature, press CLEAR

to clear the input number.

PROGRAM: First, press PROG to enter program

status. Then, press to select the item.

Press 0 to 9 to specify the 2-digit order (To cacle,

press clear).

Press to select Start, press OK to start

programed playback. Press STOP twice to clear

the whole proram.

www.PyleUSA.com 9

Overview of the Equipment

Playing a disc

Once a disc is loaded, the player will start playing automatically.

1. If a disc is a DVD, the player will show the DVD menu or title menu.

2. If the disc is a VCD2.0, the player will activate PBC playback control status.

3. If the disc is a CD, the player will start playing the CD in sequence.

NOTE: If the screen is black/white or scrolling up and down, press N/P on remote

to toggle between NTSC and PAL.

Basic playback controls

Preparation

To watch the disc contents, turn on the TV, connect AV or HDMI cable to TV

and device, and change the TV system to AV or HDMI code.

1. PLAY/PAUSE : Press the power button to start the device. At the meantime,

the screen LED will be illuminated. Words “no disc”will appear on the screen if

disk not inserted. If disc is inserted, the device will play the disk automatically.

2. PREV /NEXT :

IN CD/DVD/USB mode: Press to go to the previous or next song/channel/chapter.

IN FM mode: Press to play previous or next station(can store 20 stations)

In BT mode: Press to play previous or next song

IN LINE in Mode: These buttons have no eect in this mode, use the controls

on the auxiliary device.

3. REV /FWD :

In CD/DVD/USB mode: Press to reverse or fast forward through the disc 2x, 4x,

8x, 20x or back to normal playback speed.

In FM mode: Press to go to the next or previous available FM station.

In Line in/BT mode: These buttons have no eect in these modes.

4. STOP :

In DVD/USB/BT mode: Press to stop play.

IN FM mode: Press to automatically scan the channel, press again to

automatically play the rst saved station.

In Line in mode: This button has no eect in this mode.

www.PyleUSA.com10

Note:

Use remote control to operate the features described throughout this manual.

Advanced functions

OSD

In DVD playback: Press OSD on the remote control to display single elapsed time,

single remaining time, total elapsed time, total remaining time and other

information about the disc.

IN VCD playback: Press OSD on the remote control to display single elapsed time,

single remaining time, display o and other information about the disc.

N/P: Press N/P to toggle between NTSC, PAL, AUTO.

Subtitle: Press Subtitle button to display the subtitles when watching movies/

recordings on multi-subtitle encoded discs, you can choose from 32 languages.

(This function only works with multi-subtitle encoded discs).

Press SUBTITLE Button again to turn o subtitles.

Angle: Press Angle repeatedly to view the same image from dierent angles

when watching sports, musical or theatrical programs on multi-angle encoded

discs (This function only works with multi-angle encoded discs)

Language: Press language to display the languages for selection when watching

movies/recording on multi-language encoded discs. You can choose from 32

languages. (This function only works with multi-language encoded discs.)

Title: Press TITLE to display the title menu when watching movies/recordings on

multi-title encoded discs (This works with multi-title encoded discs).

Press to return to the main DVD playback menu

(This works with multi-chapter encoded discs).

1. When playing SVCD, press MENU to display the menu on screen

2. When playing VCD 1.1, CD disc and MP3, this button has no eect

Press numerical buttons to select the track.

Table des matières

Autres manuels Pyle Système de haut-parleurs

Pyle

Pyle PDWR54BTW Manuel utilisateur

Pyle

Pyle PWPSB1102 Manuel utilisateur

Pyle

Pyle PPHP1599WU Manuel utilisateur

Pyle

Pyle PSBV28HB Manuel utilisateur

Pyle

Pyle PDIC3FR Manuel utilisateur

Pyle

Pyle BOOM ROCK PWMAB250 Series Manuel utilisateur

Pyle

Pyle PWMA85UFM Manuel utilisateur

Pyle

Pyle PBMSPG190 Manuel utilisateur

Pyle

Pyle Vintage PTTCSM70BT Manuel utilisateur

Pyle

Pyle PPHP8MBA Manuel utilisateur

Pyle

Pyle PK15SBA Manuel utilisateur

Pyle

Pyle PPHP1049KT Manuel utilisateur

Pyle

Pyle PHP18DJT Manuel utilisateur

Pyle

Pyle PHP210DJT Manuel utilisateur

Pyle

Pyle PSBT62A Manuel utilisateur

Pyle

Pyle PPHP1299WU Manuel utilisateur

Pyle

Pyle PLMRF65MW Manuel utilisateur

Pyle

Pyle PPHP849KT Manuel utilisateur

Pyle

Pyle PPHP1243B Manuel utilisateur

Pyle

Pyle PPHP126WMU Manuel utilisateur

Pyle

Pyle PSBV30BT Manuel utilisateur

Pyle

Pyle PWMA1594UFM Manuel utilisateur

Pyle

Pyle PPHP898MX Manuel utilisateur

Pyle

Pyle PPHP803MU Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
