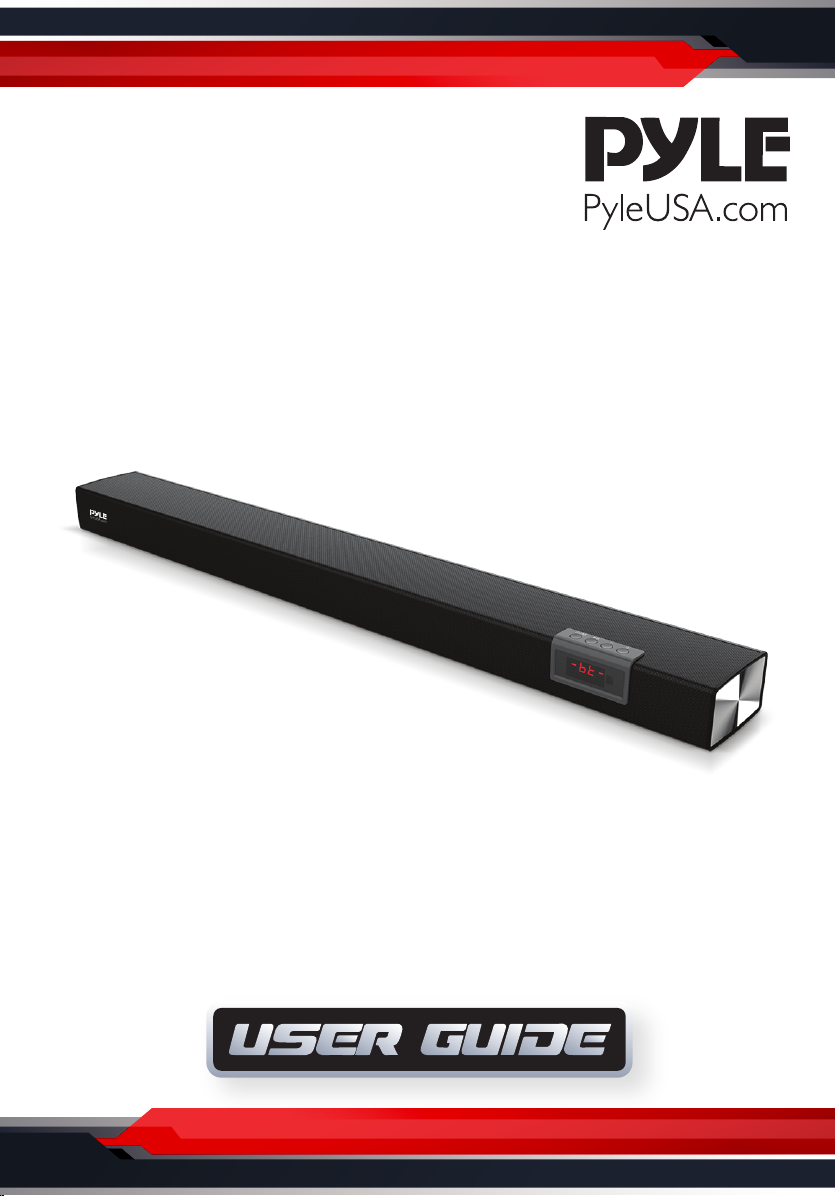

Pyle PSBV40BT Manuel utilisateur

Wireless BT Streaming with Remote Control

PSBV40BT

35'' 2.1 Channel Convertible Soundbar

www.PyleUSA.com

To ensure you will be completely satised with this product, read and

understand this manual carefully before use. Keep the manual in a safe place.

The Operating Manual must be passed on to all subsequent users.

IMPORTANT SAFETY PRECAUTIONS

The lightning ash with arrowhead symbol within an equilateral triangle is

intended to alert the user to the presence of uninsulated dangerous voltage

within the product's enclosure that may be sucient magnitude to constitute a

risk of electric shock to humans.

The exclamation point within an equilateraltriangle is intended to alert the user

to the presence of important operating instructions and maintenance in the

literature accompanying the product.

This product should be operated only from the type of power source indicated

at the back. DO NOT locate the product where the power cord will be abused by

constant stepping on it. DO NOT allow anything to rest on the power cord.

The AC power plug shall remain readily operable. Unplug the power cord during

lightning storms or when not in used for a long period of time. DO NOT overload

wall outlets and extension cords as this can result re or electric shock.

No objects lled with liquids, such as vase shall be placed on it. DO NOT install

the product near bathtub, washbowl, kitchen sink, laundry tub or any wet area.

DO NOT expose the product to dripping or splashing.

DO NOT install this product in a poorly ventilated or conned space.

When cleaning, unplug the power cord from the wall outlet.

DO NOT use strong solvents or liquid cleaners. Use a soft damp cloth for cleaning.

For stubborn dirt, use a cloth moistened with mild detergent then wipe the dirt

o. Use a soft dry cloth to wipe it dry.

www.PyleUSA.com 3

DO NOT attempt to x the product yourself.

Opening or removing the cover may expose you to dangerous voltage or other

hazards. Refer servicing to a qualied service personnel.

NOTES:

Read instructions carefully and completely. Keep this user's manual for future

reference. Heed all warnings and follow all instructions.

Features:

• Built-in Class D Stereo Power Amplier

• (2) 3” Full-range Drivers with Y35 Ferrite Magnets

• (2) 3” Subwoofer Drivers with Y35 Ferrite Magnets

• Built-in BT Technology

• 3.5mm Auxiliary Input

• Optical Input

• USB/Micro SDcard Input

• HDMI ARC Input

• Built-in LED lights

What's in the Box:

• Main Speakers

• Power Adaptor

• Remote Control

Technical Specications

• MAX Power: 60W

• RMS Power: 30W

• AC Power Adapter: Input: 100-240V, 50/60Hz; Output: DC 18V

• Impedance: 4 Ohm

• Frequency Response: Bass: 20Hz-150Hz, Soundbar: 120Hz-20kHz

• Total Harmonic Distortion: Bass: ≥0.5%@30W, Soundbar: ≥0.5%@10W

• Supported Media Files: MP3 Audio

• AUX (LINE) Input: 2-Channel Analog Audio, 3.5mm

• Product Dimensions (L x W x H): 35.4'' x 2.4'' x 2.4'' -inches

NOTE: Technical specications may vary without notice.

www.PyleUSA.com

CONNECTIONS

SOUNDBAR BACK PANEL

1. ARC Input: Connect the TV or device HDMI (ARC) interface, tune the SoundBar

mode to HDMI and then switch the TV or device to the corresponding mode

to normal use.

2. Optical input: Connect the device to the optical interface, and change the

SoundBar mode to optical mode for use.

3. USB Input: To insert your USB ash drive (FAT32 le system) with MP3 audio

les for playback.

4. AUX Input: To connect the 2.1channel analog audio output of your TV set or

an external audio/Video player to the soundbar.

5. DC 24V Input: To connect the AC/DC adapter output included in the package.

6. Coaxial Input: Connect the device to the coaxial interface, and change the

SoundBar mode to coaxial mode for use.

COAXIAL ARC

USB

DC IN

www.PyleUSA.com 5

SOUNDBAR CONTROL PANEL FUNCTIONS

1. POWER:

Press and hold to switch the soundbar power to "ON" or to standby mode.

MODE:

To select the audio input mode for playback or to select FM radio operation.

2. : To pause or to resume MP3

audio playback.

FM SCAN: Press and hold to perform auto-program of FM radio stations to its

preset channel number.

3. : To play the next MP3 audio le or track number or to select the next preset

channel number of programmed FM radio stations.

VOL+: Press and hold to increase the total sound output level.

4. : To play the previous MP3 audio le or track number or to select the previous

preset channel number of programmed FM radio stations.

VOL-: Press and hold to decrease the total sound output level.

NOTE:

Adjust the volume control to the proper level to avoid damage of the speakers

and/or to the internal circuit of the product.

www.PyleUSA.com

REMOTE CONTROL FUNCTIONS

BASIC OPERATIONS

Plug the product to your household AC convenience outlet.

Switch the power of the product to ON.

Set the volume to low level and select the desired audio input.

1. Power Button: Press to turn ON/OFF

2. Mode Button: Press to change the audio

input (BT, AUX, USB and Micro SD Card)

3. Mute Button: Press to silence the system,

press again to unmute

4. Play/Pause | Previous/Next Track | Volume

Up/Down: Control your playlist when playing

songs using BT, USB or Micro SD Card.

5. DSP Button: Select one of the 10 available

presets: Flat, Classic, Rock, Pop, Jazz, Live,

Club, Dance, Hall and Soft

6. Bass Adjust: Use the B+ and B- buttons to

increase or decrease the system's bass level

(the L+R output is also aected by this EQ)

7. Treble Adjust: Use the T+ and T- buttons to

increase or decrease the system's treble level

(the L+R output is also aected by this EQ)

8. 3D Button: Press to increase the surround

sound experience while watching movies.

www.PyleUSA.com 7

Wireless BT Audio Streaming

When the power is switched to ON, Wireless BT (BT) mode is selected by default,

otherwise, press the BT button to select Wireless BT mode. Using your smartphone,

search the BT ID of the product for pairing then select to connect. The BT ID is

“PyleUSA”. Once connected, play audio les in your smartphone.

Play/Pause ( ), Previous ( ) and Next ( ) functions of the product may be

used to control the audio playback operation.

Adjust the volume controls to the proper level to avoid damage of the speakers

and/or to the internal circuit of the product. Press the FUNCTION button to select

the BASS, TREBLE or SUBWOOFER. Adjust the level of the selected function using

the LEVEL- and the LEVEL+ buttons according to your listening preferences.

You can also select the preset equalizer settings according to your choice.

AUX Input Operation

Press the AUX button to select the "AUX" input mode. Operate your gadget or

device connected to the product and adjust the volume to the proper level.

Soundbars usually used for TV sets, and connected to the audio output of the

TV set. Volume control of most TV sets cannot adjust the volume level of its

audio output. The volume level of the TV set can be adjusted by its volume

control when using the earphone output connection (if any) supported.

Use the Play/Pause ( ), Previous ( ) and Next ( ) functions to control the

MP3 audio playback operation.

Questions? Issues?

We are here to help!

Phone: (1) 718-535-1800

Email: suppor[email protected]
