Pyle PDICBT57 Manuel utilisateur

WirelessBTStreaming

Wall/CeilingSpeakerSystem

PDICBT57- Dual 5.25" Speakers

PDICBT67- Dual 6.5" Speakers

PDICBT87- Dual 8.0" Speakers

www.PyleUSA.com

REAR SPEAKERS

IN-CEILING

Proper placement of the speakers is an

important step in obtaining the most realistic

soundstage possible. These recommendations

are for the optimum placement of the loud

speakers. Use these placement recommenda

tions as a guide. Slight variations will not

diminish your listening pleasure.The front speakers should be placed the

same distance from each other as they are from the listening position. They

should be placed at about the same height from the oor as the listener’s

ears will be, with the tweeters aimed toward the listener at ear-level height.

In a home theater conguration, the two surround, speakers should be

placed slightly behind the listening position and ideally should face each

other and be at a level higher than the listener’s ears. If that is not possible,

they may be placed in a wall (or in the ceiling) behind the listening

position, facing forword. The surround speakers should not call attention to

themselves. They should provide a diuse, ambient sound accompanying

the main program material heard in the front speakers. In Dolby*Digital and

DTS systems, aim the tweeters toward the listening position at ear-level

height.

5-6FT

WLLAWL

AWLLAW

Speaker Power Supply Connection:

The active speaker features the power supply for the speaker system. You

may choose to use the included power supply adapter to connect directly

into the active speaker's power supply input. *Optional power supply

connection can be made by directly 'hard-wiring' power supply cables to

the speaker's power supply screw terminal post -- as pictured, also located

on the active speaker.

www.PyleUSA.com

Plug-in Power

Adapter Input

*Optional Power

Source Input

Active Speaker

Passive Speaker

www.PyleUSA.com

Speaker Connection (Active-to-Passive)

Create the daisy-chain style speaker connection to allow speaker-to-

speaker audio communication output. The included speaker wire is used to

connect the active speaker to the passive speaker. Ensure proper speaker

connection wiring between the speakers.

Active Speaker

Passive Speaker

www.PyleUSA.com

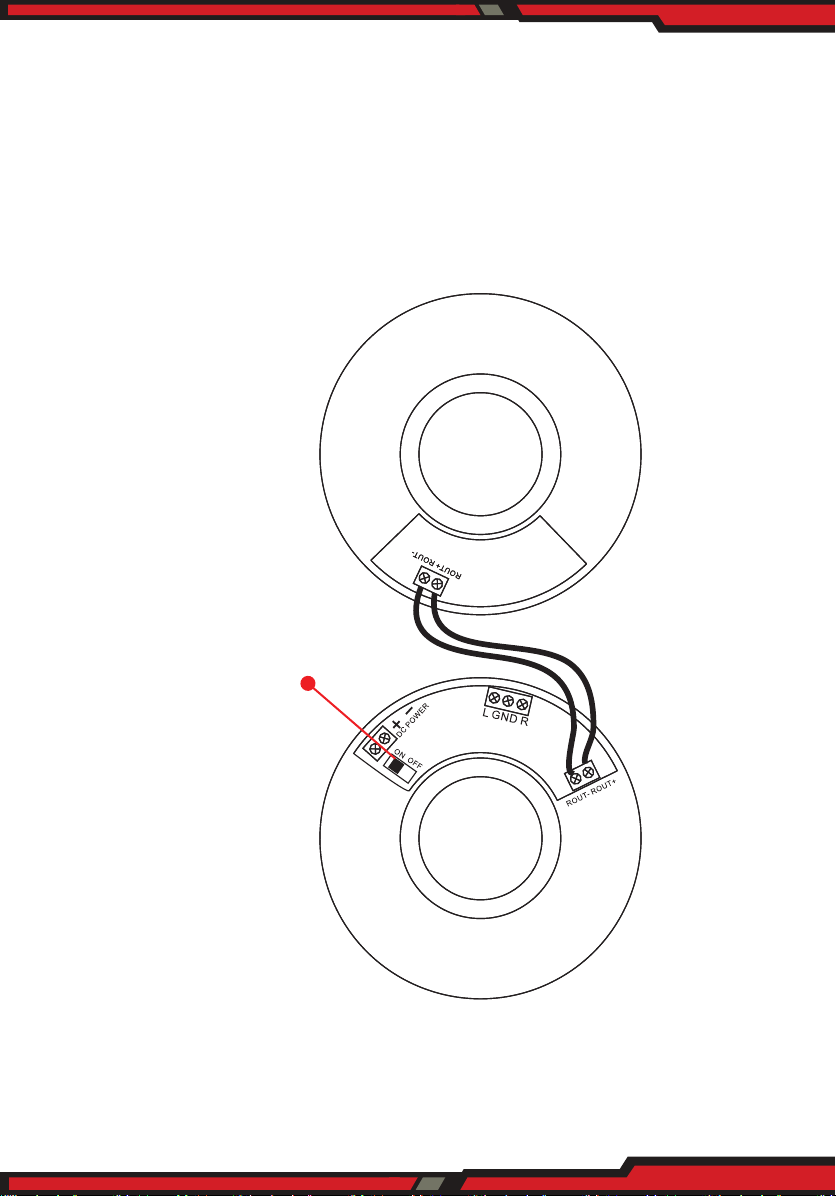

Bluetooth Pairing

Once the speakers are installed and powered -- search the Bluetooth

network name " Pyle Audio USA" on your device. Ensure the Bluetooth

Receiver Switch is set to ON position -- as located on the active speaker.

If you are prompted for a password, enter '0000' (4 zeroes).

Active Speaker

Passive Speaker

Bluetooth

Receiver Switch

Pencil

Measuring tape

Carpenter’s level

Phillips #2 screwdriver

Utility knife

Awl

INSTALLATION

TOOLS NEEDED

The in-wall/in-ceiling speakers were designed to be easily installed.

However,if you are unsure of your ability to properly install these loud

speakers please contact your dealer or a qualied installer.

1. Cut the drywall

Note: Always allow at least one-half inch between a wall stud and the

speaker cutout or the locking tabs will not be able to swivel into place.

2. Connect the speaker wires to the speaker

www.PyleUSA.com

3. Screw down each of the four Phillips head screws.The locking tabs will

swivel into place and secure the unit to the rear surface of the drywall.

Put in the strips of adhesive to secure the grill.

4. Replace the metal grill. 5. Complete

TROUBLESHOOTING

IF THERE IS NO SOUND FROM ANY OF THE SPEAKERS:

• Check that receiver/amplier is on and a source is playing.

• Check all wires and connections between receiver/amplier and

speakers. Make sure all wires are connected. Make sure none of the

speaker wires are frayed, cut, punctured or tounching each other.

• Review proper proper operation of your receiver/amplier.

IF THERE IS NO SOUND COMING FROM ONE SPEAKERS:

• Check the “Balance” control on your receiver/amplier.

• Check allwires and connections between receiver/amplier and speakers.

Make sure all wires are connected. Make sure none of the speaker wires

are frayed, cut, punctured or tpunching each other.

www.PyleUSA.com

IF THERE IS LOW (OR NO) BASS OUTPUT:

• Make sure the connections to the left and right “speaker Inputs” have the

correct polarity (+ and -).

• Consider adding a powered subwoofer to your system.

• In Dolby Digital or DTS modes, make sure your receiver/processor is

corectly congured. When using a subwoofer, make sure the subwoofer

output of the receiver/processor has been enabled. If no subwoofer is

being used, make sure the left and right front and rear speakers have

been congured as “LARGE” See your receiver/processor’s owner’s manual

for futher information on correct speaker conguration in Dolby Digital,

DTS and other surround sound modes.

IF THE SYSTEM PLAYS AT LOW VOLUME BUT SHUTS OFF AS VOLUME IS

INCREASED:

• Check all wires and connections between receiver/amplier and

speakers. Make sure all wires are connected. Make sure none of the

speaker wires are frayed, cut, punctured or touching each other.

• If more than one pair of main speakers is being used,check the minimum

-impedance requirements of your receiver/amplier.

PDICBT57 - PDICBT67 - PDICBT87

Wireless BT Streaming Wall / Ceiling Speaker System

MODEL PDICBT57 PDICBT67 PDICBT87

Sound System 5.25’’ Speaker

+ 1’’Tweeter

6.5’’ Speaker

+ 1’’Tweeter

8.0’’ Speaker

+ 1’’Tweeter

MAX Power

Output 240 Watt 300 Watt 400 Watt

Eciency 86dB 88dB 90dB

Frequency

Response 100Hz-20kHz 70Hz-20kHz 50Hz-20kHz

Total Speaker

Size

7.8’’ Diameter,

3.0’’ Depth

9.4’’ Diameter,

3.9’’ Depth

10.7’’ Diameter,

4.6’’ Depth

Cut-Out Size 7.0’’ Diameter,

2.9’’ Depth

7.9’’ Diameter,

3.7’’ Depth

9.6’’ Diameter,

4.4’’ Depth

www.PyleUSA.com

Features:

• Includes (2) Speakers (Active + Passive)

• Bluetooth Wireless Music Streaming Ability

• 2-Way Full Range Stereo Sound

• Built-in Digital Sound Amplier

• Mounts Flush to Walls or Ceilings

• Screw Terminal Block Speaker Connectors

• Ability to Daisy-Chain Speakers for Stereo System Sound

• Environmentally Friendly ABS Construction

• Perfect for Custom Installations & Applications

Bluetooth Connectivity:

• Includes Bluetooth Control Receiver

• Stream Wireless Audio from Your Connected Device

(Smartphone, Tablet, Laptop, Computer, etc.)

• Bluetooth Network Name: ‘Pyle USA’

• Bluetooth Network Password: ‘0000’ (4 Zeroes)

• Bluetooth Version: 3.0

• Wireless Range: Up to 40’+ ft.

What’s in the Box:

• Active Speaker

• Passive Speaker

• 12V Power Adapter

• Speaker Connection Cable, 16’ft.

Technical Specs:

• Impedance: 8 Ohm

• Power: 100/240V, 12V Power Adapter

• Sold as: Pair
