ProSoft Technology MVI69E-GSC Manuel utilisateur

MVI69E-GSC

CompactLogix™or

MicroLogix™Platform

Generic ASCII Serial

Communication Module

June 16, 2020

USER MANUAL

Contents MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform

User Manual Generic ASCII Serial Communication Module

Page 2 of 87 ProSoft Technology, Inc.

Your Feedback Please

We always want you to feel that you made the right decision to use our products. If you have suggestions,

comments, compliments or complaints about our products, documentation, or support, please write or call us.

ProSoft Technology, Inc.

+1 (661) 716-5100

+1 (661) 716-5101 (Fax)

www.prosoft-technology.com

support@prosoft-technology.com

MVI69E-GSC User Manual

June 16, 2020

ProSoft Technology®, is a registered copyright of ProSoft Technology, Inc. All other brand or product names are

or may be trademarks of, and are used to identify products and services of, their respective owners.

In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product

shipments. User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provided at our

website:

www.prosoft-technology.com

Content Disclaimer

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability

of these products for specific user applications. It is the duty of any such user or integrator to perform the

appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant

specific application or use thereof. Neither ProSoft Technology nor any of its affiliates or subsidiaries shall be

responsible or liable for misuse of the information contained herein. Information in this document including

illustrations, specifications and dimensions may contain technical inaccuracies or typographical errors. ProSoft

Technology makes no warranty or representation as to its accuracy and assumes no liability for and reserves the

right to correct such inaccuracies or errors at any time without notice. If you have any suggestions for

improvements or amendments or have found errors in this publication, please notify us.

No part of this document may be reproduced in any form or by any means, electronic or mechanical, including

photocopying, without express written permission of ProSoft Technology. All pertinent state, regional, and local

safety regulations must be observed when installing and using this product. For reasons of safety and to help

ensure compliance with documented system data, only the manufacturer should perform repairs to components.

When devices are used for applications with technical safety requirements, the relevant instructions must be

followed. Failure to use ProSoft Technology software or approved software with our hardware products may

result in injury, harm, or improper operating results. Failure to observe this information can result in injury or

equipment damage.

Printed documentation is available for purchase. Contact ProSoft Technology for pricing and availability.

For professional users in the European Union

If you wish to discard electrical and electronic equipment (EEE), please contact your dealer or

supplier for further information.

Warning –Cancer and Reproductive Harm –www.P65Warnings.ca.gov

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform Contents

Generic ASCII Serial Communication Module User Manual

ProSoft Technology, Inc. Page 3 of 87

Important Safety Information

North America Warnings

A This Equipment is Suitable For Use in Class I, Division 2, Groups A, B, C, D or Non-Hazardous Locations

Only.

B Warning –Explosion Hazard –Substitution of Any Components May Impair Suitability for Class I, Division 2.

C Warning –Explosion Hazard –Do Not Disconnect Equipment Unless Power Has Been Switched Off Or The

Area is Known To Be Non-Hazardous.

D The subject devices are powered by a Switch Model Power Supply (SMPS) that has regulated output

voltage of 5 VDC.

ATEX/IECEx Warnings and Conditions of Safe Usage:

Power, Input, and Output (I/O) wiring must be in accordance with the authority having jurisdiction.

A Warning - Explosion Hazard - When in hazardous locations, turn off power before replacing or wiring

modules.

B Warning - Explosion Hazard - Do not disconnect equipment unless power has been switched off or the area

is known to be non-hazardous.

C These products are intended to be mounted in an ATEX/IECEx Certified, tool-secured, IP54 enclosure. The

devices shall provide external means to prevent the rated voltage being exceeded by transient disturbances

of more than 40%. This device must be used only with ATEX certified backplanes.

D Before operating the reset switch, be sure the area is known to be non-hazardous.

If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment

may be impaired.

Agency Approvals & Certifications

Please visit our website: www.prosoft-technology.com

Contents MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform

User Manual Generic ASCII Serial Communication Module

Page 4 of 87 ProSoft Technology, Inc.

Contents

Your Feedback Please......................................................................................................................2

Content Disclaimer............................................................................................................................2

Important Safety Information.............................................................................................................3

1Start Here 6

1.1 System Requirements .............................................................................................6

1.2 Package Contents ...................................................................................................7

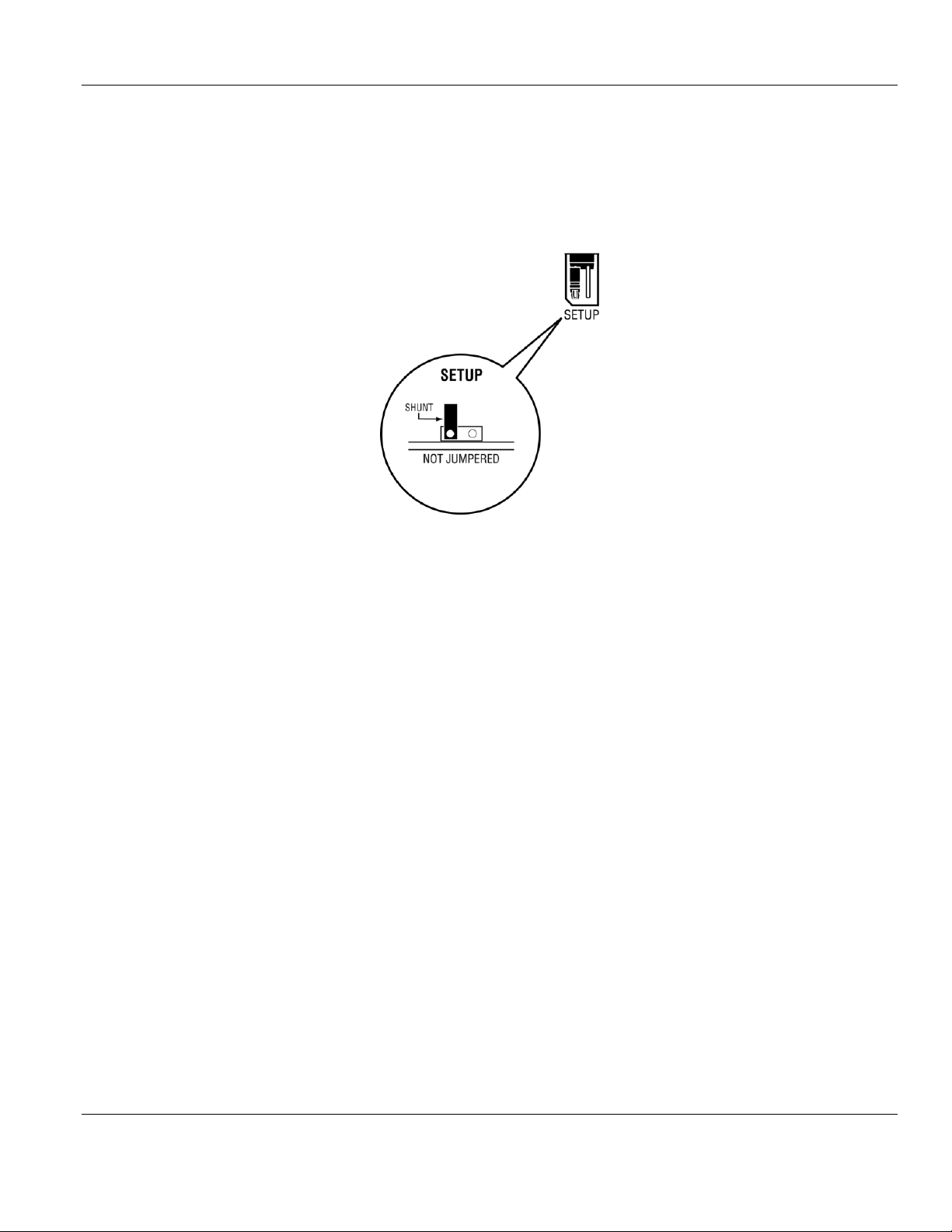

1.3 Setting Jumpers.......................................................................................................7

1.4 Install the Module in the Rack..................................................................................9

2Configuring the Module in RSLogix 12

2.1 Creating the Module in an Studio 5000 Project.....................................................12

2.1.1 Creating a Module in the Project Using an Add-On Profile ...................................13

2.1.2 Creating a Module in the Project Using a Generic 1769 Module Profile ...............17

2.2 Importing the Add-On Instruction...........................................................................19

2.2.1 Importing the Add-On Instruction...........................................................................19

2.2.2 Adding Multiple Modules in the Rack (Optional)....................................................22

2.3 Downloading the Sample Program to the Processor.............................................27

3Optional AOI 28

3.1 Importing the Optional AOI ....................................................................................28

3.2 Setting up the Optional AOI...................................................................................30

3.3 Synchronizing the IP Settings from the MVI69E-GSC to the Processor...............32

3.4 Synchronizing the IP Settings from the Processor to the MVI69E-GSC...............33

3.5 Reading the Date/Time from the MVI69E-GSC to the Processor .........................34

3.6 Writing the Date/Time from the Processor to the MVI69E-GSC ...........................35

4Using ProSoft Configuration Builder 36

4.1 Installing ProSoft Configuration Builder Software..................................................36

4.2 Setting Up the Project............................................................................................36

4.2.1 Adding the MVI69E-GSC module to the project....................................................37

4.3 Renaming PCB Objects.........................................................................................38

4.4 Module Configuration Parameters.........................................................................39

4.4.1 Module Parameters ...............................................................................................39

4.4.2 GSC Port x Parameters.........................................................................................40

4.4.3 MVI69E-GSC IP Address Configuration................................................................42

4.5 Downloading the Configuration File to the Module................................................43

4.6 Uploading the Configuration File from the Module ................................................45

4.7 Converting a Legacy MVI69-GSC to an MVI69E-GSC .........................................47

5Using Controller Tags 48

5.1 MVI69E-GSC Controller Tags ...............................................................................49

5.2 User-Defined Data Types (UDTs)..........................................................................50

5.2.1 MVI69E-GSC User-Defined Data Types ...............................................................50

5.3 GSC Controller Tag Overview...............................................................................51

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform Contents

Generic ASCII Serial Communication Module User Manual

ProSoft Technology, Inc. Page 5 of 87

5.3.1 GSC.DATA.............................................................................................................51

5.3.2 GSC.STATUS ........................................................................................................52

5.3.3 GSC.CONTROL.....................................................................................................52

6Transmitting ASCII Data 53

6.1 Sending ASCII Strings from the Processor to a Serial Device...............................53

6.2 Receiving ASCII Strings from a Serial Device to the Processor............................54

7Diagnostics and Troubleshooting 55

7.1 LED Status Indicators.............................................................................................55

7.2 Ethernet LED Indicators.........................................................................................56

7.3 Clearing a Fault Condition......................................................................................56

7.4 Troubleshooting......................................................................................................57

7.5 Configuring a Temporary IP Address.....................................................................58

7.6 Diagnostics Menu...................................................................................................60

7.6.1 Diagnostics Menu Navigation.................................................................................62

7.6.2 Monitoring Network Configuration Information.......................................................62

7.6.3 Monitoring Backplane Information..........................................................................63

7.6.4 Port x Module Information......................................................................................64

7.6.5 Data Analyzer.........................................................................................................65

7.7 Connecting to the Module’s Webpage ...................................................................68

8Reference 69

8.1 Product Specifications............................................................................................69

8.1.1 Hardware Specifications.........................................................................................69

8.1.2 Functional Specifications........................................................................................70

8.2 Functional Overview...............................................................................................71

8.2.1 General Concepts ..................................................................................................71

8.2.2 Backplane Data Flow .............................................................................................71

8.2.3 Special Function Blocks.........................................................................................75

8.3 Ethernet Port Connection.......................................................................................76

8.3.1 Ethernet Cable Specifications................................................................................76

8.4 Application Port Cable Connection ........................................................................77

8.4.1 RS-232 Wiring........................................................................................................77

8.4.2 RS-422 Wiring........................................................................................................80

8.4.3 RS-485 Wiring........................................................................................................80

8.4.4 DB9 to RJ45 Adaptor (Cable 14) ...........................................................................81

8.5 Status Data Definition.............................................................................................82

9Support, Service & Warranty 85

9.1 Contacting Technical Support................................................................................85

9.2 Warranty Information..............................................................................................85

Index 86

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform User Manual

Page 6 of 87 ProSoft Technology, Inc.

1 Start Here

To get the most benefit from this User Manual, you know the following skills:

Studio 5000 Logix Designer®:launch the program, configure ladder logic, and transfer

the ladder logic to the processor

Microsoft Windows: install and launch programs, execute menu commands, navigate

dialog boxes, and enter data

Hardware installation and wiring: install the module, and safely connect and

CompactLogix or MicroLogix devices to a power source and to the MVI69E-GSC

module’s application port(s)

1.1 System Requirements

The MVI69E-GSC module requires the following minimum hardware and software

components:

Rockwell Automation CompactLogix or MicroLogix 1500-LRP®processor (firmware

version 10 or higher), with compatible power supply and one free slot in the rack, for the

MVI69E-GSC module.

Important: The MVI69E-GSC module has a power supply distance rating of 4 (L43 and L45 installations on first

2 slots of 1769 bus). It consumes 500 mA at 5 VDC.

Important: For 1769-L23x processors, please make note of the following limitation:

1769-L23E-QBFC1B = 450 mA at 5 VDC (No MVI69E module can be used with this processor.)

The module requires 500 mA of available 5 VDC power

Rockwell Automation Studio 5000 Logix Designer version 16 or higher

Rockwell Automation RSLinx®communication software version 2.51 or higher

ProSoft Configuration Builder (PCB) (included)

ProSoft Discovery Service (PDS) (included in PCB)

Pentium®II 450 MHz minimum. Pentium III 733 MHz (or better) recommended

Supported operating systems:

oMicrosoft Windows 10

oMicrosoft Windows 7 Professional (32-or 64-bit)

oMicrosoft Windows XP Professional with Service Pack 1 or 2

oMicrosoft Windows Vista

oMicrosoft Windows 2000 Professional with Service Pack 1, 2, or 3

oMicrosoft Windows Server 2003

128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

100 Mbytes of free hard disk space (or more based on application requirements)

256-color VGA graphics adapter, 800 x 600 minimum resolution

Note: The Hardware and Operating System requirements in this list are the minimum recommended to install

and run software provided by ProSoft Technology®. Other third party applications may have different minimum

requirements.

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform User Manual

ProSoft Technology, Inc. Page 7 of 87

1.2 Package Contents

The following components are included with your MVI69E-GSC module, and are all required

for installation and configuration.

Important: Before beginning the installation, please verify that all of the following items are present.

Qty.

Part Name

Part Number

Part Description

MVI69E-GSC Module

MVI69E-GSC

Generic ASCII Serial Communication

Module

Adapter Cable

Cable #14

RJ45 to DB9 Male Adapter cable. For DB9

connection to module’s serial application

ports

Screw Terminal

Adapter

1454-9F

DB9 female to 9-pin screw terminal. Used

for RS422 or RS485 connections to Port 1

and 2 of the module

If any of these components are missing, please contact ProSoft Technology Support for

replacement parts.

1.3 Setting Jumpers

When the module is manufactured, the port selection jumpers are set to RS-232. To use

RS-422 or RS-485, you must set the jumpers to the correct position. The following diagram

describes the jumper settings.

Note: Jumper pin placement on the circuit board may vary.

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform User Manual

Page 8 of 87 ProSoft Technology, Inc.

The Setup Jumper acts as "write protection" for the module’s firmware. In "write protected"

mode, the Setup pins are not connected, and the module’s firmware cannot be overwritten.

The module is shipped with the Setup jumper OFF. If an update of the firmware is needed,

apply the Setup jumper to both pins.

The following illustration shows the MVI69E-GSC jumper configuration, with the Setup

Jumper OFF.

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform User Manual

ProSoft Technology, Inc. Page 9 of 87

1.4 Install the Module in the Rack

Make sure the processor and power supply are installed and configured before installing the

MVI69E-GSC module. Refer to the Rockwell Automation product documentation for

installation instructions.

Warning: Please follow all safety instructions when installing this or any other electronic devices. Failure to

follow safety procedures could result in damage to hardware or data, or even serious injury or death to

personnel. Refer to the documentation for each device to be connected to verify that suitable safety procedures

are in place before installing or servicing the device.

After you verify the jumper placements, insert the MVI69E-GSC into the rack. Use the same

technique recommended by Rockwell Automation to remove and install CompactLogix or

MicroLogix 1500-LRP modules.

Warning: This module is not hot-swappable! Always remove power from the rack before inserting or

removing this module, or damage may result to the module, the processor, or other connected devices.

1 Align the module using the upper and lower tongue-and-groove slots with the adjacent

module and slide forward in the direction of the arrow.

2 Move the module back along the tongue-and-groove slots until the bus connectors on

the module and the adjacent module line up with each other.

MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform User Manual

Page 10 of 87 ProSoft Technology, Inc.

3 Push the module’s bus lever back slightly to clear the positioning tab and move it firmly

to the left until it clicks. Ensure that it is locked firmly in place.

4 Close all DIN-rail latches.
