ProSoft Technology ILX34-MBS485 Manuel utilisateur

ILX34-MBS

User Manual

Modbus®Serial Module for

CompactLogix™ L1 and Point I/O

Adapters

January 6, 2022

USER MANUAL

ProSoft Technology, Inc. Page 2 of 29

Your Feedback Please

We always want you to feel that you made the right decision to use our products. If you have suggestions,

comments, compliments or complaints about our products, documentation, or support, please write or call

us.

How to Contact Us

ProSoft Technology, Inc.

+1 (661) 716-5100

+1 (661) 716-5101 (Fax)

www.prosoft-technology.com

[email protected]

ILX34-MBS User Manual

January 6, 2022

For professional users in the European Union

If you wish to discard electrical and electronic equipment (EEE), please contact your dealer

or supplier for further information.

Prop 65 Warning –Cancer and Reproductive Harm –www.P65Warnings.ca.gov

Agency Approvals & Certifications

Please visit our website: www.prosoft-technology.com

ILX34-MBS User Manual

ProSoft Technology, Inc. Page 3 of 29

Contents

Your Feedback Please................................................................................................................2

How to Contact Us.......................................................................................................................2

1Start Here 4

1.1 ILX34-MBS Overview ........................................................................................4

1.2 Package Contents .............................................................................................4

1.3 System Requirements .......................................................................................4

2Installing the Adapter 5

2.1 Installing the Mounting Base/Wiring Base Assembly ........................................5

2.2 Installing an I/O Module.....................................................................................6

2.3 Installing the Removable Terminal Block ..........................................................7

2.4 Removing a Mounting Base...............................................................................8

2.5 Connecting Power .............................................................................................9

2.5.1 CompactLogix L16/L18 Processor Power Connectivity ....................................9

2.5.2 Module Terminations .......................................................................................10

3Configuration 11

3.1 1734-AENT and 1734-AENTR.........................................................................11

3.2 1734-ACNR......................................................................................................11

3.3 1769-L16ER-BB1B, L18ER-BB1B, and L18ERM-BB1B.................................11

3.4 Sample Configuration Procedure.....................................................................12

3.4.1 Create Module I/O Configuration.....................................................................14

3.4.2 Importing the Add-On Instruction (AOI)...........................................................17

3.4.3 Configuring the ILX34-MBS Modbus Serial Port.............................................21

3.5 Downloading the Sample Program to the Processor.......................................23

3.6 Master Command Structure.............................................................................24

3.7 Data Handling..................................................................................................25

3.8 Module Status..................................................................................................26

4General Features & Specifications 27

4.1 General Specifications.....................................................................................27

4.2 Hardware Specifications..................................................................................28

4.3 Agency Approvals............................................................................................28

5Support, Service & Warranty 29

5.1 Contacting Technical Support..........................................................................29

5.2 Warranty Information .......................................................................................29

ILX34-MBS User Manual

Start Here

ProSoft Technology, Inc. Page 4 of 29

1 Start Here

This user manual will help you set up and configure the ILX34-MBS module. You should

be somewhat familiar with the following:

Rockwell Automation® Studio 5000 Logix Designer v21 (for CompactLogix L1

processors) or Rockwell Automation® RSLogix™ 5000 version 16 or greater (for

1734 Point I/O adapters).

Hardware Installation and Wiring

1.1 ILX34-MBS Overview

The ILX34-MBS is the ideal solution for the many distributed I/O applications where

Modbus connectivity can be integrated into an Allen Bradley System. The ILX34-

MBSxxx is configured using Rockwell Automation Studio 5000 (CompactLogix L1) and

RSLogix 5000 (Point I/O Controllers). The modules work in both the 1734 Point I/O

adapters and the CompactLogix L1 processors.

1.2 Package Contents

The following components are included with your ILX34-MBS adapter, and are required

for installation and configuration.

Qty.

Part Name

Part Number

Part Description

ILX34-MBS Adapter

ILX34-MBS

POINT I/O Adapter

1.3 System Requirements

The ILX34-MBS requires the following minimum hardware and software components:

Rockwell Automation®processor, with compatible power supply

oCompactLogix™ L1 Processors or 1734- Point I/O adapters,

Rockwell Automation RSLogix 5000/Studio 5000 programming software

Rockwell Automation RSLinx communication software version 2.54 or higher

Pentium®II 450 MHz minimum. Pentium III 733 MHz (or better) recommended

Supported operating systems:

oMicrosoft Windows 10

oMicrosoft Windows 7 Professional (32-or 64-bit)

oMicrosoft Windows XP Professional with Service Pack 1 or 2

oMicrosoft Windows Vista

oMicrosoft Windows 2000 Professional with Service Pack 1, 2, or 3

oMicrosoft Windows Server 2003

128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

Note: The Hardware and Operating System requirements in this list are the minimum recommended to

install and run software provided by ProSoft Technology. Other third party applications may have different

minimum requirements. Refer to the documentation for any third party applications for system requirements.

ILX34-MBS User Manual

Installing the Adapter

ProSoft Technology, Inc. Page 5 of 29

2 Installing the Adapter

2.1 Installing the Mounting Base/Wiring Base Assembly

The wiring base assembly consists of a mounting base and a removable terminal block.

You can install the assembly or just the mounting base. Perform the following to install

the base/wiring base assembly:

1 Position the mounting base/wiring base assembly vertically above the installed

units (adapter, power supply, or existing module).

2 Slide the mounting base down allowing the interlocking side pieces to engage the

adjacent module or adapter.

3 Press firmly to seat the mounting base on the DIN Rail. The mounting base

snaps into place.

4 To remove the mounting base from the DIN rail, remove any installed module

(and any module immediately to the right) and use a small blade screwdriver to

rotate the DIN rail locking screw to a vertical position. This releases the locking

mechanism. Lift straight up to remove the mounting base.

5 Repeat this procedure for the next mounting base assembly.

ILX34-MBS User Manual

Installing the Adapter

ProSoft Technology, Inc. Page 6 of 29

2.2 Installing an I/O Module

Make sure that the mounting base is correctly keyed before installing the module into the

mounting base. In addition, make sure the mounting base locking screw is positioned

horizontal referenced to the base.

Warning: When you insert or remove the module while backplane power is on, an electrical arc can occur.

This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is non-hazardous before proceeding.

1 Using a blade screwdriver, rotate the key switch on the mounting base clockwise

until the number required for the type of module being installed aligns with the

notch in the base.

2 Make certain the DIN-rail locking screw is in the horizontal position. You cannot

insert the module if the locking mechanism is unlocked.

3 Insert the module straight down into the mounting base and press to secure. The

module locks into place.

ILX34-MBS User Manual

Installing the Adapter

ProSoft Technology, Inc. Page 7 of 29

2.3 Installing the Removable Terminal Block

A removable terminal block is supplied with the mounting base assembly. To remove,

pull up on the RTB handle. This allows the base to be removed and replaced as

necessary without removing any of the wiring. The following instructions show how to

reinsert the removable terminal block:

1 Insert the RTB end opposite the handle into the base unit. This end has a curved

section that engages with the mounting base.

Warning: When you connect or disconnect the Removable Terminal Block (RTB) with the field

side power applied, an electrical arc can occur. This could cause an explosion in hazardous

location installations.

Be sure that power is removed or the area is non-hazardous before proceeding.

2 Rotate the terminal block into the mounting base until it locks itself in place.

3 If an I/O module is installed, snap the RTB handle into place on the module.

ILX34-MBS User Manual

Installing the Adapter

ProSoft Technology, Inc. Page 8 of 29

2.4 Removing a Mounting Base

In order to remove a mounting base, you must remove any installed module, and

remove the Removable Terminal Block (if wired).

1 Unlatch the RTB handle on the I/O module.

2 Pull on the RTB handle to remove the Removable Terminal Block.

Warning: When you connect or disconnect the Removable Terminal Block (RTB) with the field

side power applied, an electrical arc can occur. This could cause an explosion in hazardous

location installations.

Be sure that power is removed or the area is non-hazardous before proceeding.

3 Press on the module lock on the top of the module and pull up on the I/O module

to remove from the base.

Warning: When you insert or remove the module while backplane power is on, an electrical arc

can occur. This could cause an explosion in a hazardous location.

Be sure that power is removed or the area is non-hazardous before proceeding.

4 Remove the module to the right of the base. The interlocking portion of the base

sits under the adjacent module.

5 Use a small screwdriver to rotate the orange DIN-rail locking screw on the

mounting base to a vertical position. This releases the locking mechanism.

6 Lift the mounting base and remove.

ILX34-MBS User Manual

Installing the Adapter

ProSoft Technology, Inc. Page 9 of 29

2.5 Connecting Power

Refer to the appropriate L1Y or Remote Adapter installation guides for adapter

configuration instructions.

2.5.1 CompactLogix L16/L18 Processor Power Connectivity

When using an L16/L18 CompactLogix controller, examine the side labeling of the

controller to determine what Series it is. It will be listed next to the model number. The

device power specification is 10 to 28.8 VDC.

There are two Series of the L16/L18 controllers:

Series A requires two separate NEC Class 2 24V power supplies for the

controller power and field power.

Series B uses a single 24V power supply and requires that the field power be

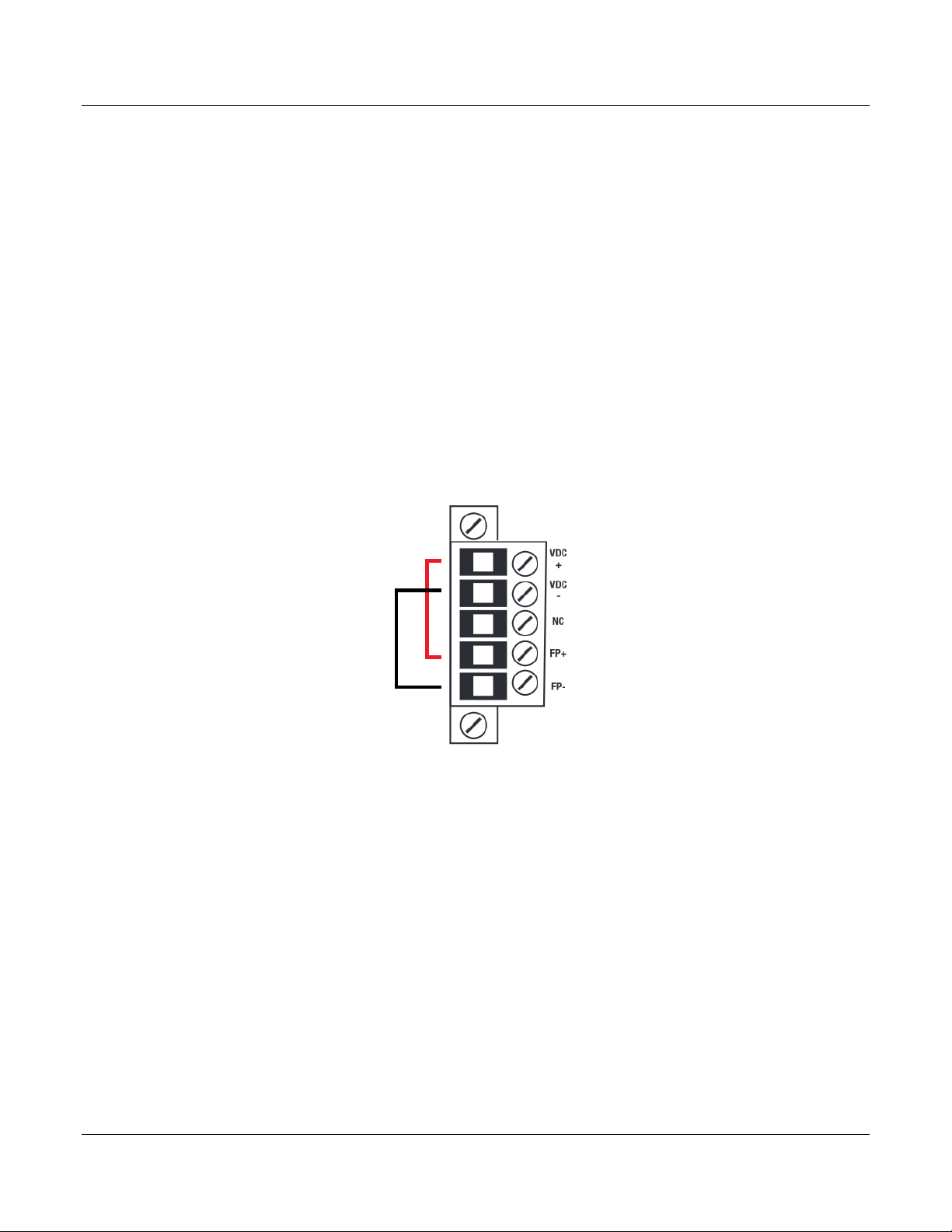

jumped from the controller power. The VDC+ should be jumped to the FP+, and

the VDC- should be jumped to the FP- as shown below. It uses isolated circuits

and does not require a NEC Class 2 rated unit.

VDC+ to FP+

VDC- to FP-

ILX34-MBS User Manual

Installing the Adapter

ProSoft Technology, Inc. Page 10 of 29

2.5.2 Module Terminations

The voltage for the serial signal lines are:

Serial

Voltage

RS-232

-15 to +15 VDC

RS-422/485

-7 to +12 VDC

Caution: Do not connect 120/240V AC power to this supply.

Warning: If you connect or disconnect wiring while the field-side power is on, an electrical arc can occur.

This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ProSoft Technology Unité de contrôle

ProSoft Technology

ProSoft Technology MVI56E-SIE Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI69E-LDM-MQTT Manuel utilisateur

ProSoft Technology

ProSoft Technology inRAx MVI46-GEC Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI56E-LDM Manuel utilisateur

ProSoft Technology

ProSoft Technology ILX69-PBS Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI56-PNPM Manuel utilisateur

ProSoft Technology

ProSoft Technology inRAx MVI46-PDPMV1 Manuel utilisateur

ProSoft Technology

ProSoft Technology ProTalk PTQ-104C Manuel utilisateur

ProSoft Technology

ProSoft Technology inRAX MVI69-S3964R Manuel utilisateur

ProSoft Technology

ProSoft Technology CompactLogix MVI69E-MBS Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI69-GSC CompactLogix Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI69-DFCM Manuel utilisateur

ProSoft Technology

ProSoft Technology inRax MVI56-DH485R Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI69E-MBTCP Manuel utilisateur

ProSoft Technology

ProSoft Technology InRAX MVI46-PDPS Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI56E-LDM-MQTT Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X-MOD Manuel utilisateur

ProSoft Technology

ProSoft Technology inRAx MVI56-CAS Manuel utilisateur

ProSoft Technology

ProSoft Technology inRax MVI56-DNPSNET Manuel utilisateur

ProSoft Technology

ProSoft Technology PLX51-HART-4O Manuel utilisateur

ProSoft Technology

ProSoft Technology PLX51-HART-4I Manuel utilisateur

ProSoft Technology

ProSoft Technology MVI71-GEC Manuel utilisateur

ProSoft Technology

ProSoft Technology inRAx MVI56-S3964R Manuel utilisateur

ProSoft Technology

ProSoft Technology inRax MVI69-101M Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
