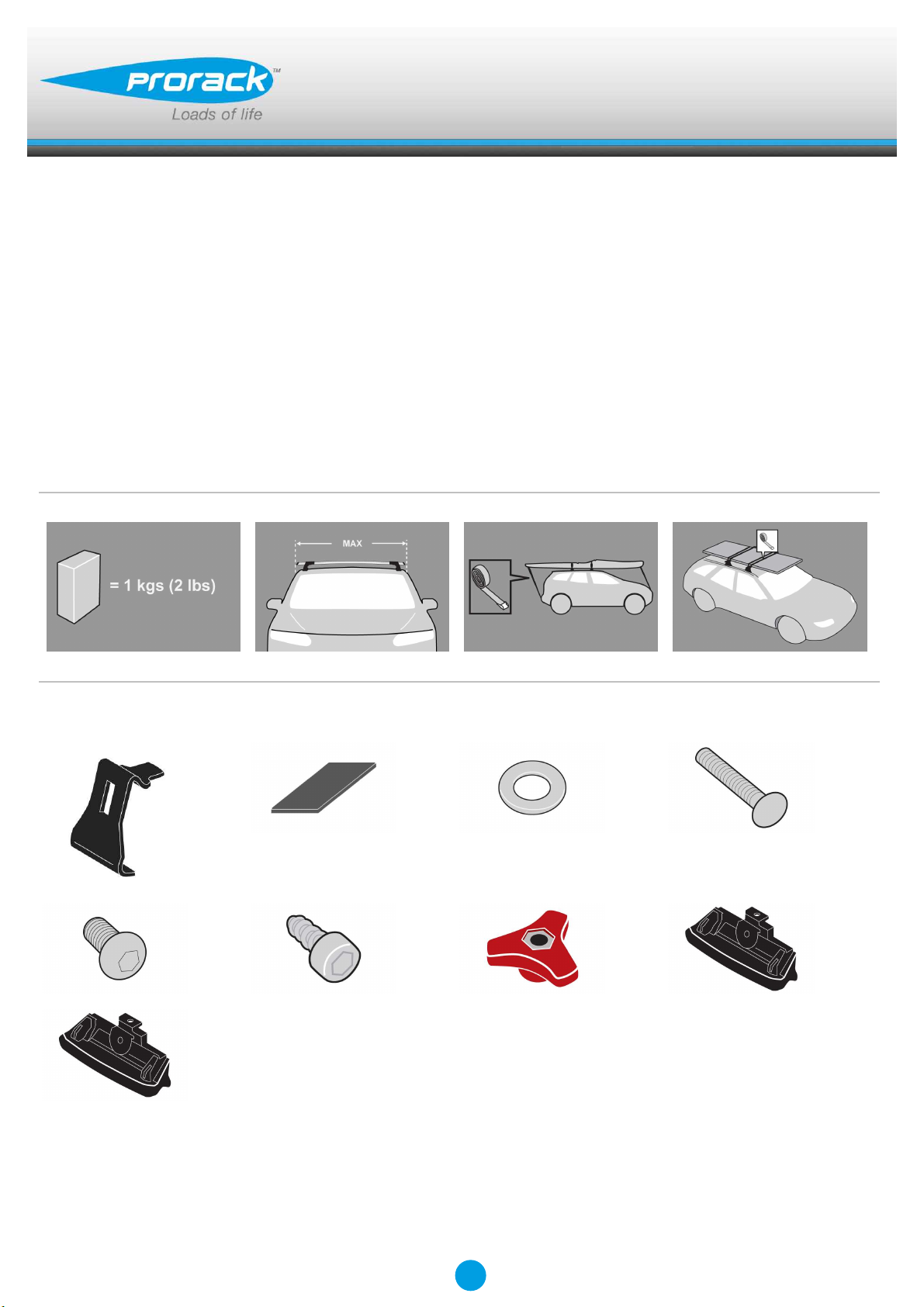

Prorack K774 Manuel utilisateur

K774

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 4 x 8 x 4 x 2

x 2

Revision No: 1A 1

Fitting Kit K774

MAX kgs (lbs)

W/P WHD

Citroen

C4 Grand Picasso, 5dr MPV 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

C4 Grand Picasso, 5dr MPV 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

C4 Grand Picasso, 5dr MPV 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K774

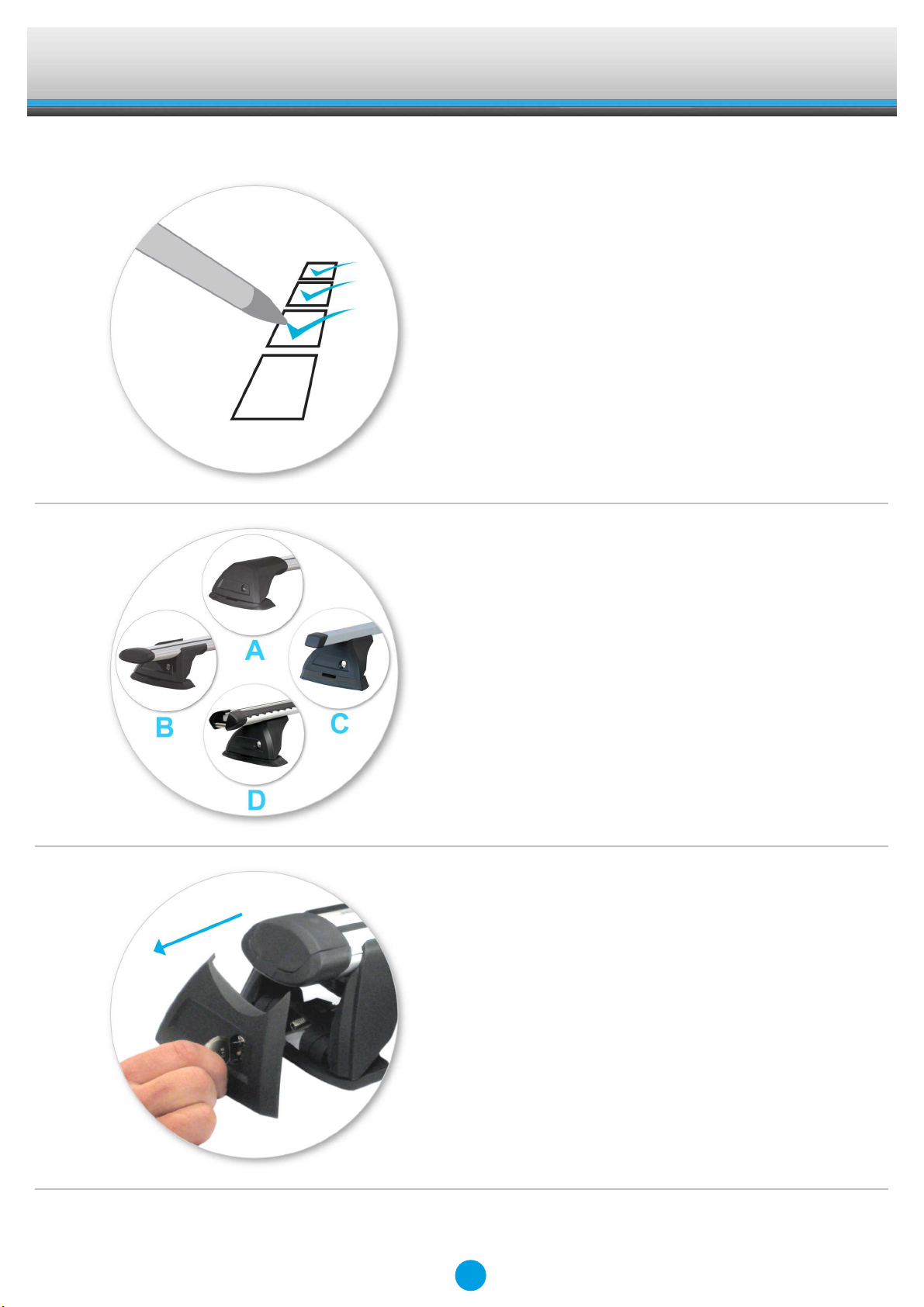

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type B crossbar

fitted. They also apply to type A, C and D.

●Use keys to remove covers.

Fitting Kit EN

K774

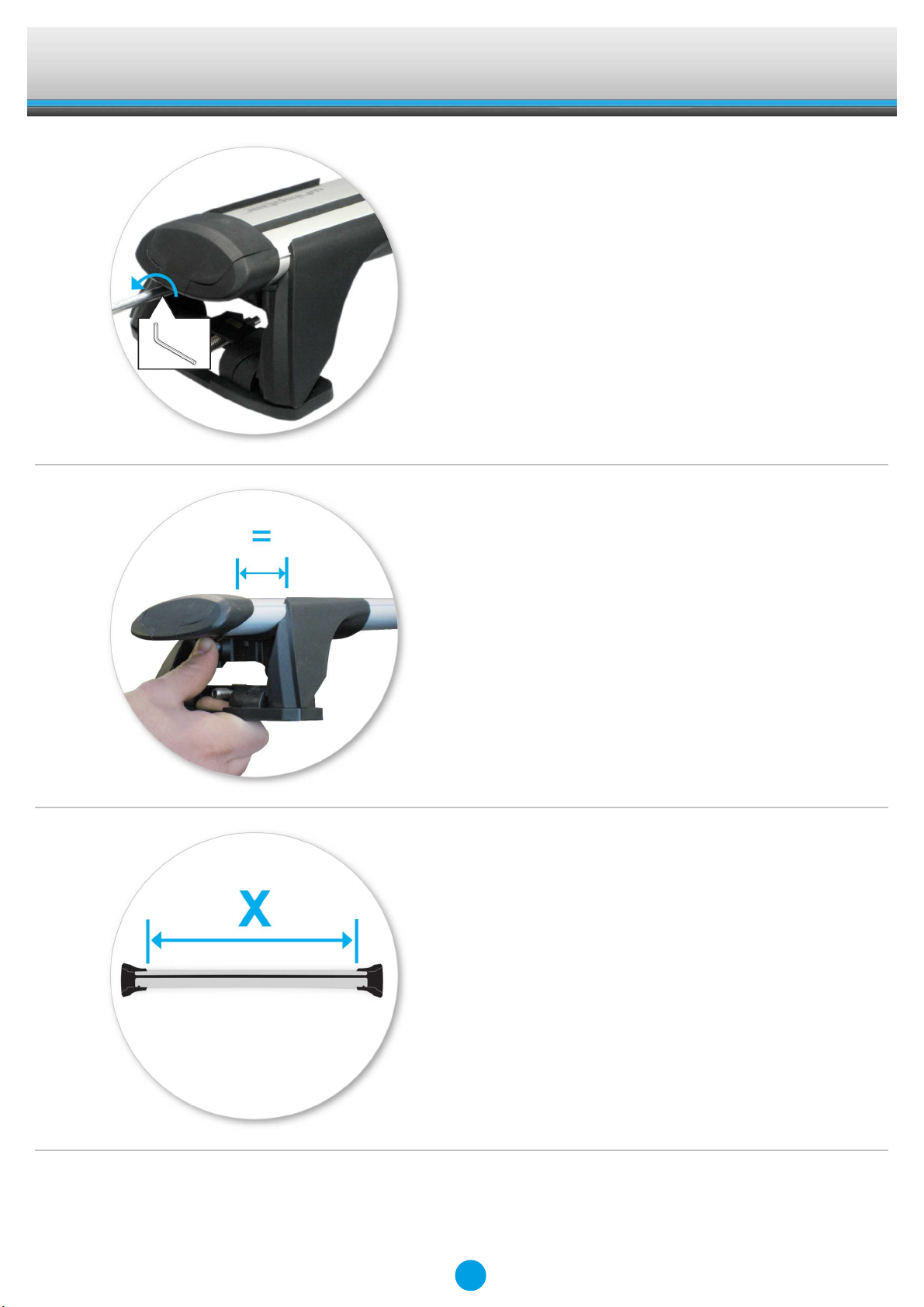

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K774

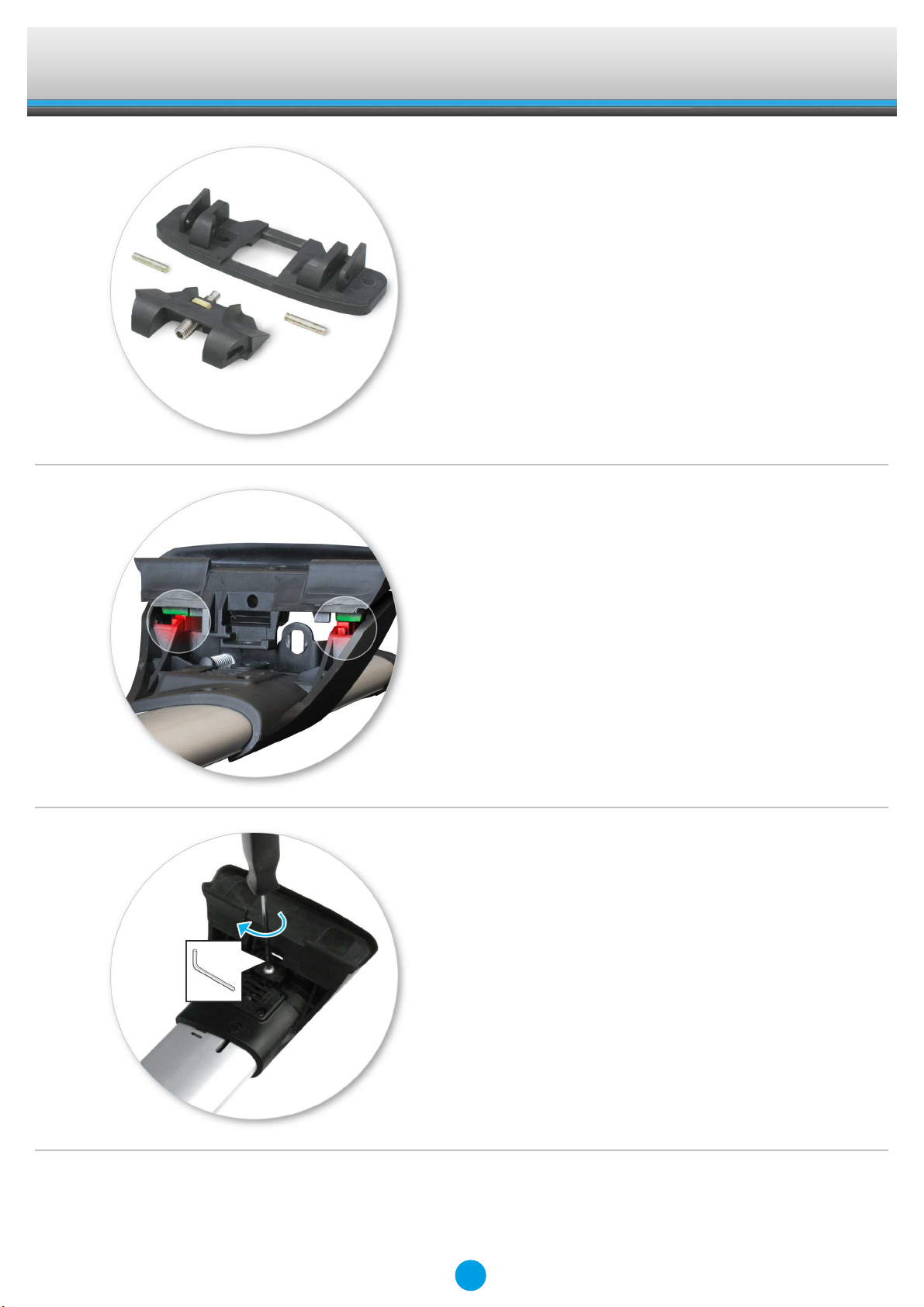

●Firmly tighten (3 Nm) adjusting screw.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K774

●Detach foot from leg. Store loose parts in a

safe place.

●Select four feet assemblies and match the

left and right assemblies to the left and

right roof rack legs.

●Assemble foot from kit into leg by pressing

it down.

●Ensure foot interlocks with leg.

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

Fitting Kit EN

K774

●Apply protective strip as shown.

Trim if required.

●Use two M5 x 12 mm self tapping screws to

secure the assembly onto the leg.

●Do not over tighten.

●Repeat for all legs.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

Fitting Kit EN

K774

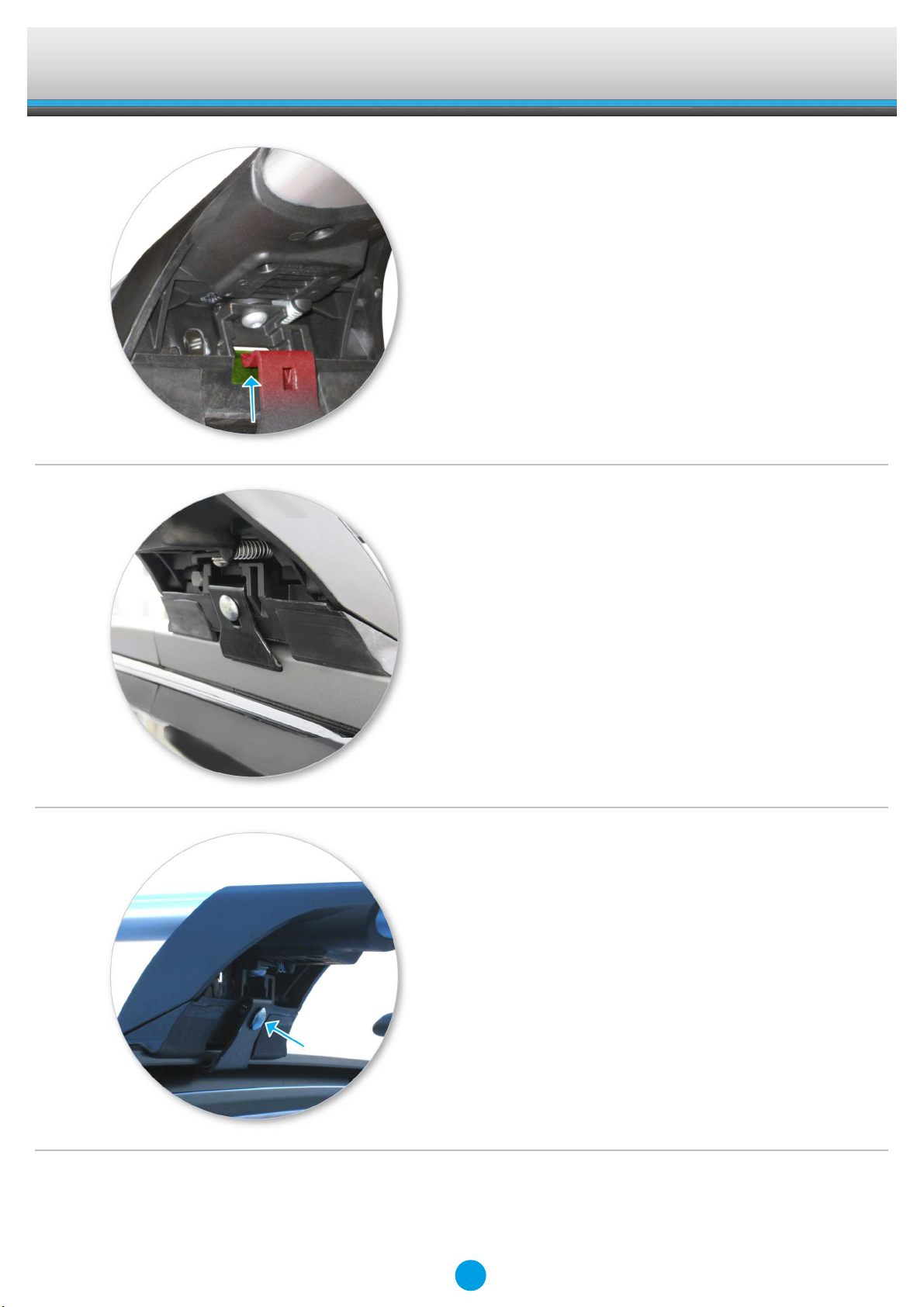

●Slide clamp through opening in leg.

●Ensure the clamp engages correctly in slot

inside of roof rail.

●Thread the coach bolt through the clamp

and the leg.

Fitting Kit EN

K774

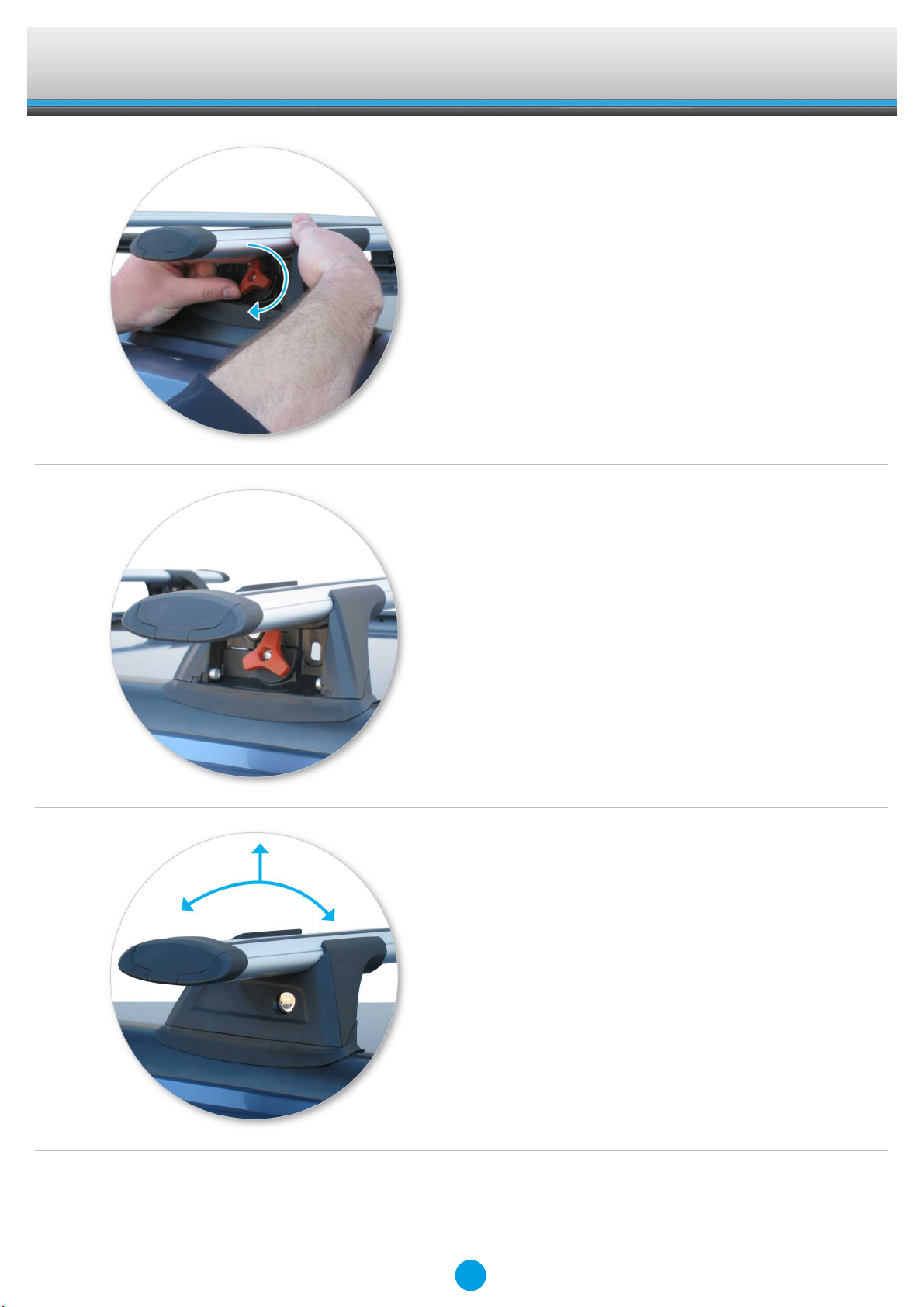

●Tighten the plastic knob.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K774

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
