Prorack K618 Manuel utilisateur
K618

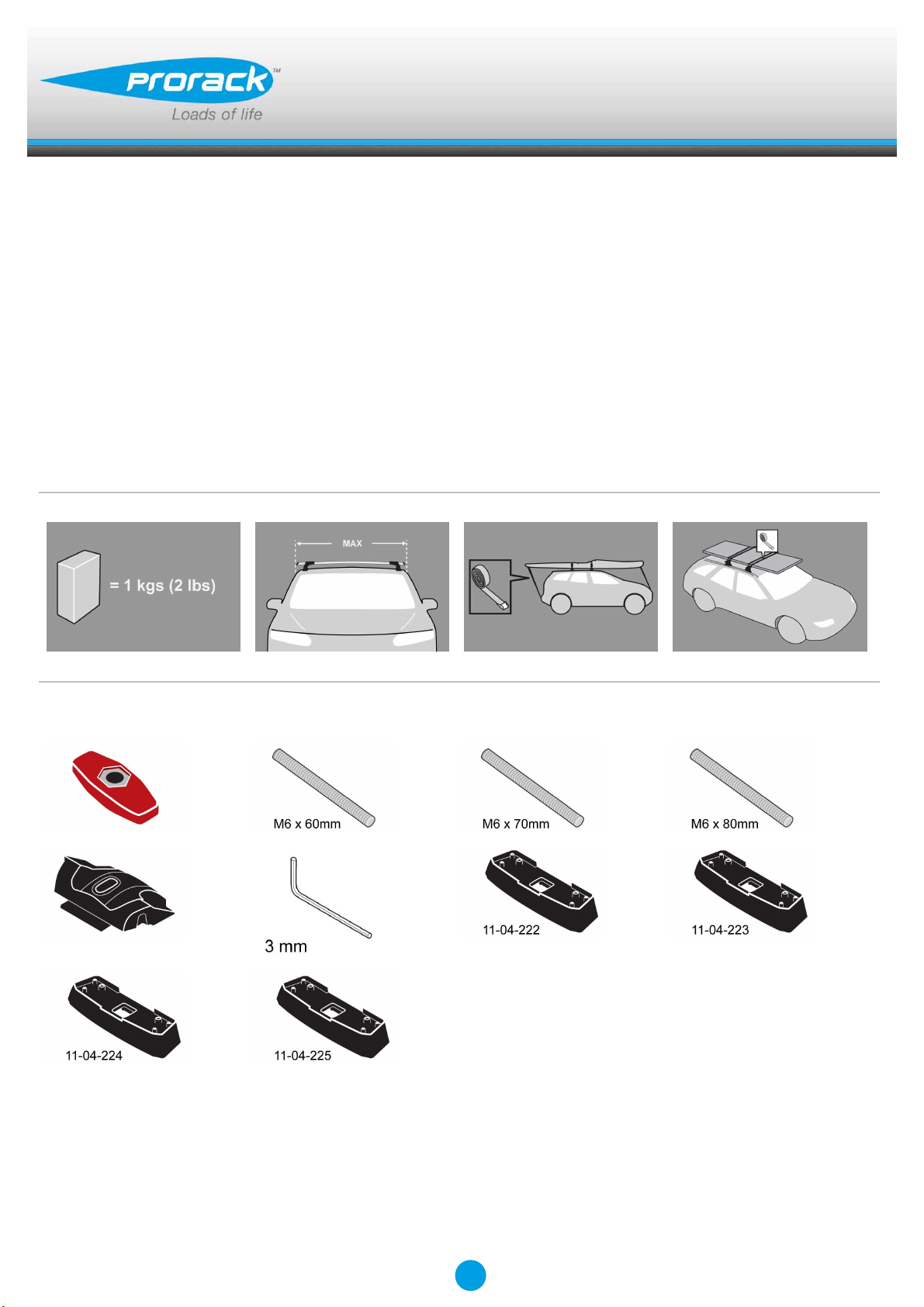

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
x 4 x 1 x 1 x 1
x 1 x 1
Revision No: 3C 1
Fitting Kit K618
MAX kgs (lbs)
W/P WHD
Subaru
Levorg, 5dr Estate 15-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Fiat
Panda, 5dr Hatch 03-11 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Panda, 5dr Hatch 03-11 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Panda, 5dr Hatch 03-11 AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Panda, 5dr Hatch 03-11 EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Panda, 5dr Hatch 03-11 CN 50 kgs (110 lbs) 50 kgs (110 lbs)
Panda, 5dr Hatch 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Panda, 5dr Hatch 12-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Panda, 5dr Hatch 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Panda, 5dr Hatch 13-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Panda, 5dr Hatch 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Stilo, 5dr Hatch 01-07 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Stilo, 5dr Hatch 01-07 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Stilo, 5dr Hatch 01-07 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K618
X
A B C 1 2 3
Levorg, 5dr Estate 15-+ (EU) -275mm 450mm - 905mm 850mm -
-10 -13/16ths" 17 11/16ths" - 35 5/8ths" 33 7/16ths" -
Panda, 5dr Hatch 03-11 (ZA) -300mm 700mm - 885mm 865mm -
-11 -13/16ths" 27 9/16ths" - 34 13/16ths" 34 1/16ths" -
Panda, 5dr Hatch 03-11 (NZ) -300mm 700mm - 885mm 865mm -
-11 -13/16ths" 27 9/16ths" - 34 13/16ths" 34 1/16ths" -
Panda, 5dr Hatch 03-11 (AU) -300mm 700mm - 885mm 865mm -
-11 -13/16ths" 27 9/16ths" - 34 13/16ths" 34 1/16ths" -
Panda, 5dr Hatch 03-11 (EU) -300mm 700mm - 885mm 865mm -
-11 -13/16ths" 27 9/16ths" - 34 13/16ths" 34 1/16ths" -
Panda, 5dr Hatch 03-11 (CN) -300mm 700mm - 885mm 865mm -
-11 -13/16ths" 27 9/16ths" - 34 13/16ths" 34 1/16ths" -
Panda, 5dr Hatch 12-+ (EU) -125mm 555mm - 808mm 763mm -
-4 -15/16ths" 21 7/8ths" - 31 13/16ths" 30 1/16ths" -
Panda, 5dr Hatch 12-+ (CN) -125mm 555mm - 808mm 763mm -
-4 -15/16ths" 21 7/8ths" - 31 13/16ths" 30 1/16ths" -
Panda, 5dr Hatch 13-+ (AU) -125mm 555mm - 808mm 763mm -
-4 -15/16ths" 21 7/8ths" - 31 13/16ths" 30 1/16ths" -
Panda, 5dr Hatch 13-+ (ZA) -125mm 555mm - 808mm 763mm -
-4 -15/16ths" 21 7/8ths" - 31 13/16ths" 30 1/16ths" -
Panda, 5dr Hatch 14-+ (NZ) -125mm 555mm - 808mm 763mm -
-4 -15/16ths" 21 7/8ths" - 31 13/16ths" 30 1/16ths" -
Stilo, 5dr Hatch 01-07 (EU) -350mm 480mm - 935mm 865mm -
-13 -3/4ths" 18 7/8ths" - 36 13/16ths" 34 1/16ths" -
Stilo, 5dr Hatch 01-07 (ZA) -350mm 480mm - 935mm 865mm -
-13 -3/4ths" 18 7/8ths" - 36 13/16ths" 34 1/16ths" -
Stilo, 5dr Hatch 01-07 (CN) -350mm 480mm - 935mm 865mm -
-13 -3/4ths" 18 7/8ths" - 36 13/16ths" 34 1/16ths" -
3
Fitting Kit EN
K618
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K618
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Please check the front of this manual for
information relating specifically to your
vehicle.
5
Fitting Kit EN
K618
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K618

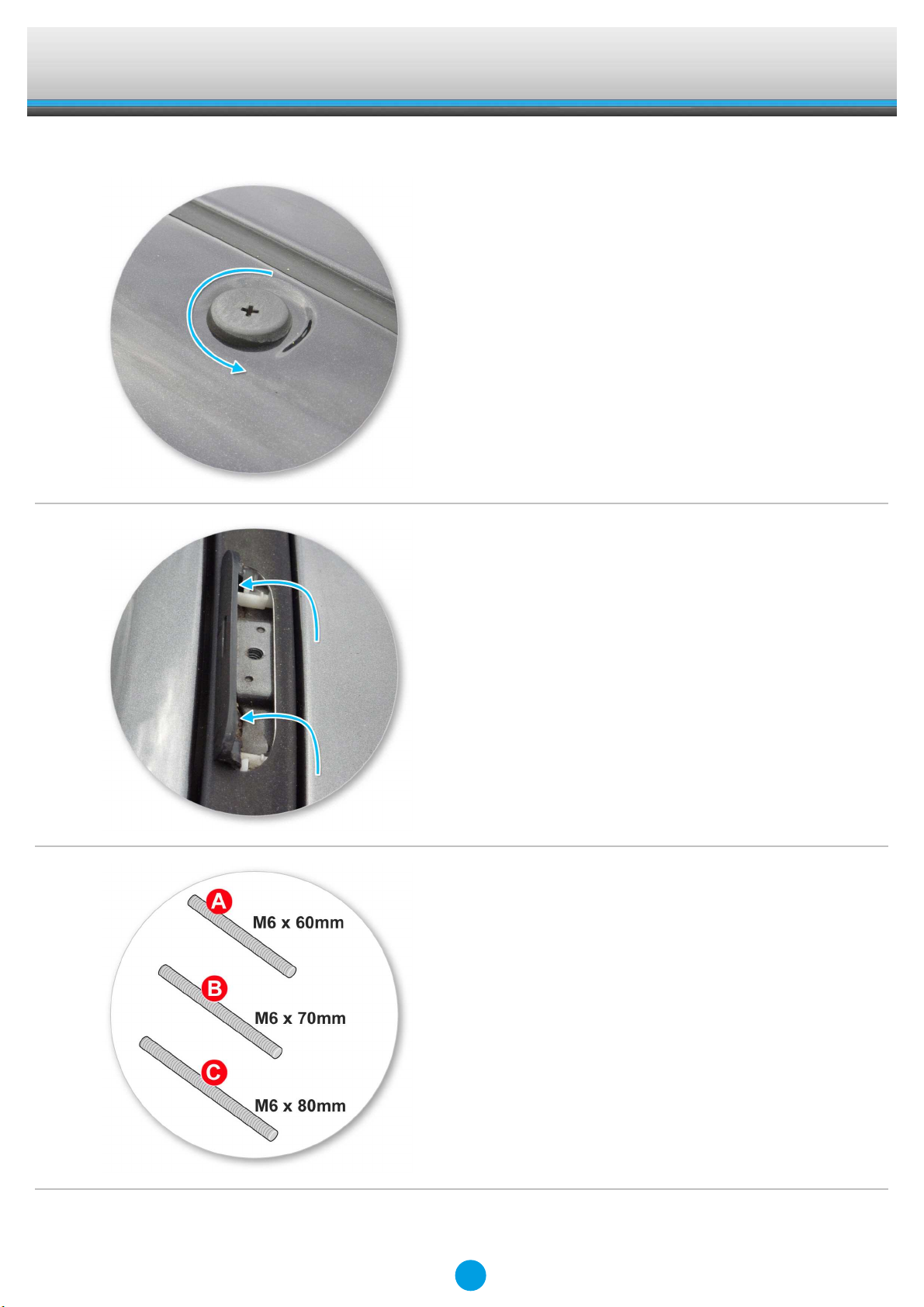

Fitment
●NOTE: Fiat Panda only
●Open or remove fixed-point covers.
●Open or remove fixed-point covers.
●Sort M6 grubscrews into lengths.
●A = Fiat Stilo, Subaru Levorg REAR
B = Fiat Panda, Subaru Levorg FRONT
C = Not applicable unless advised
7
Fitting Kit EN
K618

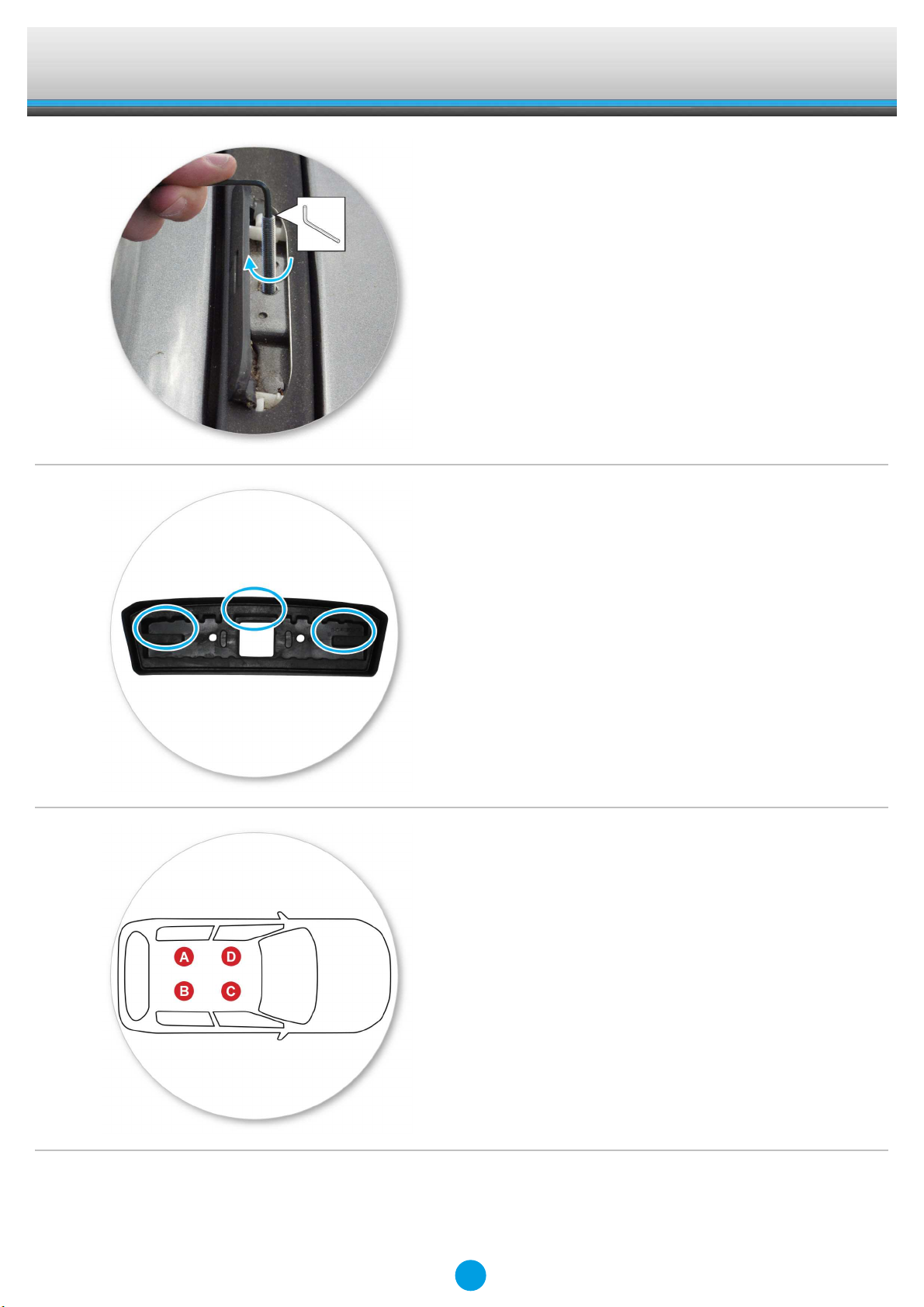

●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-222
B = 11-04-223
C = 11-04-224
D = 11-04-225
8
Fitting Kit EN
K618

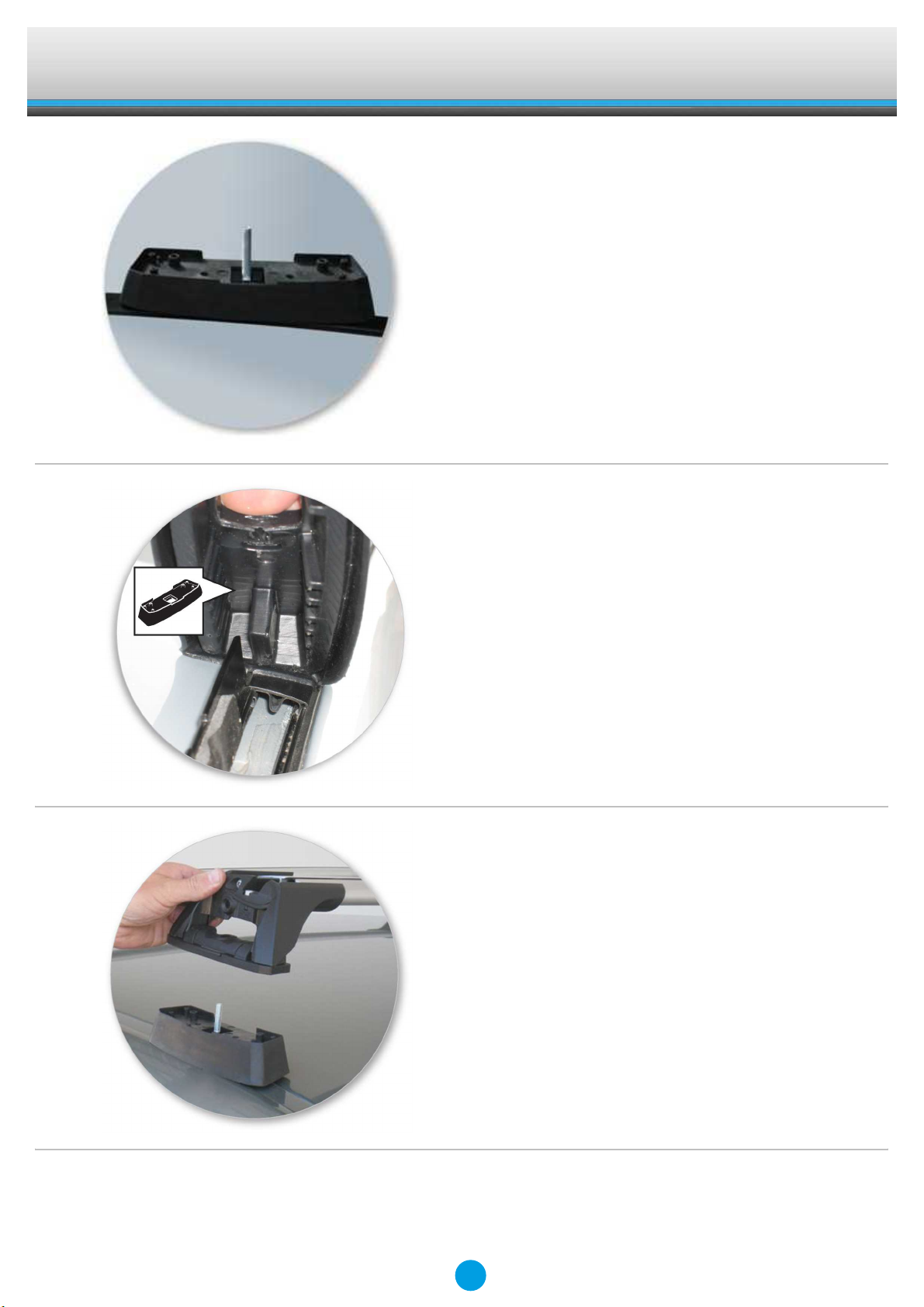

●NOTE: Fiat Panda only
●Place pad over grubscrew.
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
9
Fitting Kit EN
K618

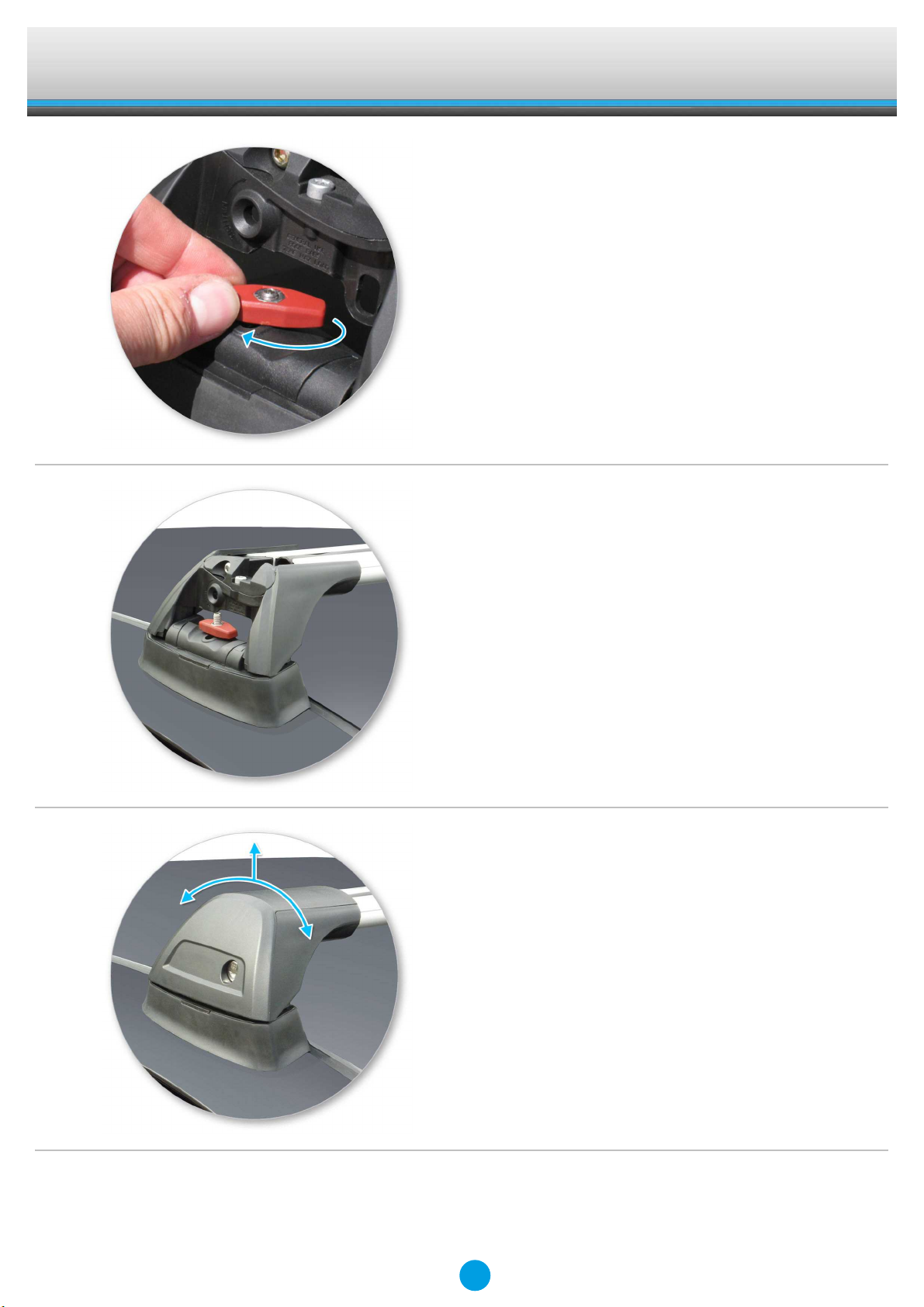

●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all four positions.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
