Prorack K473 Manuel utilisateur
K473

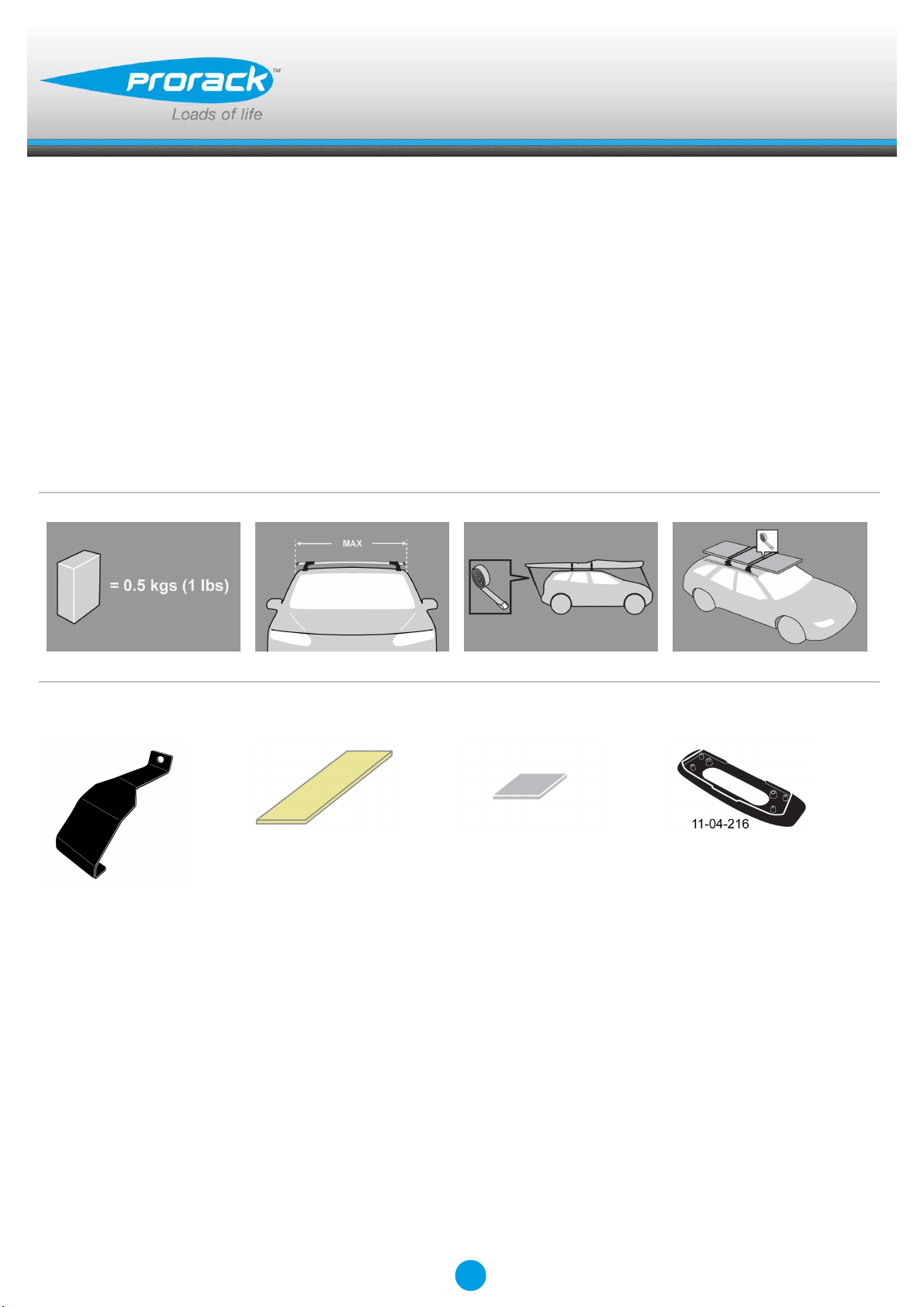

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
Revision No: 6F 1
Fitting Kit K473
MAX kgs (lbs)
W/P WHD
GMC
Sierra Crew Cab, 4dr Truck 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Sierra Crew Cab, 4dr Truck 99-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Sierra Extended Cab, 4dr Truck 01-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Sierra Extended Cab, 4dr Truck 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Sierra, 2dr Truck 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Sierra, 2dr Truck 99-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Chevrolet
Silverado Crew Cab, 4dr Truck 01-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Silverado Crew Cab, 4dr Truck 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Silverado Crew Cab, 4dr Ute 07-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Silverado Extended Cab, 4dr Truck 01-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Silverado Extended Cab, 4dr Truck 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Silverado, 2dr Truck 01-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Suburban, 5dr SUV 00-06 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Tahoe, 5dr SUV 07-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K473
X
A B C 1 2 3
Sierra Crew Cab, 4dr Truck 07-+ (US) -100mm 750mm - 1026mm 1004mm -
-3 -15/16ths" 29 1/2ths" - 40 3/8ths" 39 1/2ths" -
Sierra Crew Cab, 4dr Truck 99-07 (US) -200mm 500mm - 1005mm 1005mm -
-7 -7/8ths" 19 11/16ths" - 39 9/16ths" 39 9/16ths" -
Sierra Extended Cab, 4dr Truck 01-07 (US) -200mm 500mm - 1002mm 1002mm -
-7 -7/8ths" 19 11/16ths" - 39 7/16ths" 39 7/16ths" -
Sierra Extended Cab, 4dr Truck 07-+ (US) -200mm 450mm - 1018mm 1012mm -
-7 -7/8ths" 17 3/4ths" - 40 1/16ths" 39 13/16ths" -
Sierra, 2dr Truck 07-+ (US) -425mm -65mm - 1030mm 1010mm -
-16 -3/4ths" -2 -9/16ths" - 40 9/16ths" 39 3/4ths" -
Sierra, 2dr Truck 99-07 (US) -515mm -65mm - 1035mm 1010mm -
-20 -1/4ths" -2 -9/16ths" - 40 3/4ths" 39 3/4ths" -
Silverado Crew Cab, 4dr Truck 01-07 (US) -100mm 650mm - 1009mm 1004mm -
-3 -15/16ths" 25 9/16ths" - 39 3/4ths" 39 1/2ths" -
Silverado Crew Cab, 4dr Truck 07-+ (US) -100mm 750mm - 1026mm 1004mm -
-3 -15/16ths" 29 1/2ths" - 40 3/8ths" 39 1/2ths" -
Silverado Crew Cab, 4dr Ute 07-+ (EU) -200mm 450mm - 1018mm 1012mm -
-7 -7/8ths" 17 3/4ths" - 40 1/16ths" 39 13/16ths" -
Silverado Extended Cab, 4dr Truck 01-07 (US) -200mm 500mm - 1002mm 1002mm -
-7 -7/8ths" 19 11/16ths" - 39 7/16ths" 39 7/16ths" -
Silverado Extended Cab, 4dr Truck 07-+ (US) -200mm 450mm - 1018mm 1012mm -
-7 -7/8ths" 17 3/4ths" - 40 1/16ths" 39 13/16ths" -
Silverado, 2dr Truck 01-07 (US) -65mm -515mm - 1035mm 1010mm -
-2 -9/16ths" -20 -1/4ths" - 40 3/4ths" 39 3/4ths" -
Suburban, 5dr SUV 00-06 (US) -200mm 500mm - 995mm 995mm -
-7 -7/8ths" 19 11/16ths" - 39 3/16ths" 39 3/16ths" -
Tahoe, 5dr SUV 07-+ (US) -200mm 500mm - 1010mm 1015mm -
-7 -7/8ths" 19 11/16ths" - 39 3/4ths" 39 15/16ths" -
3
Fitting Kit EN
K473
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K473
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K473

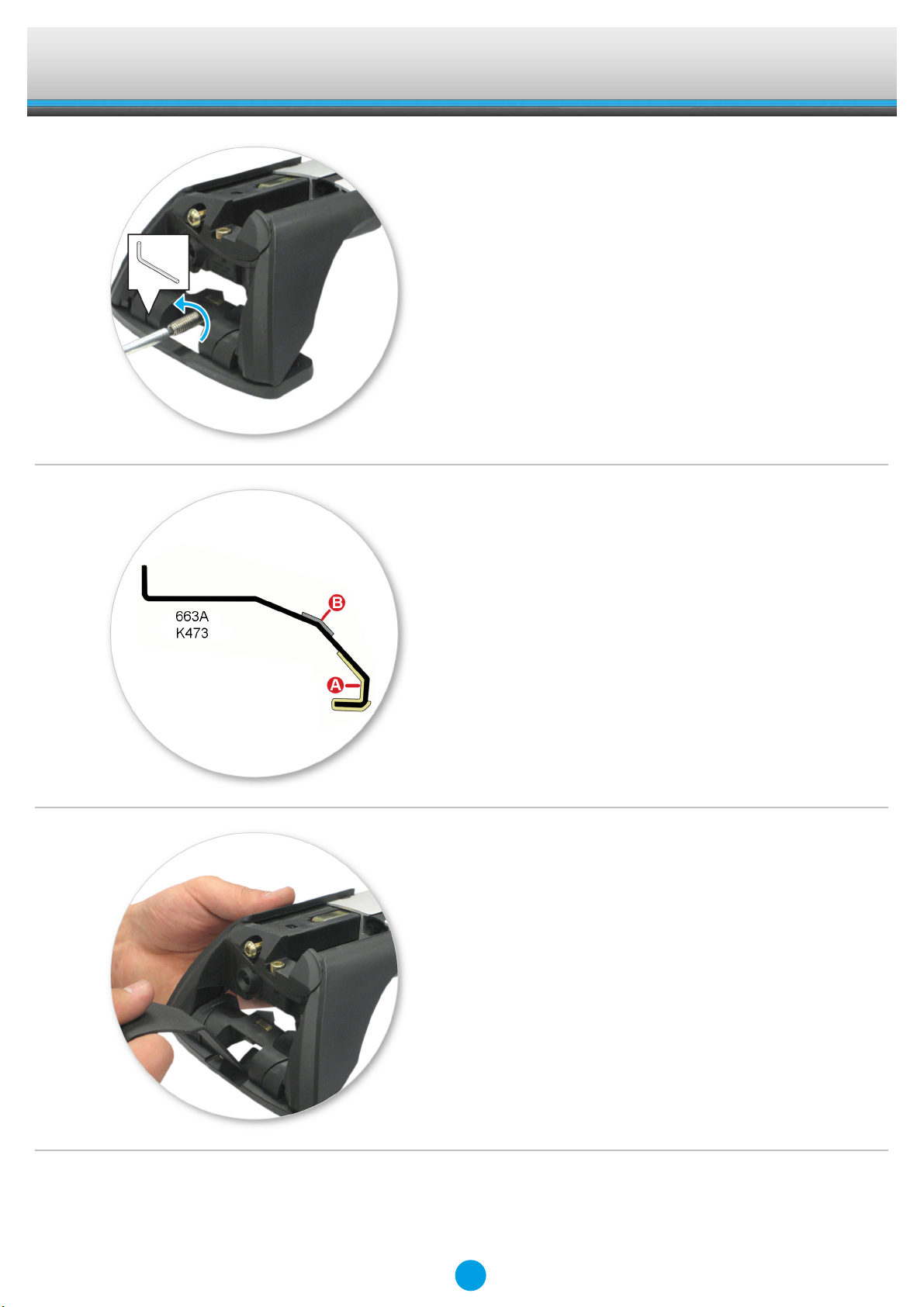

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
6
Fitting Kit EN
K473
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pads (supplied with fitting kit) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
7
Fitting Kit EN
K473
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps over rubber door frame mouldings.
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
8
Fitting Kit EN
K473
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9
Fitting Kit EN
K473
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
