Prorack K730 Manuel utilisateur

K730

Fitting Kit

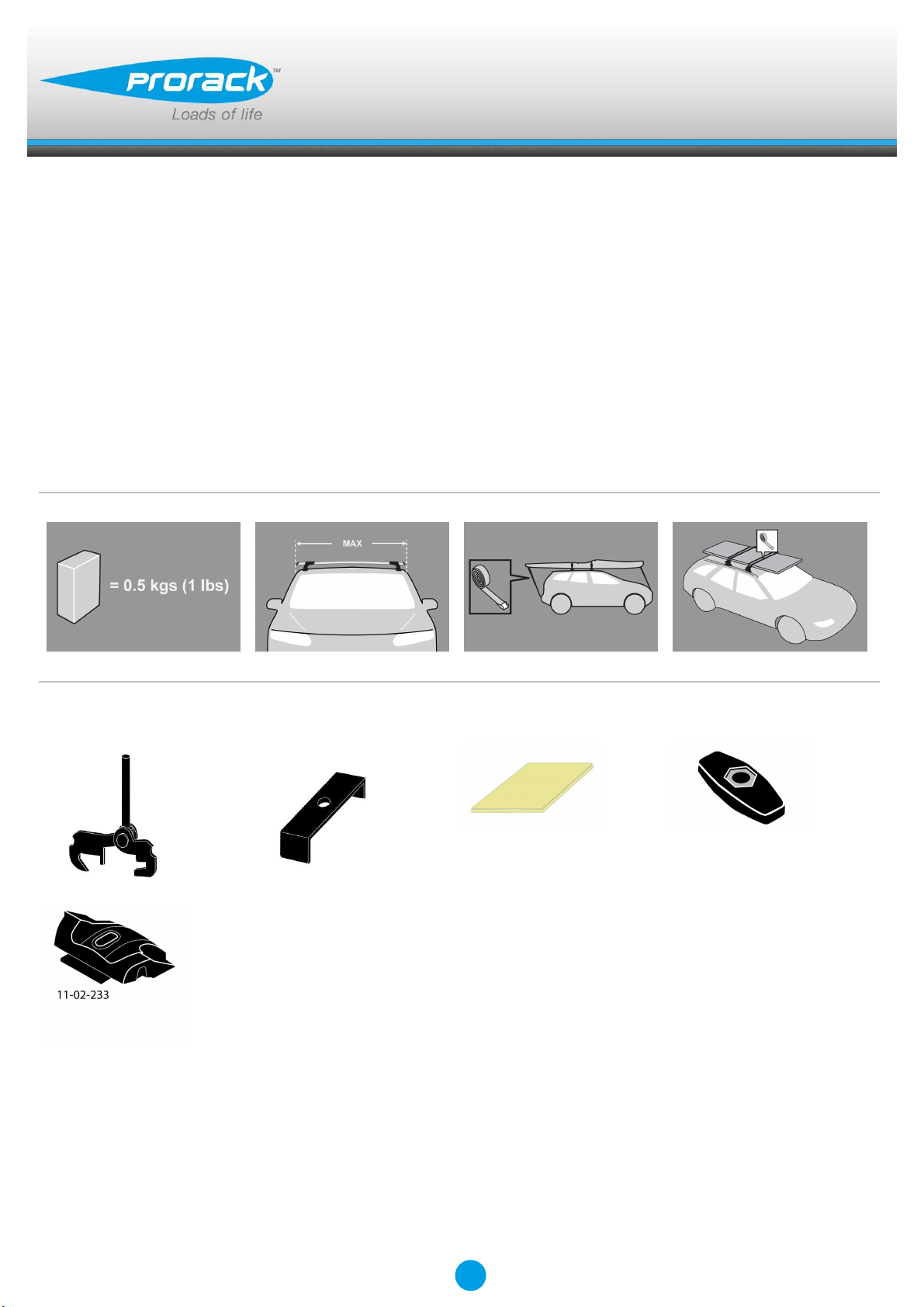

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 8 x 4

x 4

Revision No: 1A 1

Fitting Kit K730

MAX kgs (lbs)

W/P WHD

Chevrolet

Orlando, 5dr MPV 10-+ EU 68 kgs (149 lbs) 68 kgs (149 lbs)

Orlando, 5dr MPV 11-+ ZA 68 kgs (149 lbs) 68 kgs (149 lbs)

Fitting Kit K730

A B C 1 2 3

Orlando, 5dr MPV 10-+ (EU) 250mm 960mm - 932mm 910mm -

9 13/16ths" 37 13/16ths" - 36 11/16ths" 35 13/16ths" -

Orlando, 5dr MPV 11-+ (ZA) 250mm 960mm - 932mm 910mm -

9 13/16ths" 37 13/16ths" - 36 11/16ths" 35 13/16ths" -

Fitting Kit EN

K730

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K730

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K730

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K730

Fitment

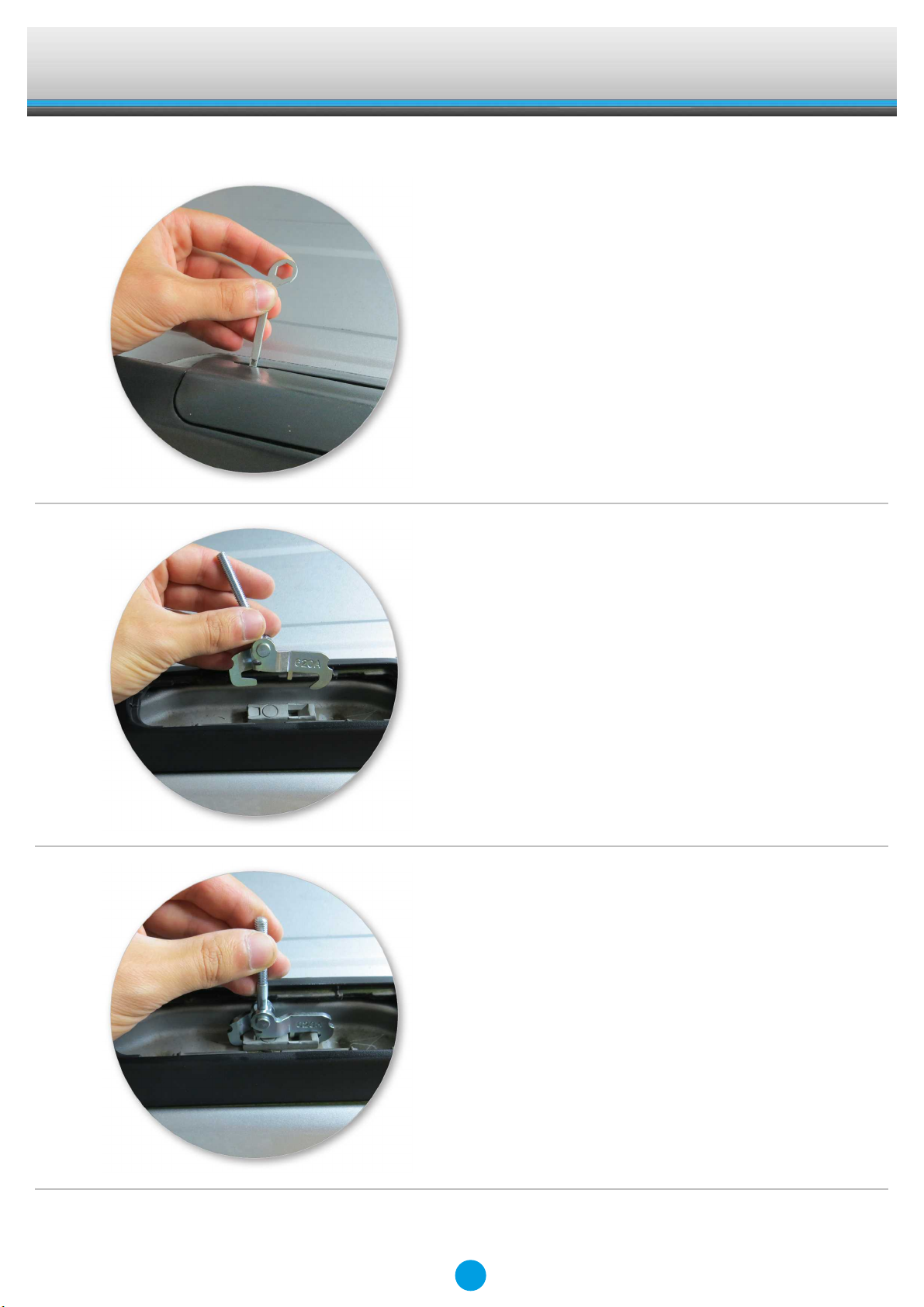

●Open or remove fixed-point covers.

●Hook clamps into the fixed points on the

vehicle.

●Hook small claw into rear of the clamping

block

●Hook large claw into front of the clamping

block

●Ensure the clamp pin is inserted into the

fixed point and the clamp sits flat to the

body side.

Fitting Kit EN

K730

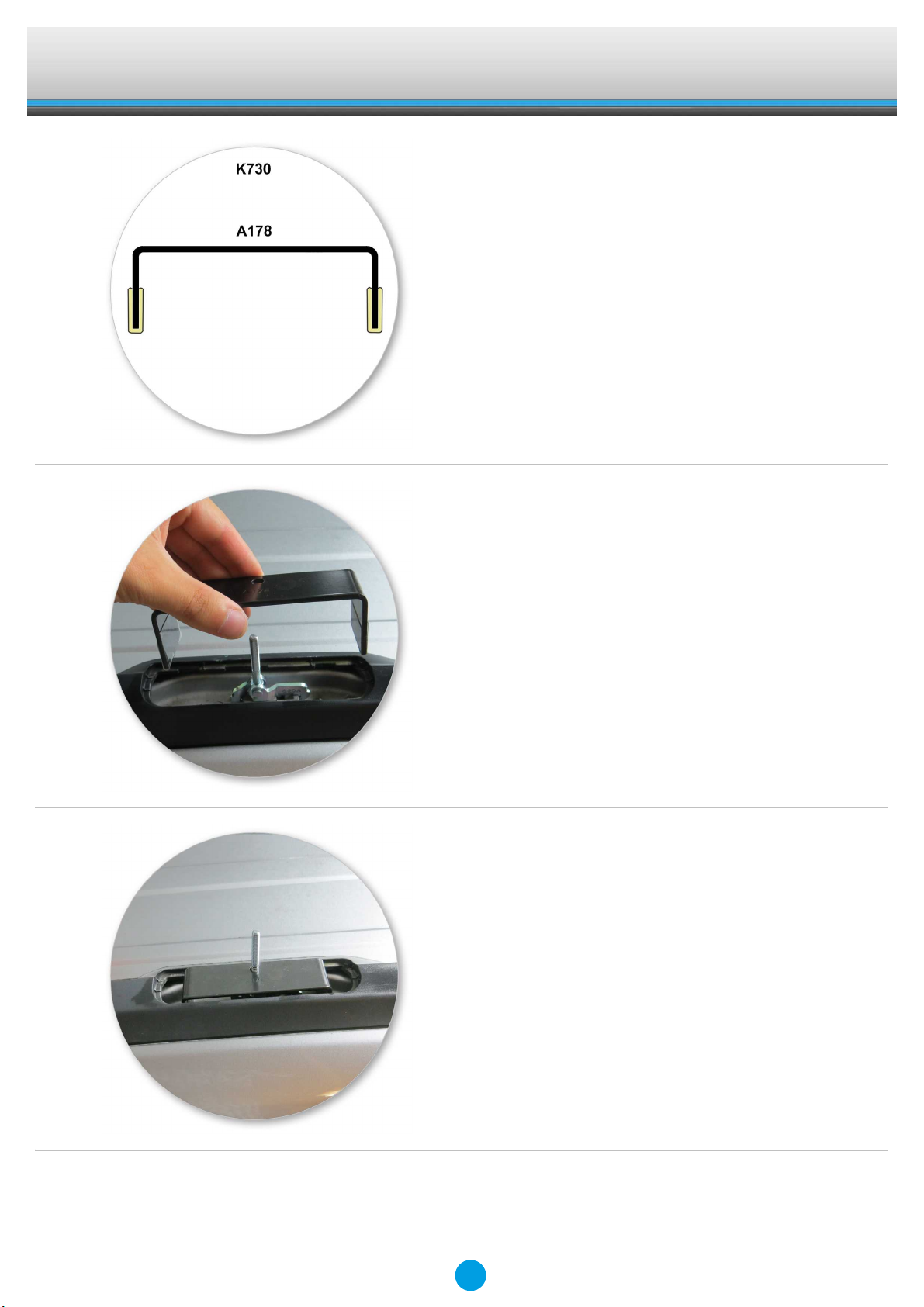

●Apply protective strip as shown.

●Place ditch mould insert over the clamp.

●Ensure internal clamp sits upright.

Fitting Kit EN

K730

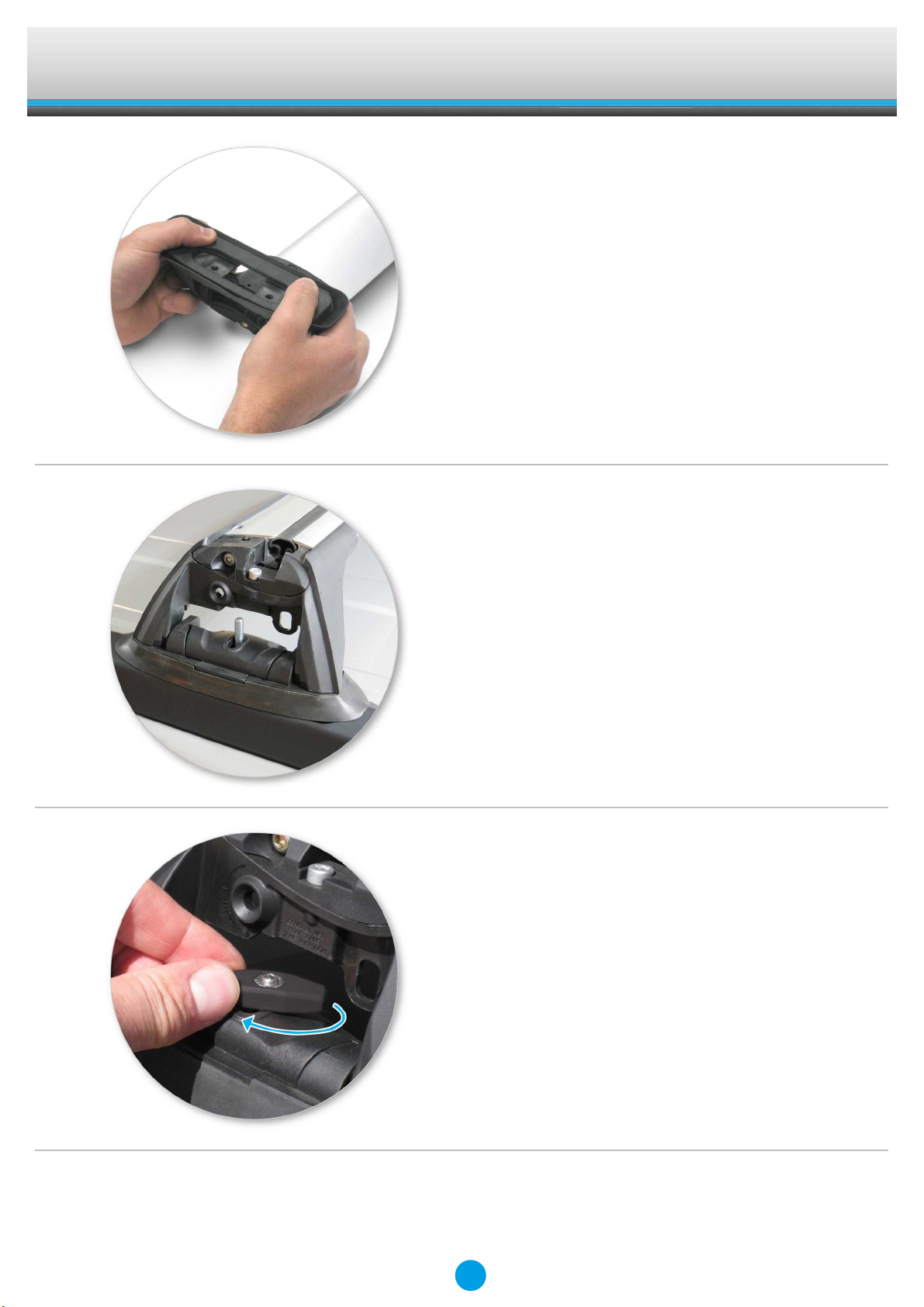

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

●Place crossbar foot over clamp bolt.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

Fitting Kit EN

K730

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
