Prorack K469 Manuel utilisateur
K469
Fitting Kit

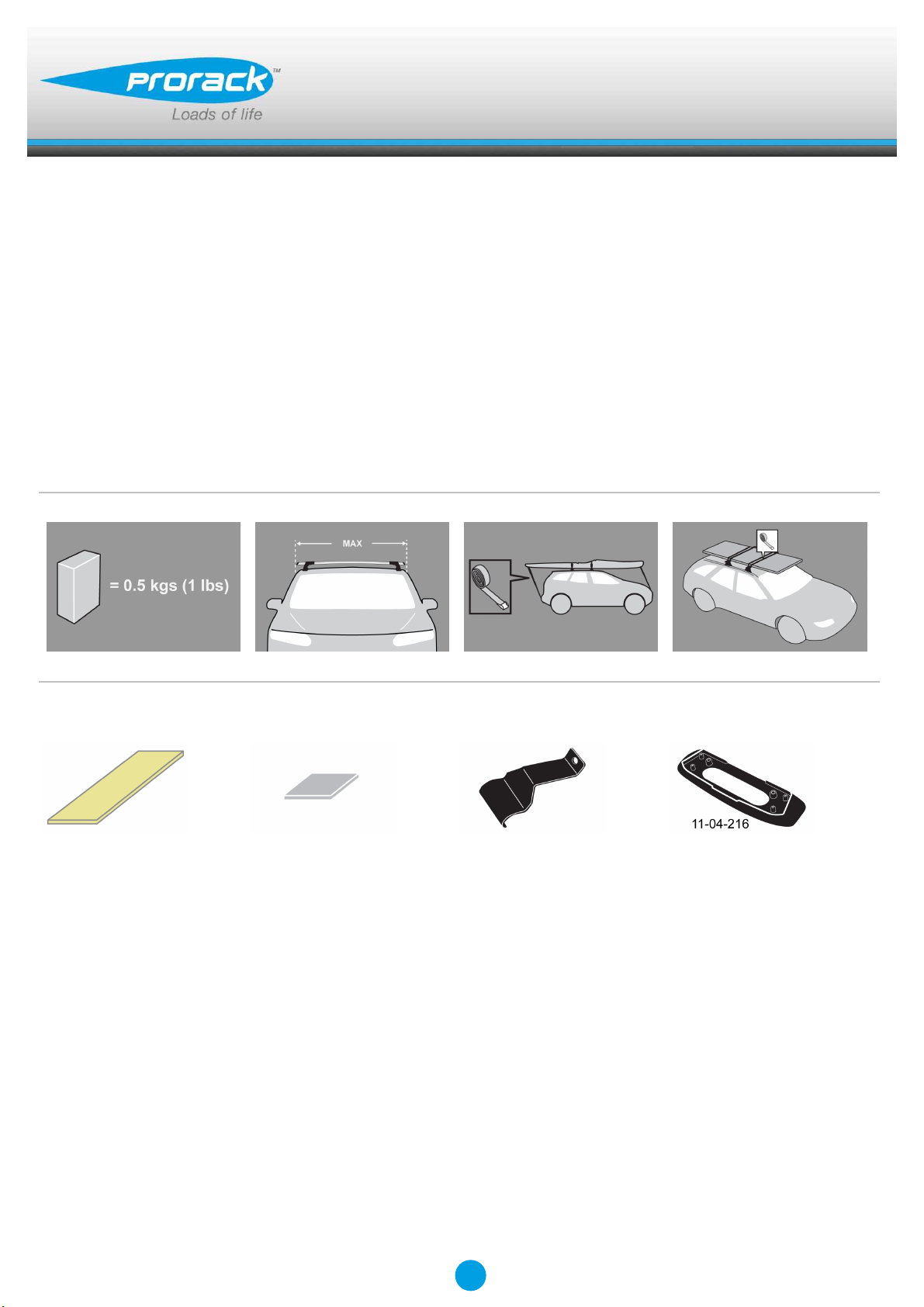

EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
Revision No: 4D 1
Fitting Kit K469
MAX kgs (lbs)
W/P WHD
Toyota
4 Runner, 5dr SUV 96-02 US 75 kgs (165 lbs) 75 kgs (165 lbs)
4 Runner, 5dr SUV 96-03 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
4 Runner, 5dr SUV 96-03 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Tacoma Crew Cab, 4dr Truck 95-04 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Ford
F250 Crew Cab, 4dr Truck 09-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
F250 Crew Cab, 4dr Truck 99-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
F250 Double Cab, 4dr Ute 05-09 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
F250 Extended Cab, 4dr Truck 99-07 US 75 kgs (165 lbs) 75 kgs (165 lbs)
F250 Supercab, 4dr Truck 09-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
F350 Crew Cab, 4dr Truck 04-08 US 75 kgs (165 lbs) 75 kgs (165 lbs)
F350 Crew Cab, 4dr Truck 09-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
F450 Crew Cab, 4dr Truck 09-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Nissan
Quest, 5dr MPV 04-09 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Quest, 5dr MPV 05-06 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K469
X
A B C 1 2 3
4 Runner, 5dr SUV 96-02 (US) -300mm 400mm - 830mm 830mm -
-11 -13/16ths" 15 3/4ths" - 32 11/16ths" 32 11/16ths" -
4 Runner, 5dr SUV 96-03 (EU) -300mm 400mm - 830mm 830mm -
-11 -13/16ths" 15 3/4ths" - 32 11/16ths" 32 11/16ths" -
4 Runner, 5dr SUV 96-03 (CN) -300mm 400mm - 830mm 830mm -
-11 -13/16ths" 15 3/4ths" - 32 11/16ths" 32 11/16ths" -
F250 Crew Cab, 4dr Truck 09-+ (US) -200mm 600mm - 1149mm 1149mm -
-7 -7/8ths" 23 5/8ths" - 45 1/4ths" 45 1/4ths" -
F250 Crew Cab, 4dr Truck 99-07 (US) -200mm 600mm - 1160mm 1155mm -
-7 -7/8ths" 23 5/8ths" - 45 11/16ths" 45 1/2ths" -
F250 Double Cab, 4dr Ute 05-09 (ZA) -200mm 600mm - 1149mm 1149mm -
-7 -7/8ths" 23 5/8ths" - 45 1/4ths" 45 1/4ths" -
F250 Extended Cab, 4dr Truck 99-07 (US) -350mm 350mm - 1160mm 1160mm -
-13 -3/4ths" 13 3/4ths" - 45 11/16ths" 45 11/16ths" -
F250 Supercab, 4dr Truck 09-+ (US) -350mm 350mm - 1149mm 1149mm -
-13 -3/4ths" 13 3/4ths" - 45 1/4ths" 45 1/4ths" -
F350 Crew Cab, 4dr Truck 04-08 (US) -200mm 600mm - 1149mm 1149mm -
-7 -7/8ths" 23 5/8ths" - 45 1/4ths" 45 1/4ths" -
F350 Crew Cab, 4dr Truck 09-+ (US) -200mm 600mm - 1149mm 1149mm -
-7 -7/8ths" 23 5/8ths" - 45 1/4ths" 45 1/4ths" -
F450 Crew Cab, 4dr Truck 09-+ (US) -200mm 600mm - 1149mm 1149mm -
-7 -7/8ths" 23 5/8ths" - 45 1/4ths" 45 1/4ths" -
Quest, 5dr MPV 04-09 (US) 200mm 900mm - 960mm 960mm -
7 7/8ths" 35 7/16ths" - 37 13/16ths" 37 13/16ths" -
Quest, 5dr MPV 05-06 (CN) 200mm 900mm - 960mm 960mm -
7 7/8ths" 35 7/16ths" - 37 13/16ths" 37 13/16ths" -
Tacoma Crew Cab, 4dr Truck 95-04 (US) -200mm 500mm - 845mm 845mm -
-7 -7/8ths" 19 11/16ths" - 33 1/4ths" 33 1/4ths" -
3
Fitting Kit EN
K469
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K469
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K469

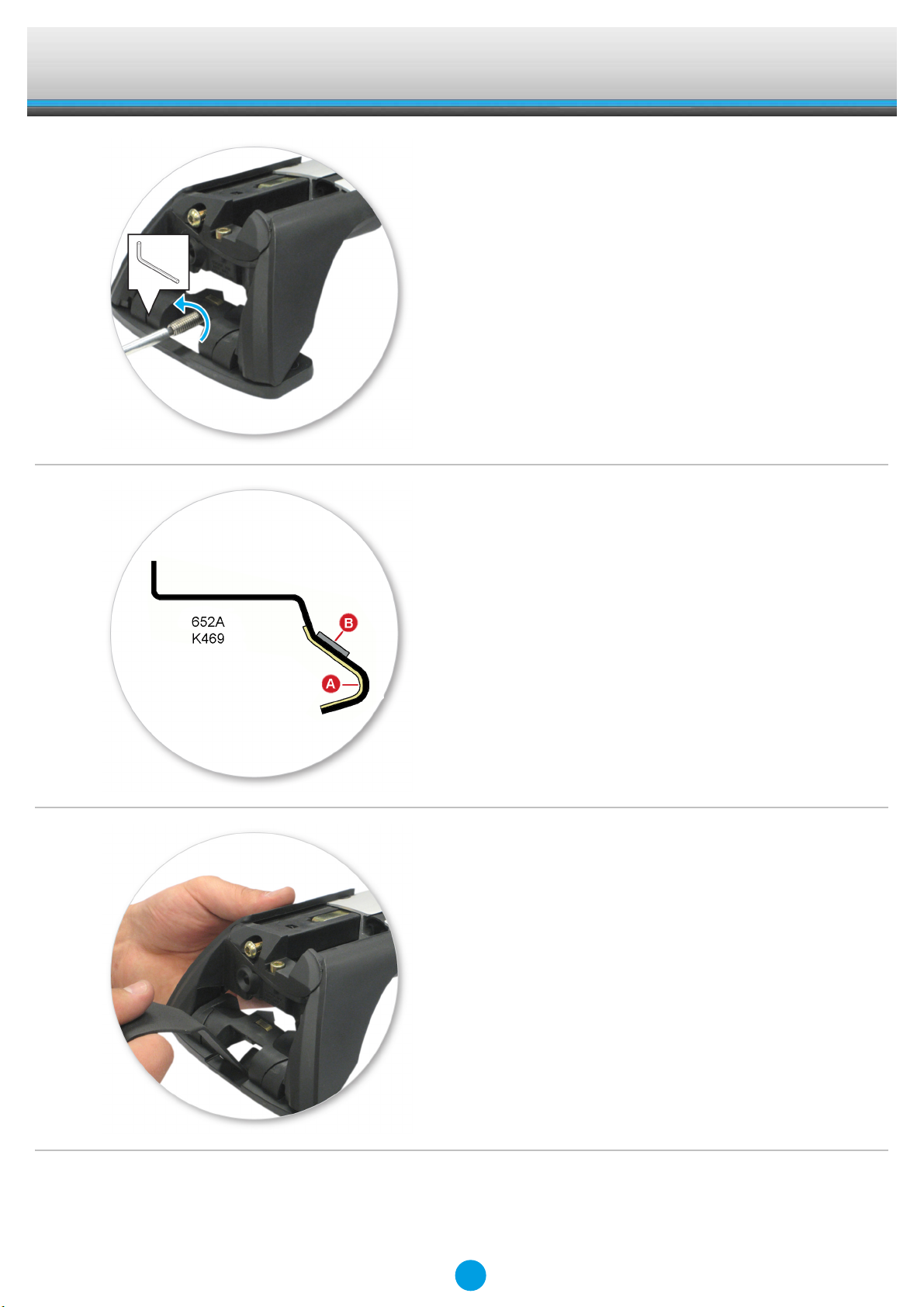

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
6
Fitting Kit EN
K469
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pads (supplied with fitting kit) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
7
Fitting Kit EN
K469
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
8
Fitting Kit EN
K469
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9
Fitting Kit EN
K469
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
