Prorack K108 Manuel utilisateur

K108

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 4 x 4 x 4

x 4

Revision No: 4C 1

Fitting Kit K108

MAX kgs (lbs)

W/P WHD

Ford

Mondeo , 4dr Sedan 93-00 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 4dr Sedan 93-00 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 4dr Sedan Feb 97-01 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 4dr Sedan Jul 95-Apr 01 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 5dr Estate 93-00 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 5dr Hatch 93-00 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 5dr Hatch Jul 95-Apr 01 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Mondeo , 5dr Wagon Jul 95-Apr 01 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit EN

K108

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K108

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K108

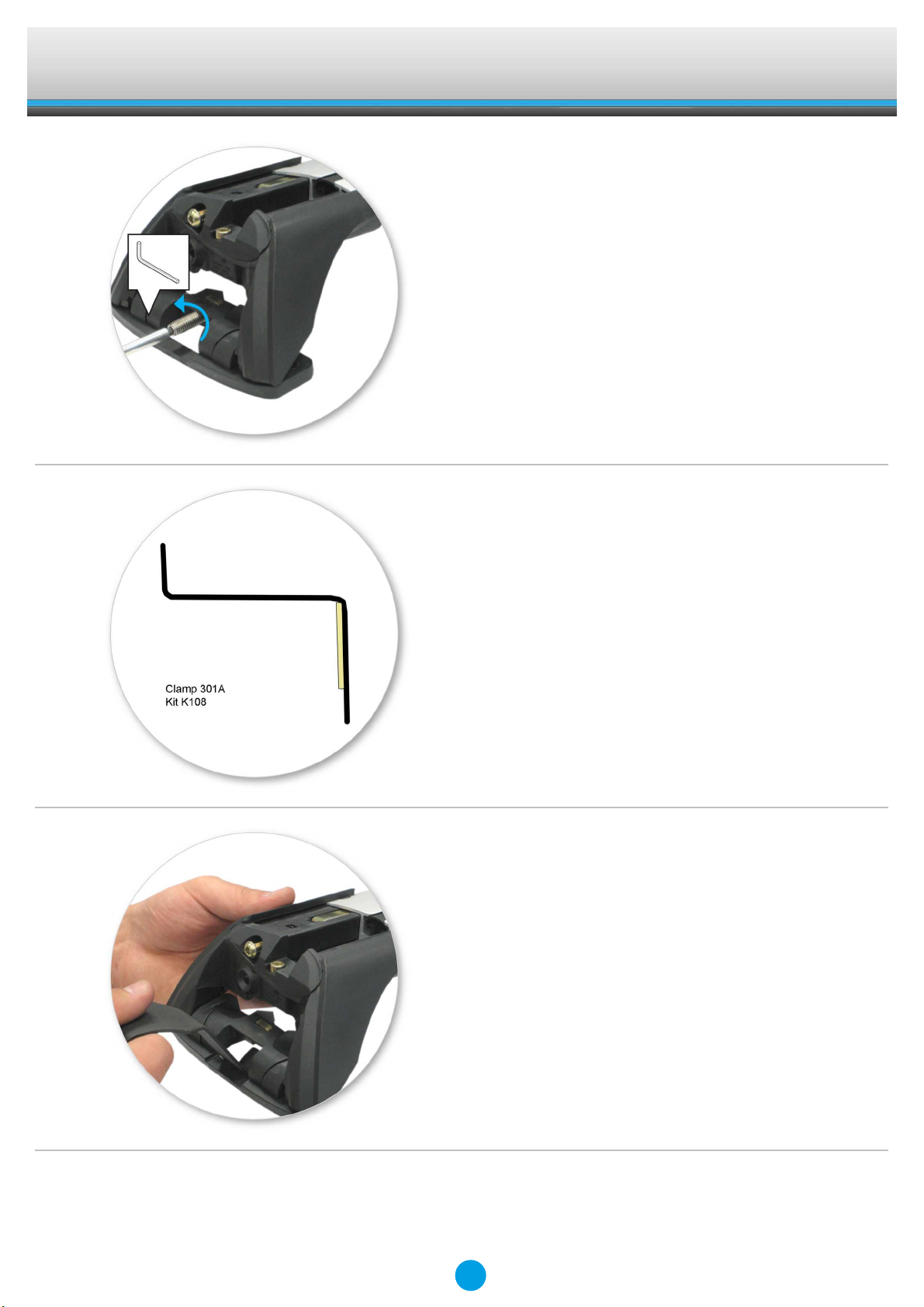

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K108

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K108

Fitment

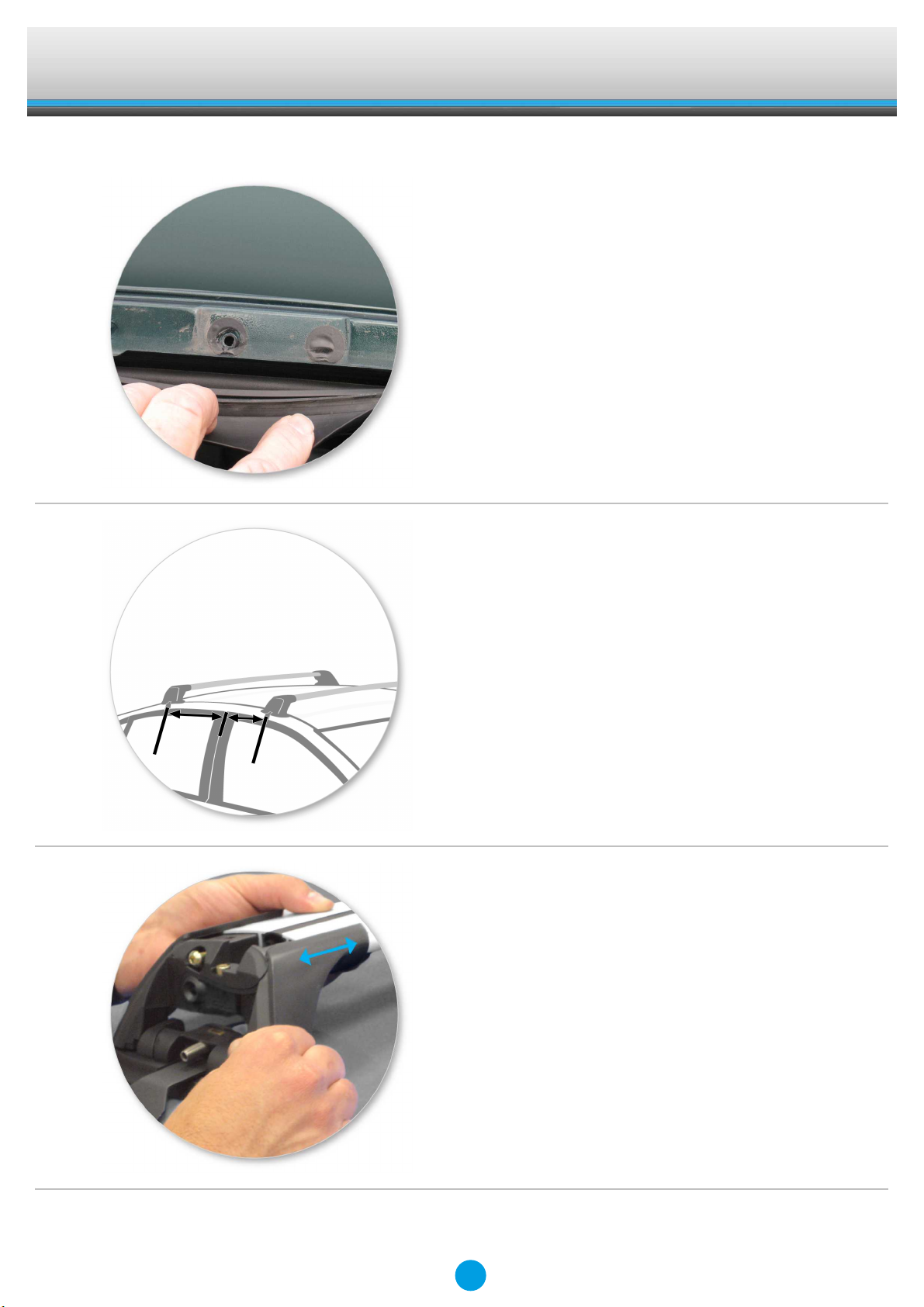

●Pull back rubber seal to expose fixed points

on vehicle body.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Attaches to factory-fitted mounting points

under rubber ditchmoulds

●Press adjusting screw to adjust the leg

positions on the crossbar.

Fitting Kit EN

K108

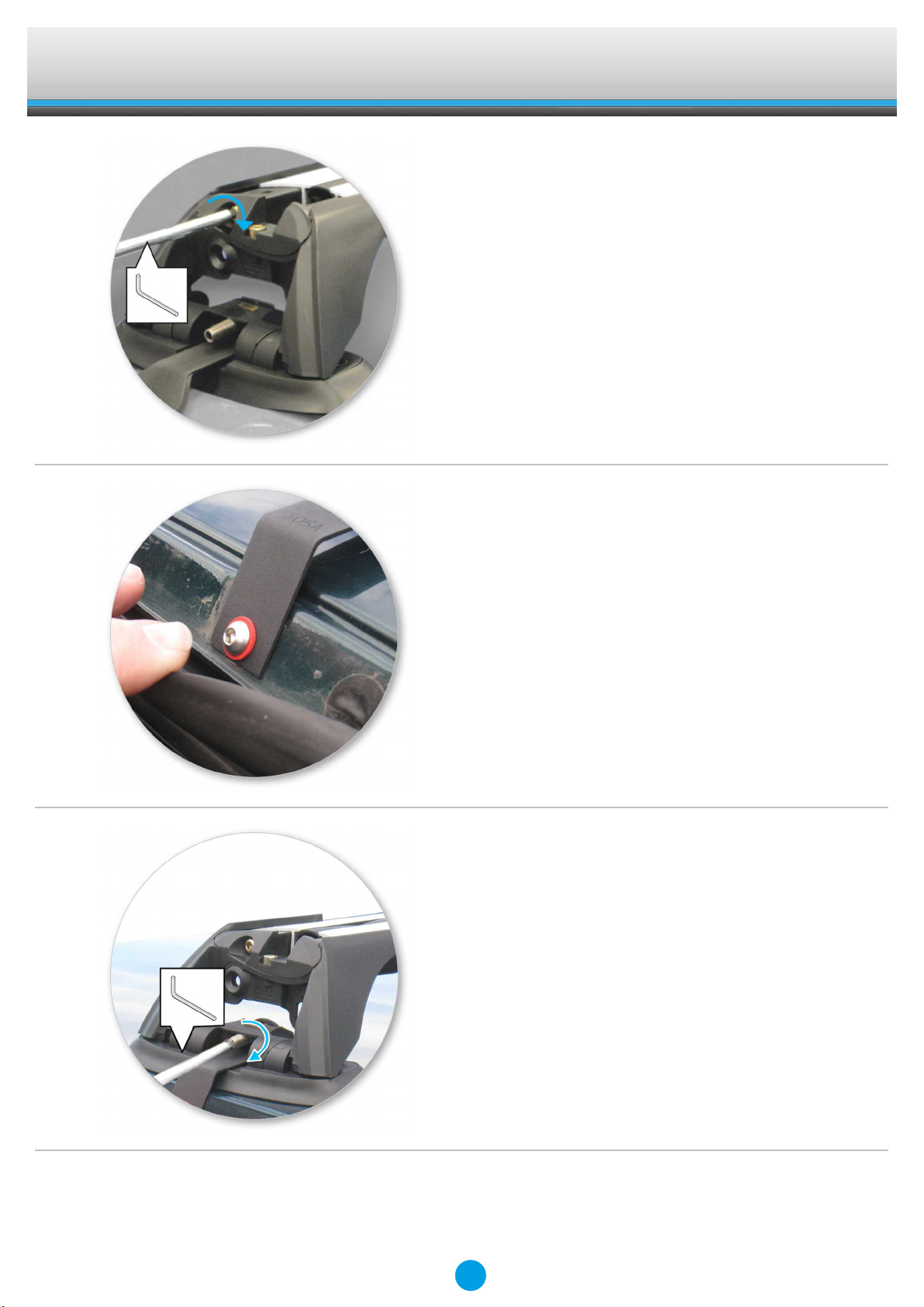

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Place clamp over the mounting hole

●Fit a fibre washer on each capscrew and

attach clamps to the vehicle body using the

capscrews.

●Tighten locking screw on both legs evenly.

Fitting Kit EN

K108

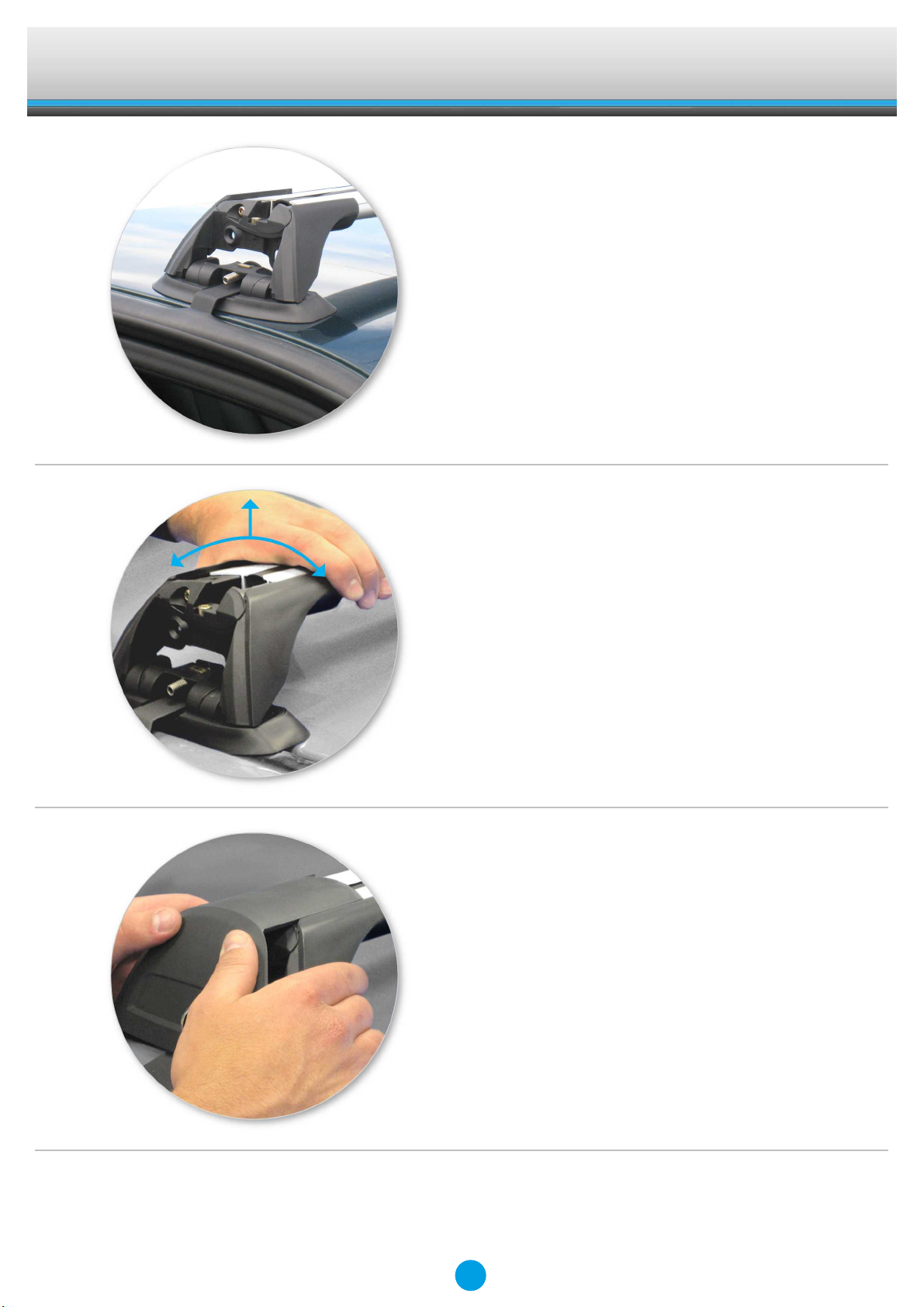

●Refit rubber seal over the clamp.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K108

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
