Prorack K417 Manuel utilisateur

K417

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 4

Revision No: 5E 1

Fitting Kit K417

MAX kgs (lbs)

W/P WHD

Fiat

Punto, 5dr Hatch 99-03 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Punto, 5dr Hatch 99-03 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Punto, 5dr Hatch 99-03 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

Punto, 5dr Hatch 99-03 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit K417

A B C 1 2 3

Punto, 5dr Hatch 99-03 (AU) -280mm 520mm - 775mm 760mm -

-11" 20 1/2ths" - 30 1/2ths" 29 15/16ths" -

Punto, 5dr Hatch 99-03 (EU) -280mm 520mm - 775mm 760mm -

-11" 20 1/2ths" - 30 1/2ths" 29 15/16ths" -

Punto, 5dr Hatch 99-03 (ZA) -280mm 520mm - 775mm 760mm -

-11" 20 1/2ths" - 30 1/2ths" 29 15/16ths" -

Punto, 5dr Hatch 99-03 (NZ) -280mm 520mm - 775mm 760mm -

-11" 20 1/2ths" - 30 1/2ths" 29 15/16ths" -

Fitting Kit EN

K417

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K417

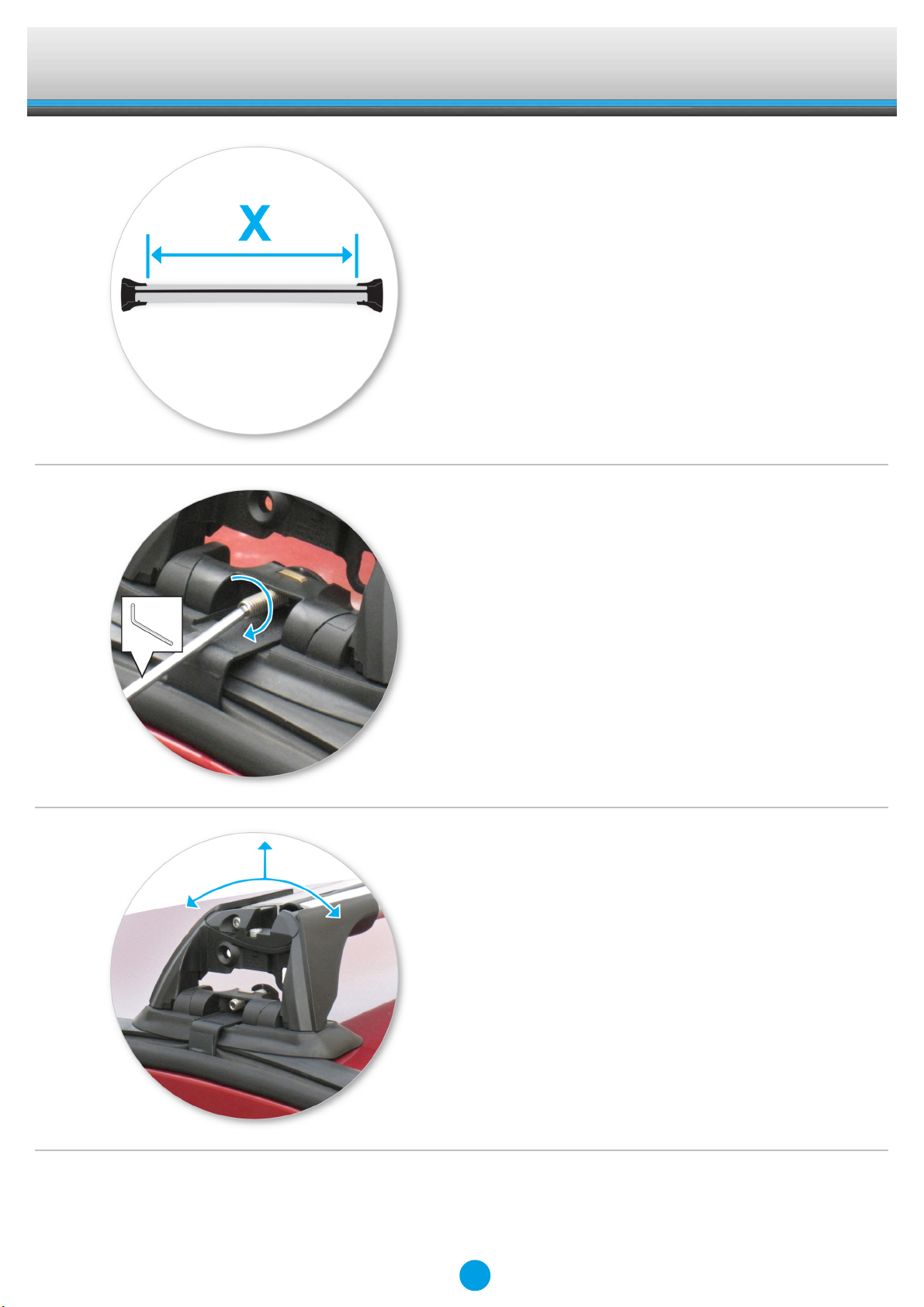

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K417

●Remove locking screw.

●Cut grey protective strip in two equal

lengths.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K417

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K417

Fitment

●Pull back rubber seal to expose fixed points

on vehicle body.

●Locate vehicle's fixed points.

●Attaches to factory-fitted mounting points

located between rubber seals on door

frame

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K417

●Insert clamp into the mounting point.

●When viewed from the top, clamp should

be lined up with the two lugs on both sides.

●Repeat for all four positions.

Fitting Kit EN

K417

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.
