Prorack K938 Manuel utilisateur

K938

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 1 x 1 x 2 x 1

x 1 x 1 x 1 x 4

Revision No: 2B 1

Fitting Kit K938

MAX kgs (lbs)

W/P WHD

Skoda

Rapid Spaceback, 5dr Estate 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Rapid Spaceback, 5dr Estate 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Rapid Spaceback, 5dr Estate 13-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Rapid Spaceback, 5dr Estate 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K938

A B C 1 2 3

Rapid Spaceback, 5dr Estate 13-+ (NZ) -235mm 525mm - 895mm 860mm -

-9 -1/4ths" 20 11/16ths" - 35 1/4ths" 33 7/8ths" -

Rapid Spaceback, 5dr Estate 13-+ (EU) -235mm 525mm - 895mm 860mm -

-9 -1/4ths" 20 11/16ths" - 35 1/4ths" 33 7/8ths" -

Rapid Spaceback, 5dr Estate 13-+ (CN) -235mm 525mm - 895mm 860mm -

-9 -1/4ths" 20 11/16ths" - 35 1/4ths" 33 7/8ths" -

Rapid Spaceback, 5dr Estate 14-+ (AU) -235mm 525mm - 895mm 860mm -

-9 -1/4ths" 20 11/16ths" - 35 1/4ths" 33 7/8ths" -

Fitting Kit EN

K938

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K938

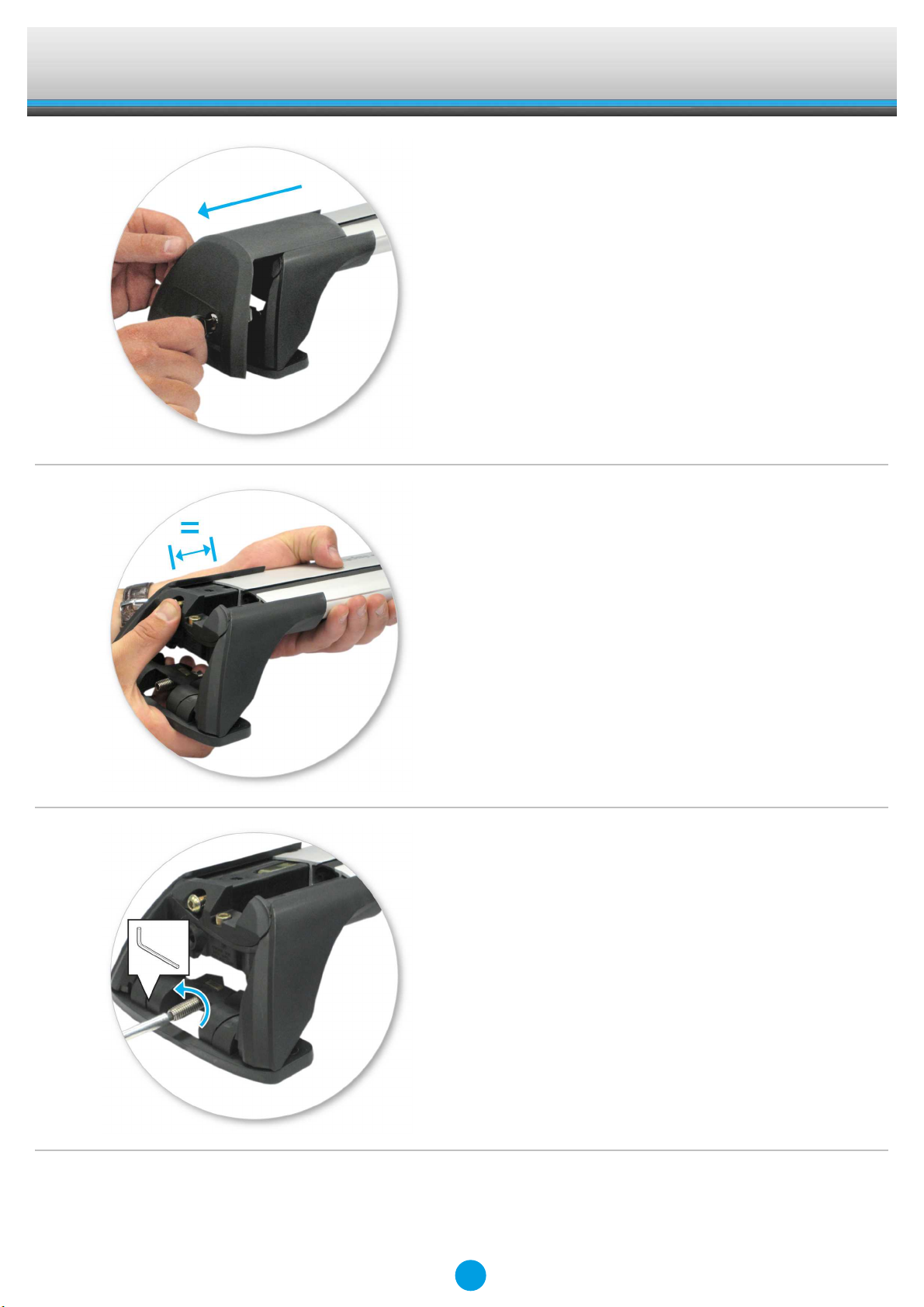

●Use keys to remove covers.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Remove locking screw.

Fitting Kit EN

K938

●Apply protective strip as shown.

Trim if required.

●A = Grey

●Refer to the underside of the pad for the

part number.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

Fitting Kit EN

K938

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-240

B = 11-04-295

C = 11-04-296

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K938

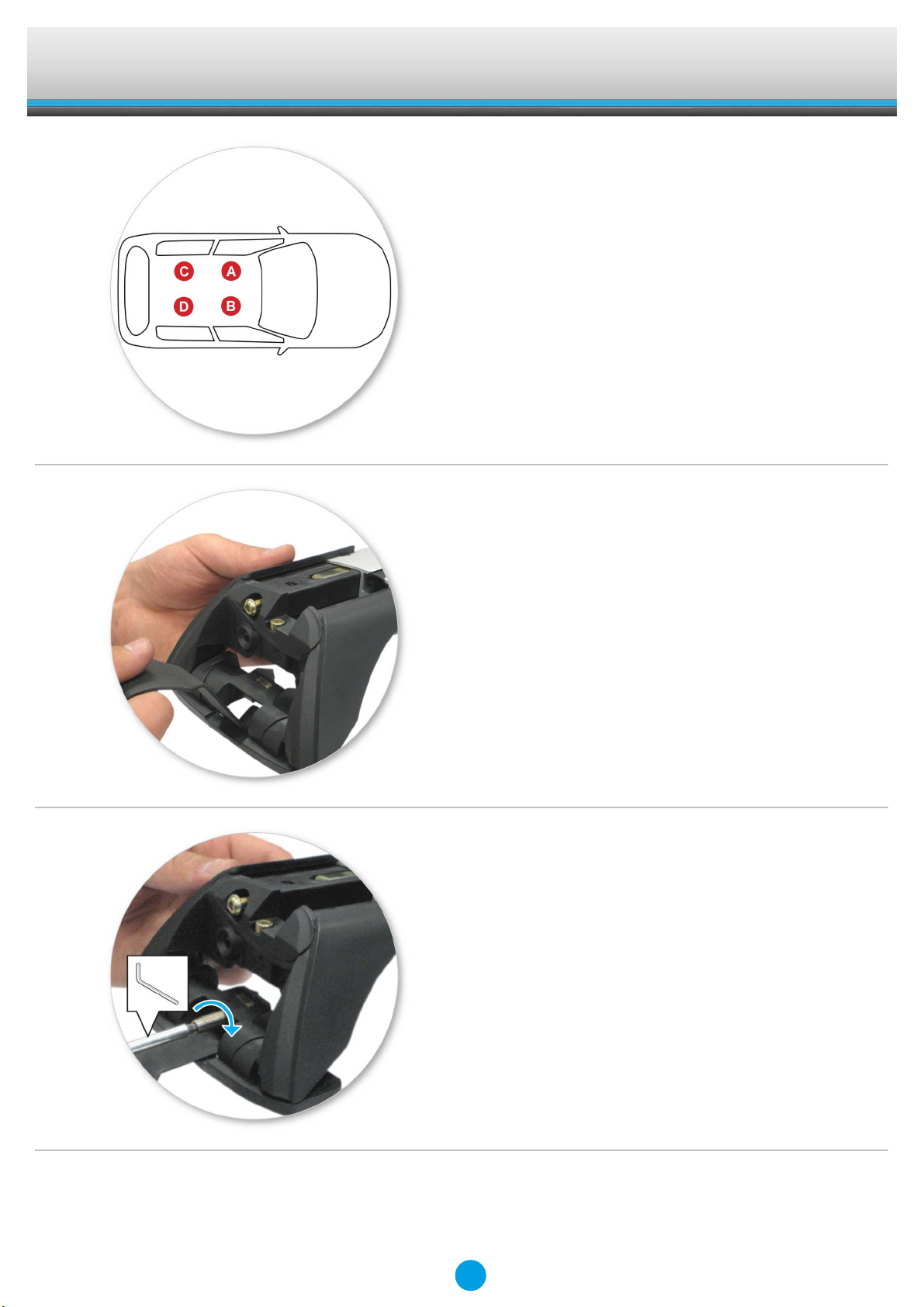

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A686

B = A687

C = A688

D = A689

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

Fitting Kit EN

K938

Fitment

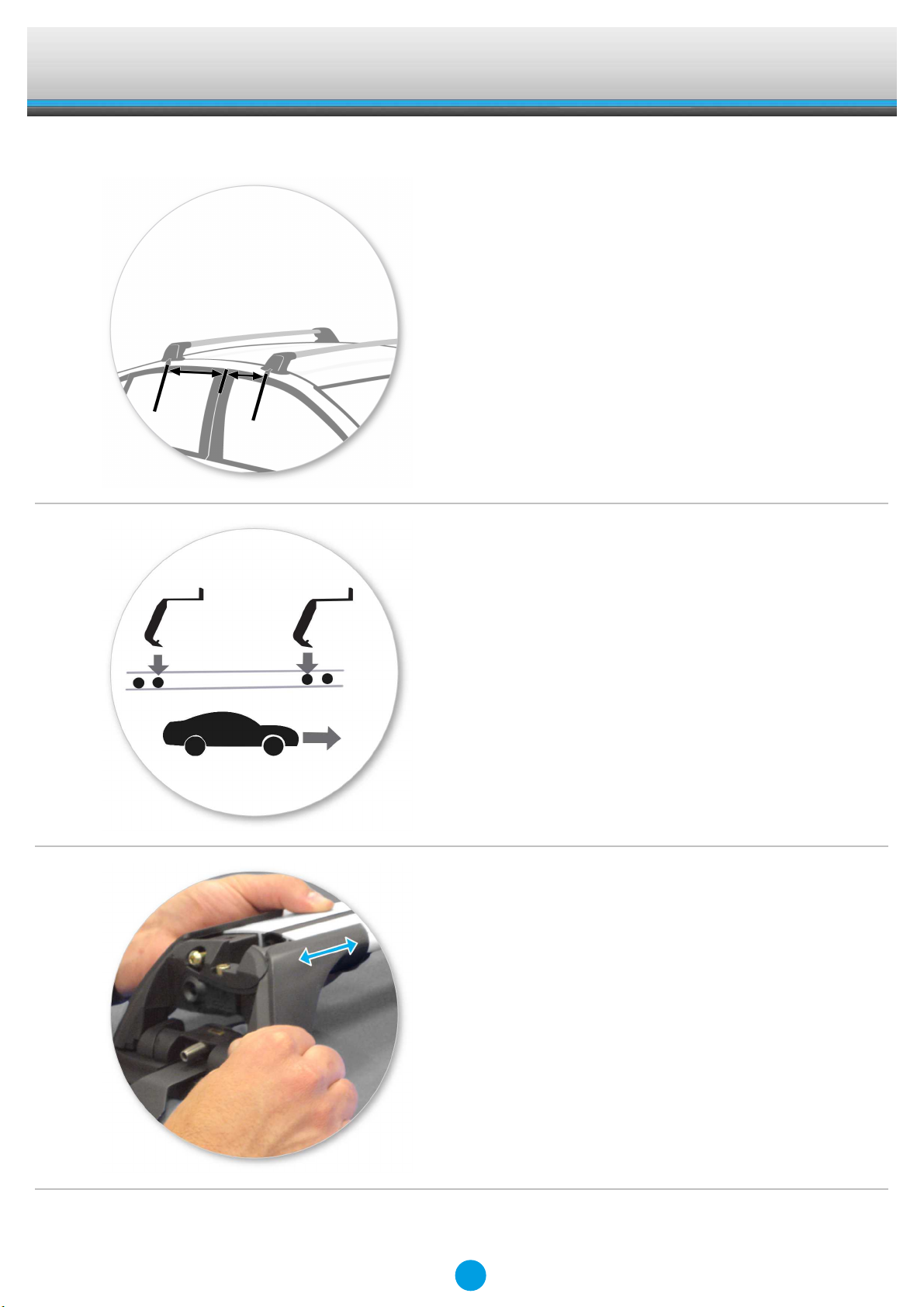

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Install clamps as shown.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Fitting Kit EN

K938

●Place clamp over the mounting hole

●Attach capscrew with the Hex Key. Do not

fully tighten.

●Leave loose until both sides have had the

screw fitted.

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Tighten locking screw on both legs evenly,

2.5 Nm (1.8 ft lb).
