Prorack K320 Manuel utilisateur

K320

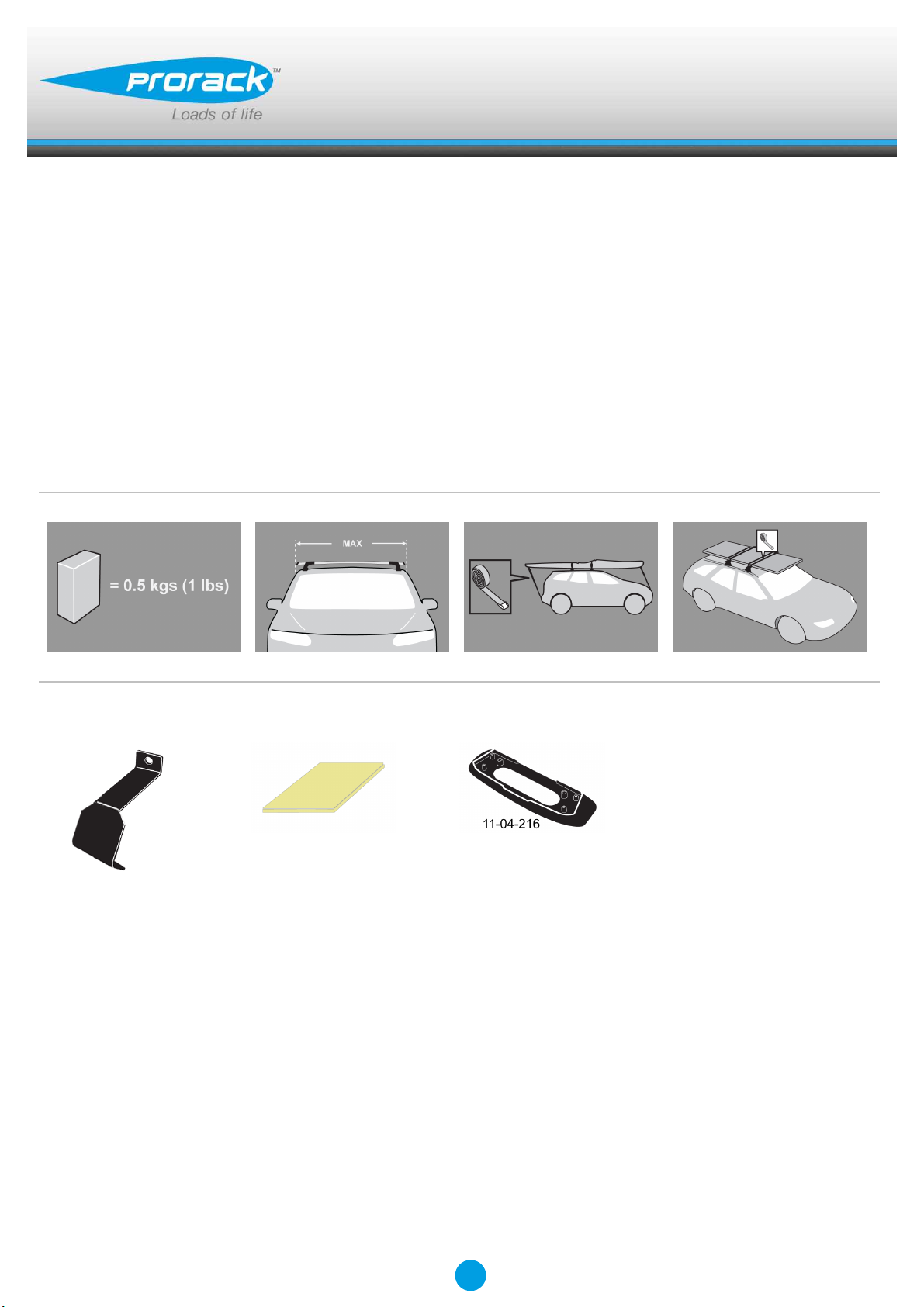

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4

Revision No: 6F 1

Fitting Kit K320

MAX kgs (lbs)

W/P WHD

Chevrolet

Epica, 4dr Sedan 06-10 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Epica, 4dr Sedan 06-13 CN 50 kgs (110 lbs) 50 kgs (110 lbs)

Holden

Epica, 4dr Sedan May 07-11 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Epica, 4dr Sedan May 07-11 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit K320

A B C 1 2 3

Epica, 4dr Sedan 06-10 (EU) -150mm 450mm - 841mm 848mm -

-5 -15/16ths" 17 3/4ths" - 33 1/8ths" 33 3/8ths" -

Epica, 4dr Sedan 06-13 (CN) -150mm 450mm - 841mm 848mm -

-5 -15/16ths" 17 3/4ths" - 33 1/8ths" 33 3/8ths" -

Epica, 4dr Sedan May 07-11 (NZ) -150mm 450mm - 841mm 848mm -

-5 -15/16ths" 17 3/4ths" - 33 1/8ths" 33 3/8ths" -

Epica, 4dr Sedan May 07-11 (AU) -150mm 450mm - 841mm 848mm -

-5 -15/16ths" 17 3/4ths" - 33 1/8ths" 33 3/8ths" -

Fitting Kit EN

K320

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K320

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K320

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K320

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K320

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K320

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K320

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
