What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

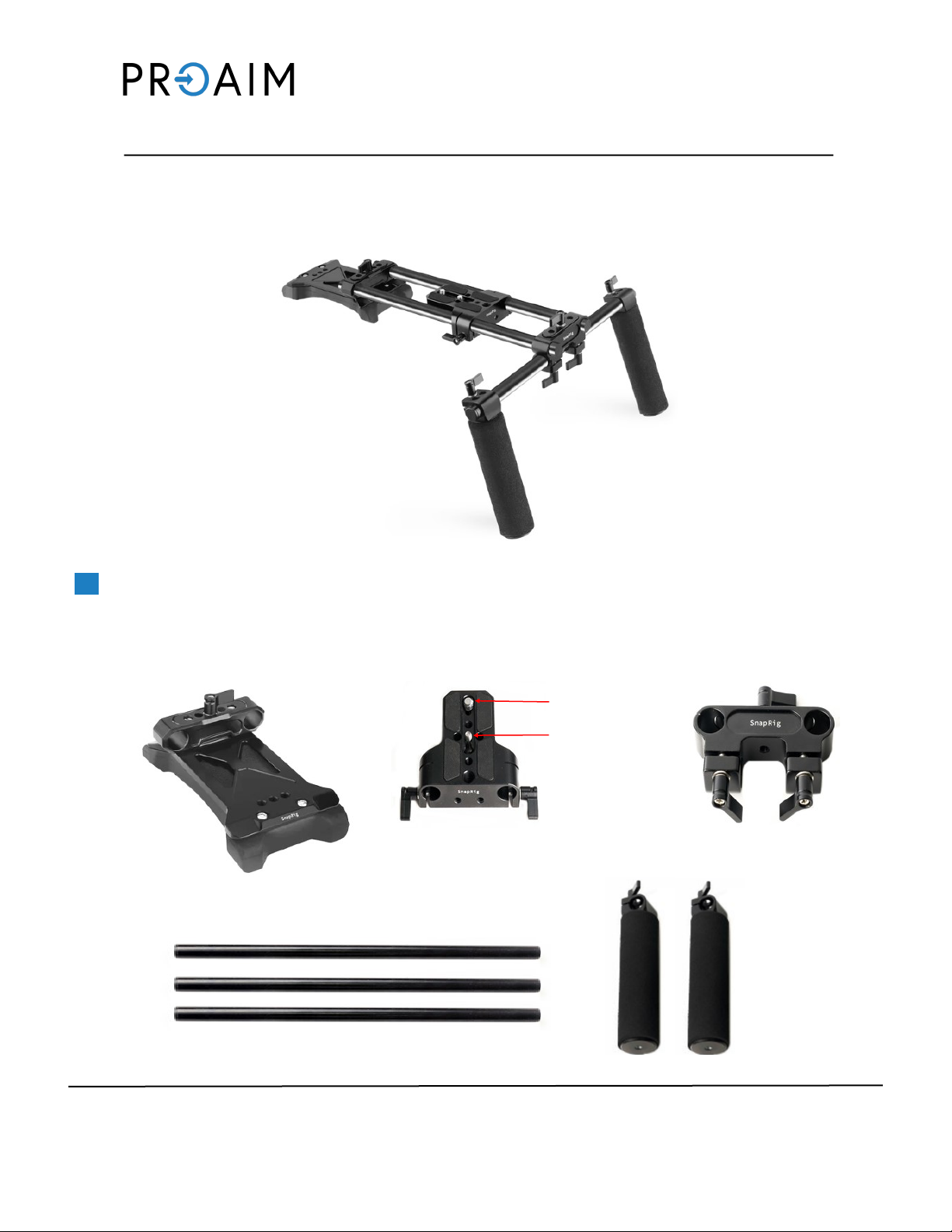

SnapRig Basic Shoulder Mount Kit

(SR228)

Assembly Manua l

3 x 300mm long Rod (Dia=15mm)

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Shoulder Pad

2 x Grip Handles

Juncon AdapterCamera Plate

Bolt (Size:3/8”)

Bolt (Size:1/4”)

Basic Shoulder Mount Setup

 Now loosen the knob of the grip handle and

insert the le side of the 300mm long rod.

 Then properly ghten both the knobs, as

shown in the image.

 Now loosen the top knob of the juncon

adapter and insert the 300mm long rod (Dia

15mm).

 Then insert another 300mm long rod (Dia

15mm) and ghten the knob properly, as

shown in the image.

 Loosen both the knobs of the Juncon Adapter

and insert 300mm long rod (Dia 15mm).

 Then properly ghten the knob. Repeat the

same process for the other grip handle.

NOTE: It minimizes rotaon while shoong

video with your camera, making your shoulder

comfortable and shots more stable.

 Now loosen the knob of the shoulder pad and

secure it properly by inserng it into the rods.

NOTE: The shoulder pad has mulple 1/4"-20

threads, so you can mount other accessories

too.

 Then properly ghten both the knobs, as

shown in the image.

NOTE: Rubber padding on the camera base

plate prevents the Camera from twisng or

scratching.

 Now loosen the knob of the shoulder pad and

adjust it according to your requirement.

NOTE: You can ghten the rod support with

this knob, oering easy and quick operaon.

 Mount the Camera (Not-Included) on the

shoulder pad and ghten it properly with the

help of a screw driver.

NOTE: The Rig has a camera base plate that

features mulple mounng threads for easy

mounng on dierent plates and rigs. Also, it

features a 15mm rod support and securely

mounts your Camera using 1/4"-20 and 3/8"-16

camera mounng screws.

 Now loosen both the knobs of the camera

plate and insert the rods into the plate.

NOTE: The shoulder pad allows the Rig to sit

comfortably on your shoulders by eliminang

the discomfort caused by the Camera's weight

on your shoulder during lming.

NOTE: Dual handgrip kit oers both comfort and balance with its two 360° rotatable handgrips that

securely mount onto the rods with a 15mm rod clamp.

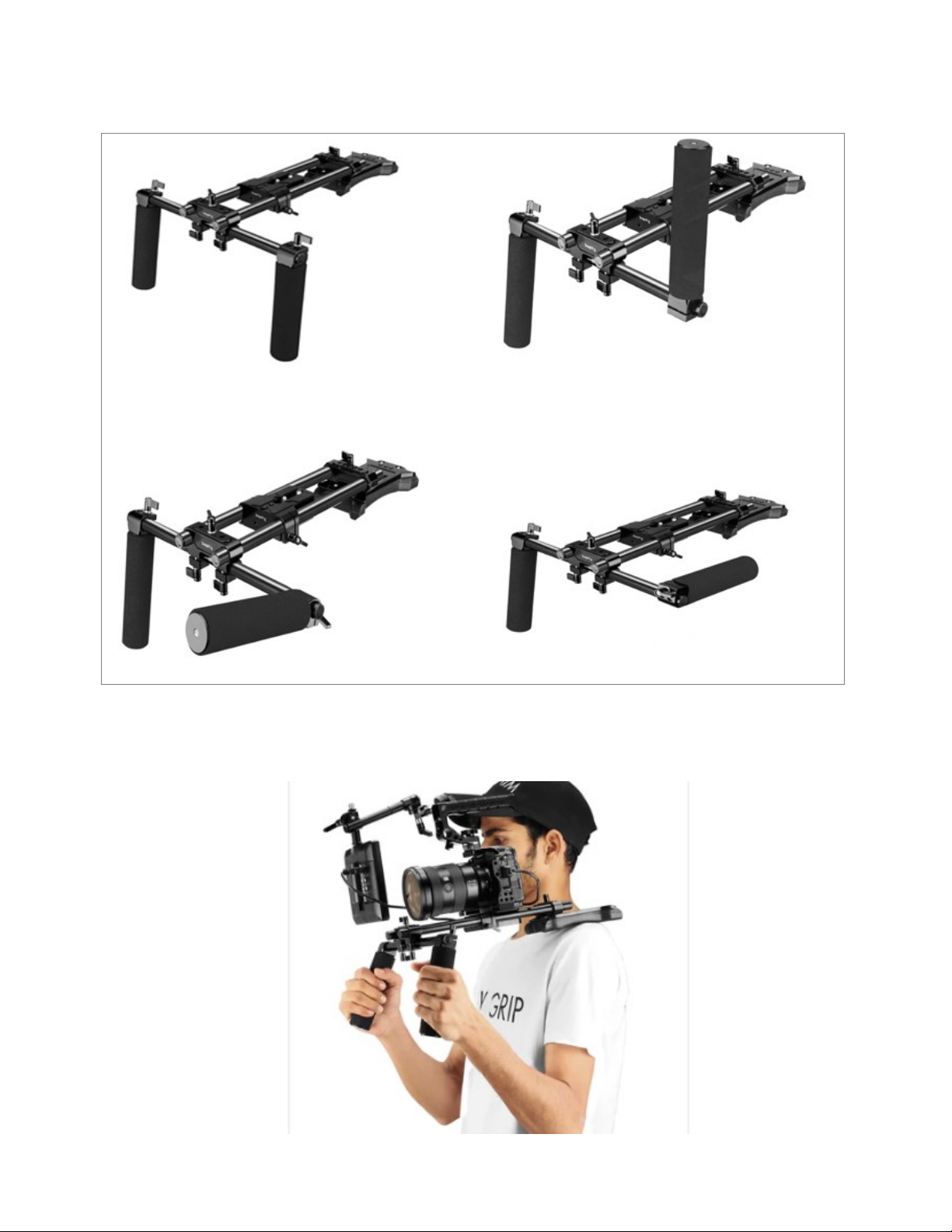

YOUR PROAIM SNAPRIG BASIC SHOULDER MOUNT KIT

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

most support and care unl you use our product.
