1
What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Mul Monitor Mounng System for Video Camera
(P-MLMT-M2)
Assembly Manua l
2 x Rod Clamp
2 x Base Rod Mount
2 x Rod
2 x Tube Rail
2 x Tube Rail Clamp
with 5/8 Baby Pin
4 x Rod Clamp
Rail Holder
1 x L-Type Allen
Key (Size: 4mm)
Mul Monitor Mounng System Setup
2
• Loosen the knob of the base rod mount and
insert the rod in the base rod.
• After inserting the rod, properly tighten the
knob, as shown in the image.
• Loosen the knob of the rod clamp and mount
the clamp onto the rod.
• After mounting the clamp onto the rod,
properly tighten it with the knob, as shown in
the image.
• Loosen the knob of the rod clamp rail holder
and mount it on the rod.
Mounng of Rod Clamp
Assembling of Rod
Mounng of Rod Clamp Rail Holders
3
• After inserting the tube rail, properly tighten
the bolts using the 4mm Allen key.
• Repeat the same process to insert the second
tube rail clamp.
• Repeat the same process for assembling the
other side.
• Loosen the knob of the tube rail clamp and
mount it on the tube rail.
• Properly insert the tube rail into the rod
clamp rail holder.
• Create the space to insert the rod clamp by
equally loosening the bolts of all the rail
holders using the 4mm Allen key.
• After mounting the rod clamp rail holder,
properly tighten it using the knob and repeat
the same process to insert the second rail
holder.
Mounng of Tube Rail Clamp
Mounng of Tube Rail
4
• Insert the 5/8” baby pin in the other
mounting thread.
NOTE: Adjust the posion of the 5/8” baby pin
according to your requirement.
• Repeat the same process to insert the second
tube rail clamp.
NOTE: The cheese plates with scaold clamps
to meet your accessory needs while giving you
the opon of permanently drilling the system
into your cart deck with the drilling opon.
• Loosen the knob of the rod clamp to mount
the multi monitor mounting system and then
rotate it.
• Properly tighten it using the knob.
NOTE: The Rod clamp pans 360° and can be
easily adjusted according to the width of your
cart.
• Loosen the ratchet knob of the rod clamp and
then attach it to the cart (Not Included).
• Loosen the 5/8” baby pin and remove the
baby pin.
• Aer mounng, properly ghten it using the
knob.
NOTE: It is a 5/8" baby pin & you can mount
mul monitor system.
Adjustment of 5/8” Baby Pin
Mounng of Mul Monitor Mounng System to the Cart
5
• Properly ghten the ratchet knob. Repeat the
same process to aach the second rod clamp.
NOTE: It has mulple sturdy knobs to facilitate
secure monitor aachment and eortless
adjustments.
NOTE: You can mount the monitor system in
any left-right-center position, according to your
need.
You can mount at least two monitors with a
sleek design.
• Loosen the knob of the monitor system
(Not Included) and mount it on the 5/8” baby
pin.
• After mounting the monitor system, properly
tighten the knob.
NOTE:For Proaim Sound Chief Cart, Atlas &
Victor Cart Series, the mounng system will be
aached by clamping; however, for the Proaim
Bowado Cart, you will need to drill the
mounng system .
Mul Monitor Mounng System Setup
6
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our ut-
most support and care unl you use our product.

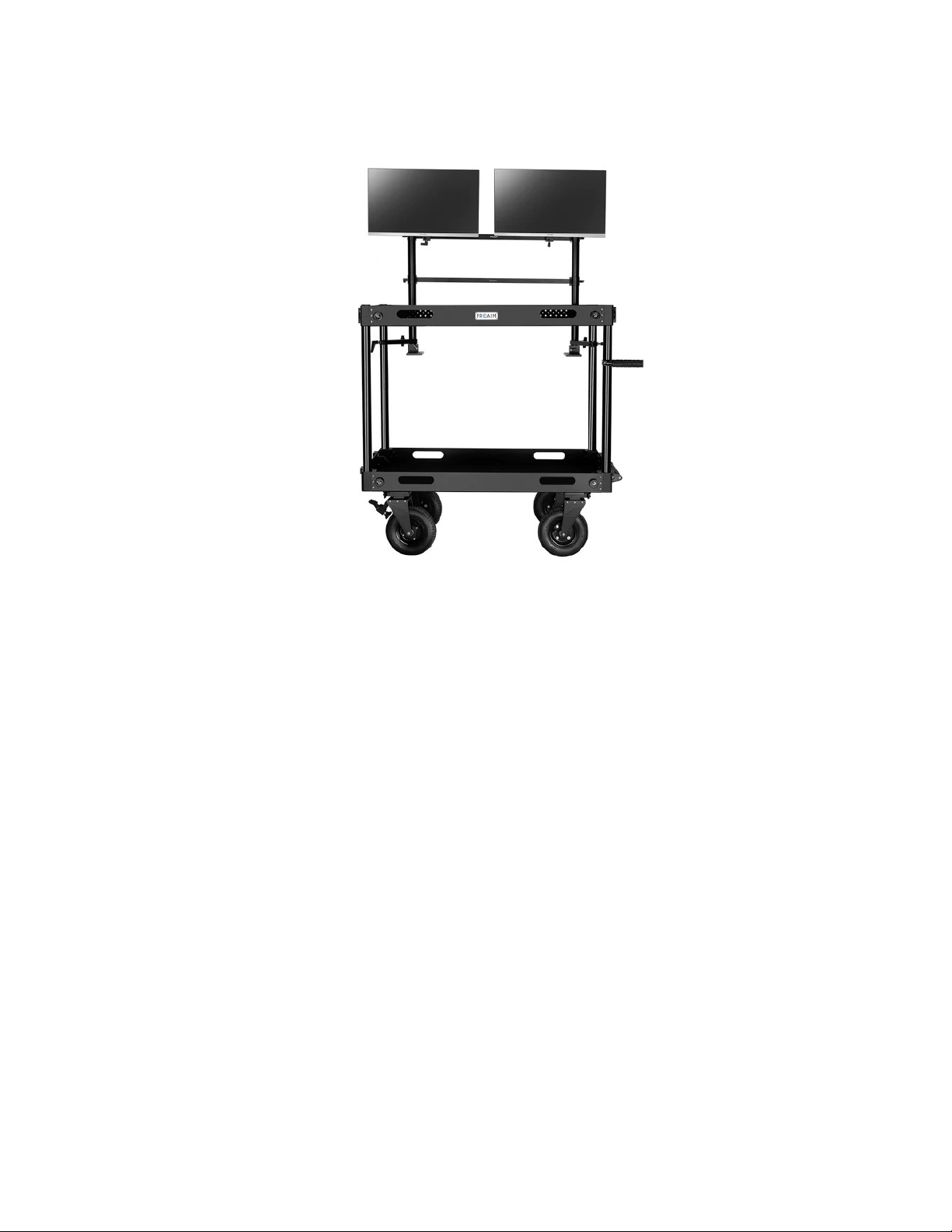

YOUR PROAIM MULTI MONITOR MOUNTING SYSTEM
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
