PROAIM P-SBP-01 Manuel utilisateur

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

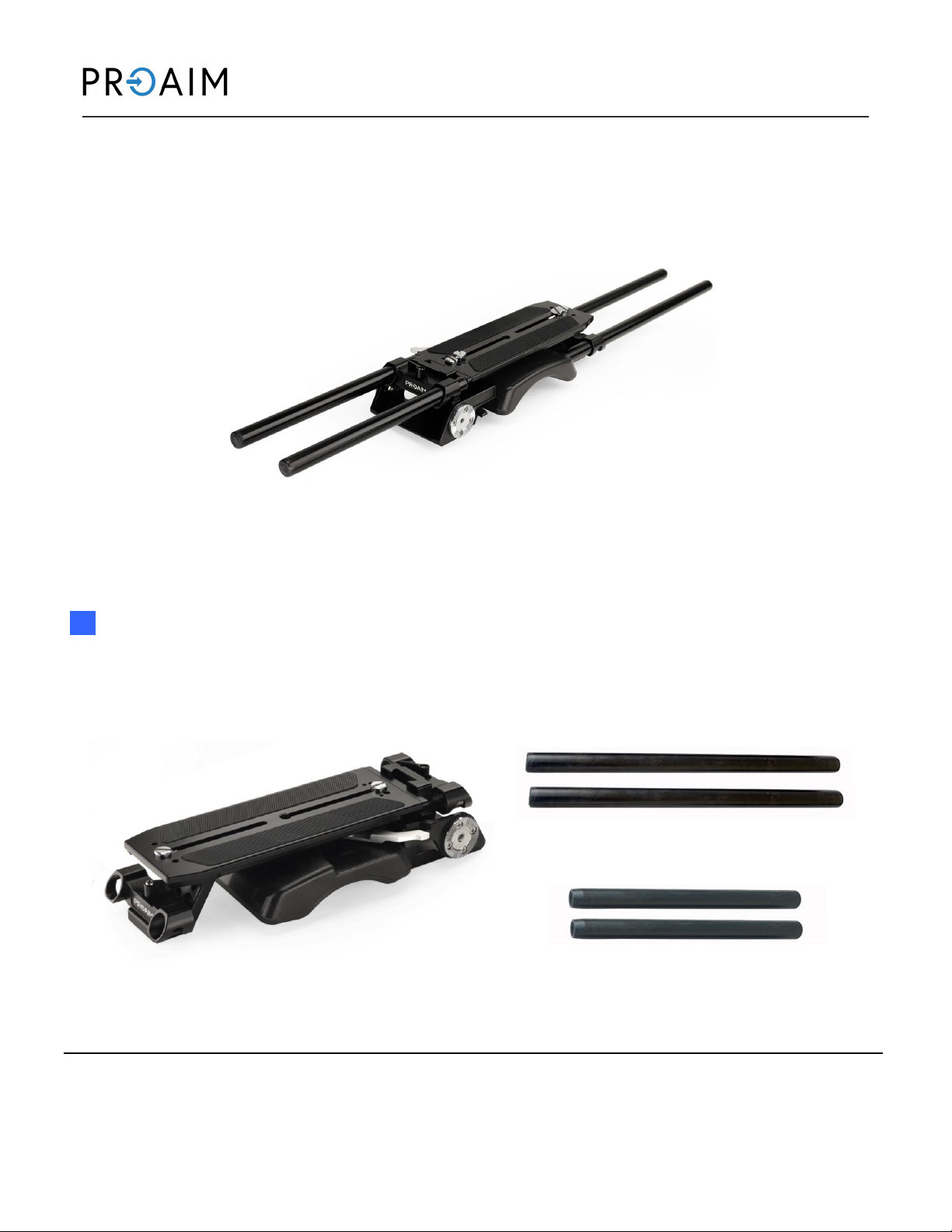

VCT Universal Shoulder Base Plate (P-SBP-01)

Assembly Manua l

2 x 15mm Dia length 300mm Female Rods

2 x 15mm Dia length 200mm Female Rods

Proaim SBP-01 VCT Shoulder Base Plate

 Press the safety pin on the shoulder base

plate and push the black pin upwards so that

the top plate can quickly move out.

 Aer mounng the camera, secure it using a

screwdriver. Now aach the top plate to the

boom plate and slide it inwards.

Note: The baseplate features a front-to-back

sliding plate for quick posioning of your

camera and accessories and opmum

adjustment of your camera's weight

distribuon.

Shoulder Base Plate Setup

 Insert the 200mm long female rods and

secure them properly with the help of a

ratchet knob.

 Insert the 300mm long rods from the

opposite side of the shoulder base plate and

secure them with the help of a ratchet knob.

Note: There are 15mm(dia) rods on the front

and back to accommodate more camera

accessories.

 Mount the camera by aligning the camera's

mounng thread with the top plate, as shown

in the image.

Note: The shoulder plate has 1/4"-20 and

3/8"-16 threaded holes for storing addional

screws.

 Set the camera's posion and lock it by

pushing the safety pin.

Note: Shoulder Baseplate allows quick

aaching/detaching camera setup fastened by

safety pins and ratchet knobs.

YOUR PROAIM VCT UNIVERSAL SHOULDER BASE PLATE

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

Note: Shoulder base plate also supports RED

(DSMC2), Arri (Amira and Alexa Mini), Sony

(Venice, FS7, FS7M2, F5, F55, EX1, EX3), Canon

(C200, C300, C300M2, C700), Panasonic (EVA1,

Cinema Varicam LT 4k S35), Blackmagic (Ursa

Mini), and many other camera models with in-

terchangeable lenses.
