PROAIM SS90 Manuel utilisateur

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

SS90 Studio Camera Stand 4 / 8 with Side

Spigot Arm (TP-SS90-01)

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Studio Stand

3 x Wheels

Side Spigot Arm

What’s In The Box

Upper Column

1 x Spanner (Size - 17)

(T-Type Allen Key (Size - 4mm)

Camera Stand Setup

• Aach the studio stand and wheel by match-

ing the holes.

• Secure the wheel by ghtening them properly

with the help of a spanner. As shown in the

image.

• Similarly, aach the reaming wheel with the

Studio Stand following the same process.

• Pull open with the help of the wheel of the

studio stand. As shown in the image.

NOTE: The collapsible design of the legs allows

the stand to fold up into a compact size,

ensuring quick setup, easy storage & travel.

• Stretch out the legs of the Stand and securely

ghten them using the provided knob.

• Push the side spigot arm into the stand.

• Once the arm is properly inserted, you can

again press the Spigot Arm to an upward/

downward posion.

NOTE: The Castor Wheels provide easy &

smooth movements across sets and lock via the

footbrake that each one of them is equipped

with.

• Remove the grub screw aached to the stu-

dio stand by loosening it with the help of the

Allen key

• Then insert the upper column matching the

screw holes of the studio stand.

• Again, Insert the grub screw and ghten it

properly with the help of the Allen key. Then

properly secure the upper column. As shown

in the image.

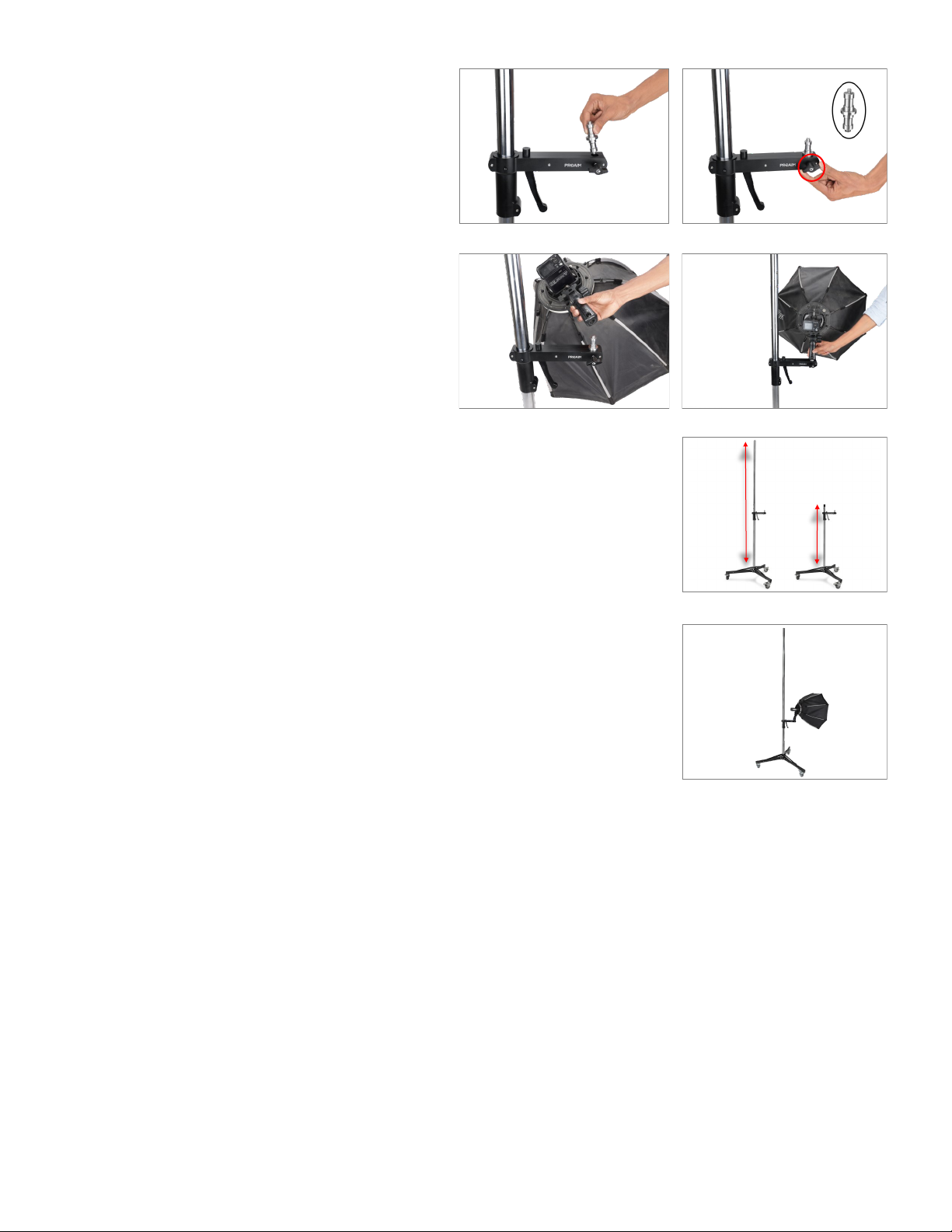

• Loosen the knob of the spigot arm, then re-

move the baby pin to change the angle of the

baby pin.

NOTE: The Side Spigot Arm comes equipped

with an adapter spigot which has a 1/4”-20

screw on one side and a 3/8”-16 screw on the

other side for facilitang mulple setup

conguraons.

Footbrake Lock

Footbrake unlock

• Now insert the Baby Pin aer changing its an-

gle and secure it by ghtening the knob of the

Spigot Arm.

• Mount the ashlight (Not Included) on the

5/8’’ baby pin.

NOTE: The Side Arm oers mulple setup

conguraons via the adapter spigot and 5/8”

Baby Pin receiver.

• Here is the nal assembled image of the Stu-

dio Camera Stand.

• Versale height: Use with or without the up-

per column.

Maximum: 7.6 / 92’’

Minimum: 4/ 49’’

1/4” screw

3/8” screw

YOUR PROAIM SS90 STUDIO CAMERA STAND 4FT / 8FT WITH SIDE SPIGOT ARM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
