PROAIM Mitchell-Euro Manuel utilisateur

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Mul Adapter Kit (Mitchell-Euro/Elemac-Bowl) (P-MLAK-01)

1 x Mitchell plate 1 x Adapter Plate

1 x Bowl adapter

Size: 100 mm

1 x Euro Flange

1 x Mitchell

Lock

1x Euro Adapter

Clamping

knob

4 x Distance Rods

1 x Spanner (Size:13)

2 x L-Type Allen Key

(Size:5mm & 6mm)

1 x Bowl adapter

Size: 150 mm

Allen Bolts

(8 x 50mm=3pc)

(6 x 25mm=12pc) Allen Bolts

(6 x 12mm=6pc) Allen Bolts

Mul Adapter Kit Setup

• Attach the Euro Flange by matching it with the

thread of the Adapter Plate and then insert

the bolt.

• Secure all the bolts by tightening them using

the Allen Key.

• Attach the Distance Rods by matching them

with the side thread on the Adapter Plate and

then secure them using the Allen Key.

• Attach all the Distance Rods on the Adapter

Plate, as shown in the image. Place the

100mm bowl adapter by matching it with the

threads of the Rods.

Hard Case

Bowl-Euro

• After placing the 100mm bowl adapter on the

rods, then match the thread and insert the

bolts.

• Tighten the bolt using the Allen Key, so that

bowl euro can be attached properly.

Mitchell-Euro

• Attach the distance rods at equal distance

from each other, as shown in the image.

NOTE: You can aach rods on the mulple

threads of the Adapter Plate according to your

setup requirement.

• Attach the Distance Rods on the Adapter Plate

at equal distance from each other according

to your requirement and then secure them

with the help of the bolt.

• Place the Mitchell Plate by matching it with

the thread of the Distance Rods and then

insert the bolt by matching it with the thread

hole.

• Properly tighten the bolt of the Mitchell Plate

using the Allen Key.

Euro Flange Detach

• Attach the Mitchell Lock by matching it with

the threads from the bottom part of the

Adapter Plate.

• Loosen the bolts to remove the Euro Flange

from the Adapter Plate and then remove

them using the Allen Key, as shown in the

image.

• Insert the bolt after matching the Mitchell

Lock with the threads of the Adapter Plate

and then properly tighten it with the Allen

Key.

• Then Mitchell-Mitchell plate is ready to use.

• Attach the Mitchell Lock by matching it with

the bolt thread of the Adapter Plate.

Mitchell-Euro Adapter

• Insert the bolts from the back side of the

Adapter Plate, and then properly tighten

them using the Allen Key.

Mitchell-Bowl

• Aer placing the Bowl Adapter on the Rods,

insert the bolt by matching it with the Rod

thread.

• Remove the castle nut from the Mitchell Lock,

as shown in the image.

• Properly ghten the all bolts using the Allen

Key. then Michell-bowl adapter is ready to

use.

• Place the bowl adapter (150mm) plate on the

rods.

• Aer inserng the bolts, ghten them

properly using the Allen Key.

• Place the Euro Adapter on the Adapter Plate

by matching it with the thread of the Plate

and then insert the bolts.

Mitchell-Bowl Adapter

• Properly secure the Fluid Head (150mm bowl)

(Not Included) using the Fluid Head knob.

• Aer properly mounng the Fluid Head

(150mm bowl) (Not Included), remove the

Plate by pulling the provided knob.

• Aach the Plate to the boom part of the

Camera (Not Included) and then mount the

Camera (Not Included) by pulling the knob of

the Fluid Head.

• Mount the Bowl-Mitchell on the tripod stand.

(Not Included).

• Secure the Bowl-Mitchell using the castle nut

from the boom of the Tripod Stand

(Not Included).

• Mount 150mm uid head (Not Included) &

insert it into the bowl through the screw.

NOTE: It with Camera, Dolly, Bazooka, Tripod,

Slider, Jib & more, as it is compable with

almost every operaon.

• Then properly secure the Euro Mitchell with

the help of the provided ratchet knob.

• Mount the Fluid Head (Not Included) onto the

Euro Mitchell.

• Properly secure the Fluid Head (Not Included)

using the castle ring.

• The Camera (Not Included) has been properly

aached to the Fluid head.

• Mount the Euro Mitchell on the Bazooka

(Not Included).

Euro-Mitchell Setup

• Mount the Camera (Not Included) by sliding it

onto the Fluid Head, as shown in the image.

• Remove the Plate by pushing the knob of the

Fluid Head (Not Included).

• Aach the plate of the Fluid Head

(Not Included) to the boom of the Camera

(Not Included) and then properly ghten it

using the screw driver.

• Tighten the knob of the Fluid Head by pulling

it to secure the Camera (Not Included).

NOTE: It is a full-edged kit that includes all necessary adapters and tools, created with a goal to be

adaptable with every mount and with as few items as possible. Quickly adapt from Bowl to Euro, Bowl to

Mitchell, Euro to Bowl, Euro to Mitchell, Mitchell to Bowl, Mitchell to Euro, truly one soluon for every

situaon.

YOUR PROAIM MULTI ADAPTER KIT (MITCHELL-EURO/ELEMAC-BOWL)

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.

Ce manuel convient aux modèles suivants

Autres manuels PROAIM Accessoires pour appareils photo

PROAIM

PROAIM 9CTH-TMP Manuel utilisateur

PROAIM

PROAIM QR-WV-710 Manuel utilisateur

PROAIM

PROAIM CINEMA Series Manuel utilisateur

PROAIM

PROAIM Kite-22 Ultimate Package Manuel utilisateur

PROAIM

PROAIM LB230 Manuel utilisateur

PROAIM

PROAIM P-TP300 Manuel utilisateur

PROAIM

PROAIM VI-CYRS-01 Manuel utilisateur

PROAIM

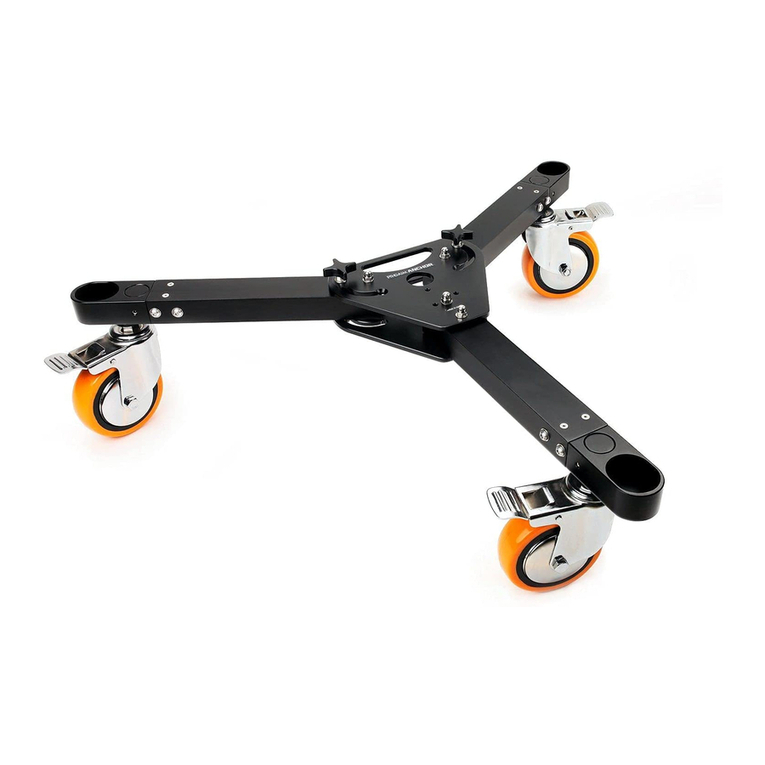

PROAIM DL-ANCR-02 Manuel utilisateur
