Airwave V1060 Shock Absorber Arm Set, 22-132lb (VI-ARWV-1060)
Assembly Manual
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
What’s In The Box
Weight rod & 2 x Closer Air lling pump
2 x Spanners 13mm& 14mm 3 x T-Type Allen Key
(Size: 4mm, 5mm 6mm)
Airwave V1060
2 x Screw
2

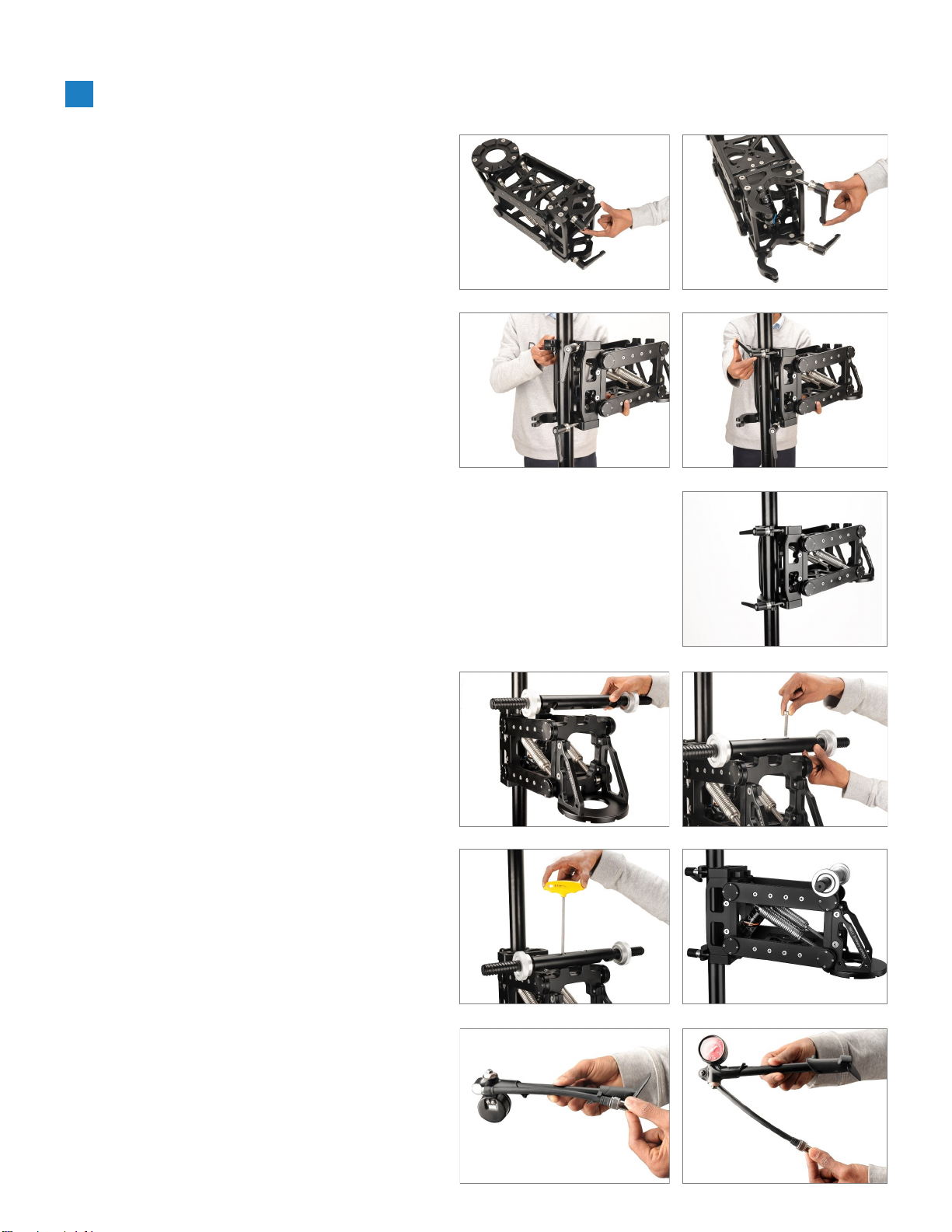

Airwave V1060 Setup
Loosen and open both the clamps of the
Airwave V1060.
Align the clamps of the Airwave to a Scaffold
Pole and then secure the clamp by properly
tightening the clamp knob.
NOTE: Airwave V1060 Arm can be securely
aached to a Dia 42mm-50mm Scaold Pole or
Speed Rail with a quick-lock Sca Mechanism.
Tighten both the bolts using an Allen key, as
shown in the image.
Align and place the weight rod on the top
part of the Airwave V1060, and then insert
the bolts by matching the thread holes.
Airwave V1060 has been properly attached to
the scaffold pole.
Open the air-filling pump.
3
Aach the air pressure pump with the washer
ed to the air suspension shocker.
After attaching the washer of the air shocker
to the air filling pump, pump the air using the
latter.
NOTE: Features a high pressure shocker pump
that quickly sets pressure according to the
weight of your camera; The recommended
maximum pressure is 200 PSI.
For weights >10 kg use a shock pump.

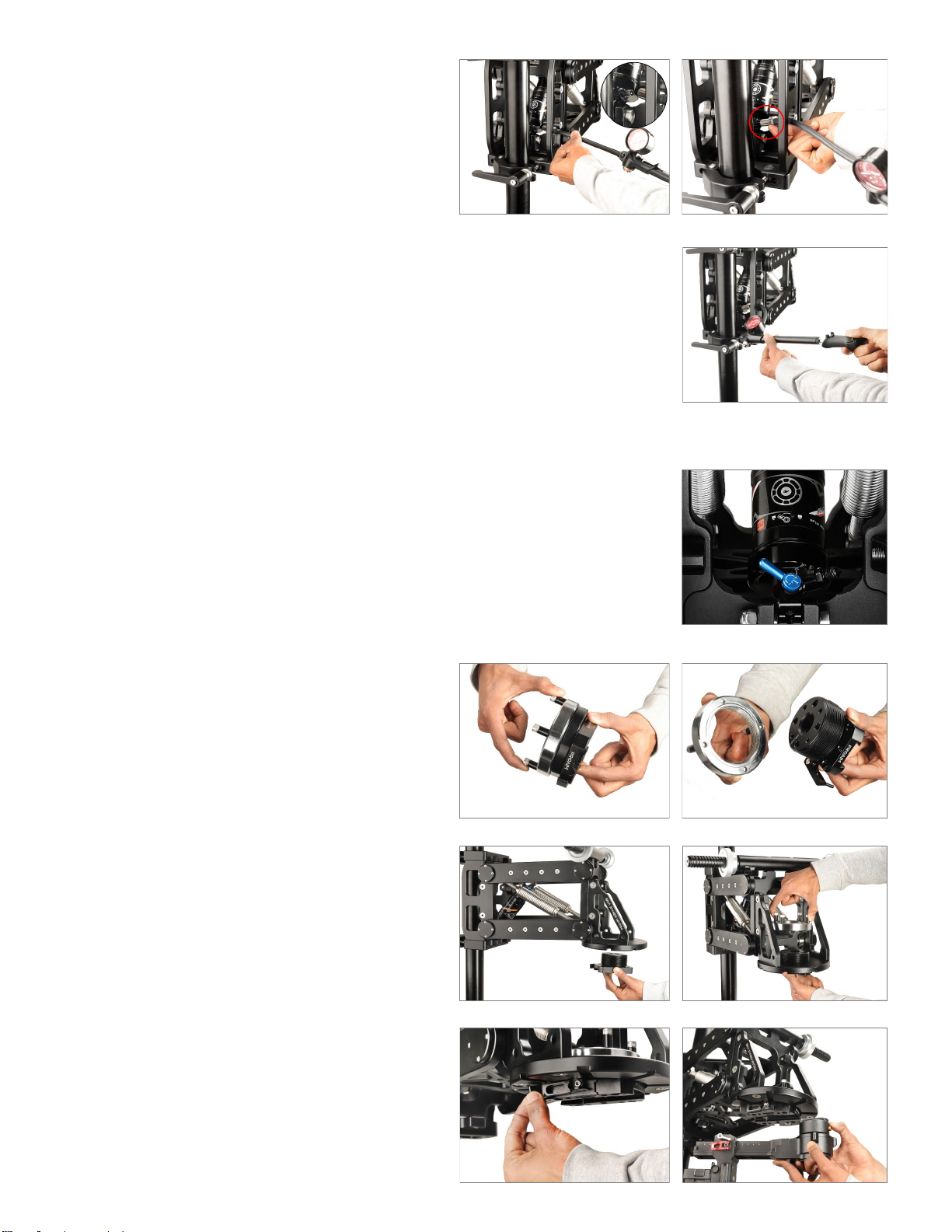

Insert the ronin mount clamp (Not Included)
from the bottom of the Airwave V1060, and
then tighten and secure it with the castle nut.
Loosen and remove the Mitchell castle nut
with ronin mount (Not Included).
NOTE: In order to smoothen Dampening eect,
turn the adjustment knob. If the arm is too so,
turn it towards direcon of Plus (+). If the arm is
rigid turn it towards the direcon of Minus (-).
Open the lock lever of the ronin mount clamp
(Not Included) by pushing it, and then gimbal
by sliding it.
4
In order to secure the gimbal (Not Included)
with the Mitchell castle nut with ronin mount
clamp, lock the assembly with the provided
lock lever.

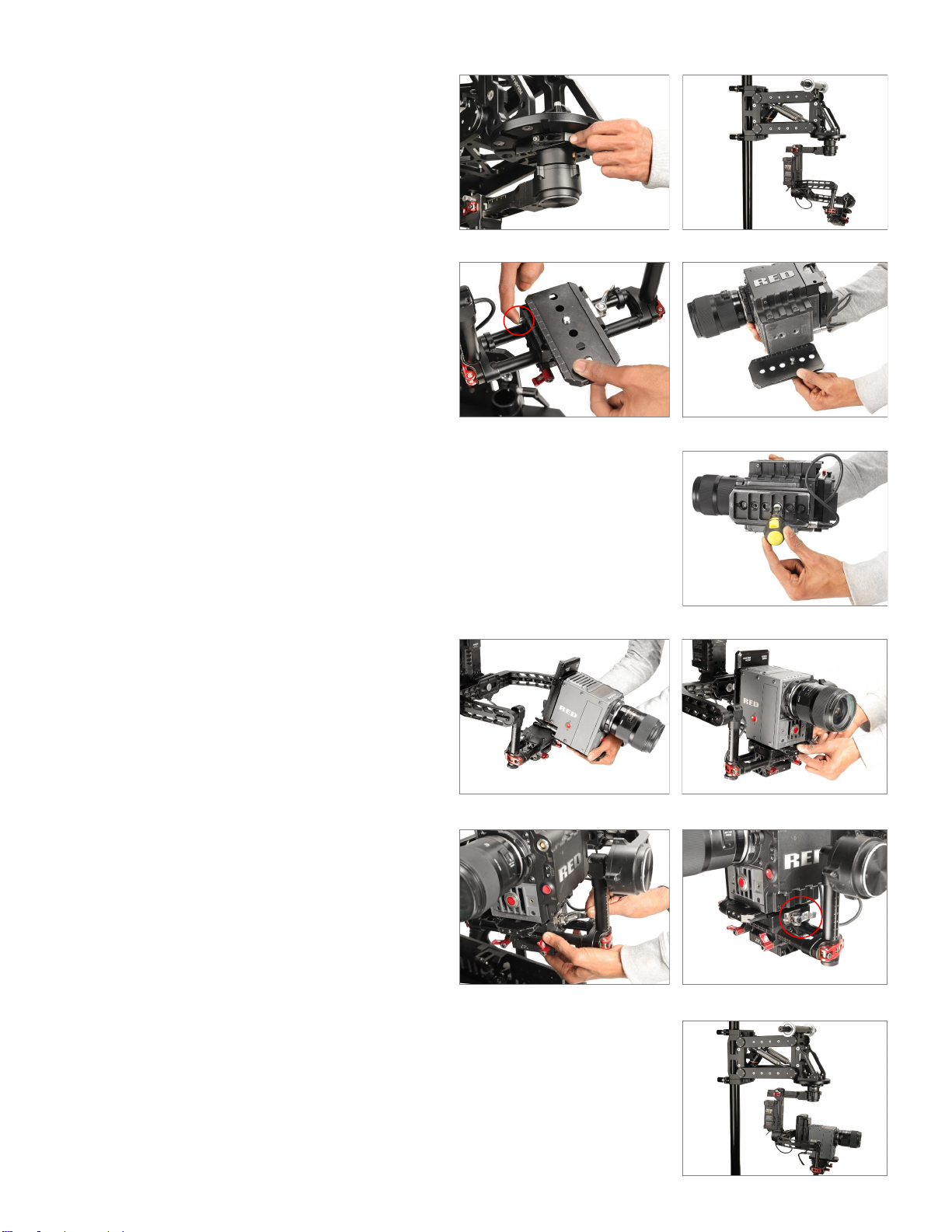

Push the pin of the gimbal plate to detach it
from the gimbal (Not Included), and then
attach it to your camera (Not Included).
Lock the assembly by pulling the lock lever.
Now, Gimble plate ko camera (Not Included)
ke boom se thread hole align karke bolt ko
screw driver ke help se properly ght kar de.
Gimbal (Not Included) has been properly
attached to the camera (Not Included).
Attach the gimbal (Not Included) with the
camera (Not Included).
5
You can manually loosen or tighten the shock
absorbing spring according to the weight
capacity of the setup.
Desire Conguraon Mount your Airwave1016
Mount over-slung or Under-slung
Similarly, remove all the bolts, as shown in
the image.
Loosen and remove the bolt of the Airwave
V1060 using the Allen key.
Under-slung/over-slung Setup
6
Loosen and remove both the bolts at the
boom of the Airwave V1060.
Now, Mitchell plaorm has been detached
from the Airwave V1060.
Insert and attach the Mitchell platform into
the Airwave V1060 by sliding it in an over-
slung manner.
Aer aaching the Mitchell Plaorm to the
Airwave V1060, insert the bolt and ghten it
with the help of the Allen key.
Also, align and match the side thread hole of
the Mitchell platform and the Airwave V1060,
and then insert and properly tighten the bolt
using the Allen key.
Now, the Mitchell platform has been properly
attached to the Airwave V1060 in an over-
slung manner.
7
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and
evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
YOUR PROAIM AIRWAVE V1060 SHOCK ABSORBER ARM SET, 22-132LB
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Airwave V1060 over-slung setup is ready to
use.
