SAFETY GUIDELINES

WARNING! An authorised Pride Provider or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage, or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and a red slash.

Please fill out the following information for quick reference:

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

This product is manufactured by:

Pride Mobility Products Corporation

182 Susquehanna Avenue

Exeter, PA 18643-2694

USA

Pride Provider:_____________________________________________________________________

Address:__________________________________________________________________________

Phone Number:__________________________

Purchase Date:__________________________ Serial Number:____________________________

Pathrider 130 XL www.pridemobility.com

CONTENTS

I. INTRODUCTION .......................................................................................................................4

II. SAFETY ........................................................................................................................................5

III. YOUR SCOOTER .....................................................................................................................20

IV. BATTERIES AND CHARGING ..........................................................................................25

V. OPERATION .............................................................................................................................30

VI. COMFORT ADJUSTMENTS ..............................................................................................32

VII. DISASSEMBLY AND ASSEMBLY ...................................................................................34

VIII.BASIC TROUBLESHOOTING ...........................................................................................36

IX. CARE AND MAINTENANCE ..............................................................................................38

X. WARRANTY ..............................................................................................................................41

APPENDIX I - SPECIFICATIONS ...............................................................................................42

Pathrider 130 XL www.pridemobility.com

I. INTRODUCTION

SAFETY

Welcome to

Pride Mobility Products Australia Pty. Ltd.

(Pride).

The product you have purchased combines

state-of-the-art components with safety, comfort, and styling in mind. We are confident the design features

will provide you with the conveniences you expect during your daily activities. Understanding how to

safely operate and care for this product should bring you years of trouble free operations and service.

Read and follow all instructions, warnings, and notes in this manual and all other accompanying literature

before attempting to operate this product for the first time. In addition, your safety depends upon you, as

well as your provider, carer, or healthcare professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assis-

tance for setup or operation, please contact your authorised Pride Provider. Failure to follow the instruc-

tions, warnings, and notes in this manual and those located on your Pride product can result in

personal injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product

or remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,

refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your scooter, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorised Pride Provider imme-

diately. Where damage has occurred during transport, either to the packaging or content, please contact

the delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments, and suggestions about this manual. We would also like to hear

about the safety and reliability of your new scooter, and about the service you received from your autho-

rised Pride Provider. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products, and new options that can increase your ability to use and enjoy

your scooter. Please feel free to contact us at the address below:

Pride Mobility Products Australia Pty. Ltd.

21 Healey Road

Dandenong, 3175

Victoria, Australia

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Pathrider 130 XL www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

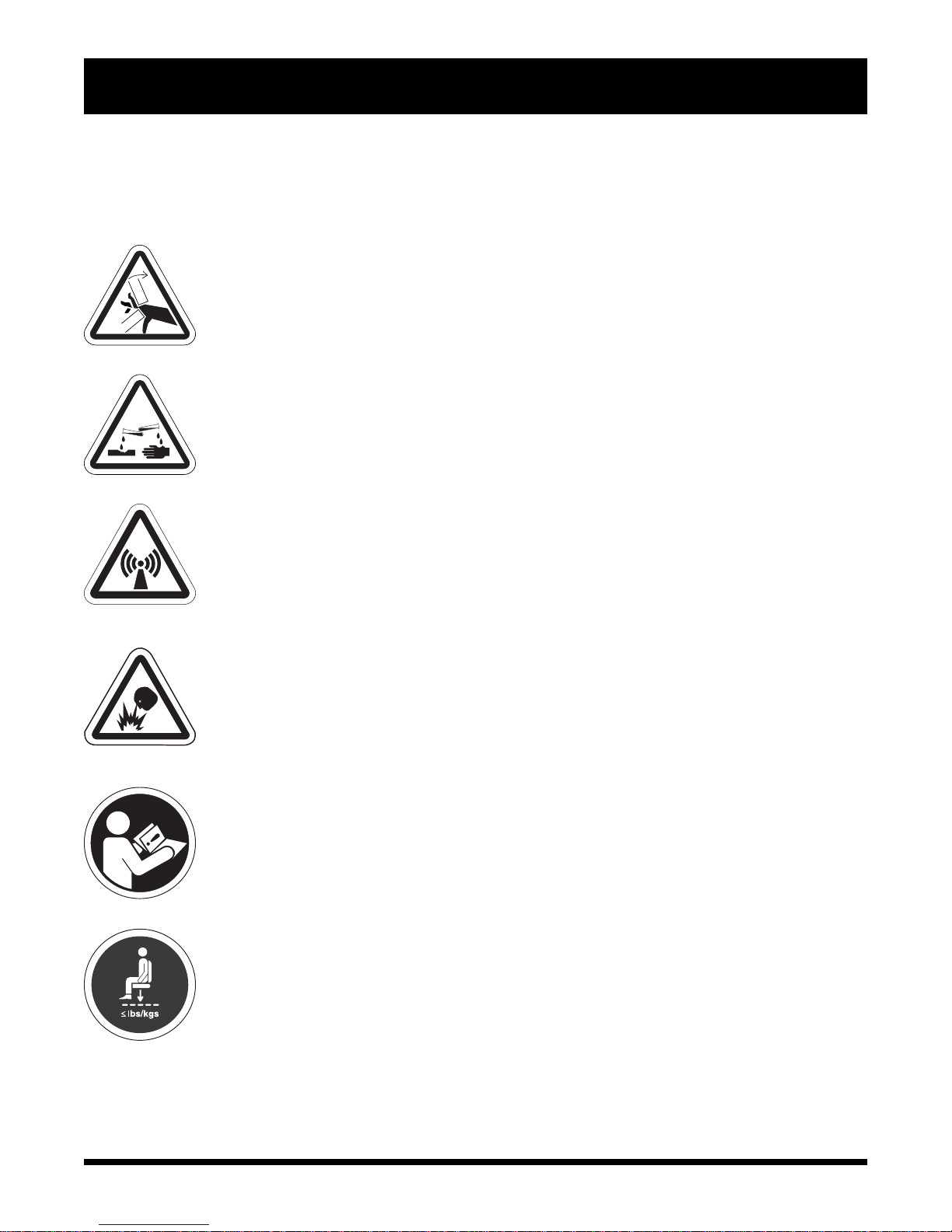

The symbols below are used on the scooter to identify warnings, mandatory actions, and prohibited

actions. It is very important for you to read and understand them completely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

Maximum seating weight.

Pathrider 130 XL www.pridemobility.com

II. SAFETY

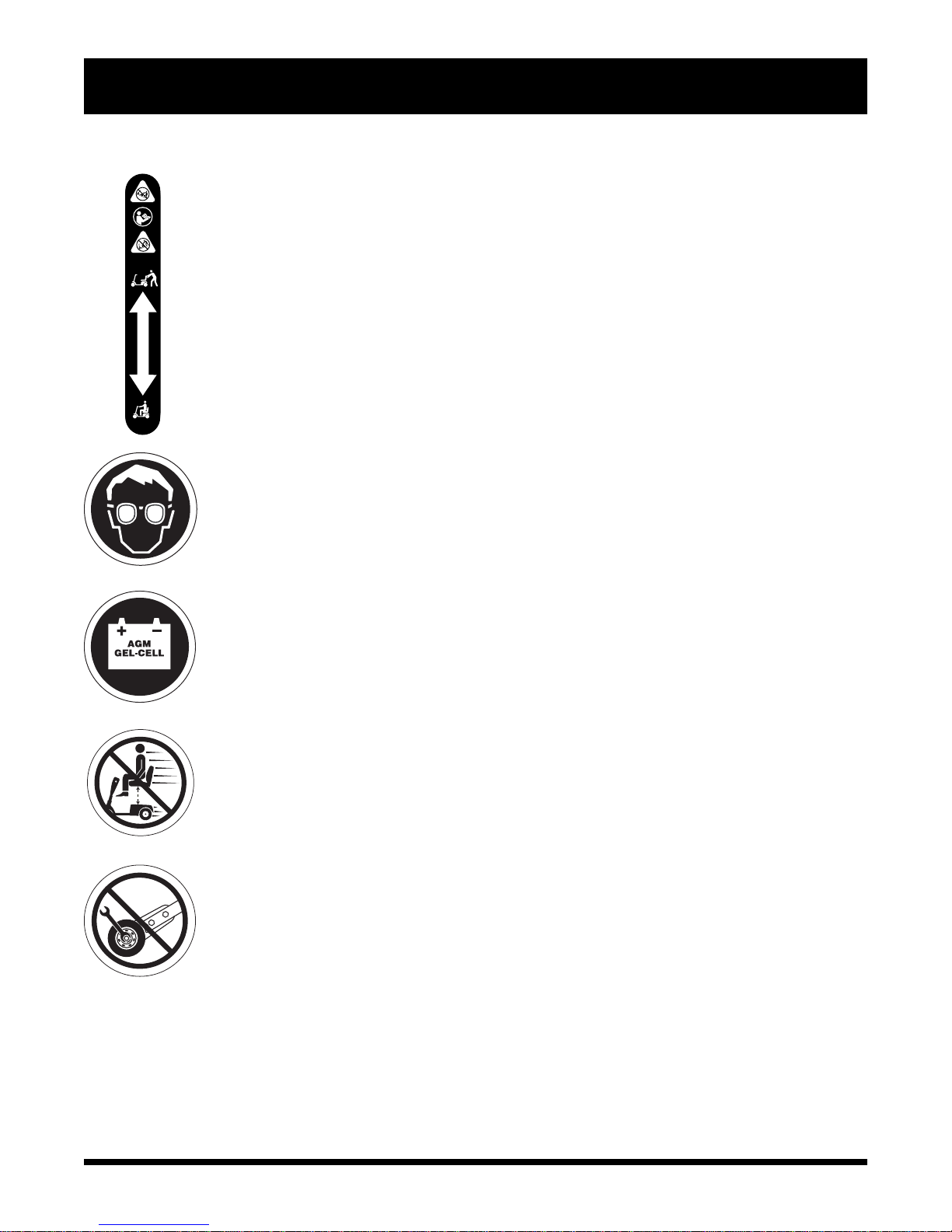

Place unit on level ground and stand to one side when changing from drive mode

to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Do not remove anti-tip wheels.

Wear safety goggles.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Do not raise or lower the power seat while the scooter is in motion.

Pathrider 130 XL www.pridemobility.com

II. SAFETY

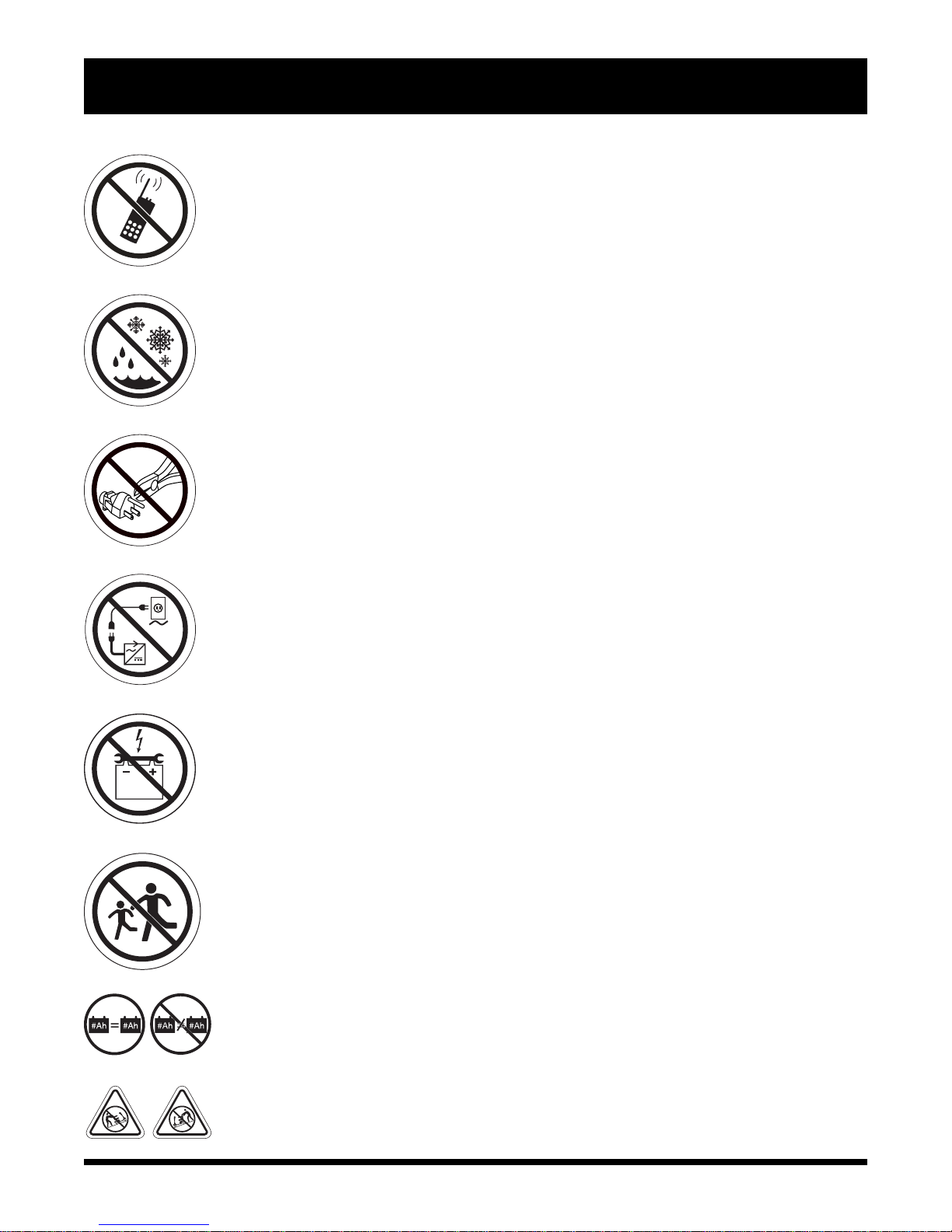

Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while

operating.

Avoid exposure to rain, snow, ice, salt, or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Do not connect an extension lead to the AC/DC converter or the battery charger.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

Do not allow unsupervised children to play near the scooter while the batteries

are charging.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Do not place the scooter in freewheel mode when on an incline or decline.

Pathrider 130 XL www.pridemobility.com

II. SAFETY

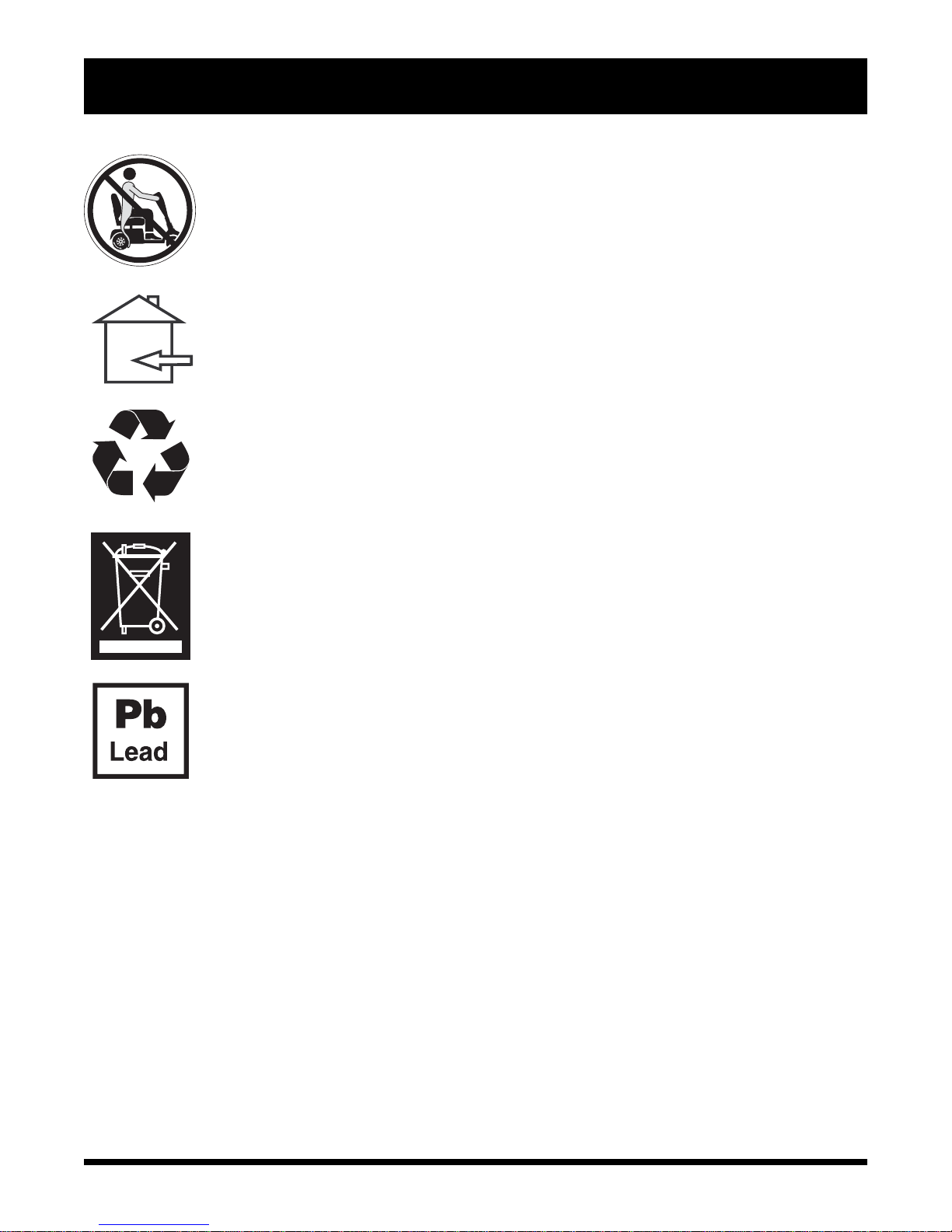

Battery charger for indoor use only.

Disposal and recycling - Contact your authorised Pride Provider for information on

proper disposal and recycling of your Pride product and its packaging.

Contains Lead.

Keep your hands away from the tyres when driving. Be aware that loose fitting

clothing can become caught in drive tyres.

Pathrider 130 XL www.pridemobility.com

II. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely read-

ing and understanding this owner’s manual.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the

final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the

scooter user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the scooter to the user and has assisted the prescribing healthcare professional and/or the authorised Pride

Provider in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to prac-

tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a

family member or care professional specially trained in assisting a scooter user in various daily living

activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you maneuver through doorways, on and off lifts, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed

to operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. However, under

no circumstances should you modify, add, remove, or disable any feature, part, or function of your scooter.

WARNING! Do not modify your scooter in any way not authorised by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts,

including the armrests, seat, or shroud.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your scooter operates smoothly and safely.

Pathrider 130 XL www.pridemobility.com

II. SAFETY

Perform the following inspections prior to using your scooter:

Check for proper tyre inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated

on each tyre if equipped with pneumatic tyres.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes.

Check battery charge.

If you discover a problem, contact your authorised Pride Provider for assistance.

TYRE INFLATION

If your scooter is equipped with pneumatic tyres, you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth

operation of your scooter.

WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on

the tyre be maintained in pneumatic tyres at all times. Do not underinflate or overinflate

your tyres. Low pressure may result in loss of control, and overinflated tyres may burst.

Failure to maintain the psi/bar/kPa air pressure rating indicted on the pneumatic tyres at

all times may result in tyre and/or wheel failure.

WARNING! Inflate your scooter tyres from a regulated air source with an available pres-

sure gauge. Inflating your tyres from an unregulated air source could overinflate them,

resulting in a burst tyre.

WEIGHT LIMITATIONS

Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information.

Keep in mind that the maximum weight capacity includes the combined weight of the user and any acces-

sories mounted to the scooter.

MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the

weight capacity voids your warranty. Pride will not be held responsible for injuries and/

or property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers on your

scooter may affect the centre of gravity, resulting in a tip or a fall.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cor-

nering skills on your scooter.

Proceed with extreme caution as you approach the downgrade of a ramp or other incline.

Take wide swings with your scooter around any tight corners. If you do that, the scooter’s rear wheels

will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.

When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to

ensure a safely controlled descent.

Avoid sudden stops and starts.

NOTE: If the tyre on your scooter lists the psi rating only, use the following conversion formulas to find

the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

Table des matières

Autres manuels Pride Mobility Scooter

Pride Mobility

Pride Mobility Legend XL Manuel utilisateur

Pride Mobility

Pride Mobility v10 Manuel utilisateur

Pride Mobility

Pride Mobility OUTBACK Manuel utilisateur

Pride Mobility

Pride Mobility REVO Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Ultra X Manuel utilisateur

Pride Mobility

Pride Mobility Sonic Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Manuel utilisateur

Pride Mobility

Pride Mobility 39 Manuel utilisateur

Pride Mobility

Pride Mobility Legend SC3000 Manuel utilisateur

Pride Mobility

Pride Mobility Victory ES9 Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility Celebirty The Ultimate In Style &... Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SPORT Manuel utilisateur

Pride Mobility

Pride Mobility Mini Crosser Manuel utilisateur

Pride Mobility

Pride Mobility Wrangler Manuel utilisateur

Pride Mobility

Pride Mobility COLT PURSUIT Manuel utilisateur

Pride Mobility

Pride Mobility Wrangler Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility Bebop Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Ultra X Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Series Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
