Pride Mobility COLT PURSUIT Manuel utilisateur

32 Wedgwood Road

Bicester, Oxon OX26 4UL

*INFMANU4185*

COLT

PURSUIT

Pride Mobility Products Ltd.

INFMANU4185/Rev B/August 2011

SAFETY GUIDELINES

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Pride Dealer:

Address:

Phone Number:

Purchase Date: Serial Number:

WARNING! An authorised Pride Dealer or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and a red slash.

Please fill out the following information for quick reference:

Colt Pursuit www.pridemobility.com 3

CONTENTS

I. INTRODUCTION .......................................................................................................................4

II. SAFETY ........................................................................................................................................5

III. YOUR SCOOTER .....................................................................................................................21

IV. BATTERIES AND CHARGING ..........................................................................................25

V. OPERATION .............................................................................................................................30

VI. COMFORT ADJUSTMENTS ..............................................................................................32

VII. DISASSEMBLY AND ASSEMBLY ...................................................................................36

VIII.BASIC TROUBLESHOOTING ...........................................................................................38

IX. CARE AND MAINTENANCE ..............................................................................................40

X. WARRANTY ..............................................................................................................................43

4www.pridemobility.com Colt Pursuit

I. INTRODUCTION

SAFETY

Welcome to Pride Mobility Products (Pride). The product you have purchased combines state-of-the-art

components with safety, comfort and styling in mind. We are confident the design features will provide

you with the conveniences you expect during your daily activities. Understanding how to safely operate

and care for this product should bring you years of trouble-free operations and service.

Read and follow all instructions, warnings and notes in this manual before attempting to operate your

scooter for the first time. You must also read all instructions, warnings and notes contained in any

supplemental instructional booklets that accompanied your scooter before initial operation. Your safety

depends upon you, as well as your dealer, carer or healthcare professional in using good judgement

If there is any information in this manual which you do not understand or if you require additional assis-

tance for setup or operation, please contact your authorised Pride Dealer. Failure to follow the instruc-

tions, warnings and notes in this manual and those located on your Pride product can result in

personal injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter or modify this product

or remove or render inoperable or unsafe any guards, shields or other safety features of this product; fail,

refuse or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your scooter, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorised Pride Dealer immedi-

ately. Where damage has occurred during transport, either to the packaging or content, please contact the

delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments and suggestions about this manual. We would also like to hear

about the safety and reliability of your new scooter and about the service you received from your autho-

rised Pride Dealer. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products and new options that can increase your ability to use and enjoy

your scooter. Please feel free to contact us at the address below:

Pride Mobility Products Ltd.

32 Wedgwood Road

Bicester, Oxon OX26 4UL

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Colt Pursuit www.pridemobility.com 5

II. SAFETY

PRODUCT SAFETY SYMBOLS

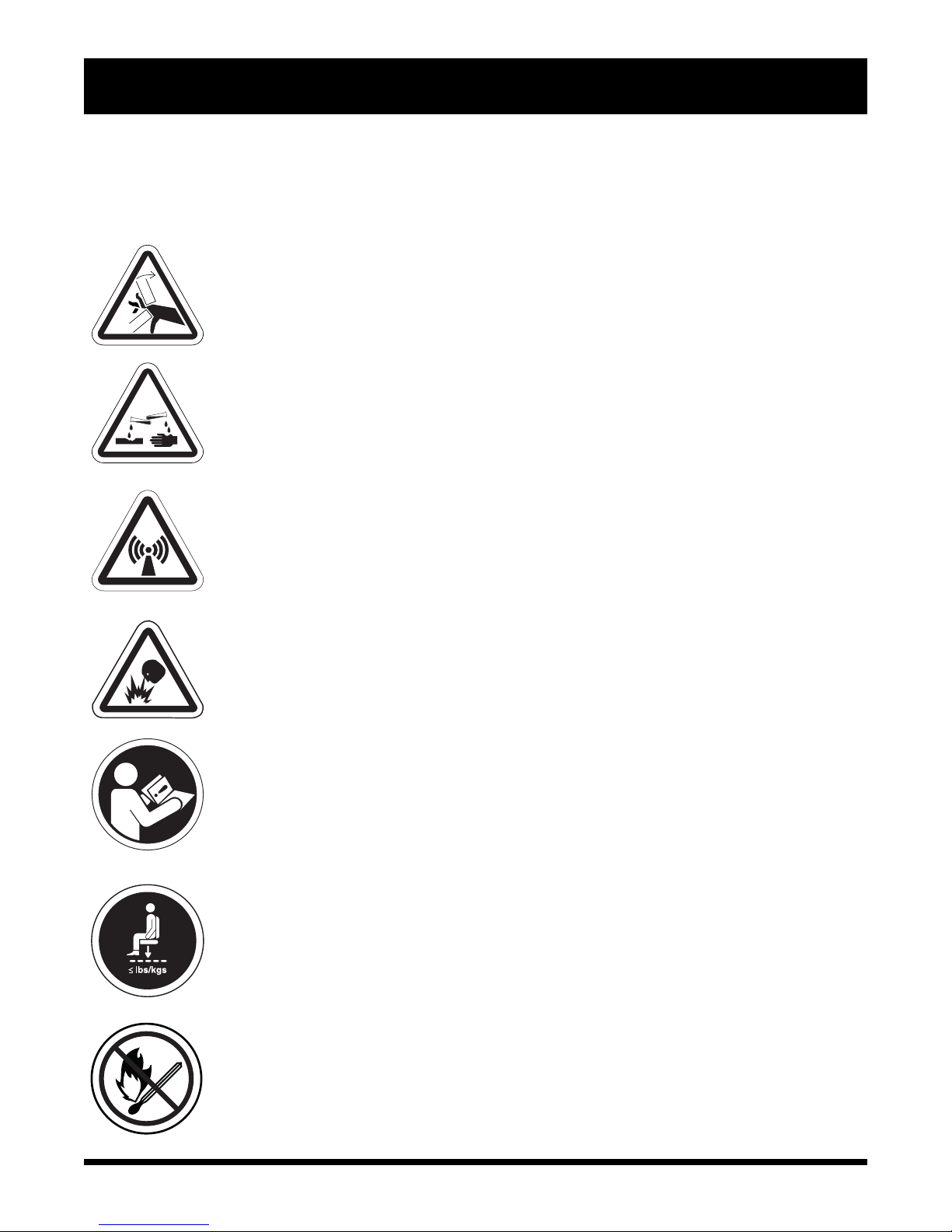

The symbols below are used on the scooter to identify warnings, mandatory actions and prohibited actions.

It is very important for you to read and understand them completely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI/RFI - This product has been tested and passed at an immunity level of 20 V/m.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

Maximum seating weight.

Indicates flammable material. Do not expose to heat sources such as open flame

or sparks. Do not transport batteries with flammable or combustible items.

6www.pridemobility.com Colt Pursuit

II. SAFETY

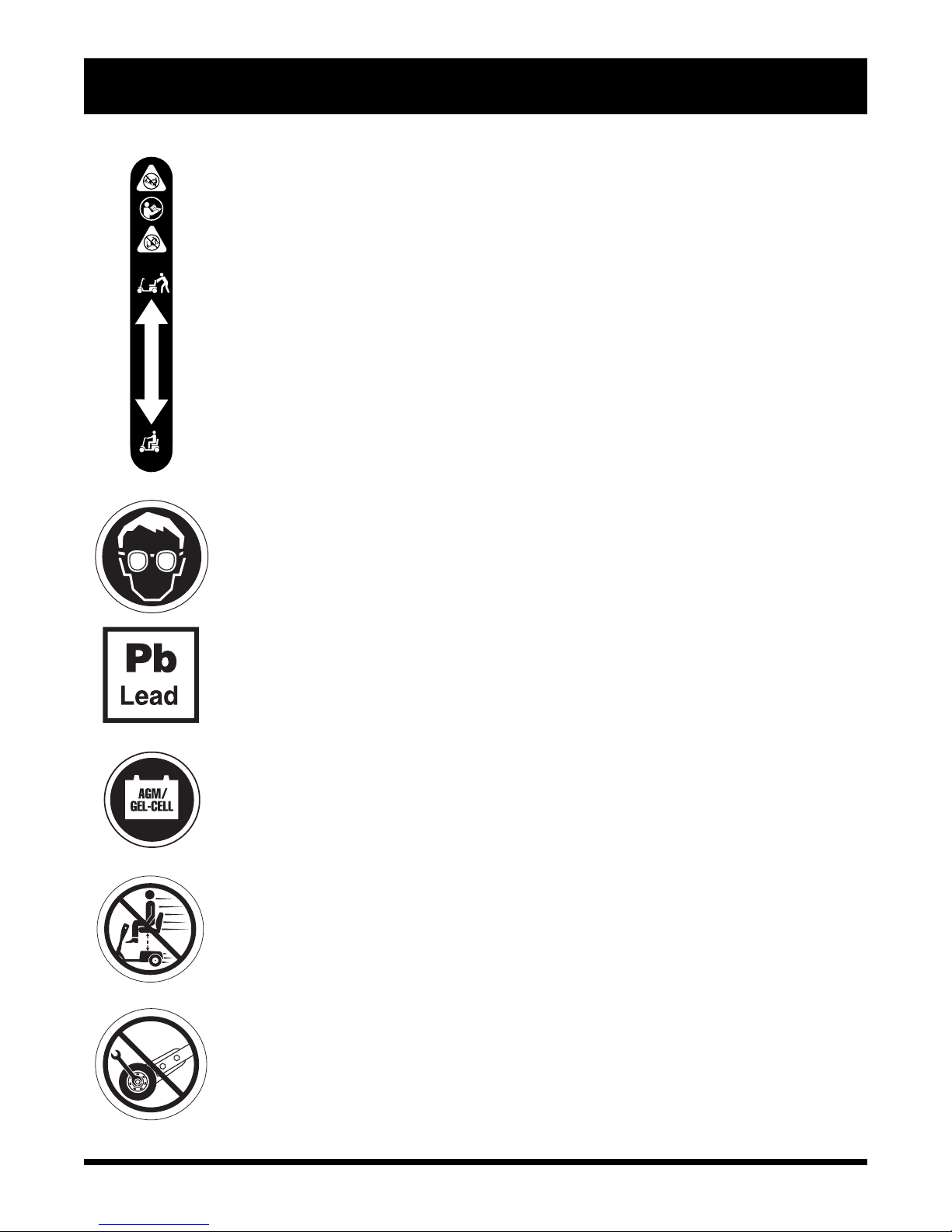

Place unit on level ground and stand to one side when changing from drive mode

to freewheel mode or freewheel mode to drive mode.

Locked and in drive mode.

Unlocked and in freewheel mode.

Do not remove anti-tip wheels.

Battery posts, terminals and related accessories contain lead and lead com-

pounds. Wear goggles and gloves when handling batteries and wash hands after

handling.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Do not raise or lower the power seat while the scooter is in motion.

Colt Pursuit www.pridemobility.com 7

II. SAFETY

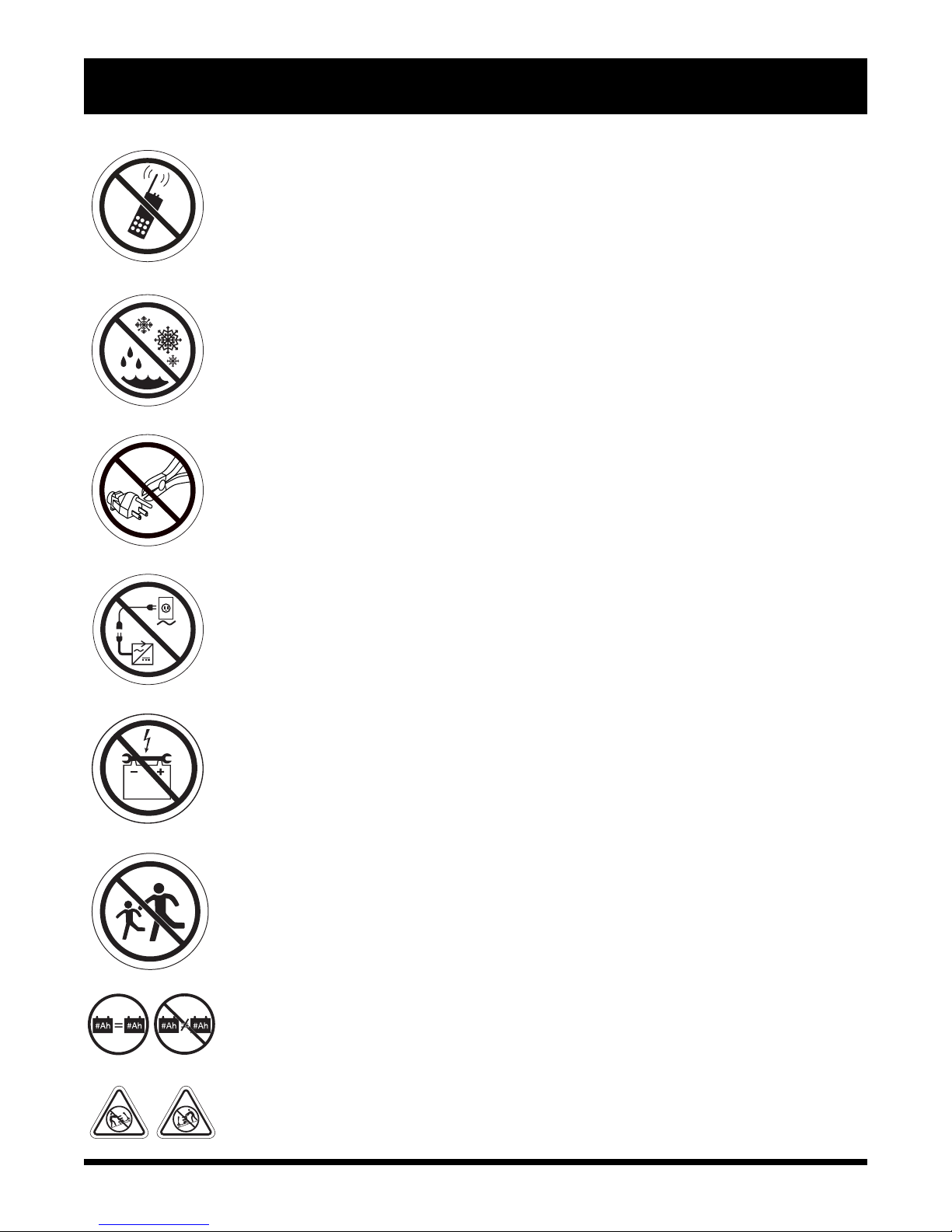

Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while

operating.

Avoid exposure to rain, snow, ice, salt or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Do not connect an extension lead to the AC/DC converter or the battery charger.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

Do not allow unsupervised children to play near the scooter while the batteries

are charging.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Do not place the scooter in freewheel mode when on an incline or decline.

8www.pridemobility.com Colt Pursuit

60 AMP

CIRCUIT BREAKER

BATTERY

125A/50V

II. SAFETY

Battery charger for indoor use only.

Disposal and recycling - Contact your authorised Pride Dealer for information on

proper disposal and recycling of your Pride product and its packaging.

Keep your hands away from the tyres when driving. Be aware that loose fitting

clothing can become caught in drive tyres.

Keep area clean.

Manufactured in

Keep area dry.

Battery Set Configuration:

+ = Positive (Red) Terminal Post

- = Negative (Black) Terminal Post

Connect Red wires to Red Positive (+) Terminal Posts.

Connect Black wire to Black Negative (-) Terminal Posts.

Colt Pursuit www.pridemobility.com 9

II. SAFETY

Not a brake.

Indicates scooter tie-down points.

10 www.pridemobility.com Colt Pursuit

II. SAFETY

GENERAL

MANDATORY! Do not operate your new scooter for the first time without completely read-

ing and understanding this owner’s manual.

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best fit the individual needs of the scooter user. Please be aware that the

final selection and purchasing decision regarding the type of scooter to be used is the responsibility of the

scooter user, who is capable of making such a decision and his/her healthcare professional (i.e., medical

doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the scooter to the user and has assisted the prescribing healthcare professional and/or the authorised Pride

Dealer in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to prac-

tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a

family member or health care professional specially trained in assisting a scooter user in various daily

living activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you manoeuver through doorways, on and off lifts, up and down ramps and over moderate terrain.

Below are some precautions, tips and other safety considerations that will help you become accustomed

to operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. A wide range

of accessories is available from Pride to further customise your scooter to better suit your needs and/or

preferences. However, under no circumstances should you modify, add, remove or disable any feature,

part or function of your scooter.

WARNING! Do not modify your scooter in any way not authorised by Pride. Do not use

accessories if they have not been tested or approved for Pride products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts,

including the armrests, seat or shroud. Pride recommends use of only solid, non-remov-

able frame components such as scooter securement points or the front and rear frame

weldments to lift or move your scooter.

WARNING! Lifting the scooter should be accomplished with no fewer than three people,

one at the front and two at the rear of the unit.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your scooter operates smoothly and safely.
