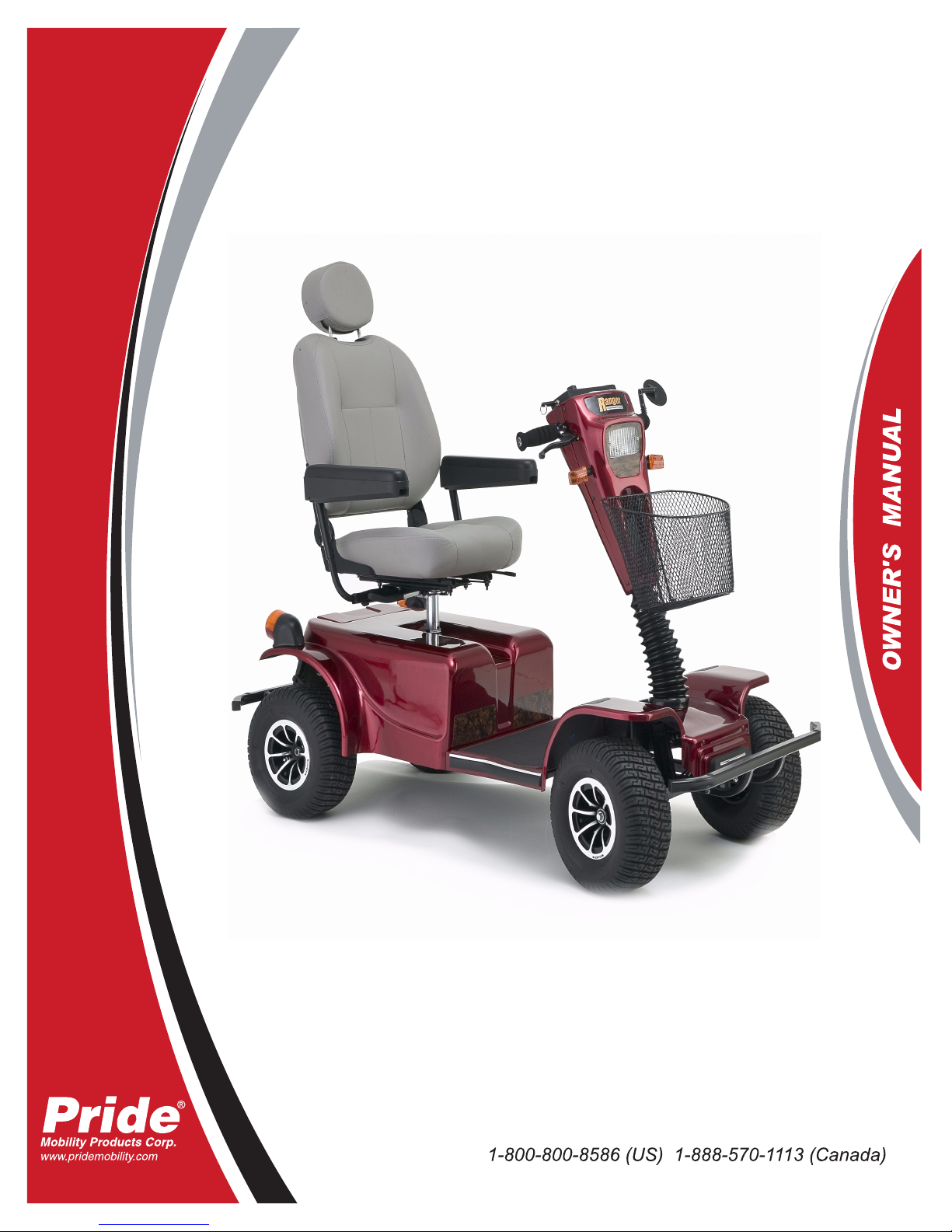

Pride Mobility Ranger Manuel utilisateur

RANGER

*INFMANU1209

Pride Mobility Products Ltd.

INFMANU1209/Rev K/February 2012

SAFETY GUIDELINES

Pride Dealer:

Address:

Phone Number:

Purchase Date: Serial Number:

WARNING! An authorised Pride Dealer or qualified technician must perform the initial

setup of this scooter and must perform all of the procedures in this manual.

The symbols below are used throughout this owner's manual and on the scooter to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow

designated procedures can cause either personal injury, component damage or

malfunction. On the product, this icon is represented as a black symbol on a yellow

triangle with a black border.

MANDATORY! These actions should be performed as specified. Failure to perform

mandatory actions can cause personal injury and/or equipment damage. On the product,

this icon is represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at

any time or in any circumstances. Performing a prohibited action can cause personal

injury and/or equipment damage. On the product, this icon is represented as a black

symbol with a red circle and a red slash.

NOTE: This owner’s manual is compiled from the latest specifications and product information avail-

able at the time of publication. We reserve the right to make changes as they become necessary. Any

changes to our products may cause slight variations between the illustrations and explanations in this

manual and the product you have purchased. The latest/current version of this manual is available on

our website.

Quick Reference Information

Intended Use

The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a

seated position that have the capability of operating a powered scooter.

Ranger www.pridemobility.com

CONTENTS

I. INTRODUCTION ................................................................................................ 4

II. SAFETY ................................................................................................................. 5

III. YOUR SCOOTER .............................................................................................. 19

IV. BATTERIES AND CHARGING ................................................................... 23

V. O P E R A T I O N ...................................................................................................... 28

VI. COMFORT ADJUSTMENTS ....................................................................... 30

VII. DISASSEMBLY AND ASSEMBLY ........................................................... 33

VIII. BASIC TROUBLESHOOTING .................................................................. 34

IX. CARE AND MAINTENANCE ...................................................................... 35

X. WARRANTY ....................................................................................................... 38

APPENDIX I - SPECIFICATIONS ......................................................................39

4www.pridemobility.com Ranger

I. INTRODUCTION

SAFETY

Welcome to Pride Mobility Products Ltd. (Pride). The scooter you have purchased combines state-of the-

art components with safety, comfort and styling in mind. We are confident the design features will provide

you with the conveniences you expect during your daily activities. Understanding how to safely operate

and care for this scooter should bring you years of trouble-free operation and service.

Read and follow all instructions, warnings and notes in this manual and all other accompanying literature

before attempting to operate this product for the first time. In addition, your safety depends upon you, as

well as your dealer, carer or healthcare professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assis-

tance for setup or operation, please contact your authorised Pride Dealer. Failure to follow the instruc-

tions, warnings and notes in this manual and those located on your scooter can result in personal

injury or product damage and will void Pride’s product warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter or modify this product

or remove or render inoperable or unsafe any guards, shields or other safety features of this product; fail,

refuse or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the

safe use of this product.

SHIPPING AND DELIVERY

Before using your scooter, make sure your delivery is complete as some components may be individually

packaged. If you do not receive a complete delivery, please contact your authorised Pride Dealer immedi-

ately. Where damage has occurred during transport, either to the packaging or content, please contact the

delivery company responsible.

INFORMATION EXCHANGE

We want to hear your questions, comments and suggestions about this manual. We would also like to hear

about the safety and reliability of your new scooter, and about the service you received from your autho-

rised Pride Dealer. Please notify us of any change of address, so we can keep you apprised of important

information about safety, new products and new options that can increase your ability to use and enjoy

your scooter. Please feel free to contact us at the address below:

Pride Mobility Products Ltd.

32 Wedgwood Road

Bicester, Oxon OX26 4UL

NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact

us and we will be glad to send you a new one immediately.

Ranger www.pridemobility.com

II. SAFETY

PRODUCT SAFETY SYMBOLS

The symbols below are used on the scooter to identify warnings, mandatory actions and prohibited actions.

It is very important for you to read and understand them completely.

Pinch/Crush points created during assembly.

Corrosive chemicals contained in battery.

EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m.

Do not lift the mobility vehicle while seated in it.

Explosive conditions exist!

Read and follow the information in the owner’s manual.

6www.pridemobility.com Ranger

II. SAFETY

Maximum seating weight.

Do not remove anti-tip wheels.

Wear safety goggles.

Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive

conditions.

Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while

operating.

Do not place scooter in freewheel mode on a decline.

Do not place scooter in freewheel mode on an incline.

Ranger www.pridemobility.com

II. SAFETY

Avoid exposure to rain, snow, ice, salt or standing water whenever possible.

Maintain and store in a clean and dry condition.

Removal of grounding prong can create electrical hazard. If necessary, properly

install an approved 3-pronged adapter to an electrical outlet having 2-pronged

plug access.

Do not connect an extension lead to the AC/DC converter or the battery charger.

Keep tools and other metal objects away from battery terminals. Contact with

tools can cause electrical shock.

Do not allow unsupervised children to play near the scooter while the batteries

are charging.

Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and

new batteries. Always replace both batteries at the same time.

Keep your hands away from the tyres when driving. Be aware that loose fitting

clothing can become caught in drive tyres.

8www.pridemobility.com Ranger

Battery charger for indoor use only.

Disposal and recycling - Contact your authorised Pride Dealer for information on

proper disposal and recycling of your Pride product and its packaging.

Contains Lead.

II. SAFETY

Ranger www.pridemobility.com

II. SAFETY

GENERAL

Your scooter is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides

an extensive variety of products to best fit the individual needs of the scooter user. Please be aware that

the final selection and purchasing decision regarding the type of scooter to be used is the responsibility of

the scooter user, who is capable of making such a decision, and his/her healthcare professional (i.e., med-

ical doctor, physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly fitted

the scooter to the user and has assisted the prescribing healthcare professional and/or the authorised Pride

Dealer in the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the scooter user will need to prac-

tice operating the scooter in the presence of a trained attendant. A trained attendant can be defined as a

family member or care professional specially trained in assisting a scooter user in various daily-living

activities.

As you begin using your scooter during daily activities, you will probably encounter situations in which

you will need some practice. Simply take your time and you will soon be in full and confident control as

you manoeuvre through doorways, on and off lifts, up and down ramps and over moderate terrain.

Below are some precautions, tips and other safety considerations that will help you become accustomed

to operating the scooter safely.

MODIFICATIONS

Pride has designed and engineered your scooter to provide maximum mobility and utility. A wide range

of accessories are available from your authorised Pride Dealer to further customise your scooter to better

suit your needs and/or preferences. However, under no circumstances should you modify, add, remove or

disable any feature, part or function of your scooter.

WARNING! Do not operate your new scooter for the first time without completely reading

and understanding this owner’s manual.

WARNING! Do not modify your scooter in any way not authorised by Pride. Do not use

accessories if they have not been tested or approved for Pride Products.

REMOVABLE PARTS

WARNING! Do not attempt to lift or move your scooter by any of its removable parts,

including the armrests, seat or shroud.

PRE-RIDE SAFETY CHECK

Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety

check before each use to make sure your scooter operates smoothly and safely.

10 www.pridemobility.com Ranger

II. SAFETY

Perform the following inspections prior to using your scooter:

Check for proper tyre inflation. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated

on each tyre if equipped with pneumatic tyres.

Check all electrical connections. Make sure they are tight and not corroded.

Check all harness connections. Make sure they are secured properly.

Check the brakes.

Check battery charge.

If you discover a problem, contact your authorised Pride Dealer for assistance.

WEIGHT LIMITATIONS

Your scooter is rated for a maximum weight capacity. Refer to the specifications table for information.

WARNING! It is critically important that the psi/bar/kPa air pressure rating indicated on

the tyre be maintained in pneumatic tyres at all times. Do not underinflate or overinflate

your tyres. Low pressure may result in loss of control, and overinflated tyres may burst.

Failure to maintain the psi/bar/kPa air pressure rating indicated on pneumatic tyres at all

times may result in tyre and/or wheel failure.

WARNING! Inflate your scooter tyres from a regulated air source with an available

pressure gauge. Inflating your tyres from an unregulated air source could overinflate

them, resulting in a burst tyre.

MANDATORY! Stay within the specified weight capacity for your scooter. Exceeding the

weight capacity voids your warranty. Pride will not be held responsible for injuries and/or

property damage resulting from failure to observe weight limitations.

WARNING! Do not carry passengers on your scooter. Carrying passengers on your scooter

may affect the centre of gravity, resulting in a tip or fall.

NOTE: If the tyres on your scooter list the psi rating only, use the following conversion formulas to find

the bar or kPa rating: bar = psi x 0.06895; kPa = psi x 6.89476.

TYRE INFLATION

If your scooter is equipped with pneumatic tyres, you should check or have the air pressure checked at least

once a week. Proper inflation pressures will prolong the life of your tyres and help ensure the smooth

operation of your scooter.

INCLINE INFORMATION

More and more buildings have ramps with specified degrees of inclination, designed for easy and safe

access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cor-

nering skills on your scooter.

Proceed with extreme caution as you approach the downgrade of a ramp or other incline.

Take wide swings with your scooter around any tight corners. If you do that, the scooter’s rear wheels

will follow a wide arc, not cut the corner short and not bump into or get hung up on any railing corners.

When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to

ensure a safely controlled descent.

Avoid sudden stops and starts.

Table des matières

Autres manuels Pride Mobility Scooter

Pride Mobility

Pride Mobility Victory ES9 Manuel utilisateur

Pride Mobility

Pride Mobility Go Go ES Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility Celebrity XL deluxe Manuel utilisateur

Pride Mobility

Pride Mobility Maxima Scooter SC940 Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Elite Traveller SC40LR Manuel utilisateur

Pride Mobility

Pride Mobility Go-Go Ultra X Manuel utilisateur

Pride Mobility

Pride Mobility 39 Manuel utilisateur

Pride Mobility

Pride Mobility Celebrity X Sport Manuel utilisateur

Pride Mobility

Pride Mobility GO-GO ELITE TRAVELLER Plus Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Sidekick Manuel utilisateur

Pride Mobility

Pride Mobility Revo Sport Manuel utilisateur

Pride Mobility

Pride Mobility Legend XL Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy Elite ES Manuel utilisateur

Pride Mobility

Pride Mobility Pathrider 130 XL Manuel utilisateur

Pride Mobility

Pride Mobility go-go ES2 Manuel utilisateur

Pride Mobility

Pride Mobility Colt Twin Manuel utilisateur

Pride Mobility

Pride Mobility VICTORY SERIES Manuel utilisateur

Pride Mobility

Pride Mobility Jazzy 600 ES Manuel utilisateur

Pride Mobility

Pride Mobility CELEBRITY X Manuel utilisateur

Pride Mobility

Pride Mobility Zero Turn 10 Manuel utilisateur

Pride Mobility

Pride Mobility Dash Manuel utilisateur

Pride Mobility

Pride Mobility Path rider Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
