Premier Mounts RFM Manuel utilisateur

INSTALLATION INSTRUCTIONS

Rotary Flat Mount

Model: RFM

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: 800-368-9700

Fax: 800-832-4888

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

AUSTRALIA, NEW ZEALAND, OCEANIA

(DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: 039586 6330

www.premiermounts.com.au

Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044

©Premier Mounts 2008

9531-009-041-03

Page 2 Installation Instructions

Table of Contents

Warning Statements

RFM

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND

COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL

INJURY AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE

LOCATION FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS

PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY

UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS,

DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR

IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE DISPLAY. IF NOT,

THE SURFACE STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS

PRODUCT IS 160LBS. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED

IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS

PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE

PROPER SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling

the display.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder

is recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no elec-

trical wires in wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause

severe water damage to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

[email protected]

Contact Premier Mounts 2

Warning Statements 3

Parts List 4

Installation Tools 4

Thread Depth Indicator 7

Mount Installation 8

Concrete Mounting 9

Universal Mounting Bracket Installation 9

Display Orientation 11

Technical Specifications 11

Warranty 12

Installation Instructions Page 3

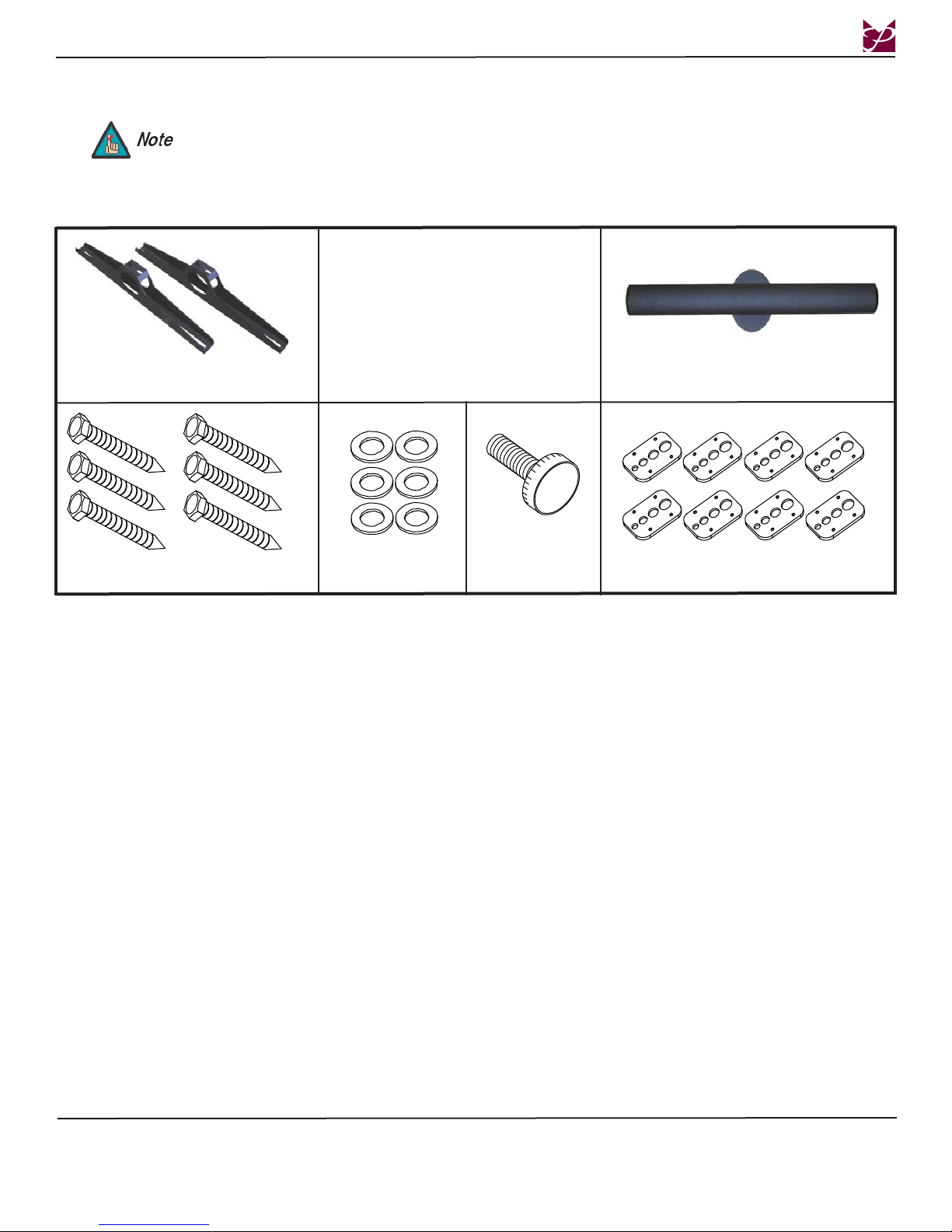

Parts List

This mount is shipped with all installation hardware and components. Make sure that none of these parts are

missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop and

contact Premier Mounts (800) 368-9700.

Installation Tools

Griplate™ (Qty 8)

5/16” x 3” Lag Bolts - wooden studs

only (Qty 6)

5/16” Flat Washers

(Qty 6)

Phillips Head Screw Driver Soft Material/Blanket 1/2” Socket and Wrench

Pencil Tape Measure Drill Gun

Level (Supplied) M5 Allen Wrench (Supplied) 5/32” Allen Wrench (Supplied)

1/4” Drill Bit (Pilot Holes) Thread Depth Indicator (Supplied)

Masonry Drill Bit (Concrete Applications - Commercially Available)

RFM

Universal Mounting Brackets (Qty 2) Rotating Universal Bracket Bar (Qty 1)

M6 Knurl Knob

(Qty 1)

Page 4 Installation Instructions

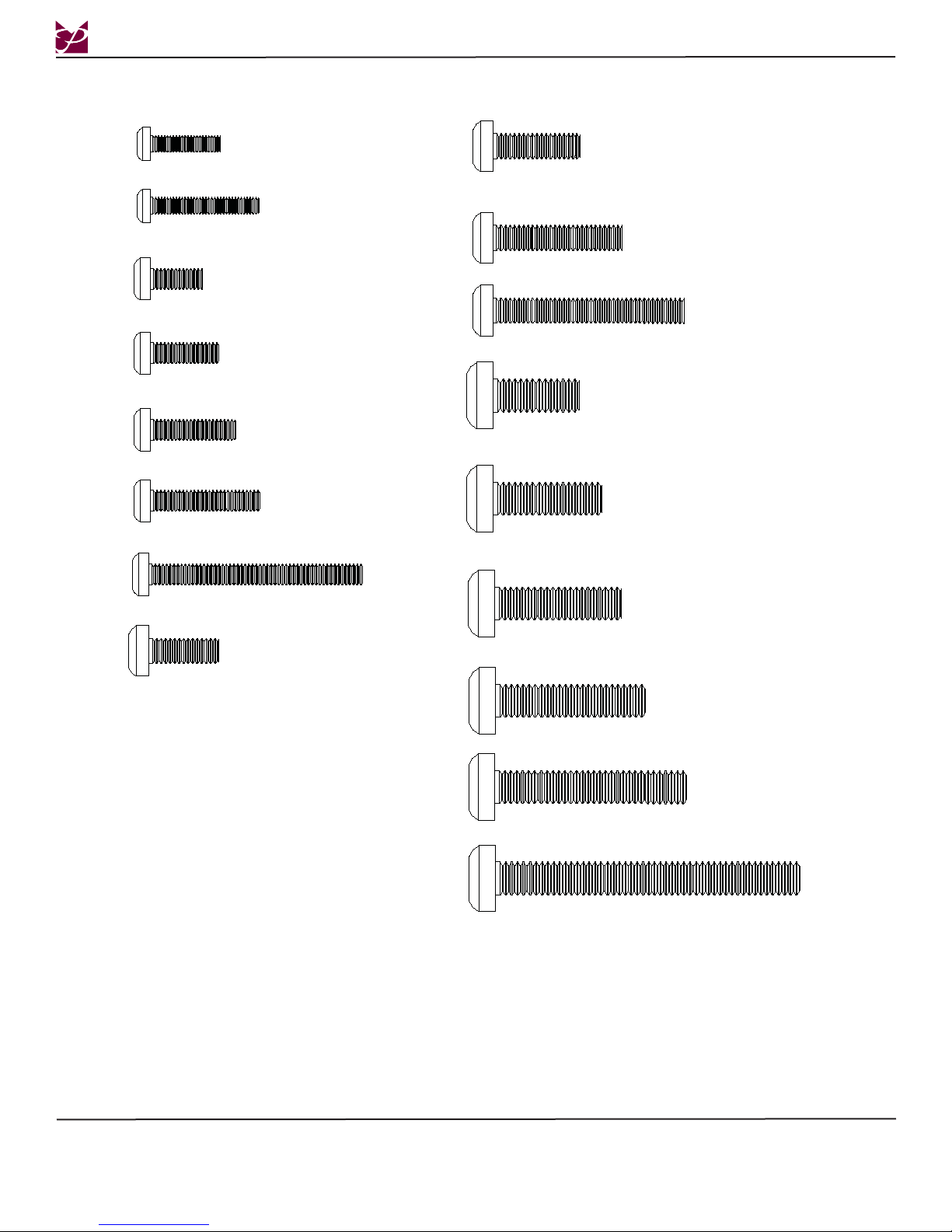

RFM

(Qty 8)

M6 x 20

(Qty 8)

(Qty 4)

(Qty 8)

M6 x 30

M6 x 45

(Qty 8)

M8 x 25

M8 x 20

(Qty 8)

M8 x 35

M8 x 30

(Qty 8)

M8 x 70

M8 x 45 (Qty 8)

M4 x 16

M4 x 25

M5 x 12

M5 x 20

M5 x 25

M5 x 16

M5 x 50

M6 x 16

(Qty 8)

Installation Instructions Page 5

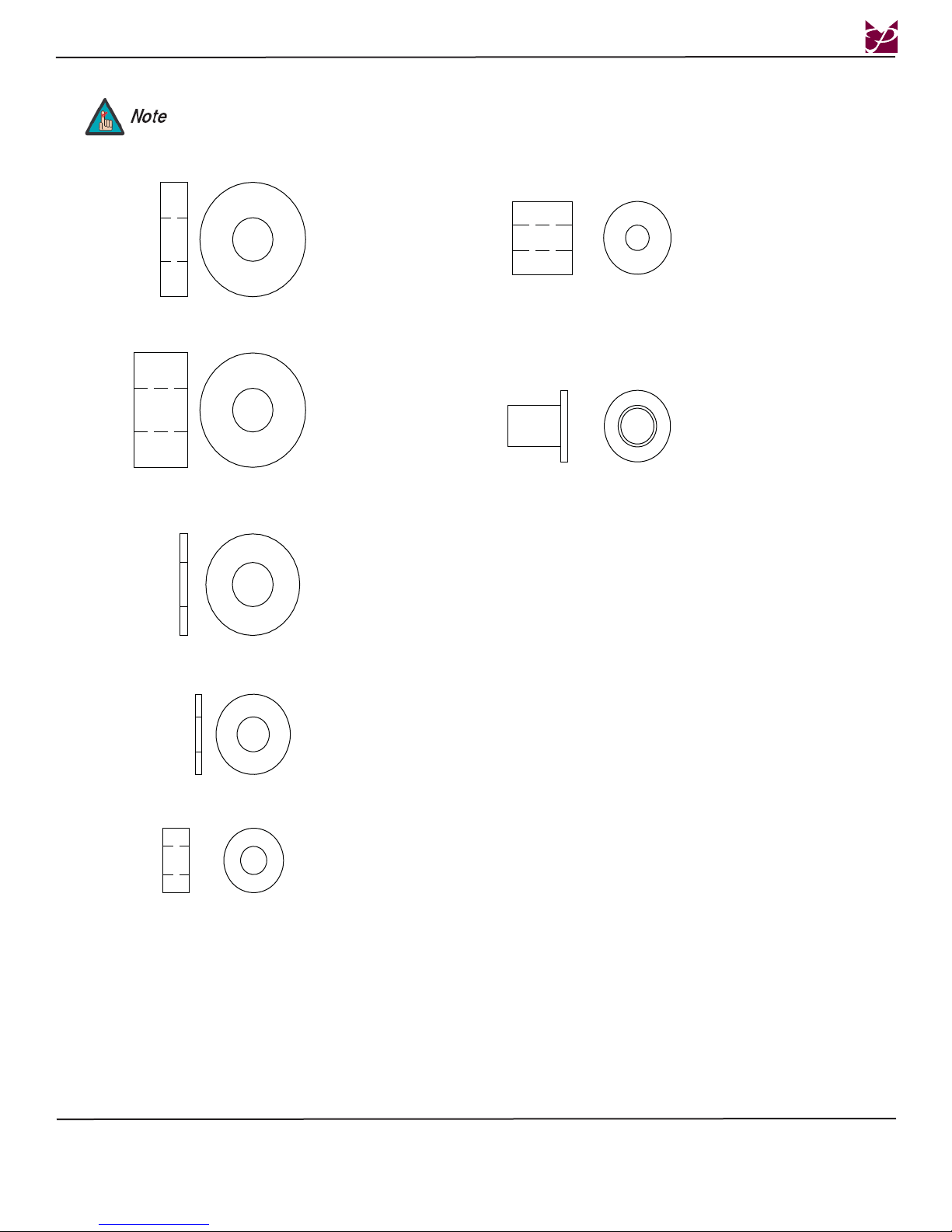

The nylon spacers may be stacked to achieve proper spacing.

5/16" Flat washers

(metal)

1/4" Nylon spacers

(Qty 8)

(small)

(Qty 8)

1/2" Nylon spacers

1/4" Nylon spacers

(Qty 12)

(large)

(Qty 8)

(large)

(Qty 8)

Nylon sleeves

9/16" Nylon spacers

(Qty 8)

1" Nylon Spacers

(Qty 8)

RFM

Page 6 Installation Instructions

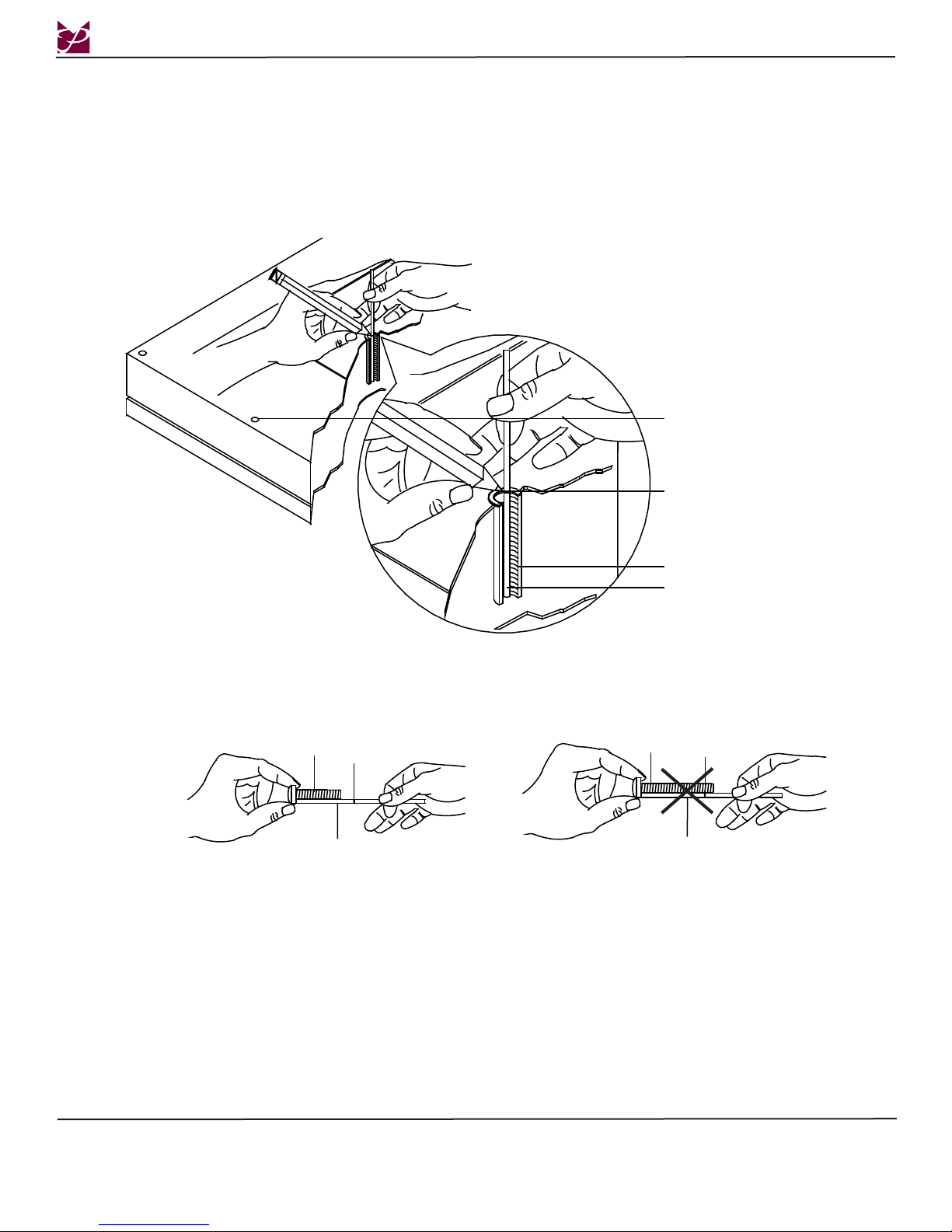

Thread Depth Indicator

1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the ﬂat panel to make sure the inserts

measure the same full depth and mark it (Figure 1).

2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).

3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.

4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you ﬁnd one that comes closest to

your mark without going past.

Thread Depth

Indicator

Marking

Screw

Marking

Screw

Thread Depth

Indicator

Inverted Flat

Panel Display

Marking the

Depth

Thread Insert

Thread Depth

Indicator

RFM

Installation Instructions Page 7

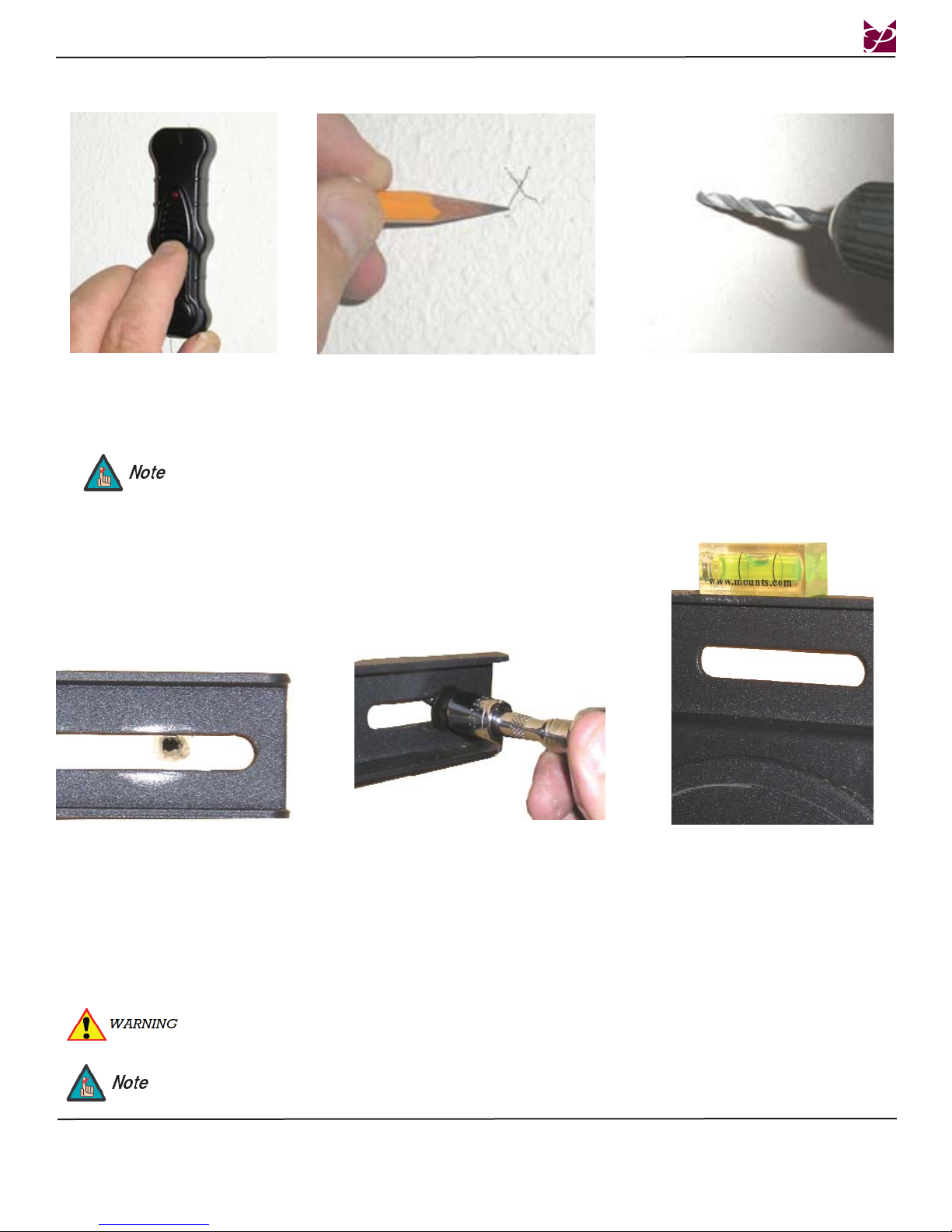

Mount Installation

RFM

Determine where the mount lo-

cation will be. Use a stud finder

to locate the nearest wall stud.

Once the stud has been located, use a pencil

to mark the spot.

Using a 1/4” drill bit, drill the upper mount-

ing hole where the mark was made.

Step 1 Step 2 Step 3

For ease of installation, it is recommended that two people perform the installation. One person should hold the

mount while the other person installs the lag bolt and washer. Making sure that the mount is level, the person not

holding the mount must mark and drill the second mounting hole and secure the second lag bolt and washer.

Place a level (supplied) on the top

rail and make sure that the mount is

level. Once the mount is level, Drill

pilot holes in the lower mounting

slots and install two (2) 5/16” x 3”

lag bolts and washers into the mount-

ing holes and tighten.

Step 6

Step 5

Step 4

Insert two (2) 5/16” x 3” lag bolts

and washers into the mounting holes

and tighten (see WARNING: below

After the holes have been pre-drilled,

line up the mounting slot openings

with the pre-drilled holes.

If the studs are 12” (304.8mm) apart, use three (3) 3” (76.2mm) lag bolts for the top rail and three (3) 3” (76.2mm)

lag bolts for the lower rail. If the studs are 16”(406.4mm), 18” (457.2mm) or 24” (609.6mm) apart, use two (2) 3”

lag bolts for the top rail and two (2) 3” lag bolts for the lower rail.

Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal

injury or damage to property.

Page 8 Installation Instructions

Concrete Mounting

Concrete anchors must be used for concrete installation. They can be purchased at your local hardware store. The

mounting surface must be a minimum 6” thick.

For the two upper mounting points, the Griplate™ flat side must be facing up. For the two lower mounting points, the

Griplate™ flat side must be facing down.

IT WILL TAKE TWO PEOPLE TO COMPLETE THE NEXT INSTALLATION STEP.

RFM

1. Begin by placing the mount into position against the wall, keeping it level.

2. Mark off four holes to be used for securing the mount.

3. Next, drill holes using a masonry bit for your anchors (recommended masonry bit).

4. Insert a commercially available concrete anchor into each hole (recommended 3/8” wedge anchors).

5. If necessary, a hammer can be used to lightly tap each anchor into place so that they are flush with the wall.

6. Once all of the anchors are in place, move the wall bracket into position.

7. Attach the nut onto the threaded shaft that is protruding from the wall.

8. Do not tighten until all nuts are in place.

5. At this time, center the universal bracket bar and tighten the set screws that are located on the universal brackets.

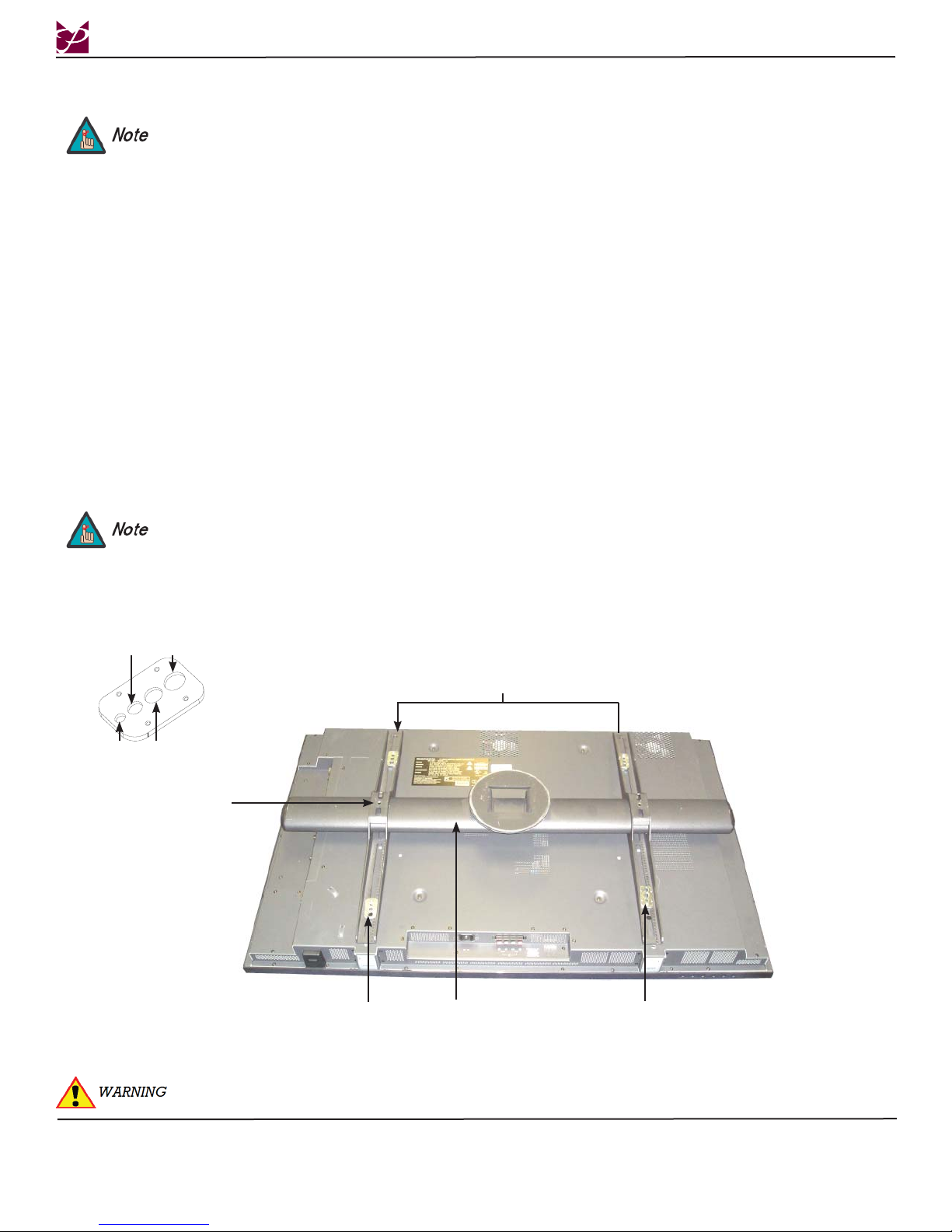

Universal Mounting Bracket Assembly

1. Place the universal bracket bar and the universal brackets on a flat surface.

2. Slide the universal brackets onto the universal bracket bar (as shown below) with the set screws facing up. At this

time, do not tighten the set screws that are located on the universal bracket.

3. Place the display on a soft, flat surface, face-down. Next, place the universal bracket assembly on the back of the

display, with the universal brackets resting directly over the display mounting points.

4. Once the desired position has been determined, place the Griplate™ washers over each mounting point and secure

them using the appropriate hardware (see Page 5).

Universal Mounting Brackets

Set Screw

Griplate™ Universal Bracket Bar Griplate™

Installation Instructions Page 9

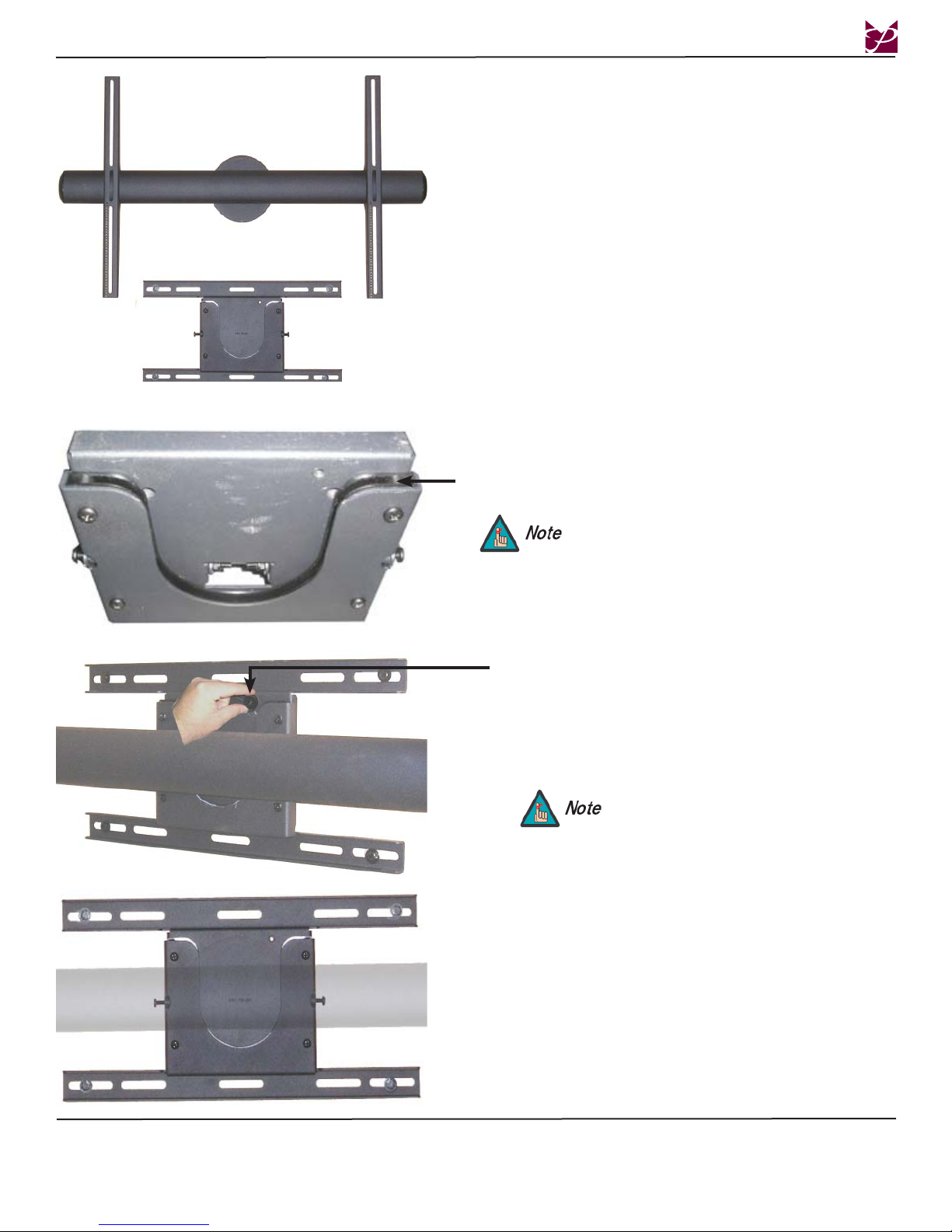

After loosening the tension bolts, be sure that the

nose piece is held together tightly before rotating.

RFM

6. Lower the universal bracket bar with attached

display into the cradle (as shown to the left).

Nylon

Sleeve

Knurl Knob Mounting Point/M6 x 12mm Security Head and

M6 Lock Washer Mounting Point.

7. Insert an M6 Knurl Knob/M6 x 12mm Security

Head and M6 Lock Washer into the knurl knob/

security screw mounting point and tighten.

To access the knurl knob/security screw

location while the display is attached, the

RFM must be rotated to the “portrait”

position (vertical position

8. Tighten the two (2) Phillips head screws (located

on the side of the mounting block) once the final

position is attained.

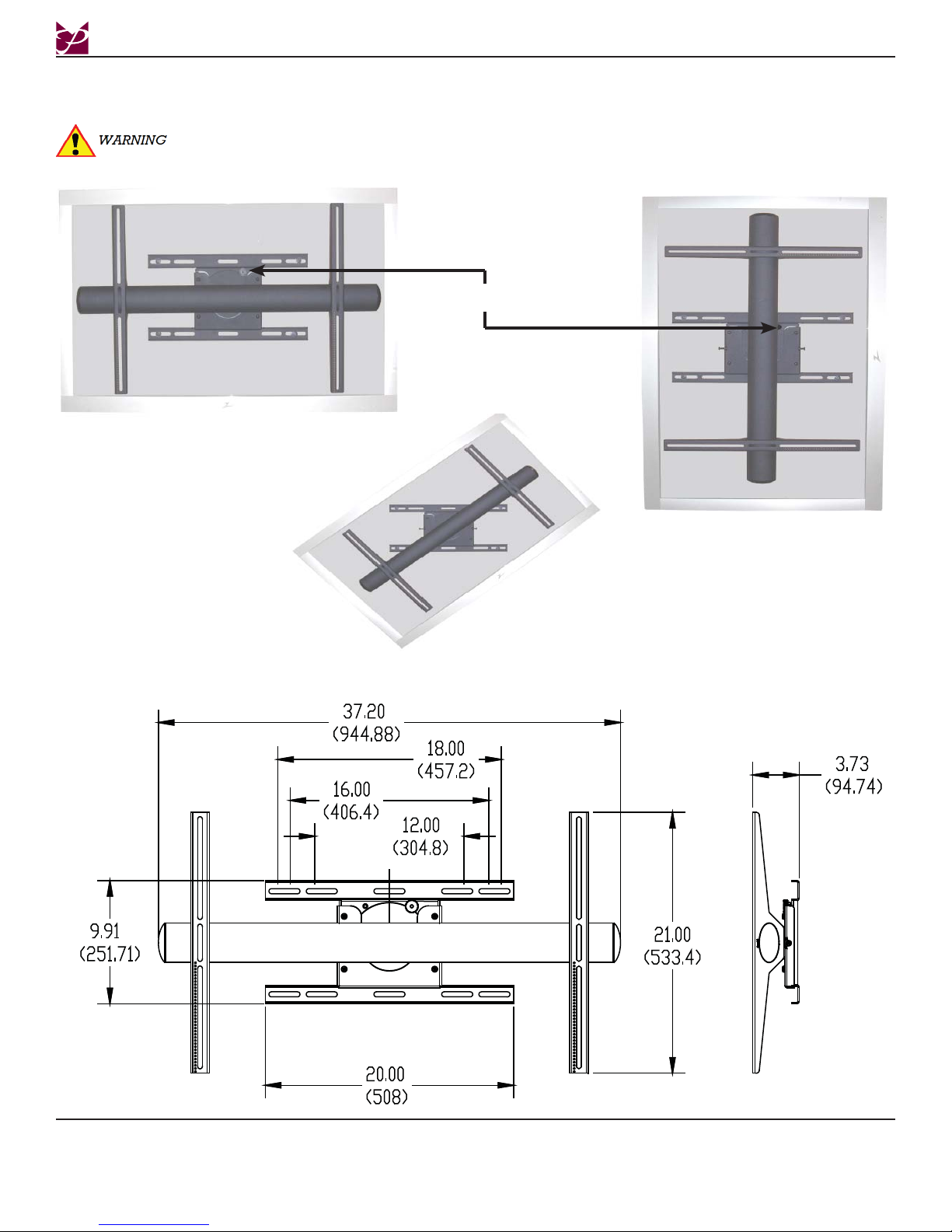

Display Orientation

The RFM will allow the user to adjust the display a full 360°.

Page 10 Installation Instructions

RFM

BEFORE ROTATING THE RFM, MAKE SURE THAT THE M6 KNURL KNOB IS SECURELY FASTENED

TO THE RFM. ALSO, PLEASE MAKE SURE YOU ALLOW ENOUGH CABLE AND WIRE CLEARANCE

FOR FULL ROTATION.

1. To adjust the RFM, rotate the display either

clockwise or counter-clockwise.

M6 Knurl Knob

2. Tighten the two Phillips

head locking screws (see Step 8,

Page 10).

Technical Specifications

All measurements are in inches (mm).
