Premier Mounts PSM-442T Manuel utilisateur

PLASMA DISPLAY MOUNT MODEL

INSTALLATION MANUAL

VISIT US AT WWW.MOUNTS.COM

3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888

o Safety & precautions

o Mount diagrams

o Parts List

o Optional Adapters

o Installing the mounting bracket

o Installing the mount

o Electrical

o Securing the mount

o Additional security

o Ceiling structure assembly drawing (pg 6)

Plasma display manufacturers are constantly improving their products and introducing new ones. We are committed to keeping up with

them. That’s why we maintain close relationships with all major OEMs – to ensure that we have the latest information on new display

products coming to market. Our mounts are often available before the corresponding displays are even on sale.

Mounts are available in either flat or tilt versions, this versatile mount can be used for just about any application, including walls, stands,

carts

ceilin

–

even inside custom cabinets and other furniture a

lications.

NOTE: The following installation procedures indicate a wall structure installation. For installations other than wall mounting refer to installation instructions.

NOTE: For installations other than wall mounting please refer to page 6. If installing the plasma display to the ceiling or floor stand please refer to its

installation instructions.

Contents

Introduction

Thank you for choosing PREMIER MOUNTS for your installation needs.

If you have any questions please contact PREMIER MOUNTS

Information is shown on the front of this page.

The wall or ceiling structure must be capable of supporting at least five (5) times the weight of plasma display.

If not, the wall or ceiling must be reinforced. Proper installation procedure by qualified personnel as outlined in the installations instructions

must be adhered to. Failure to do so could result in serious

ersonal in

The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions, before

beginning installation. The installation instructions should be read, understood and followed to prevent personal in

or propert

dama

Keep these installation instructions in an easily accessible location for future reference.

Indicates that the power plug is to be disconnected from

the power outlet.

Safety precautions must be taken at all times.

Contact Premier Mounts for an

uestions

Warning and caution in general

A secured structure wooden stud wall must always support the weight or load of the plasma. Always confirm the center of the wood

stud before beginning the installation.

Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in plasma cracking or

falling from the wall causing damage and injury.

Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy. Failure to do so may

result in damage to the plasma television and could cause a risk of fire.

At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling

the plasma television.

Mounting structure recommended wood studs, solid-flat concrete, and reinforced metal studs. If installing the mount on other than

wood studs use (commercially available) suitable hardware.

Safety & Precautions

WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper safety gear and tools for the

installations

rocedure to

revent

ersonal in

or dama

e to the

lasma dis

s or

lasma mounts.

10.750

4.500

1.750

0.688

4.500

14.324

12.000

2.125

0.750

0.104

1.528

0.500

0.375

Ø0.375 (x4)

Ø2.500

16.000

19.500

8.750

17.500

2.125

16.000

5.460

1.250

3.250

16.000

4.500

1.750

18.500

1.125

8.000

5.000

1.000

4.500

5.460

2.865

3.500

19.771

UNIVERSAL FLAT MOUNT

UNIVERSAL TILT MOUNT

PSM SERIES MOUNT

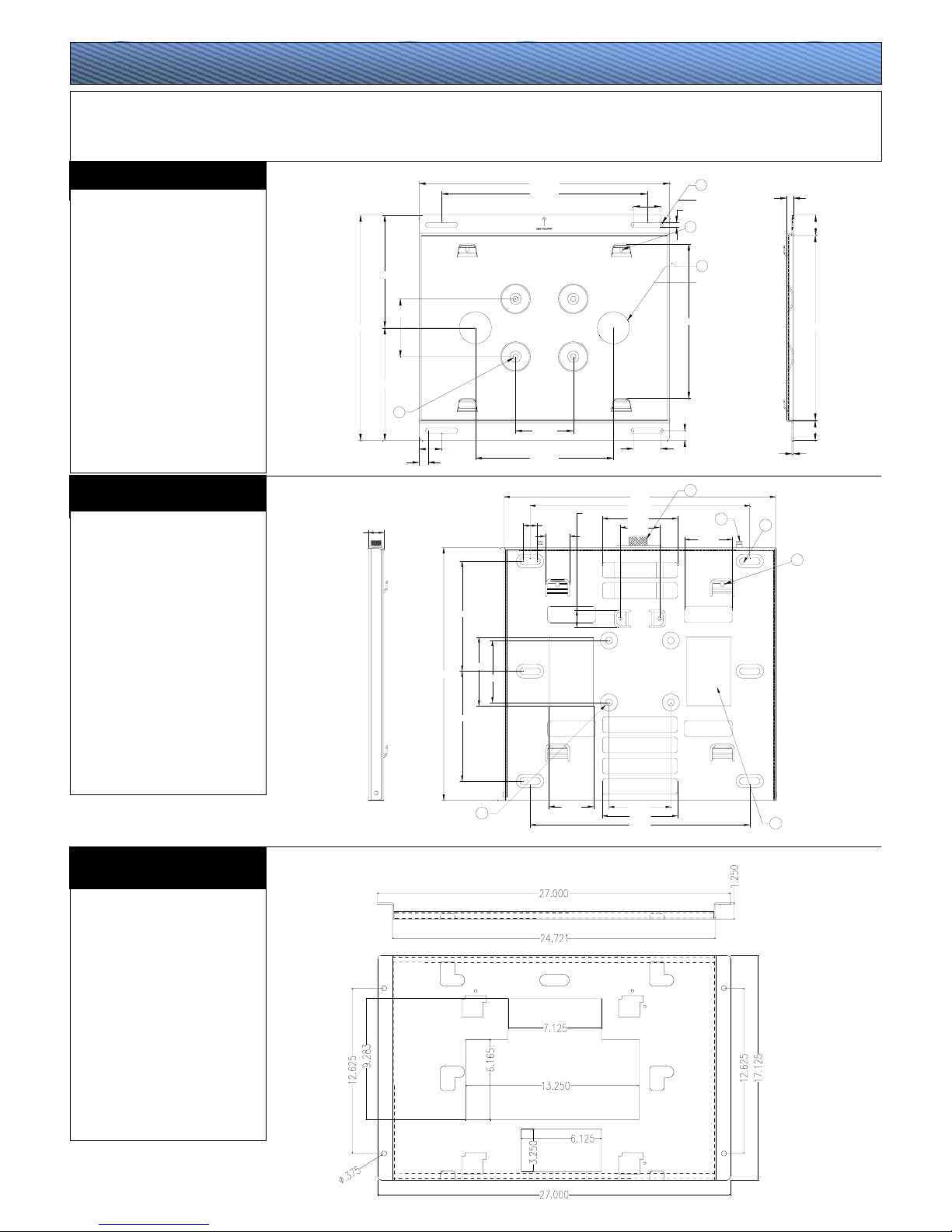

Our PSM flat / tilt mounts are designed for wall or ceiling mounting, or it can mate with any of our popular carts, floor stands or wall arms.

The ultra slim plasma mount stands off the wall just enough for proper, OEM-specified ventilation, yet keeps the plasma close enough for a

clean, seamless look. It allows either vertical (portrait) or horizontal (landscape) display configuration.

PART#:

PDB-UWFB

MATERIAL:

12 (GA) CRS

COLOR:

Black powder coat

Lag bolt access slot.

Mounting points (4.5") used on

installations other than wall mounting.

Access hole for power or cables.

M6 security screw mounting points

used on installations other than flat

wall mounting.

PART#:

PSB-TBP

MATERIAL:

12 (GA) P & O

COLOR:

Black powder coat

Lag bolt access slot.

Worm drive

Locking pins

Access hole for power or cables.

Mounting points (4.5") used on

installations other than wall mounting.

Mount Diagrams

PART#:

PDB-442

MATERIAL:

12 (GA) P & O

COLOR:

Black Powder coat

Note: The PDB-Series bracket mates

to the universal PDB-UWFB flat

mount and the universal PSB-TBP tilt

mount.

Standard hardware

PSM-Series Mounting hardware

PSM-Mount

o Phillips screwdriver

o Drill gun

o Soft material or a blanket

o Pencil

o ¼" drill bit

o Level

o Measuring tape

o Wrench with a 1/2" socket

o Stud finder

o 1/4"-3/8" Toggler bolts: Used for hollow concrete block wall mounting.

o 5/16"-3/8" Wedge anchors: Used in solid brick or minimum-rated (3000psi) solid concrete.

QTY SIZE DESCRIPTION

6 (Tilt) – 4 (Flat) 5/16” Dia Lag bolts

1  PSM series mount

1  Flat / Tilt mount

2 M6 x 12 (mm) Phillip security

screws

Used for additional security on

tilt mounts, mobile carts, floor

stands and ceiling mounts

1  Installations instructions

1  Bubble level

6 M5 x 16 Phillip screws

4 M6 x 12 Phillip screws

6 M8 x 20 Phillip screws / Flat washers / Split washers

8 M6 x 12 Phillip screws

6 M5 x 16 Phillip screws / Flat washers / Split washers

6 M5 x 12 Phillip screws

6 M5 x 10 Phillip screws

6 M5 x 12 Phillip screws

8 M4 x 12 Phillip screws

8 M5 x 12 Phillip screws

6 M6 x 16 Phillip screws

8 M8 x 12 Phillip screws

6 M5 x 16 Phillip screws

4 – 4 M5 x 35 – M4 x 12 Phillip screws / Hex bolts

6 M6 x 12 Phillip screws

4 – 2 M5 x 50 / M10 x 25 Hex screws / Hex bolts / Flat washer

8 M5 x 20 Phillip screws / Flat washers / Split washers

6 M8 x 20 Phillip screws

• • •

6 M8 x 30 Phillip screws

2 M5 x 12 Phillip screws

6 M8 x 30 Phillip screws

6 M8 x 16 Phillip screws / Flat washers / Split washers

6 M8 x 10 Phillip screws

6 M6 x 12 Phillip screws

4 M8 x 30 Phillip screws / Flat washers / Fender washer / .5” nylon spacers

QTY SIZE DESCRIPTION

PSM-313

PSM-375

PSM-401

PSM-402

PSM-410

PSM-421

PSM-423

PSM-424

PSM-425

PSM-426

PSM-427

PSM-428

PSM-432

PSM-460

PSM-478

PSM-499

PSM-500

PSM-501

PSM-502

PSM-532

PSM-540

PSM-542

PSM-550

PSM-570

PSM-610

PSM-615

PSM-783

PSM-442

Parts List

TOOLS & SUPPLY NEEDED

(

tional

)

Installation Hardware

A Plasma display

B PSM-Mount

C PSM-Hardware

(See chart on pg 5)

D M10 x 12 (mm) Hex

screws, flat washers

(4,4,8 Pack)

E PSB-UWFB Universal flat

mount

F M6 Security screws used

on tilt, ceiling, cart, floor

stand applications.

G PSB-TBP Universal tilt

mount

H AST-2446 adjustable

suspension post for single

display mounting or

AST-2446/2 adjustable

suspension post for dual

display mounting.

I PSD-S Single mounting

adapter

J PSD-D Dual mounting

adapter

K 1½" (NTP) For single

ceiling display installations

or 2" (NTP) For dual

ceiling installations

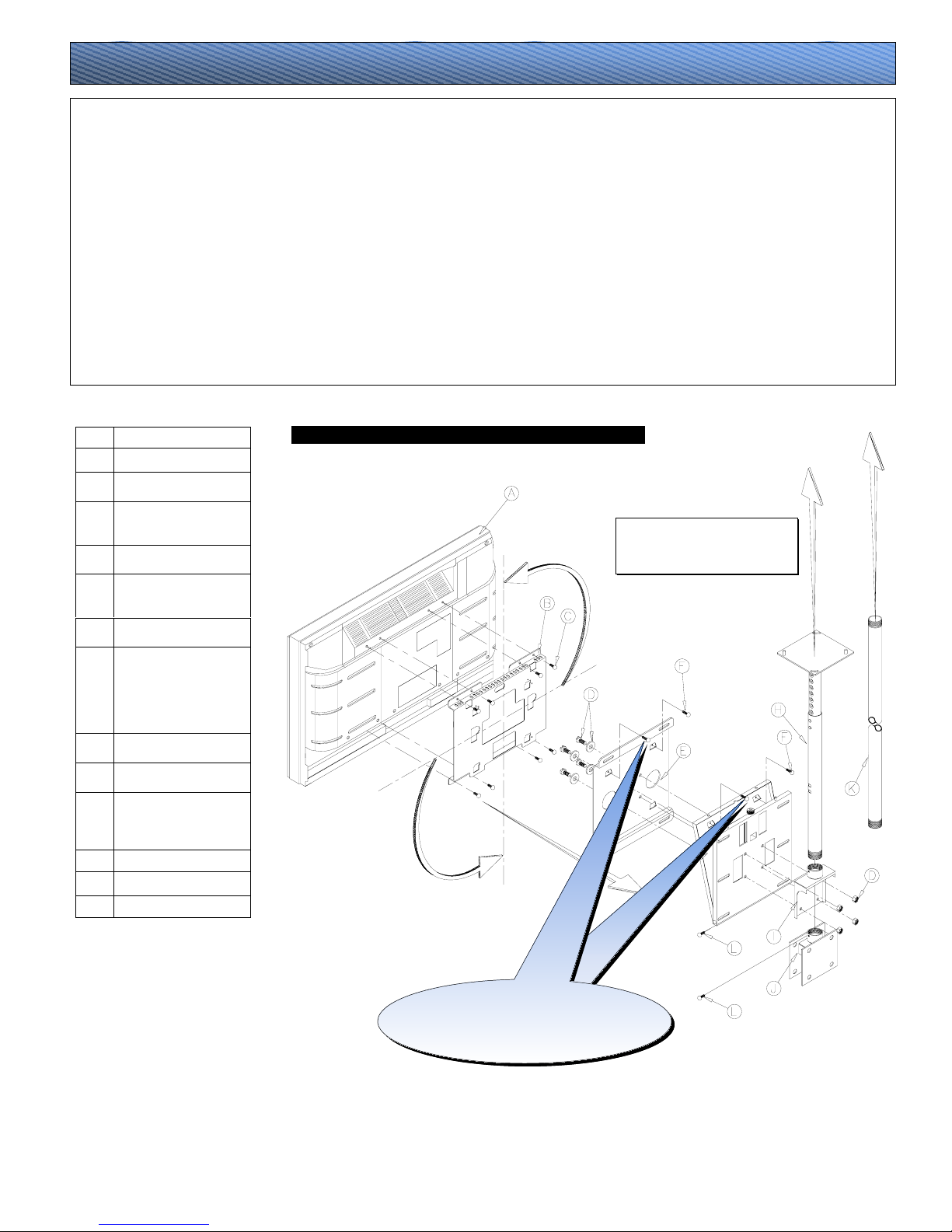

AST-2446: 1½" (Adjustable height suspension adapter) - Offering height adjustment in 1¼" increments, between 24" and 46"

(12" - 24", if you cut down), this suspension adapter mates with the single display swivel adapter and 1½" (NTP) pipe.

AST-2446/2: 2" (Heavy-duty adjustable height suspension adapter) - Offering height adjustment in 1¼" increments, between 24" and 46"

(12" - 24", if you cut down), this suspension adapter mates with the dual display swivel adapter and 2" (NTP) pipe.

PSD-S: 1½" (Single display swivel adapter) – This adapter could be mated with any two of out ultra slim flat or tilt plasma mounts to allow 360° swivel for a

ceiling installation. It works with 1½" threaded (NTP) pipe or AST-2446.

PSD-D: 2" (Dual display swivel adapter) - This adapter could be mated with any two of out ultra slim flat or tilt plasma mounts to allow 360° swivel for a ceiling

installation of two back to back displays. It works with 2" threaded (NTP) pipe or AST-2446/2.

PSD-PVW1: 1½" (Single display pole adapter) – Attach this adapter directly to any of the flat or tilt plasma mounts, and slide it over a 2" scheduled 40 steel

pipe, then secure at any height with two (2) tension-locked bolts.

PSD-PVW2: 2" (Dual display pole adapter) – Attach any two (2) of the flat or tilt plasma mounts back to back with this adapter, and slide it over a 2" scheduled

40 steel pipe, then secure at any height with two (2) tension-locked bolts.

(Optional) ceiling adapters

Ceiling installation

assembly

EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY

Horizontal to vertical mounting

Note: The M6 x 12 (mm) Security screws

must always be used for extra security.

Horizontal to vertical mounting

Note: The M6 x 12 (mm) Security screws

could be used for additional safety.

Step 1

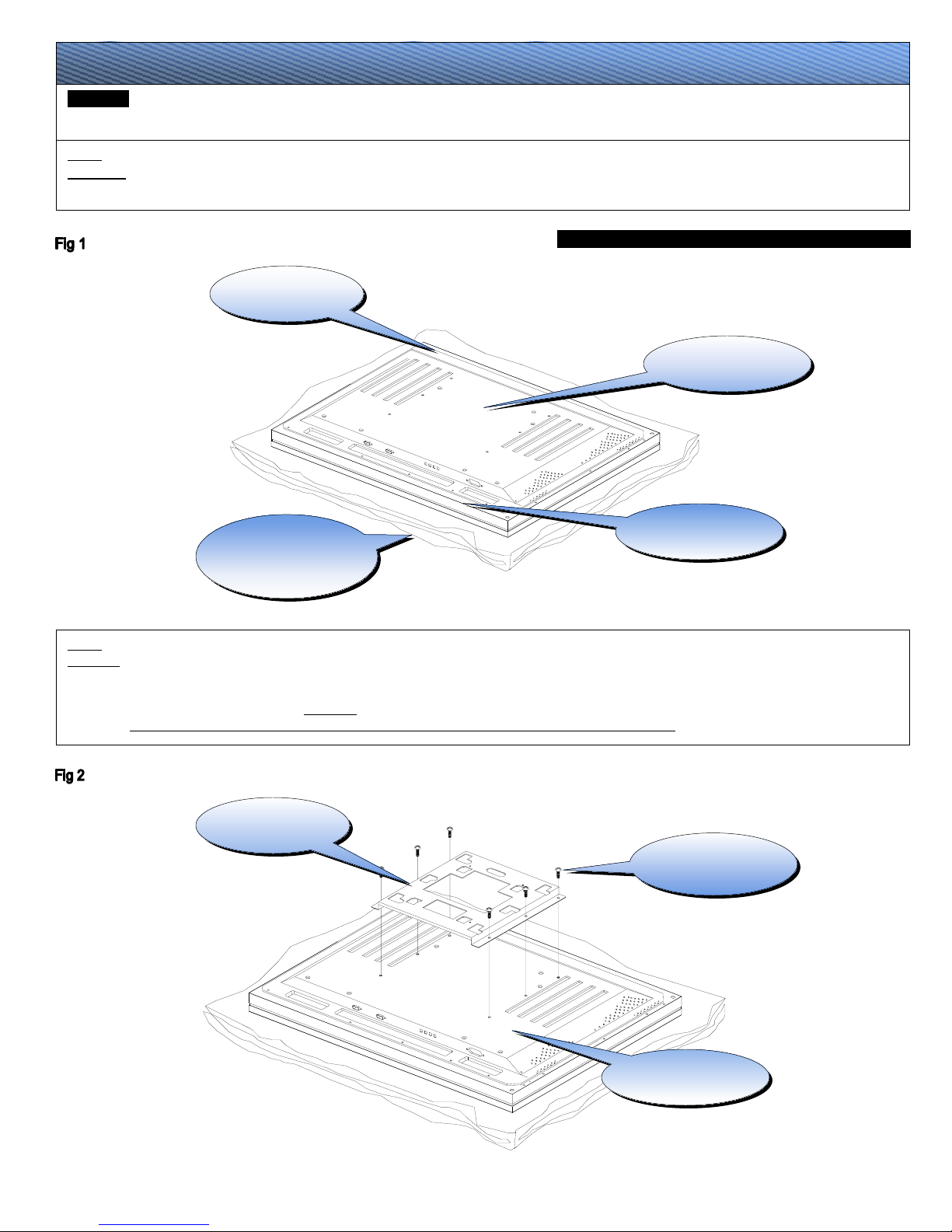

CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.

Invert the plasma display and set it on a soft, flat surface to prevent any damage to the plasma display. See fig 1.

WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could

result in serious personal injury and possible damage to the plasma display.

Installing the mounting bracket

EXAMPLE PLASMA FOR ILLUSTRATION PURPOSES ONLY

Step 2

CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.

Locate the mounting points found on the back of the plasma chassis, align the mounting holes from the mounting bracket to the holes on the chassis. Arrow found

on the PSM mount must always be pointing to the top of the plasma display before securing it to the chassis. Secure the mounting bracket to the plasma display by

using the hardware specified on the parts list. CAUTION: Do not over tighten the mounting hardware. See fig 2.

WARNING: Do not use the drill gun to secure the screws to the plasma display. A Phillips head screwdriver is preferred.

Soft and flat surface

blankets, foam, cloth

etc.

Inverted plasma

dis

Top of the plasma

dis

Bottom of the

lasma dis

Inverted plasma

dis

PSM-series

mount

Mounting hardware

(see chart on pg 5)

16"

floor floor

Installing the mounts

Step 3

Securing the flat mount

CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product.

All plasma models vary depending on the manufacturer and some are centered and others are not. Please verify that your plasma mounting points from the back of the chassis are

centered before installing the universal back plate.

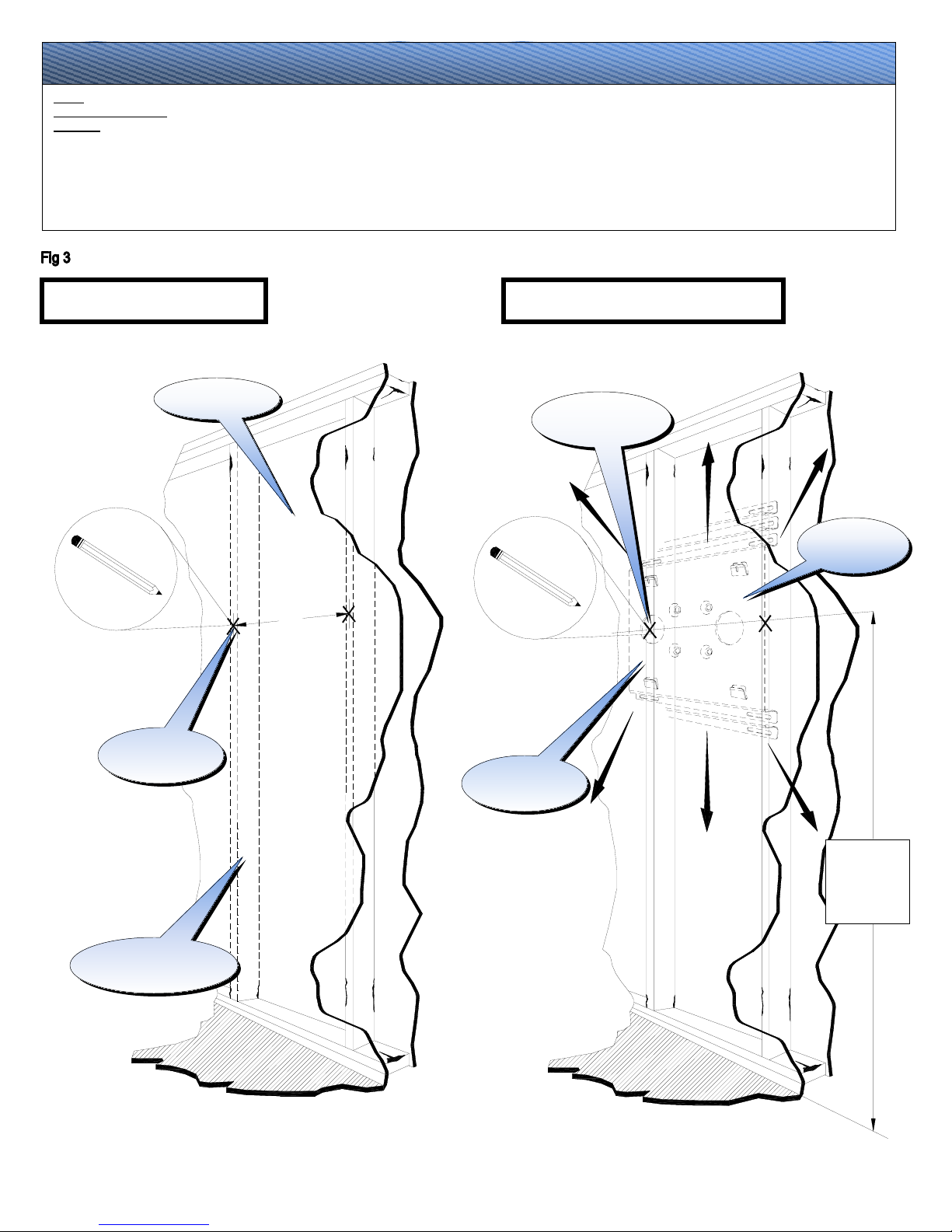

Select the area where the plasma will be installed and make sure it can support the weight standards (see warning on page 3). Locate the 16" wood stud centers behind the wall using

a (commercially available) stud finder and mark the center of the studs when found. Set the mounting bracket to the wall and mark the desired height by marking the center of the

universal flat mount.

Note: Same installation process applies to the PSM-Tilt series. See fig 3.

Wall structure

Wood studs behind

the wall structure

Stud centers

marking

Universal flat

mount

djusting the

mount

Desired height

marking

CENTER

IEWING

HEIGHT

Note: Pre drill before the securing the

5/16" la

bolts.

Caution: Do not over tighten the 5/16" lag bolts

floor

Electrical

Step 4

All electrical wiring components should be installed at this time to ensure that the plasma display has enough power sources.

Securing the flat mount or tilt mount

To determine the desired viewing height, use the center slot opening in the wall mount as a center reference for the plasma television when mounted. Once the height is determined,

use the bubble level to insure that the bracket is level. Next, using a pencil, mark the four (4) lag bolt slot openings on the mounting bracket. Before continuing, confirm the marks are

located on the center of the studs.

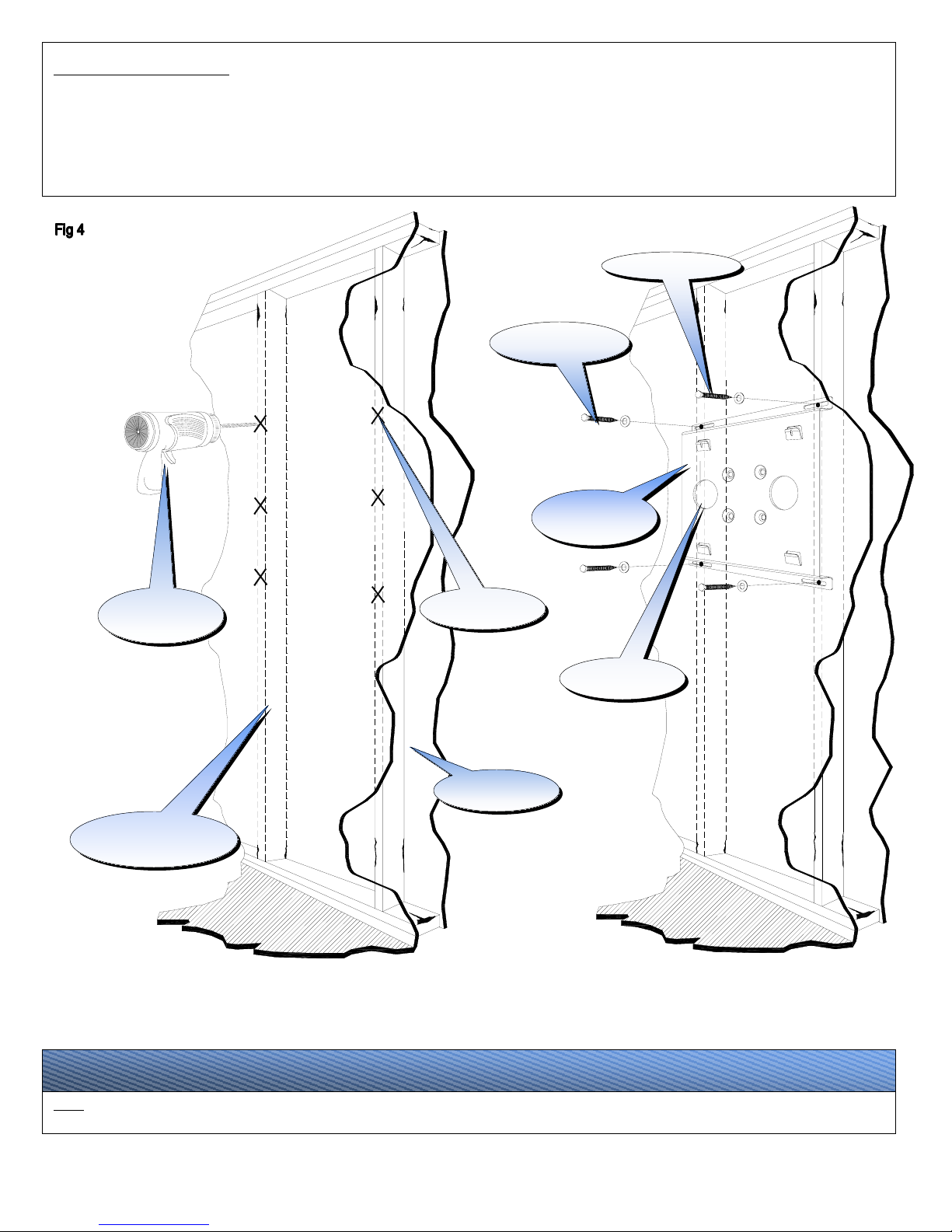

Drill 1/4" pilot holes on the four (4) markings on the wall. Raise the universal flat or universal tilt bracket and have someone hold it in place (arrow side away from the wall and

pointing up). Put the lag bolt through the flat washers. Screw the lag bolt through the upper left slot opening into the 1/4" pilot hole. Confirm that the wall mount is still leveled and then

screw a lag bolt to the upper right side slot opening into the 1/4" pilot hole. Then install the remaining two lag bolts tightly into the wall studs in the lower left and right slot openings on

the wall mount.

Lateral movement of approximatel

1½" for final positionin

is now possible. Make an

positionin

chan

es then secure the la

bolts. See fi

Wood studs behind

the wall structure

Drill gun with a

1/4" drill bit

Wall structure

Marking on wall

Flat washers

Lag bolts

Access holes

Universal flat

mount

Securing the mount

Plasma display

PSM-series

mount

Universal flat

mount

Securing tabs

Tab openings

Wall structure

Plasma display

Wall structure

lign the tabs and

push the plasma

as shown on

arrows to lock in

lace

Locked tab

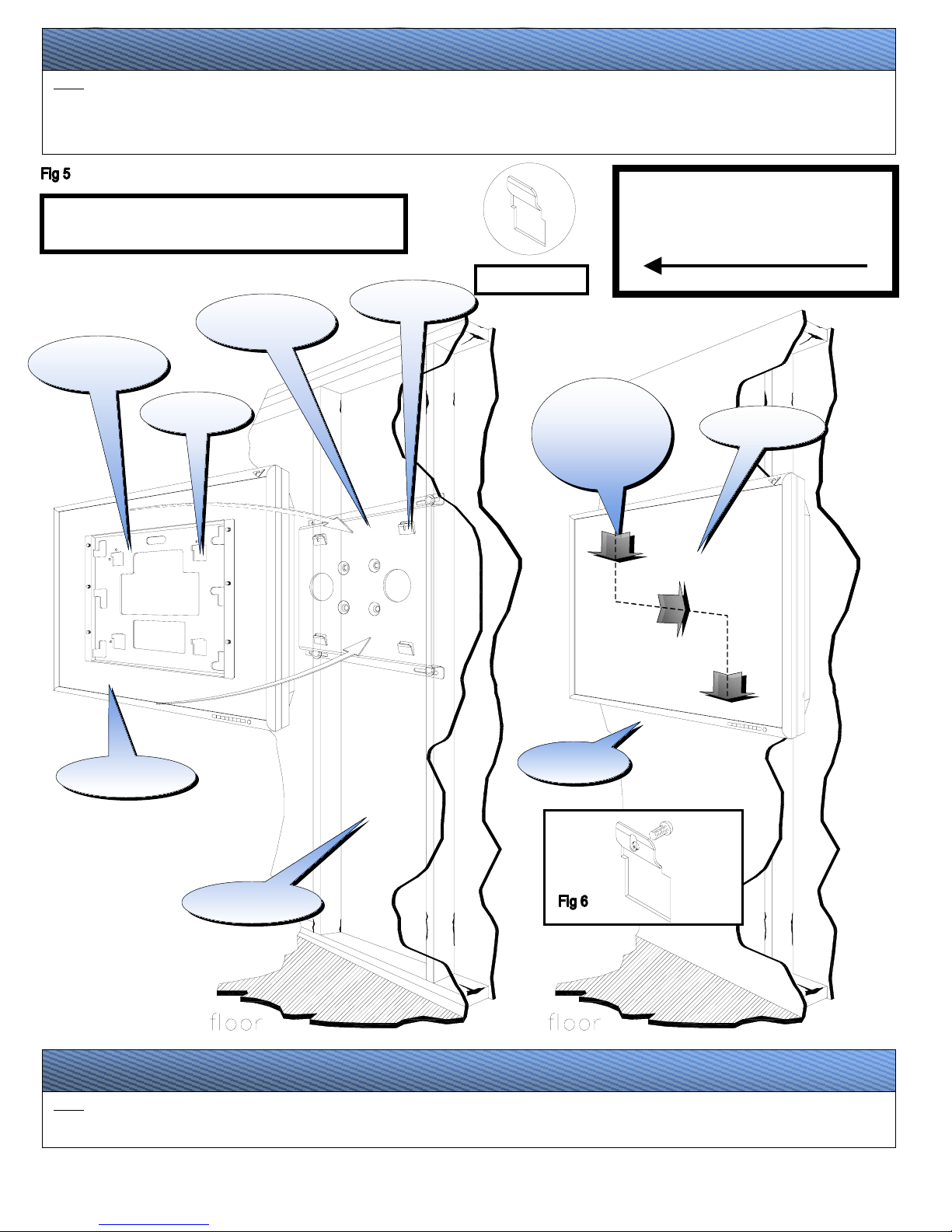

Caution: All four (4) receiving tab openings from the

mounting bracket must be locked to the tabs found on

the flat back plate before letting go of the plasma

display. See the diagram on the left to see the

interlocked tab.

Caution: The plasma display is heavy and 2 people are needed to lift and

install it. Failure to do so could result in serious personal injury.

Additional security (Does not apply to flat wall mounting)

Step 6

For additional security gradually tilt the bracket forward using a Phillips screwdriver. Secure the two (2) M6 x 12 (mm) Phillips screws (screws) see fig 6. Do not over tighten the screws.

Position the bracket to the desired angle.

Step 5

Warning: The plasma display is heavy and 2 people are needed to lift and install it. Failure to do so could result in serious personal injury.

Before placing the plasma on the wall recheck all hardware for proper tightness and security. Before installing, become familiar with the way the plasma mount attaches to the wall

mount. Align the four (4) tab openings to the four (4) receiving tabs on the flat back plate. When all four (4) the tabs are aligned slide the plasma down, right and down again to lock the

mounts together. Make sure all (4) tab openings are interlocked with the receiving tabs before letting go of the plasma. See fig 5.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Premier Mounts Support et étagère

Premier Mounts

Premier Mounts AST-1321 Manuel utilisateur

Premier Mounts

Premier Mounts MM-HP15 Manuel utilisateur

Premier Mounts

Premier Mounts PSD-SPA Manuel utilisateur

Premier Mounts

Premier Mounts Universal Tabletop Stand PSD-TTS/C Manuel utilisateur

Premier Mounts

Premier Mounts Convergent A-A27 Series Manuel utilisateur

Premier Mounts

Premier Mounts ECM-3763S Manuel utilisateur

Premier Mounts

Premier Mounts MVWC-3X3 Manuel utilisateur

Premier Mounts

Premier Mounts Nesting Cart Series Manuel utilisateur

Premier Mounts

Premier Mounts PCM-MS2 Manuel utilisateur

Premier Mounts

Premier Mounts AM3 Manuel utilisateur

Premier Mounts

Premier Mounts PTDM2 Manuel utilisateur

Premier Mounts

Premier Mounts SHLF-EQ Manuel utilisateur

Premier Mounts

Premier Mounts LMVSP Manuel utilisateur

Premier Mounts

Premier Mounts Polaris MAG-EXT Manuel utilisateur

Premier Mounts

Premier Mounts PSD-TS Manuel utilisateur

Premier Mounts

Premier Mounts PP-6 Manuel utilisateur

Premier Mounts

Premier Mounts PDS-PLUS Manuel utilisateur

Premier Mounts

Premier Mounts MM-CB3 Manuel utilisateur

Premier Mounts

Premier Mounts ECM-3763D Manuel utilisateur

Premier Mounts

Premier Mounts PSPK Manuel utilisateur

Premier Mounts

Premier Mounts PBM-760L Manuel utilisateur

Premier Mounts

Premier Mounts AM95 Manuel utilisateur

Premier Mounts

Premier Mounts EST200 Manuel utilisateur

Premier Mounts

Premier Mounts MVWS-3X3 Series Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
