Universal flat-panel mount

I N S T A L L A T I O N M A N U A L

3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888

ww.mounts.com

- 2 -

- Assembly drawing - Securing the bottom wall plate

- Fine tune tilt adjustments - Securing the top plate

- Flat panel list - Securing the flat panel to the wall mount

- Parts list - Lateral shift adjustment

- Checking thread depth

- Finding the center of the flat panel

- Positioning the mounting brackets

- Securing the mounting brackets

- Finding the wood stud behind the wall structure

- Marking the bottom plate mounting points

Contents

WARNING: Safety precaution measures must be practiced at all times during the installation of this product. Use proper

safety gear and tools for the installation procedure to prevent personal injury.

The entire installation instructions should be fully read and understood, including all of the safety symbols and safety precautions,

before beginning installation. The installation instructions should be read, understood and followed to prevent personal injury or

property damage. Keep these installation instructions in an easily accessible location for future reference.

Indicates that the power plug is to be disconnected from

the power outlet.

Safety precautions must be taken at all times.

Contact Premier Mounts for any questions

Warning and caution in general

Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in flat

panel cracking or falling from the wall causing damage and injury.

Do not install near heater, fireplace, direct sunlight or air conditioning or any other source of direct heat energy.

Failure to do so may result in damage to the flat panel and could cause a risk of fire.

At least two qualified people should always perform the installation work. Injury and damage can result from dropping

or mishandling the flat panel.

The wall structure should be capable of supporting a max weight of 160 Lbs., the weight of the flat panel. More than 160

Lbs the wall must be reinforced. Proper installation procedure by qualified personnel as outlined in the installations

instructions must be adhered to. Failure to do so could result in serious personal injury.

A secured structure wooden stud wall must always support the weight or load of the flat panel. Always confirm the

center of the wood stud before beginning the installation.

Mounting structure recommended wood studs, solid-flat concrete. Use a minimum diameter of 5/16” x 2 ¼” lg

concrete wedge anchors (commercially available). or a minimum diameter of 5/16” x 3” lg wood screws.

- 3 -

16.000

(406.4)

28.000

(171.2)

16.000

(406.4)

16.000

(406.4)

16.000

(406.4)

24.290

(616.97)

12.000

(304.8)

19.000

(482.6)

20.500

(520.7)

21.000

(533.4)

5.000

(127)

5.000

(127)

10.500

(266.7)

1.245

(31.75) A

2.331

(59.21)

Description

A. Wall plates

B. Mounting brackets

C. Griplate™

D. Mounting hardware

E. M6 x 30 (mm) Phillip screws

F. Wood stud

G. 5/16” x 3” Lag screws and flat washers

H. Safety knobs

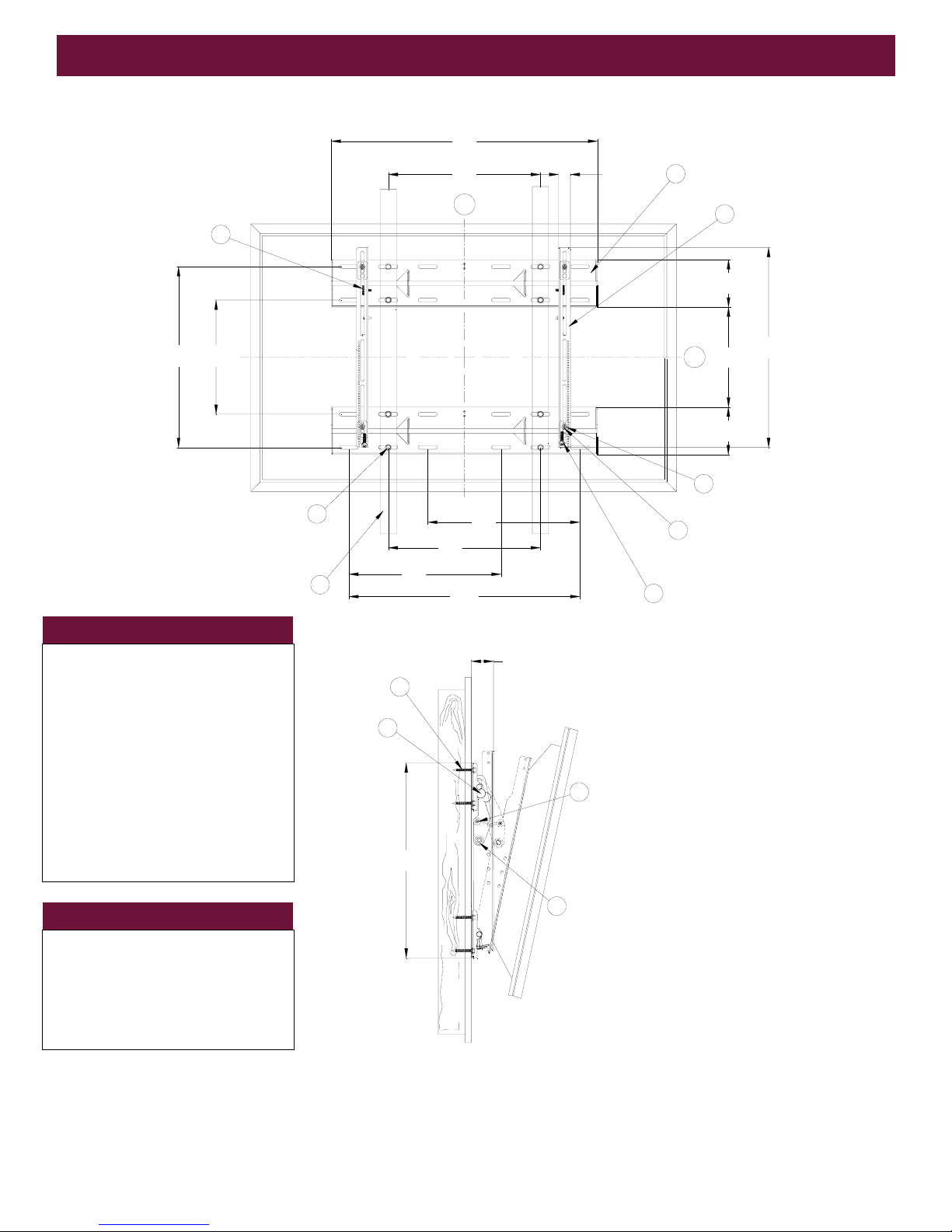

Assembly drawing

Dimensions are in Inches and

(

)

Fine tune tilt adjustments

1. M5 Phillips screws for fine

tension

2. M8 Hex nut coarse tension

NOTE: The 8 (mm) hex nut is for your

coarse tension adjustment and the 5 (mm)

screws are for your fine tension adjustment.

- 4 -

Flat panel list

Hitachi

EIKI

Electrograph

Gateway

32HDT20,CMP307XJ,CMP307XU,32HDT20

CMP401HDU, CMP402HDE, CMP402HDU,

CMP4120HDU,CMP4121,CMP4121HDU,CMP4201U,

CMP4202U, 42HDW10,42HDT20, 42HDT50, 42HDT55

M6 x 12

CMP5000WXU, CMP5003WXU, 50HDT50, 50HDT55:

M8 X 20

PLD42XU: M5 x 20 - ¼” nylon space

s (small)

DTS42W: M8 x 30 – ¼” nylon spacers (large)

DTS4230: M8 x 30 – ½” nylon spacers - sleeves

DTS42DD, DTS42GBDD, DTS42GB: M6 x 20

GTWP42M102: M8 x 20, M8 x 35 – ¼” nylon spacers

(large)

GATEWAY 42: M8 x 30 – ¼” nylon spacers

GATEWAY 46: M6 x 20

GATEWAY 50: M8 x 30 – ¼” nylon spacers

Acer

PDP7859: M6 x 20

Akai

CTA42AR7A, PDP4247, PDP4290, PDP4294,

PDP5090, HPT500AN: M8 x 25 – ½” nylon spacers -

sleeves

Albatron

PWV46AC: M6 x 20

Barco

Cineversum 50: M8 x 20

Akira

EPM420, SV4201: M5 x 16

BenQ

PDP7843E: M6 x 20 – ¼” nylon space

s (small)

PDP46W1: M6 X 12

Cornea

MP4200, MP4204: M5 x 16

Dream Vision

Revolution One, Revolution Five: M4 x 16

Eizo

5420T: M8 x 30

Dukane

P37: M6 x 12

P42: M6 x 12

P50: M8 x 20

Dwin

HD50: M8 x 30 – ½” nylon spacers - sleeves

Faroudja

FPP42HD10, FPP50HD10: M4 X 16

Fujitsu

4211, 4212, 4221, 4222, 4208, 4209, 4213, 4214, 4229,

4241 4242, 4233: M5 x 16

5001, 5002, 5003, 5004, P50XHA10, P50XCA11UH,

P50XHA30WS: M8 x 25 – flat washers

PDS6101, PDS6001, PDS6002: M8 x 30 – ½” Nylon

spacers - sleeves

Helios

4200: M8 x 20

Idex

PDM4260: M4 x 16

Ikegami

PTM4202: M5 x 20

Integra

PLA50V1: M4 X 16

JVC

GDV4200PZW, 4210, GDV4210PZWGA, 4211,

GMP420UG, GMV42UG, JVP042WV74, PD42WV74,

PD42WX84: M5 x 16

GDV500PZU, GDV501U, 502U: M8 X 30 – ½” nylon

spacers – sleeves

LG Electronics

Flatron MU40PA10B, MU40PA15B: M5 x 20- ¼” nylon

spacers

Flatron MN42PZ10, MN42PZ11, MU42PZ10,

MU42PZ11B, MU42PZ15B: M5 x 20

MU50PZ41, MU50PZ90: M5 x 20

Flatron MU60PZ10, MU60PZ11B, MU60PZ12B,

MU60PZ90V: M8 x 25

Luce

PDTV4220A: M5 x 25 – ½” nylon spacers

Marantz

PD4280D, PD4282D, PD4290D, PD4292D,

PD4293: M4 x 20

PD4298HD: M6 X 20

PD501OD, PD5020, PD5040:

Max

4600, 4600T: M6 x 20

5000: M8 x 30- ½” nylon spacers - sleeves

NOTE: If your flat panel display is not listed, go to (page 8) to determine the thread pitch for your flat panel.

- 5 -

SONY

Sanyo

VIEWSONIC

Sampo

PFM42B1,PFM42B2: M6 x 20 - 5/16” flat washers

PFM-42V1,PFM-42V2: M6 x 20”- 5/16” flat washers

PFM50C1: M5 x 20 - 5/16” flat washers

KE-42XBR900: M5 x 20 - 5/16” flat washers

KE50XBR900: M5 x 20 - 5/16” flat washers

KE42XS910: M5 x 20 - 5/16” flat washers

KDE61XBR950: M5 x 20 - 5/16” flat washers

PDP421A: M5 x 20 - ¼” nylon spacer (small)

PDP42H1NA: M5 x 20 - ¼” nylon spacer (small)

VPW420: M8 x 30 – ½” nylon space

s- sleeves

VPW425: M8 x 30 – ¼” nylon spacers (large)

VPW450HD: M8 x 30 – ¼” nylon spacers (large)

VPW500: M8 X 20

VPW505: M8 x 30 – ¼” nylon spacers (large)

PME42S6: M8 x 30 – ¼” nylon spacers (large)

PME42F61: M8 x 20, M8 x 35 – ¼” nylon spacers

(large)

PME50X6: M8 x 30 – ¼” nylon spacers (large)

Mitsubishi

PD5010HD, PD5030: M4 x 16

Monivision

PWV46AC, PD46W00: M6 x 20

NEC

4200W, 4210W, M4A,MP2, PX42M3A, 42PD1W, PD2

M5A,M5G, 42MP1, 42PD1, PX42VM1A, PX42VP1A,

PX42VP2A, 42MP3, 42PD3, PX42VP3A, 42MP4,

42VP4A, 42MX2: M4 X 16, 5000W, PX50M5A, 50PD1,

PX50VP1A, PX50MX1A, 50MP1, 50MP2, 50PD2,

50VP2, 50MP3,

50XM3: M4 X 16

Norcent

46WGA850: M6 x 12

Orion

PM4202: M5 x 16

Panasonic

TC42P1, PT42PD3P, PT42PD1P, TC42P1F, PT37P1,

TH42PWD3, TH37PWD4UZ, PT37PD4, TH37PW5EX,

TH37PA20UP, TH42PD4UY, TH42PWD4EX, PT42P1,

42PD2, TH42PWD3U, TH42PHD5U, PT42PD3P,

PT42PD4, PT42PHD4P, TH42PWD5UY, TH42PW5UZ,

TH42PWD6UY, TH42PA20UP, TH42PL20E,

TH42PAX20, TH50PHD3U, PT50PD3P, PT50PHD4P,

TH50PHD3E, TH50PHW3, TH50PD4, TH50PHD5UY,

TH50PHD6UY, TH50PL20E, TH50TX20UP:

M8 X 30 – ½” Nylon spacers – sleeves

TH42PX20U, TH50PX20U: M8 X 70 – 1-1/2” Nylon

spacers

Philips

42FD9934, 42FD9952, 42FD9954, 42PH9555,

42FD9935: M5 x 25 ½” Nylon spacers

BDS4611: M6 x 20

50FD9934/17S: M4 X 16

Pioneer

PDPV401, V402, PDP4330HD, PDP433HDE,

PDP433CMX, PDP433PU, PDP4300, PDP4340HD,

PRO800HD, PRO800HDI, PRO910HD, PDP4310,

PDP501X, V502MX, V502X, PDP503MX, V505,

PDP505HD, PRO1000HD, PDP503CMX, PDP5030HD,

PDP503HDE, PDP5031HD, PDP5040HD,

PRO1000HDI,PRO1110HD: M8 X 20

Planar

42N: M4 x 16

50P: M8 x 20

Princeton Graphics

R3.4FTW,

R4.6PDP: M6 x 20

Rainbow

Spectrum 3750: M6 x 20

RCA

PR42300, PHD42600, PHD50300, PHD50400: M4 X 16

PHD50500: M8 X 20

Revox

E1042: M6 x 20

E1050: M8 x 20

Runco

PL42C, CW42: M4 X 16

PL42CXPL50CX: M8 X 30, ½” Nylon spacers –

sleeves

E1050, PL50C, PL50HDX, CW50MC: M8 X 20

Samsung

PPM42S2, PPM42S3, SPL4225K, SPN4235, SPN4239:

SPK4215M, PK42P2S: M8 x 25 – ½” nylon spacers

PPM50H2, HPL5025K: M8 x 30 – ½” Nylon spacers -

sleeves

PPM50H3, HPN5039: M8 x 25 – ½” nylon spacers

Sharp

PZ42H2U, PZ43HV2U, PD50U, PZ50HV2U: M8 X 20

Tatung

P46T: M6 x 20

Toshiba

42HP82: M4 X 16

PD42W, PD42W1: M8 X 30 – ½ ” nylon spacers

(large) - sleeves

50HP81: M8 X 30 – ½” nylon spacers (large) - sleeves

50HP82: M4 X 16

SVA

HD4208TIII: M6 x 20 - ¼” nylon spacers

Tredex

TXP4600: M6 x 20

V-Inc

Vizio P1, Vizio P4: M6 x 12

Vidikron

VPW420: M8 X 30, ½” Nylon spacers (large) - sleeves

Yamaha

PDM1: M8 x 30 – ½” nylon spacers - sleeves

Zenith

DPDP40W, P40V22,DPDP40V, P40V24: M5 x 20 – ¼”

nylon spacers (small)

P42W22, P42W22B, P42W24P, P42W34P: P40V24:

M5 x 20 – ¼” nylon spacers (small)

P50W26, P50W28, P50W38: M5 x 16

NOTE: If your flat panel display is not

listed, go to (page 8) to determine the

thread pitch for your flat panel.

- 6 -

M4 x 25

M5 x 20

M5 x 50

M8 x 20

M6 x 30

(Qty 6)

(Qty 4)

(Qty 6)

(Qty 4)

(Qty 2)

M4 x 16 (Qty 8)

(Qty 8)

M5 x 12

M5 x 16 (Qty 6)

M5 x 25 (Qty 4)

M6 x 12 (Qty 8)

M8 x 25 (Qty 6)

M8 x 30 (Qty 6)

M8 x 35 (Qty 4)

M6 x 20 (Qty 6)

M8 x 70 (Qty 4)

Parts list

NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are

missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts.

Actual screw size

- 7 -

1/4" Nylon spacers

5/16" Flat washers

(metal)

1" Nylon spacers

1/4" Nylon spacers

9/16" Nylon spacers

(large)

(small)

1/2" Nylon spacers

(large) Nylon sleeves

(Qty 6)

(Qty 12)

(Qty 6)

(Qty 4)

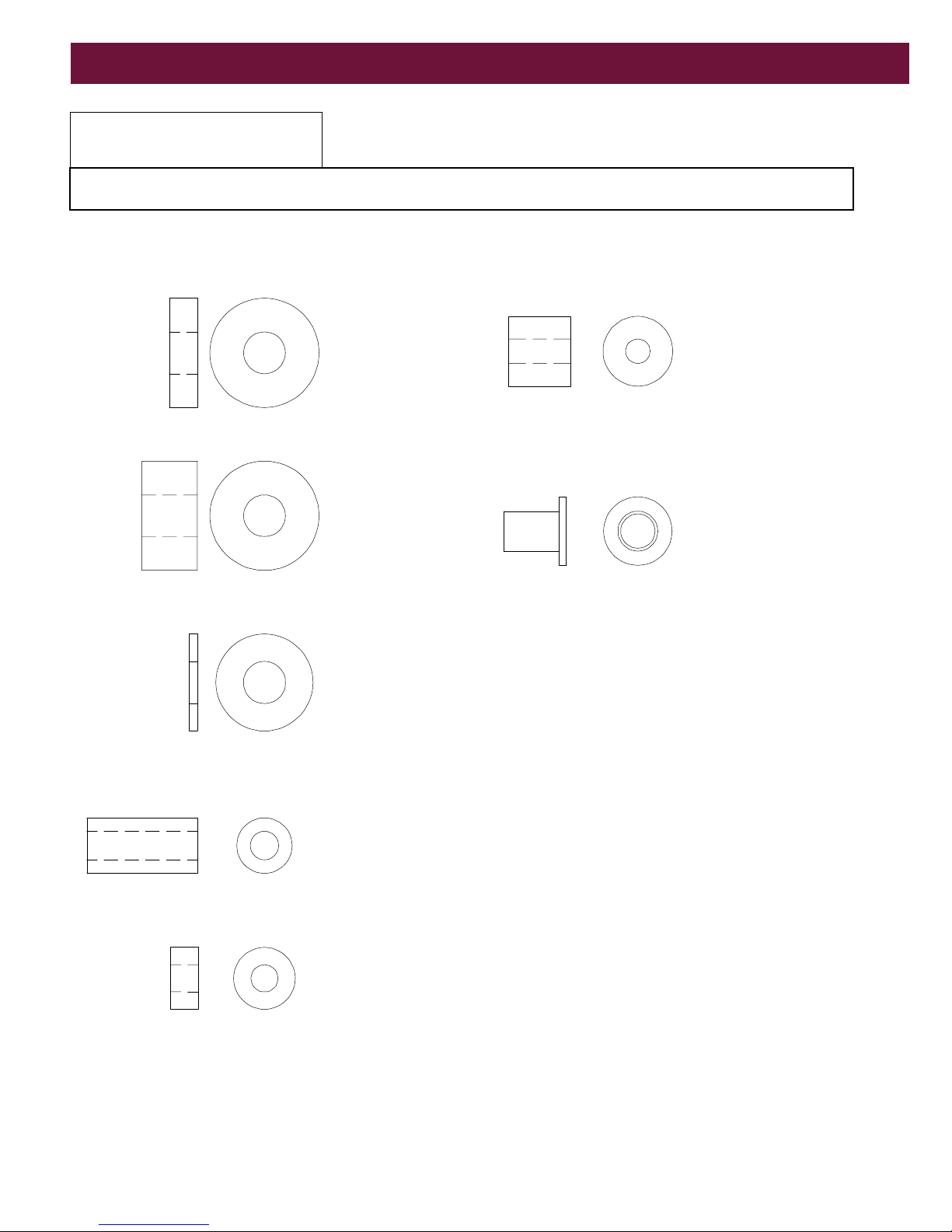

Nylon spacers and flat washers

actual size

Parts list (con’t)

NOTE: The nylon spacers may be staked to achieve proper spacing.

- 8 -

Checking the thread depth on your flat panel

Inverted flat panel

display

Thread insert

Thread depth

indicator

Figure 2

Figure 3

Figure 1

Markin

the de

1. Insert the thread depth

indicator (supplied)

through the thread inserts

found on the back of the

flat panel to make sure the

inserts measure the same

full depth and mark it.

(see figure 1)

2. Locate the correct

diameter screw for the

thread insert. Compare

your marking to the

screws (supplied). If your

selected screw is longer

than the marking on the

thread depth indicator DO

NOT USE this screw.

The screw length must not

bypass the marking. Select

another screw size

(see figure 2 and 3). Until

you find one that comes

closest to your mark

without going past.

Marking

Screw

Marking

Screw

Thread de

th indicator

Thread de

th indicator

- 9 -

Parts list (con’t)

Level (1)

M6 x 12 Safety knobs (2)

5/16" flat washers (8)

5/16" x 3" Lag bolts (8)

(used on wood studs

only)

Template (1)

Griplates™ (8)

Wall plates (2)

Mounting brackets

(left & right)

M6 x 30 Lateral shift

locking screws (2)

All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing

efore beginning

installation. If there are parts missing stop the installation and contact Premier Mounts.

Thread depth

indicator (1)

- 10 -

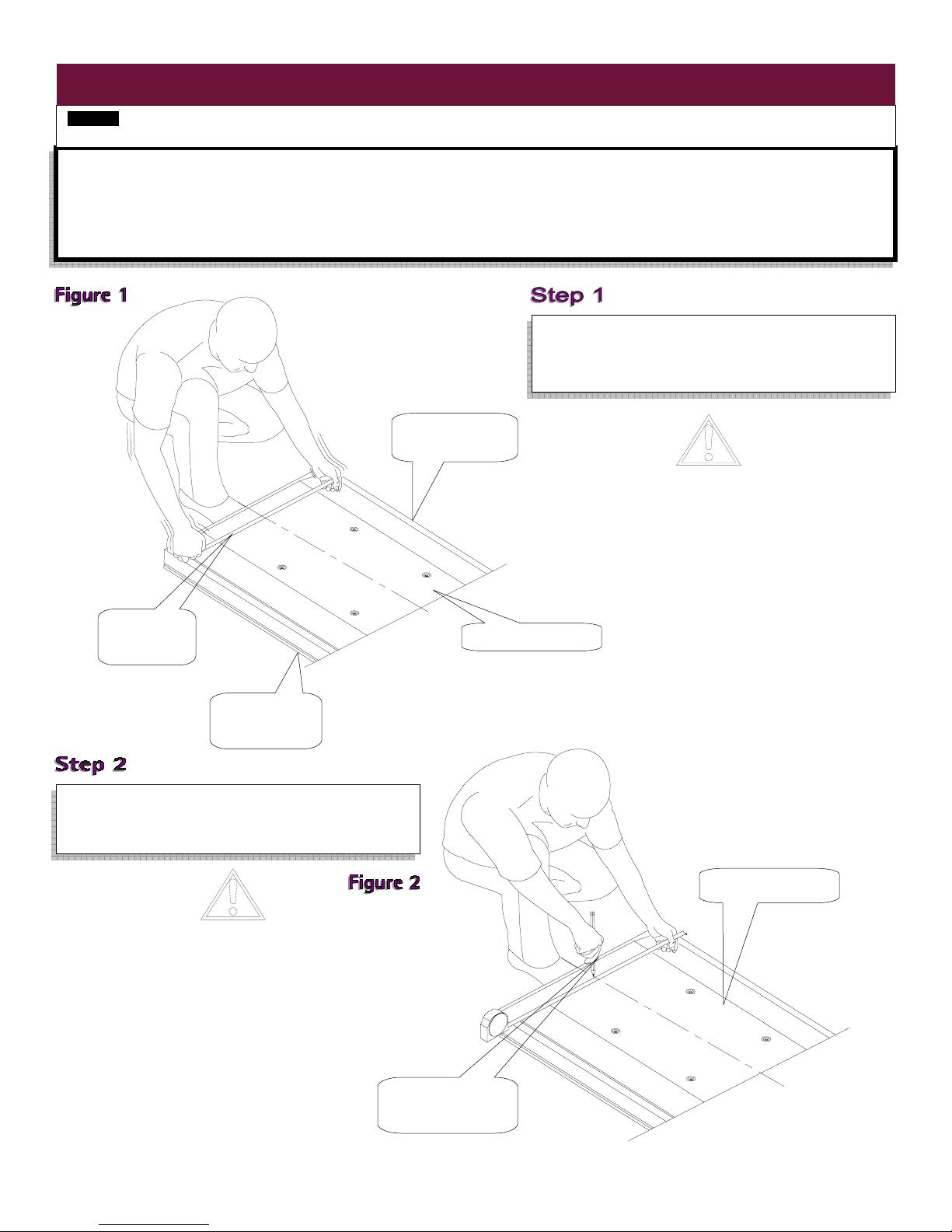

Finding center of the flat panel display

Once the flat panel is inverted, use a measuring

tape to find the center of your flat panel measuring

from outside to outside of the chassis. See figure 1.

Using a pencil lightly mark the center of your flat

panel.

See figure 2.

nverted flat

anel

Top of flat

panel

Bottom of flat

panel

Mark the center of

the flat panel

Measuring

tape

Inverted flat panel

WARNING!

INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO

DO SO WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY PROTECTION TO THE GLASS. THE

FLAT PANEL IS HEAVY AND FRAGILE. AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT.

FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL.

WARNING : Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could

result in serious personal injury and possible damage to the flat panel.

Autres manuels pour PCM-MS2

Table des matières

Autres manuels Premier Mounts Support et étagère

Premier Mounts

Premier Mounts LMV Manuel utilisateur

Premier Mounts

Premier Mounts Rotary RTM-S Manuel utilisateur

Premier Mounts

Premier Mounts LMVSP Manuel utilisateur

Premier Mounts

Premier Mounts PP-FCTA-QL Manuel utilisateur

Premier Mounts

Premier Mounts 7170-0977 Series Manuel utilisateur

Premier Mounts

Premier Mounts PBC-1.5 Series Manuel utilisateur

Premier Mounts

Premier Mounts ECM-3763D Manuel utilisateur

Premier Mounts

Premier Mounts On-Wall Equipment GearBox UNI-GB Manuel utilisateur

Premier Mounts

Premier Mounts AM50 Manuel utilisateur

Premier Mounts

Premier Mounts CTM-MS1 Manuel utilisateur

Premier Mounts

Premier Mounts CONVERGENT TVF Series Manuel utilisateur

Premier Mounts

Premier Mounts PP-6 Manuel utilisateur

Premier Mounts

Premier Mounts Universal Projector Mount PBL-UMS Manuel utilisateur

Premier Mounts

Premier Mounts MVW55 Manuel utilisateur

Premier Mounts

Premier Mounts PSP-DB Manuel utilisateur

Premier Mounts

Premier Mounts AM95 Manuel utilisateur

Premier Mounts

Premier Mounts PSD-SPA Manuel utilisateur

Premier Mounts

Premier Mounts AST-2446-2 Manuel utilisateur

Premier Mounts

Premier Mounts UFA Manuel utilisateur

Premier Mounts

Premier Mounts UMB-DBTS Manuel utilisateur

Premier Mounts

Premier Mounts PSD-TL Manuel utilisateur

Premier Mounts

Premier Mounts ECM-3763T Manuel utilisateur

Premier Mounts

Premier Mounts AST-1321 Manuel utilisateur

Premier Mounts

Premier Mounts Convergent UNI-UPS-A CLD Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
