Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

UNI-PDS/UNI-EPDS

Page 2 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

Table of Contents

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR

PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR

MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION

OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR

MODIFICATIONS.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER

SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualied people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the

projector.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud nder is

recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in

wall. Cutting/drilling into an electrical line may cause serious injury.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

[email protected]

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY UN-

DERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP

THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water

damage to the mounting surface.

Weight Capacity

Maximum projector weight: 50 lb. THE WALL STRUCTURE MUST BE CAPABLE OF HOLDING FIVE

(5) TIMES THE WEIGHT OF THE PROJECTOR. IF NOT, THEN THE

WALL STRUCTURE MUST BE REINFORCED.

Warning Statements

Weight Capacity 2

Warning Statements 2

Installation Tools 3

Parts List 3

PDS-PLUS-STA/PDS-PLUSW-STA Mounting Hardware 4

Lock-It™ Security Pack 4

Determining the Installation Height 5

Wood Stud Installation 6

Attaching the Projector Arm 7

Throw Distance Calculation 8

Adjustable Mounting Bracket Installation 9

Attaching the Base Box to the Adjustable Mounting Bracket 10

Extension Arm Installation (Optional) 10

Low Prole Bracket Installation 11

Attaching the Base Box to the Upper Mounting Plate 11

Attaching the Universal Projector Plate 12

Attaching the Projector 16

Base Box Adjustment 16

Set Screw Installation 17

Utilizing the Storage Feature 17

Cable Management 18

Technical Specications 19

Warranty 20

Disclaimer 20

UNI-PDS/UNI-EPDS

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 3

Wall Plate

(Qty 1)

Arm Assembly

(Qty 1)

Adjustable Mounting Assembly

- Pre-Assembled (Qty 1)

End Cover

(Qty 1)

M5 x 8mm Security

Screws (Qty 7)

External Slide Plate

(Qty 1)

Square Washers

(Qty 4)

Phillips Screwdriver ¼˝ Drill Bit Electronic Stud Finder

Drill

Level

½˝ Socket and Socket

Wrench

Extension Arm - Optional (Qty 1)

included with the UNI-EXT

Back Plate Covers

(Qty 2)

M6 x 12mm Security

Screws (Qty 2)

Extension Hardware Pack

M6 x 12mm Security

(Qty 2)

M6 x 16mm Security

Screws (Qty 2)

M6 Flat Washer

(Qty 2)

Internal Slide Plate

(Qty 1)

Parts List

Installation Tools

The following tools may be required depending upon your particular installation. They are not included.

Make sure your Premier Mounts product has the following hardware and components before beginning installation. If

there are parts missing and/or damaged, stop the installation and call Premier Mounts at (800) 368-9700.

UNI-PDS/UNI-EPDS Hardware

16˝ x 3˝ Lag Bolts

(Qty 4)

Projector Bracket

(Qty 1)

Mounting Legs - Long

(Qty 4)

Mounting Legs - Short

(Qty 4)

⅛˝ Nylon Spacer

(Qty 2)

UNI-PDS/UNI-EPDS

Page 4 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

PDS-PLUS-STA/PDS-PLUSW-STA Mounting Hardware

Parts List (cont’d)

M2.5 x 12mm Screw

(Qty 4)

M3 x 16mm Screw

(Qty 4)

M4 x 12mm Screw

(Qty 4)

M5 x 12mm Screw

(Qty 4)

M6 x 12mm Screw

(Qty 8)

M3 Flat Washer

(Qty 10)

M6 x 8mm Set Screw

(Qty 1)

Base Box

(Qty 1)

¼˝ - 20 x 5

16˝ Screw

(Qty 1)

External Tooth Washer

(Qty 4)

M6 x 12mm Phillips Head

w/Integrated Split Washer

(Qty 12; 6 pre-installed)

M2.5 x 10mm Phillips Pan Head

Screw (Qty 4)

M6 x 8mm Security Set Screw

(Qty 1)

M2.5 x 12mm Security

Screw (Qty 4)

M3 x 16mm Security

Screw (Qty 4)

M4 x 12mm Security

Screw (Qty 4)

M5 x 12mm Security

Screw (Qty 4)

M6 x 12mm Security

Screw (Qty 8)

M3 Flat Washer

(Qty 10)

M6 x 12mm Security Head

w/Integrated Split Washer

(Qty 12)

Security Wrenches

(Qty 2)

Lock-It™ Security Pack

Nylon Spacer

(Qty 2)

Flat Washer

(Qty 2)

¼˝ - 20 x 5

16˝ Security Screw

(Qty 1)

M2.5 x 10mm Security

Screw (Qty 4)

UNI-PDS/UNI-EPDS

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 5

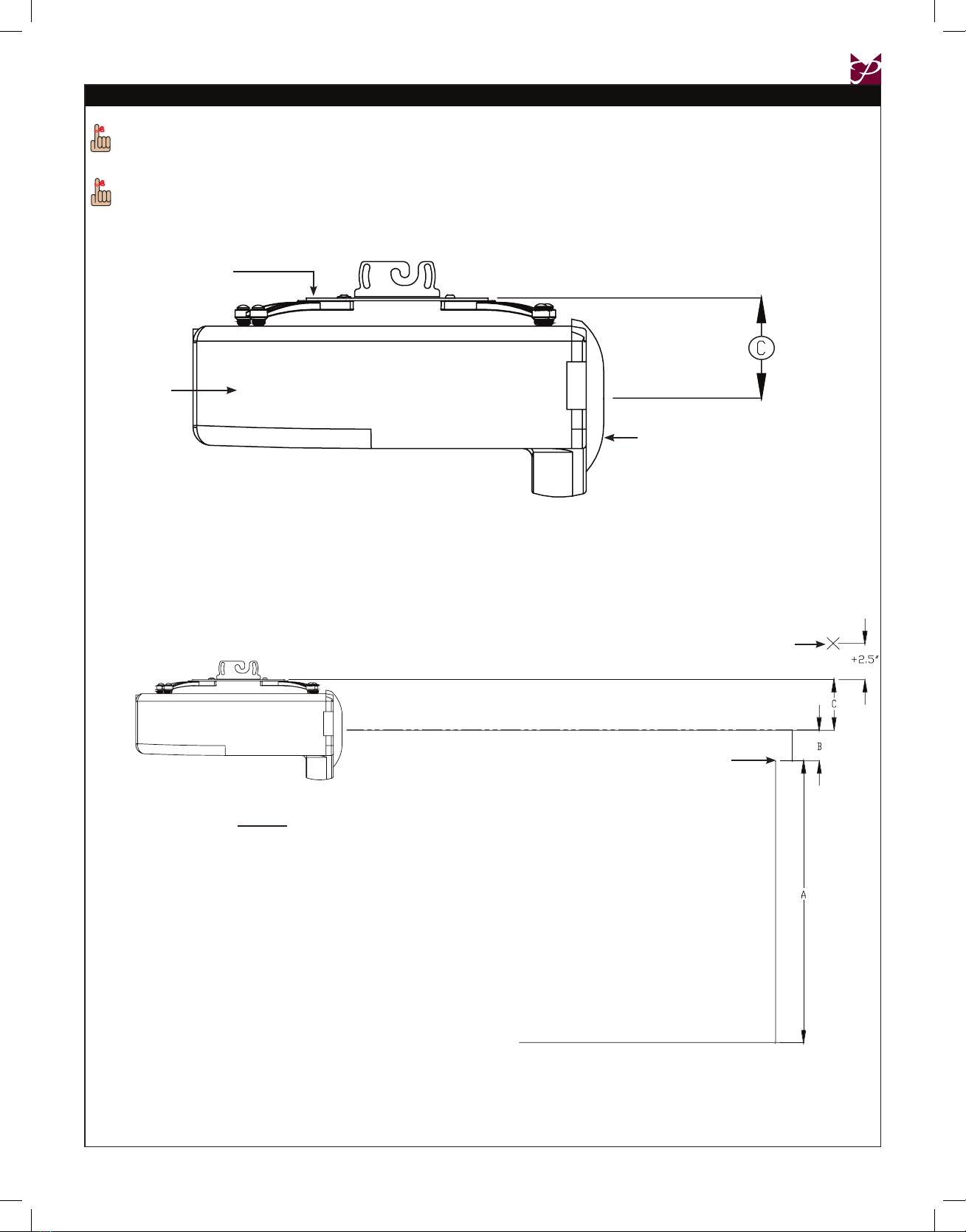

 Measure distance from center of lens to the top of the PDS-PLUS bracket (C).

 Add the distance from the ground to the top of the screen (A). Add the projector manufacturers recommended

offset from the projector manual (B). Add the measurement from Step 1 (C), and then add 2.5˝ to the total.

(Example: A + B + C + 2.5˝ = ?)

 Add the measurements to determine the mounting height mark. Place a mark at the top of the total calculated height measurement starting from the ground up.

This mark will represent the lower edge of the wall plate.

Refer to the projectors User’s Manual to determine the offset of the projector lens to the top of the

screen/whiteboard (B).

Lens

PDS-PLUS Bracket

Projector

In order to determine the installation height and throw distance, the PDS-PLUS projector bracket must be mounted

to the projector. Please refer to the PDS-PLUS Installation Instructions prior to performing the following steps.

Top of Screen

Mark

Legend

A - Distance from ground to the top of the

screen/whiteboard (viewable area).

B - Manufacturers recommended offset

measurement. This measurement will

be listed in the Users Manual.

C - Center of the lens to the top of the

projector bracket.

Add 2.5˝ to the calculated total.

This total distance will be the location for the bottom rail on

the wall plate.

Proceed to the “Wood Stud Installation” section.

Ground

Determining the Installation Height

UNI-PDS/UNI-EPDS

Page 6 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

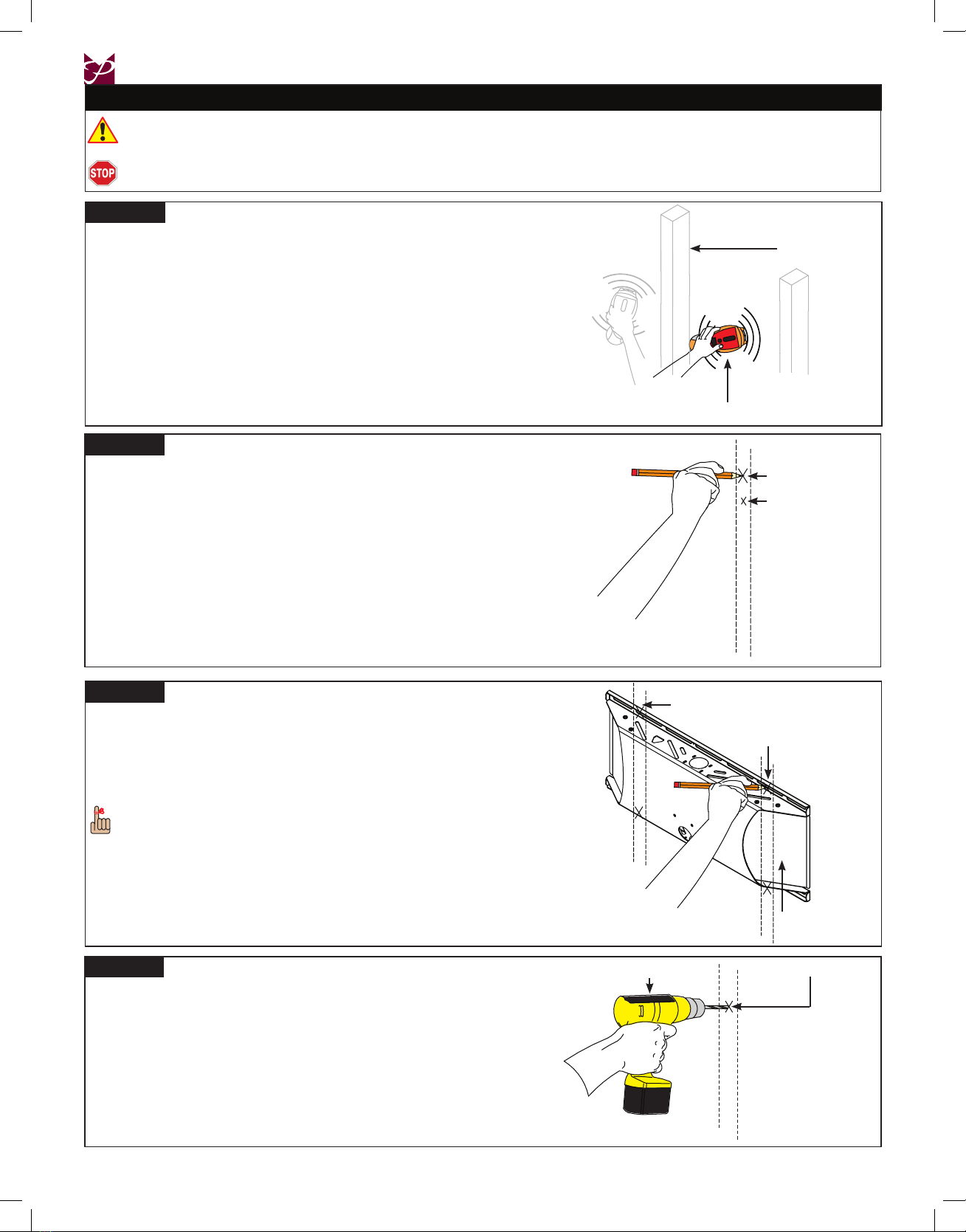

THE EXACT CENTER OF THE STUD MUST BE LOCATED FOR CORRECT AND SAFE INSTALLATION.

Use an electronic stud nder (not supplied) to

locate the center of the stud that is in the wall. Wood Stud

Stud nder

Height

Mark

(from page 5)

Wood Stud

Marking

Wall

Plate

Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal

injury or damage to property.

Once the mounting points have been marked, use a

¼˝ drill bit and portable drill to drill the pilot holes.

Drill Marking

Wood Stud Installation

Mounting Point

Mark

Step 1

Step 2

Step 4

Use a pencil to mark the rst mounting point, just

above your height mark (from page 5).

Step 3

 Use the level to make sure the wall plate is level from side to side.

 Place the wall plate over the rst mounting point mark and use a pencil to

mark the rest of the mounting points.

Four (4) mounting points must be used. Two (2)

upper mounting points and two (2) lower mounting

points.

UNI-PDS/UNI-EPDS

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 7

 Locate the mounting hook cutout on the top of the wall plate.

 Tilt the arm slightly and gently insert the mounting hooks into the mounting

hook cutouts.

 Slowly lower and let the projector arm rest against the wall plate.

Mounting Hook Cutout

Mounting Hooks

Wall Plate

Projector Arm

MAKE SURE THE PROJECTOR ARM IS FULLY

SEATED BEFORE RELEASING THE UNIT.

Attaching the Projector Arm

If using the storage feature of the product, it

may be easier to route any wiring at this time

(please see Page 12).

After the pilot holes have been drilled, use four (4)

16˝ x 3˝ lag bolts and four (4) square washers to

mount the wall plate to the wooden studs.

Use a ½˝ socket and socket wrench to nish this step.

Socket

Lag Bolt and Square Washer

Wall

Plate

Proceed to the “Attaching the Projector Arm” section.

Back Plate Covers

Step 6

Step 5

Insert and gently tap the upper and lower back plate covers into place.

Step 1

UNI-PDS/UNI-EPDS

Page 8 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

Please review the Operator’s Manual that came packaged with your projector before attaching the upper

mounting bracket. The correct throw distance (the distance from the projector to the screen) must be

determined prior to mounting the projector.

 Refer to the projectors Users Manual to determine the

distance from the lens to the front of the screen (X).

 Measure the distance from the front of

the lens to the center of the projector (Y).

 Measure the distance from the wall to the face of the

whiteboard/screen (Z).

 Add all measurements (X + Y + Z) to

determine projector placement on the arm assembly. This

measurement will determine where the center of the mount

bracket will be located on the arm assembly. Please make

note of this measurement.

Front Lens

Rear Lens

Calculations

X = Manufacturers recommended

throw distance

Z = Distance from wall to face of

whiteboard/screen

Front Lens Throw Distance =

(X + Y + Z)

Rear Lens Throw Distance =

(X - Y + Z)

Throw Distance Calculation

The UNI-PDS/UNI-EPDS can be also used as

a wall-mounted standard projector mount as

well as a short throw projector mount. Align

the projector facing the opposite direction

from the wall plate to project the image

across the room. Please take into account

the projectors throw capabilities prior to

mounting in the projector opposite direction

 Locate the two (2) lock mounting points on the projector arm. These two

points will be aligned with the lock mounting points on the wall plate.

 Using a security wrench, insert and tighten two (2)

M5 x 8mm security head screws.

Do NOT overtighten these screws.

Step 2

Lock Mounting

Point

M5 x 8mm Security

Head Screw

Security Wrench

Proceed to the “Throw Distance Calculation” section.

Proceed to the “Adjustable Mounting Bracket

Installation” section.

UNI-PDS/UNI-EPDS

Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 9

Security

Wrench

 If needed, determine the Throw Distance

again.

 Once the correct throw distance has been

determined, use the security wrench (supplied) to tighten the

mounting screws.

Do NOT overtighten these screws.

If the adjustable mounting bracket needs

to be adjusted, the four (4) M6 x 12mm

security screws may be loosened so that

the bracket can be moved ±2˝. Once the

desired height has been achieved,

re-tighten the hardware.

 Insert the inner slide plate into the

projector arm.

 Determine which adjustment slot best

matches your throw distance

calculation (above).

 Raise the adjustable mounting bracket

into position.

 Align the mounting holes of the upper

mounting plate with the mounting holes

of the inner slide plate.

Two (2 - one per screw) ⅛˝ nylon

washers must be placed between the

adjustable mounting bracket and the

projector arm (see inset to the right).

 Secure and nger-tighten two (2)

M6 x 16mm security head screws.

Projector Arm

Inner Slide

Plate

Adjustable

Mounting

Bracket

M6 x 16mm

Security

Screw

Adjustment

Slot

Calculated

Throw

Distance

⅛˝ Nylon

Washer

Adjustable Mounting Bracket Installation

Upper Mounting

Plate

If using the optional extension arm,

proceed to Page 10.

Proceed to the “Attaching the Base Box to the

Adjustable Mounting Bracket” section.

UNI-PDS/UNI-EPDS

Page 10 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

 Raise the base box to the upper mounting bracket.

 Align the two (2; one each side) mounting holes.

 Using a security wrench, insert and tighten two (2) M6 x 12mm security

head screws.

 Attach the projector to the base box, referring to the PDS-PLUS

installation instructions for nal adjustments.

Attaching the Base Box to the Adjustable Mounting Bracket

The M6 x 12mm security head screws must be

mounted from the underside of the base box.

Base Box

M6 x 12mm Screws

Security Wrench

Adjustable Mounting

Bracket

 Slide the extension arm into the open end of the UNI-STA (the front of the

mount).

 Adjust length so that the center of the adjustable mounting bracket

matches the throw distance calibration.

 Line up the mounting holes on the extension arm with the mounting slots

on the UNI-STA.

 Using a screwdriver, insert and tighten two (2)

M6 x 12mm security head screws and M6 at washers through the

external slide plate and tighten.

 Attach the projector.

Please refer to Attaching the Base Box to the

AdjustableMountingBracket (above) for steps on

attaching the projector.

M6 x 12

Security

Screw

Security Wrench

M6 Flat

Washers

Adjustable

Mounting

Bracket

UNI-STA

If the extension arm is purchased at a later date, the end cover must be removed prior to installing the extension

arm.

Please see the Operator’s Manual to determine the correct throw distance (the distance from the projector to the

screen). The throw distance must be determined prior to mounting the projector (Page 8).

Extension Arm

(Optional)

Extension Arm Installation (Optional)

External Slide

Plate

Do NOT overtighten these screws.

Proceed to the “Low Prole Bracket Installation”

section.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Premier Mounts Support et étagère

Premier Mounts

Premier Mounts PRC-LA Manuel utilisateur

Premier Mounts

Premier Mounts PSM-442T Manuel utilisateur

Premier Mounts

Premier Mounts SVL Series Manuel utilisateur

Premier Mounts

Premier Mounts INW-UNIFM Manuel utilisateur

Premier Mounts

Premier Mounts MVWS-3X3 Series Manuel utilisateur

Premier Mounts

Premier Mounts MM-CP15 Manuel utilisateur

Premier Mounts

Premier Mounts VPM Manuel utilisateur

Premier Mounts

Premier Mounts BW-BASE Manuel utilisateur

Premier Mounts

Premier Mounts PSP-DB Manuel utilisateur

Premier Mounts

Premier Mounts Press and Release LMVP Manuel utilisateur

Premier Mounts

Premier Mounts AM175 Manuel utilisateur

Premier Mounts

Premier Mounts Elliptical Floor Cart and Stand PSD-EB72C Manuel utilisateur

Premier Mounts

Premier Mounts PBM-760L Manuel utilisateur

Premier Mounts

Premier Mounts RFM Manuel utilisateur

Premier Mounts

Premier Mounts USA Manuel utilisateur

Premier Mounts

Premier Mounts Universal Flat Mount FM3 Manuel utilisateur

Premier Mounts

Premier Mounts PBC- UMW Manuel utilisateur

Premier Mounts

Premier Mounts PP-6 Manuel utilisateur

Premier Mounts

Premier Mounts PP-FCTA-QL Manuel utilisateur

Premier Mounts

Premier Mounts SCM-103 Manuel utilisateur

Premier Mounts

Premier Mounts PFC-OMND Manuel utilisateur

Premier Mounts

Premier Mounts 7170-0977 Series Manuel utilisateur

Premier Mounts

Premier Mounts Convergent Series Manuel utilisateur

Premier Mounts

Premier Mounts PRC Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
